MAX326ESE+T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> MAX326ESE+T

MAX326ESE+T: Descriptionanalog switch ics quad spst cmos ultra-low-leakage; CategoryAnalog mixed-signal IC The signal circuit; File Size309KB，8 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

MAX326ESE+T Overview

analog switch ics quad spst cmos ultra-low-leakage

MAX326ESE+T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	SOIC
package instruction	SOP, SOP16,.25
Contacts	16
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	8 weeks
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G16
JESD-609 code	e3
length	9.9 mm
Humidity sensitivity level	1
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NC
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	70 dB
On-state resistance matching specifications	75 Ω
Maximum on-state resistance (Ron)	3500 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
output	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply current (Isup)	0.25 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	500 ns
Maximum connection time	1000 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	3.9 mm

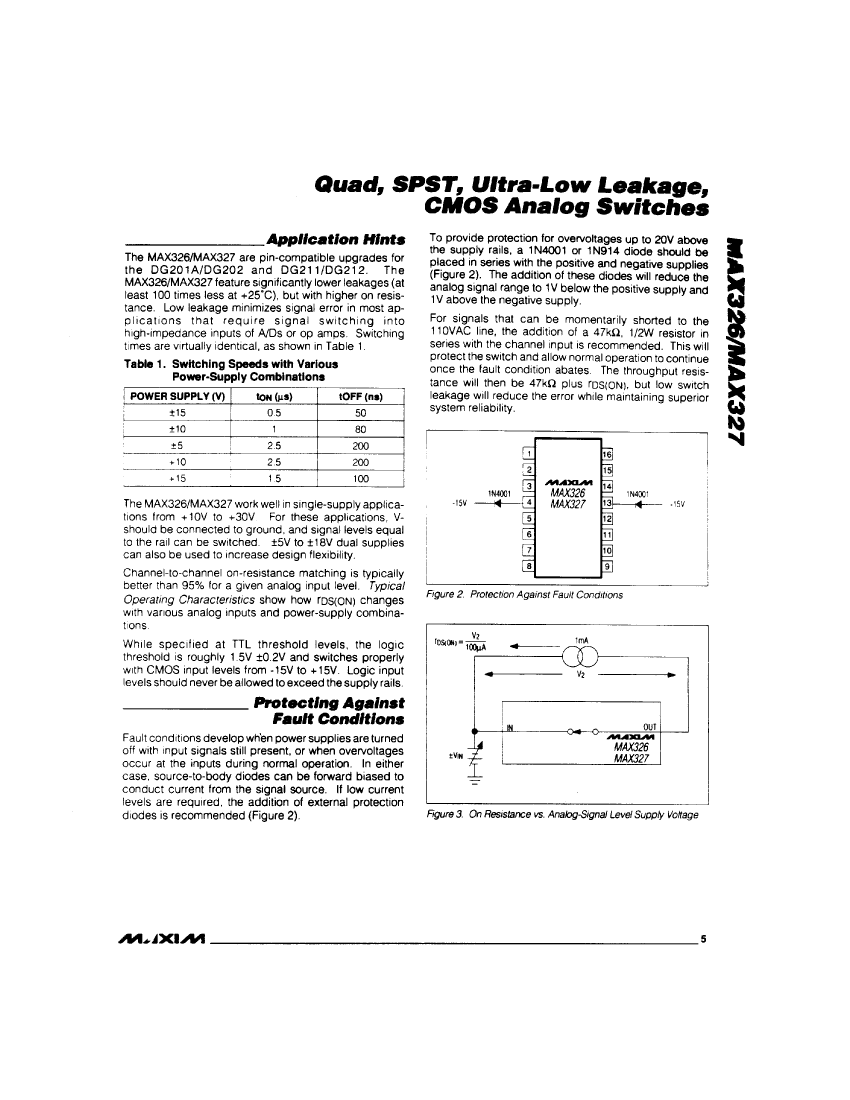

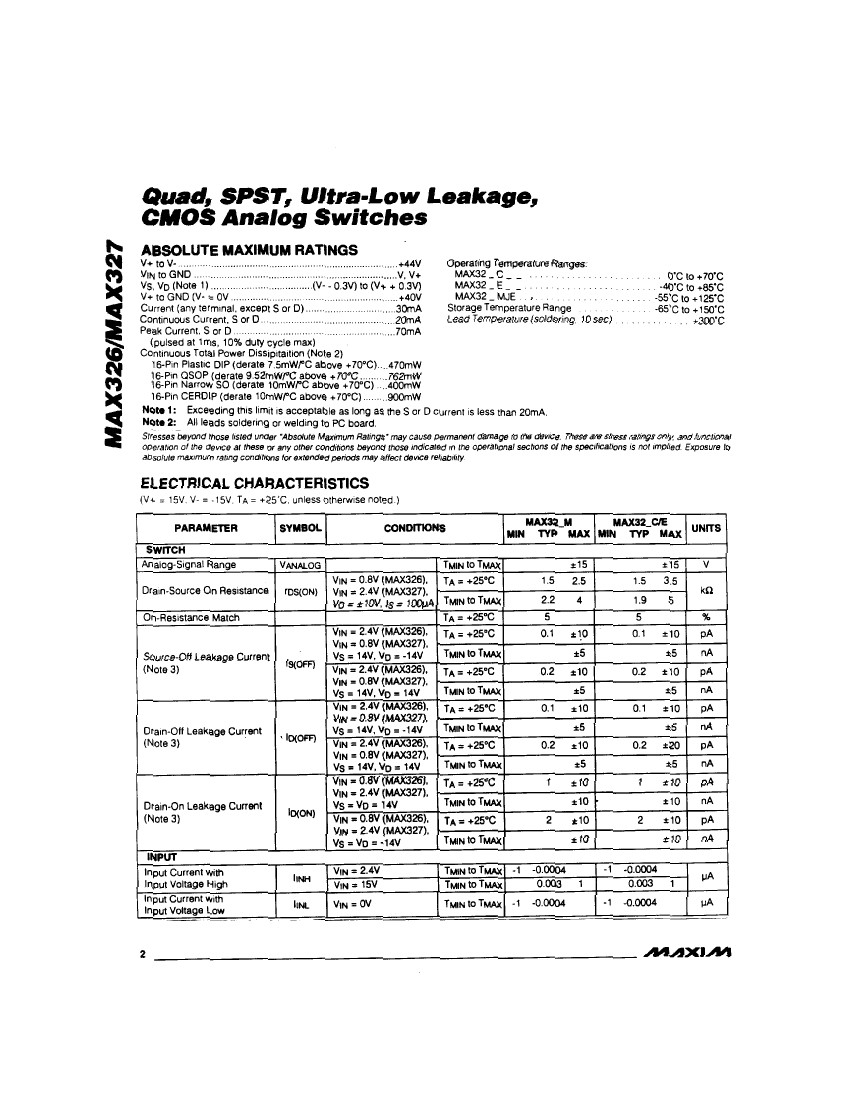

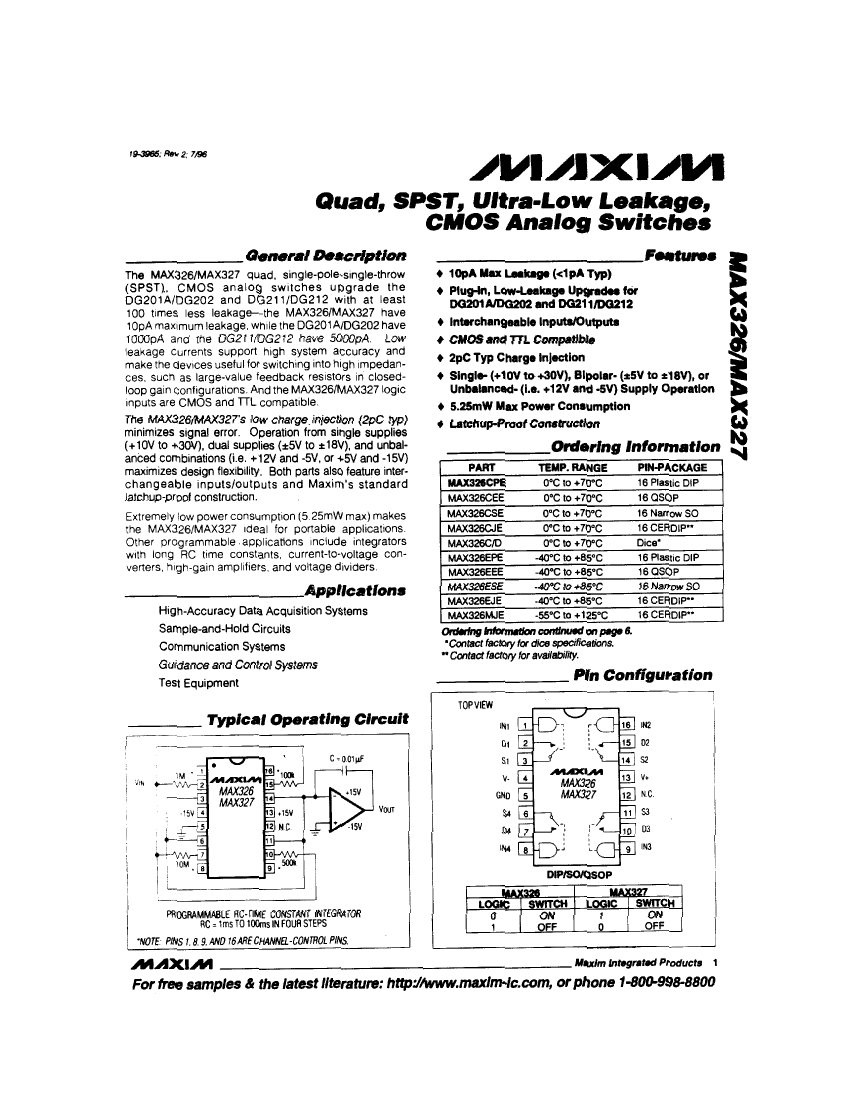

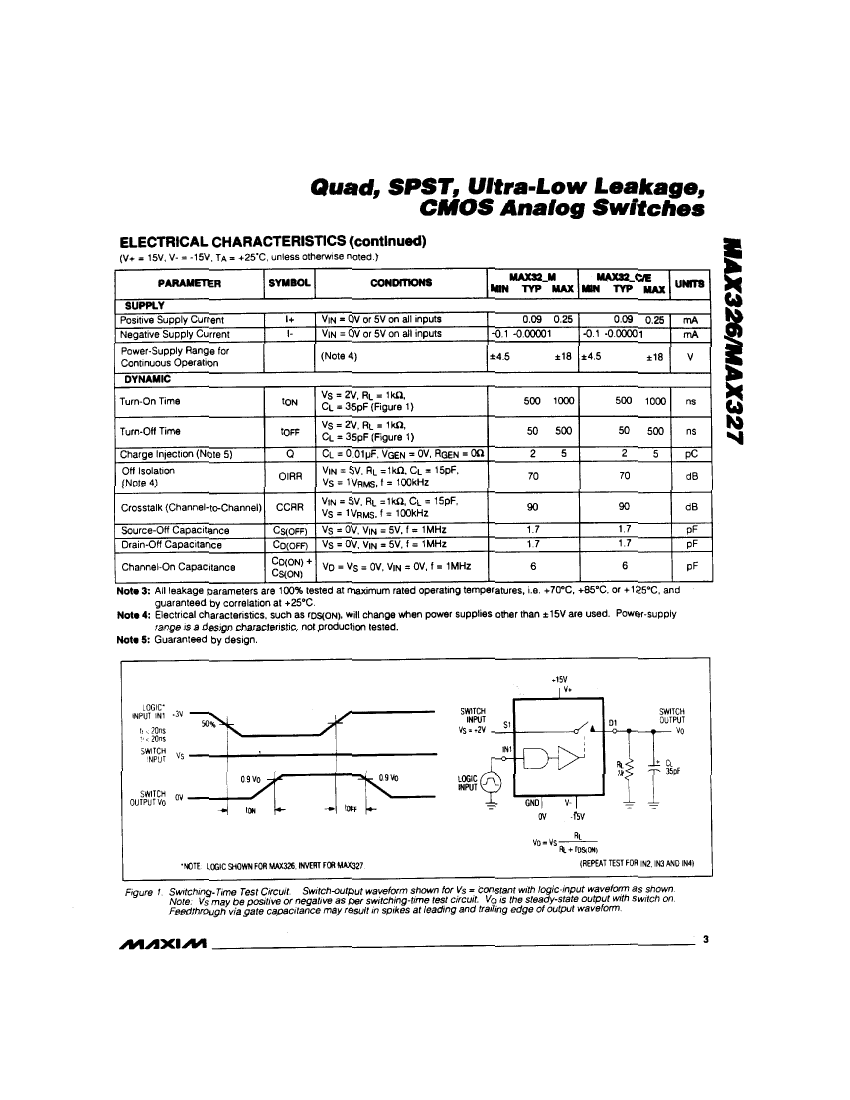

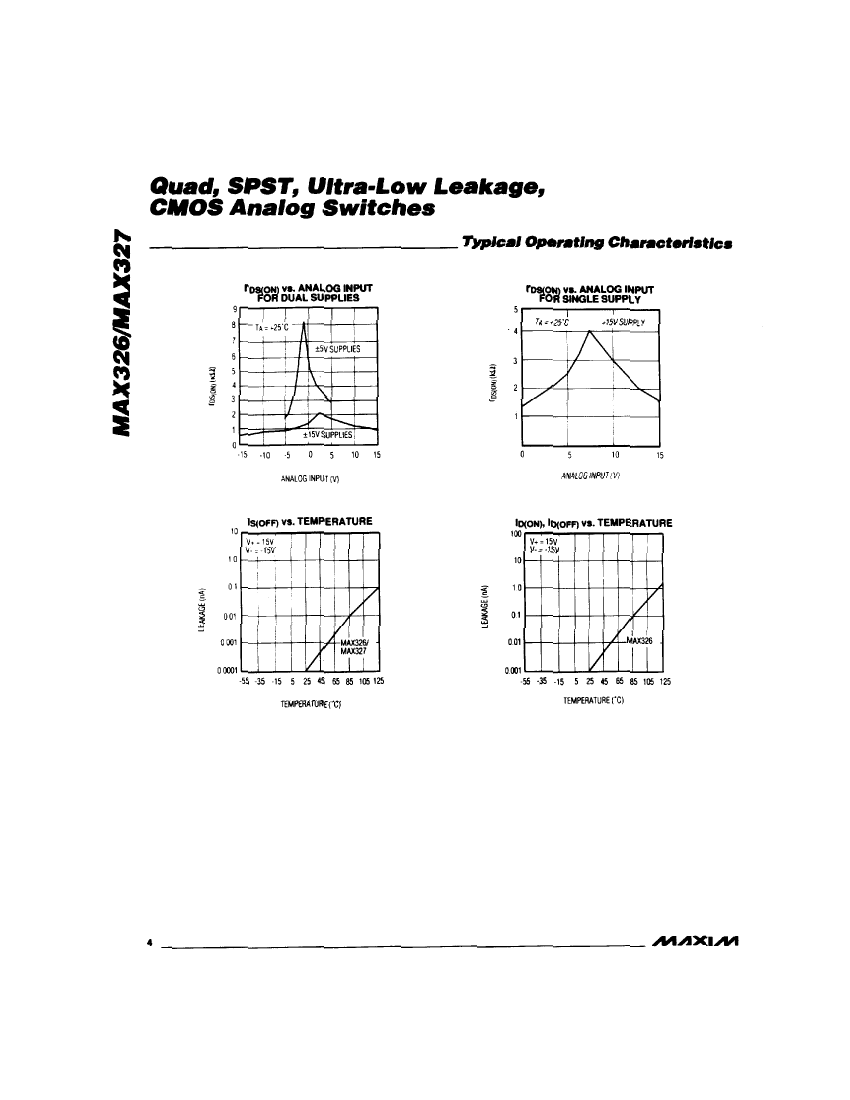

Preview

Download Datasheet

View All

MAX326ESE+T Related Products

	MAX326ESE+T	MAX327ESE+T	MAX326CEE+T	MAX326CSE+T	MAX326CPE+	MAX326ESE+	MAX327CPE+	MAX326CSE+
Description	analog switch ics quad spst cmos ultra-low-leakage	analog switch ics quad spst cmos ultra-low-leakage	analog switch ics quad spst cmos ultra-low-leakage	analog switch ics quad spst cmos ultra-low-leakage	analog switch ics quad spst cmos ultra-low-leakage	analog switch ics quad spst cmos ultra-low-leakage	analog switch ics quad spst cmos ultra-low-leakage	analog switch ics quad spst cmos ultra-low-leakage
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	SOIC	SOIC	SOIC	SOIC	DIP	SOIC	DIP	SOIC
package instruction	SOP, SOP16,.25	SOP, SOP16,.25	SSOP, SSOP16,.25	SOP, SOP16,.25	0.300 INCH, PLASTIC, DIP-16	SOP, SOP16,.25	DIP, DIP16,.3	SOP, SOP16,.25
Contacts	16	16	16	16	16	16	16	16
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compliant
Factory Lead Time	8 weeks	12 weeks	6 weeks	6 weeks	6 weeks	6 weeks	6 weeks	6 weeks
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
length	9.9 mm	9.9 mm	4.9 mm	9.9 mm	19.175 mm	9.9 mm	19.175 mm	9.9 mm
Humidity sensitivity level	1	1	1	1	1	1	1	1
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
normal position	NC	NO	NC	NC	NC	NC	NO	NC
Number of channels	1	1	1	1	1	1	1	1
Number of functions	4	4	4	4	4	4	4	4
Number of terminals	16	16	16	16	16	16	16	16
Nominal off-state isolation	70 dB	70 dB	70 dB	70 dB	70 dB	70 dB	70 dB	70 dB
On-state resistance matching specifications	75 Ω	75 Ω	75 Ω	75 Ω	175 Ω	75 Ω	75 Ω	75 Ω
Maximum on-state resistance (Ron)	3500 Ω	3500 Ω	3500 Ω	3500 Ω	3500 Ω	3500 Ω	3500 Ω	3500 Ω
Maximum operating temperature	85 °C	85 °C	70 °C	70 °C	70 °C	85 °C	70 °C	70 °C
output	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT	SEPARATE OUTPUT
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SSOP	SOP	DIP	SOP	DIP	SOP
Encapsulate equivalent code	SOP16,.25	SOP16,.25	SSOP16,.25	SOP16,.25	DIP16,.3	SOP16,.25	DIP16,.3	SOP16,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260	260
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	1.75 mm	1.75 mm	4.572 mm	1.75 mm	4.572 mm	1.75 mm
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	YES	YES	YES	NO	YES	NO	YES
Maximum disconnect time	500 ns	500 ns	500 ns	500 ns	500 ns	500 ns	500 ns	500 ns
Maximum connection time	1000 ns	1000 ns	1000 ns	1000 ns	1000 ns	1000 ns	1000 ns	1000 ns
switch	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Tin (Sn)	Tin (Sn)	Matte Tin (Sn)	Tin (Sn)	Matte Tin (Sn)	Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	1.27 mm	0.635 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	NOT SPECIFIED	NOT SPECIFIED	30	30	NOT SPECIFIED	NOT SPECIFIED	30
width	3.9 mm	3.9 mm	3.9 mm	3.9 mm	7.62 mm	3.9 mm	7.62 mm	3.9 mm
Maker	Maxim	Maxim	Maxim	Maxim	-	-	Maxim	-
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum supply current (Isup)	0.25 mA	-	0.25 mA	0.25 mA	-	0.25 mA	-	0.25 mA
