MAX160EPN+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> MAX160EPN+

MAX160EPN+: Descriptionanalog to digital converters - adc 8-bit 250ksps -15v precision adc; CategoryAnalog mixed-signal IC converter; File Size462KB，12 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

MAX160EPN+ Overview

analog to digital converters - adc 8-bit 250ksps -15v precision adc

MAX160EPN+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	DIP
package instruction	DIP, DIP18,.3
Contacts	18
Reach Compliance Code	compli
ECCN code	EAR99
Maximum analog input voltage	10 V
Minimum analog input voltage	-10 V
Maximum conversion time	6 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDIP-T18
JESD-609 code	e3
length	22.86 mm
Maximum linear error (EL)	0.3%
Humidity sensitivity level	1
Number of analog input channels	1
Number of digits	8
Number of functions	1
Number of terminals	18
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output bit code	BINARY, OFFSET BINARY, COMPLEMENTARY OFFSET BINARY
Output format	PARALLEL, 8 BITS
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.572 mm
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

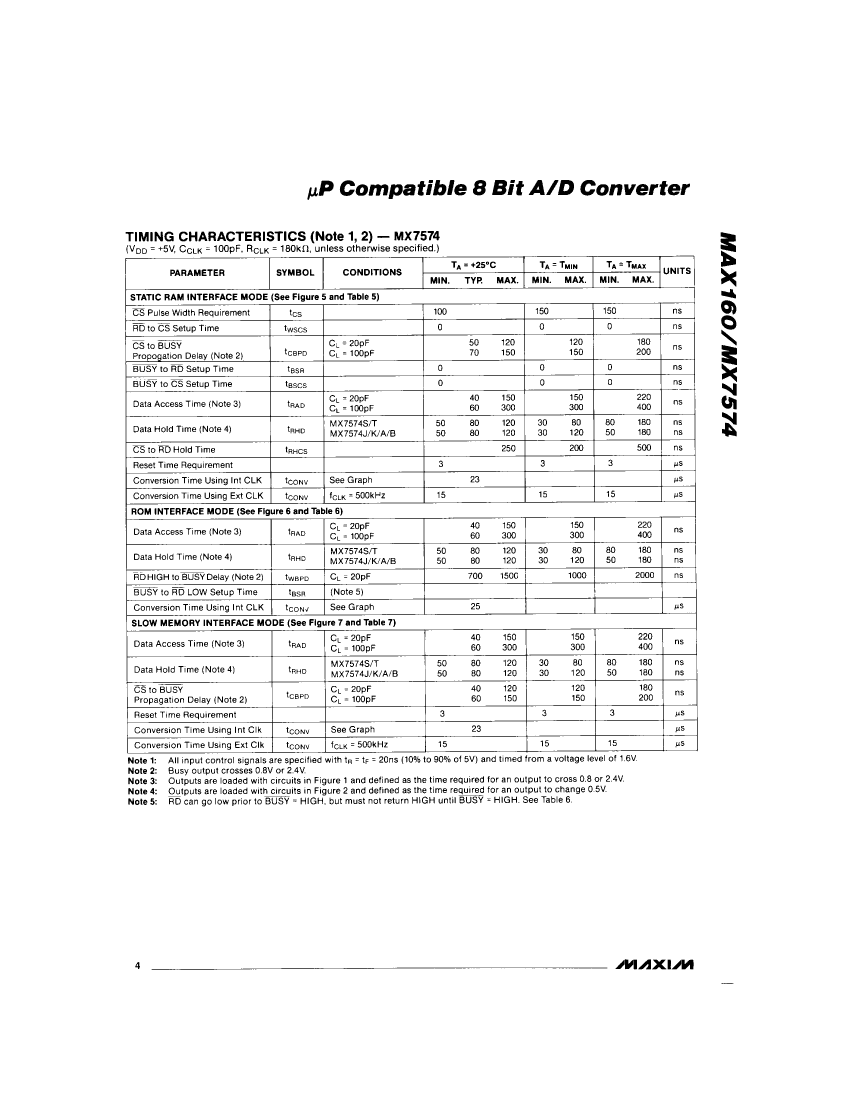

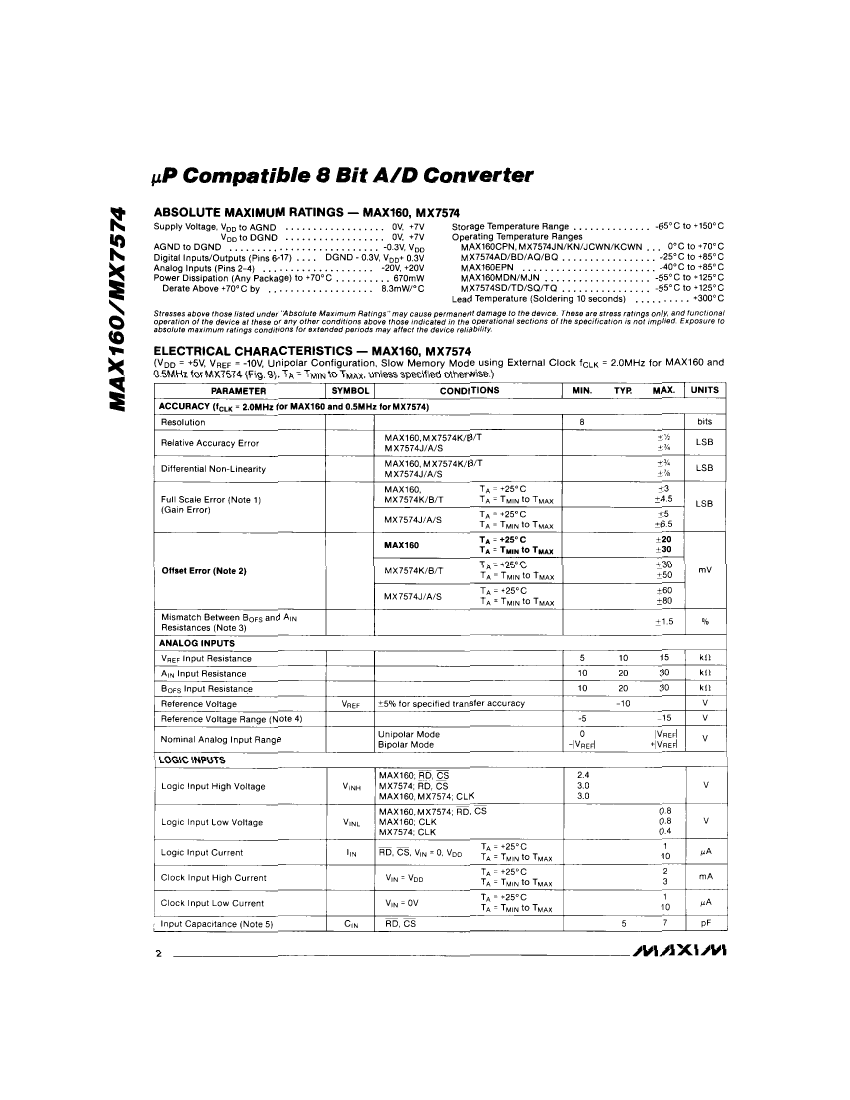

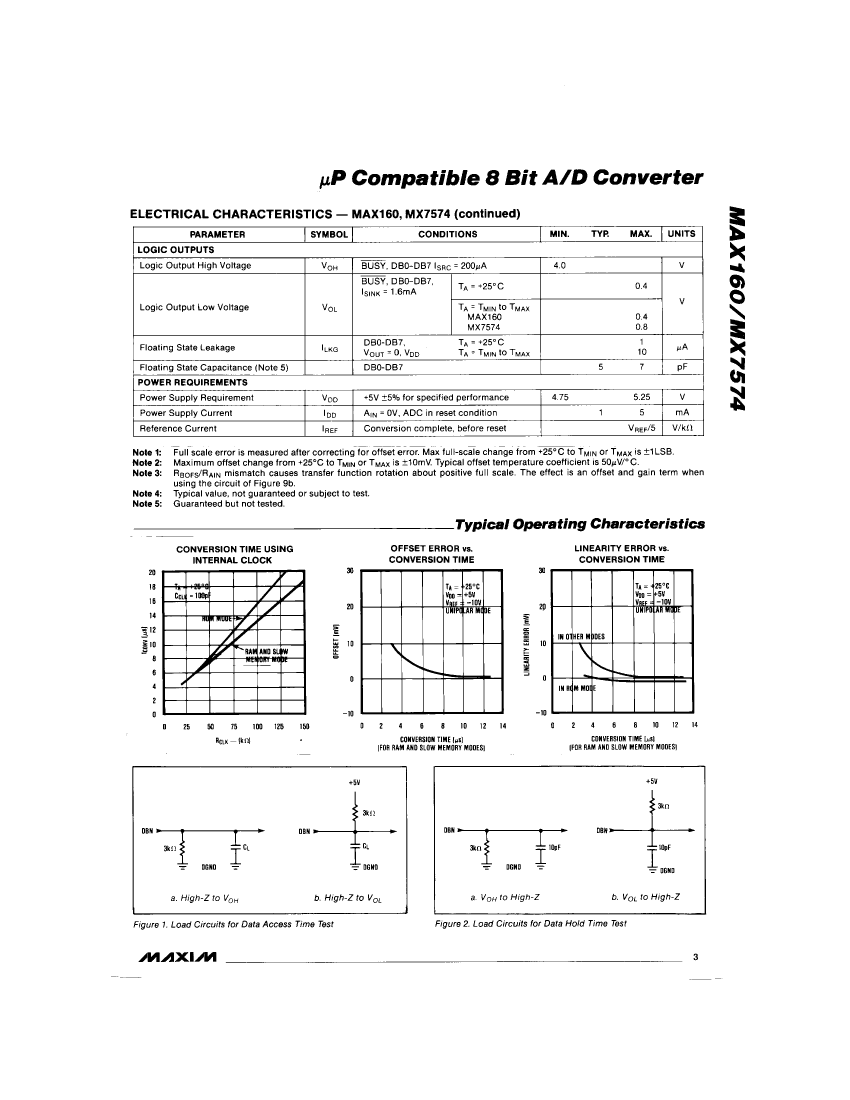

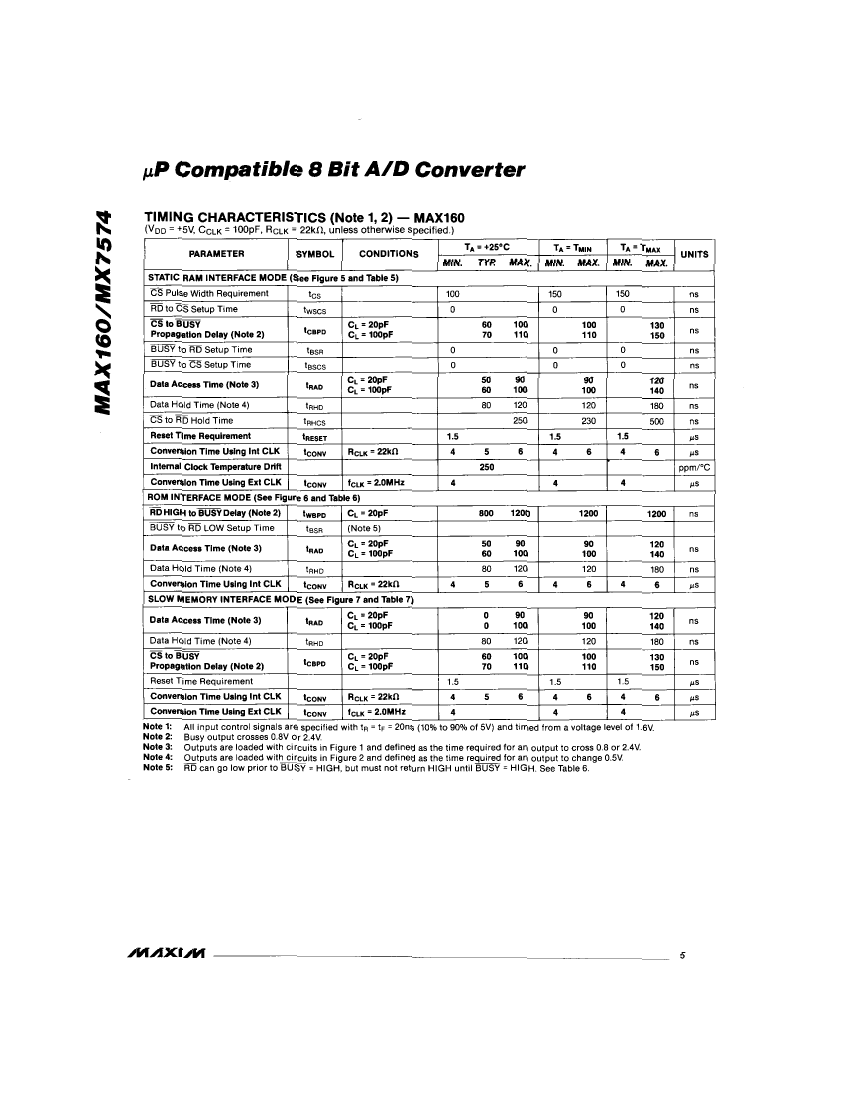

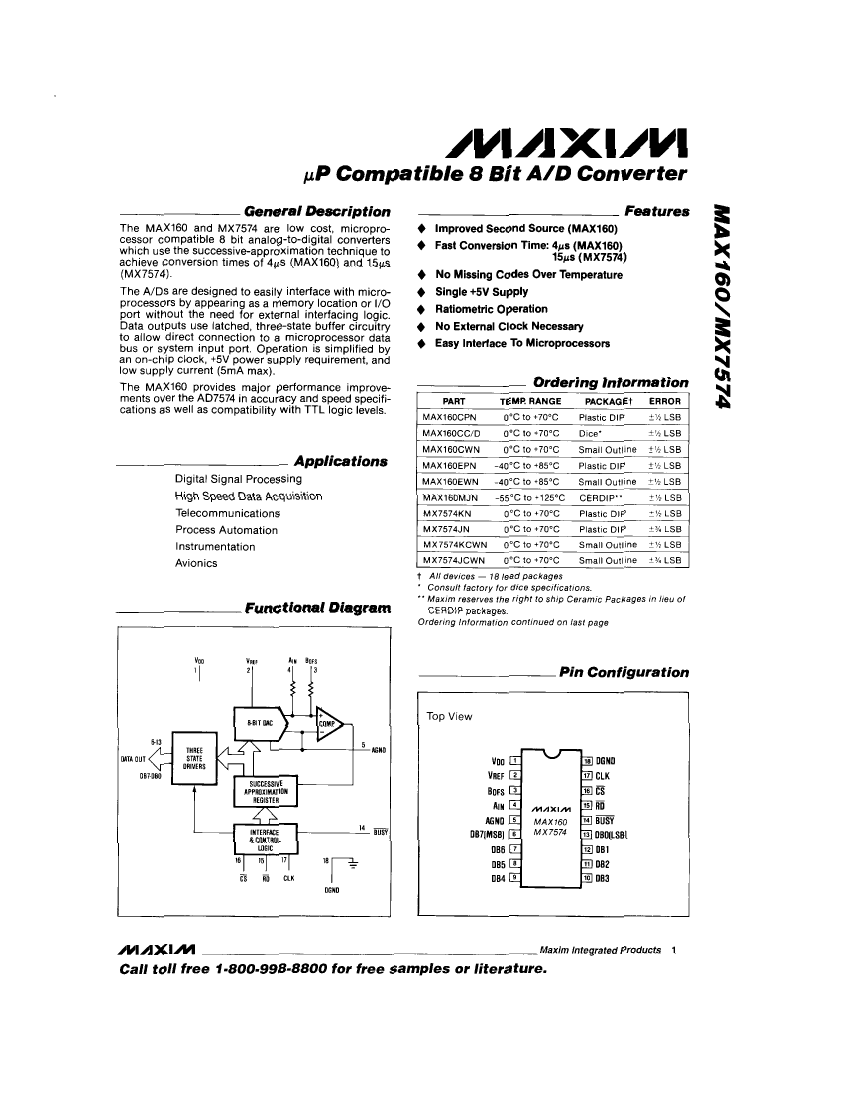

Preview

Download Datasheet

View All

MAX160EPN+ Related Products

	MAX160EPN+	MAX160CWN+T	MAX160EWN+T	MAX160EWN+	MX7574KN+	MX7574KCWN+
Description	analog to digital converters - adc 8-bit 250ksps -15v precision adc	analog to digital converters - adc 8-bit 250ksps -15v precision adc	analog to digital converters - adc 8-bit 250ksps -15v precision adc	analog to digital converters - adc 8-bit 250ksps -15v precision adc	analog to digital converters - adc 8-bit precision dac	analog to digital converters - adc 8-bit precision dac
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	DIP	SOIC	SOIC	SOIC	DIP	SOIC
package instruction	DIP, DIP18,.3	SOP, SOP18,.4	SOP, SOP18,.4	SOP, SOP18,.4	DIP, DIP18,.3	SOP, SOP18,.4
Contacts	18	18	18	18	18	18
Reach Compliance Code	compli	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum analog input voltage	10 V	10 V	10 V	10 V	10 V	10 V
Minimum analog input voltage	-10 V	-10 V	-10 V	-10 V	-10 V	-10 V
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDIP-T18	R-PDSO-G18	R-PDSO-G18	R-PDSO-G18	R-PDIP-T18	R-PDSO-G18
JESD-609 code	e3	e3	e3	e3	e3	e3
length	22.86 mm	11.55 mm	11.55 mm	11.55 mm	22.86 mm	11.55 mm
Maximum linear error (EL)	0.3%	0.3%	0.3%	0.3%	0.2%	0.2%
Humidity sensitivity level	1	1	1	1	1	1
Number of analog input channels	1	1	1	1	1	1
Number of digits	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	18	18	18	18	18	18
Maximum operating temperature	85 °C	70 °C	85 °C	85 °C	70 °C	70 °C
Output bit code	BINARY, OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY OFFSET BINARY
Output format	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP	SOP	DIP	SOP
Encapsulate equivalent code	DIP18,.3	SOP18,.4	SOP18,.4	SOP18,.4	DIP18,.3	SOP18,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.572 mm	2.65 mm	2.65 mm	2.65 mm	4.572 mm	2.65 mm
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.5 mm	7.5 mm	7.5 mm	7.62 mm	7.5 mm
Maximum conversion time	6 µs	6 µs	6 µs	6 µs	-	-
Maker	-	Maxim	Maxim	Maxim	Maxim	Maxim
Factory Lead Time	-	-	5 weeks	6 weeks	11 weeks	6 weeks
