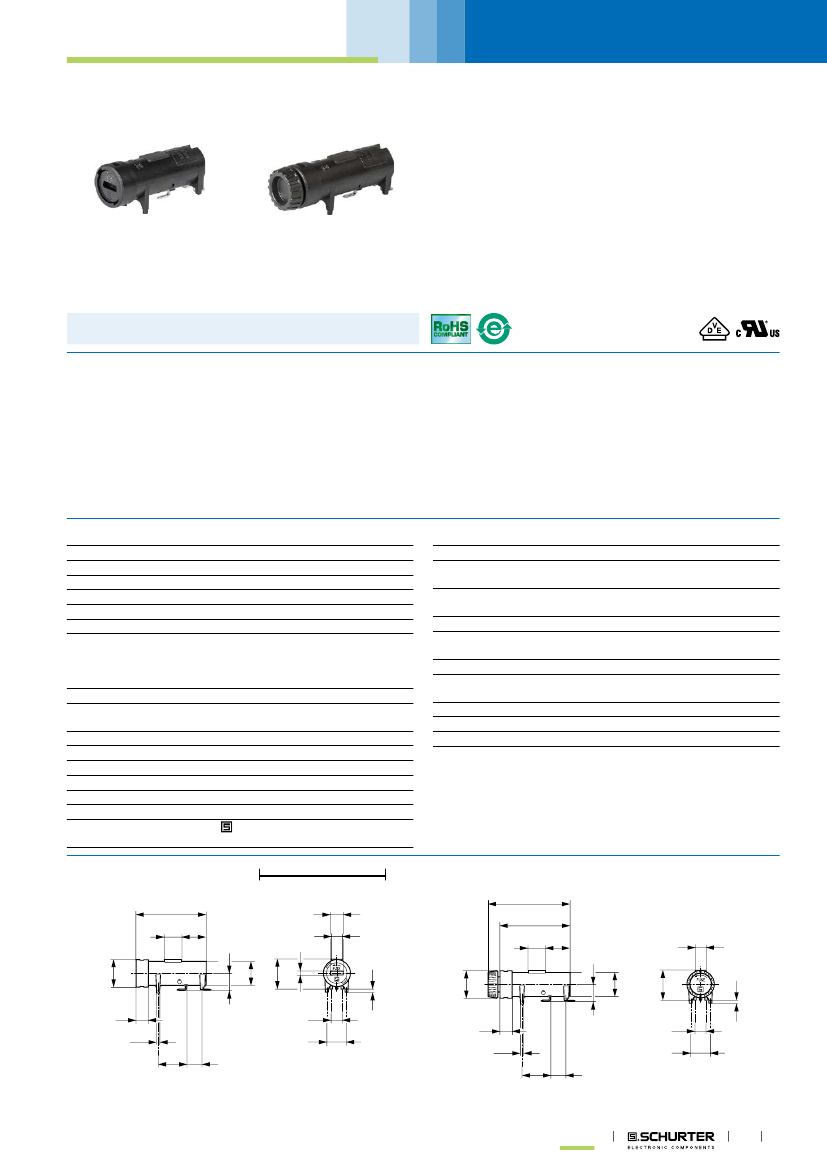

Shock-Safe Fuseholder, 5 x 20 mm, horizontal, Slot/Fingergrip, SMD, IEC 60335-1
FPG7
Slot Knop
Fingergrip
250 VAC · 2.5 W / 10 A (VDE) · 400 VAC · 16 A (UL/CSA)
Description
- Surface Mount Device
- Glow wire tests acc. to IEC 60695-2-12 and -13
- Cap is available slotted or with fingergrip
Applications
- Industrial electronic
- Household appliances
- Medical equipment
Standards
- IEC 60127-6
- UL 4248-1 / UL 512
- CSA C22.2 no. 39
References
Weblinks
Packaging Details
pdf-datasheet, html-datasheet, General Product Information,
Approvals, CE declaration of conformity, RoHS, CHINA-RoHS, e-Shop,
SCHURTER-Stock-Check, Distributor-Stock-Check, Detailed request for
product
Approvals
- VDE Certificate Number: 129098
- UL File Number: E39328
Technical Data
Shock-Safe Category
Fuse-Link
Mounting
Terminal
Rated Voltage
Rated current
Rated Power Acceptance IEC
PC2
5 x 20 mm
PCB
Solder SMT
250 VAC , 400 VAC (UL/CSA)
10 A (VDE), 16 A (UL/CSA)
2.5 W / 10 A @ Ta 23 °C
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
Degree of Protection
IP 40
Protection Class
Suitable for appliances with protection
class I or II acc. to IEC 61140
Admissible Ambient Air Temp. -40 °C to 85 °C
Climatic Category
40/085/21 acc. to IEC 60068-1
Material: Socket
Thermoplastic, black, UL 94V-0
Material: Terminals
Tin-Plated Copper Alloy
Unit Weight (Socket/Cap)
4.4 g
Storage Conditions
0 °C to 60 °C, max. 70% r.h.
Product Marking
, Type, Rated voltage, Power Acc./
Current Rating, Approvals
Soldering Methods
Solderability
Resistance to Soldering Heat
Contact Resistance
Dielectric Strength
Impulse Withstand Voltage
Insulation Resistance
Overvoltage Category
Pollution Degree
Resistance to Vibration
Reflow
245 °C / 3 sec acc. to IEC 60068-2-58,
Test Td
260 °C / 10 sec acc. to IEC 60068-2-58
Test TD
< 5 mΩ at 20 mV
> 3 kV
(50 Hz; 1 min)
> 2.5 kV between L-N
> 10 MΩ between L-N
(500 VDC; 1 min)
I - II acc. to IEC 60664-1
1 - 3 acc. to IEC 60664-1
acc. to IEC 60068-2-6, test Fc
Dimension
32.1
8
11
7.85
6
32 mm
37
32.1
5
8
11
7.85
5
ø12.5
ø11.1
13.95
1.8
1.4
ø12.5
ø11.1
13.95
5.5
ø1.5
13.05
7
5.08
9.1
5.5
ø1.5
13.05
7
5.08
9.2
Variant 3101.0071
Variant 3101.0076
Fuses
1.4
1
FPG7
Fuseholders
www.schurter.com/PG02
ø1.6
+0.1
0
5.5
5.5
5.08
±0.1
6.5
- 0.1
0
9.2
±0.05
1.5
13.5
±0.05
Soldering pads
Derating Curves
2.5
Admissible power acceptance in Watt
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
Ambient air temperature Ta °C
I = 1.0 I
n
I = 0.7 I
n
I = << I
n
Variants
Holder
l
l
Cap
Slot Knob
Fingergrip
Material
Spec. Thermoplastic
Spec. Thermoplastic
Reflow Condition
acc. to JEDEC J-STD-020C, Tp=260 +0/-5 °C, tp = 20-40 s
acc. to JEDEC J-STD-020C, Tp=260 +0/-5 °C, tp = 20-40 s
Remark
-
-
Order
Number
3101.0071
3101.0076
Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Spec. thermoplastic meets the new requirements of IEC 60335-1 for appliances in unattended use (clause 30.2.3). This standard includes the enhanced requi-
rements of glow wire tests acc. to IEC 60695-2-12 and -13.
Packaging Unit
xxxx.xxxx
xxxx.xxxx.D2
Bulk 186 x 91 x 91 mm (100 pcs.)
Blister Tape 38 cm Reel (250 pcs.)
2
Fuses
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments.
Information furnished is believed to be accurate and reliable. However, users should independently evaluate
the suitability and test each product selected for their own applications.
08.05.2014
