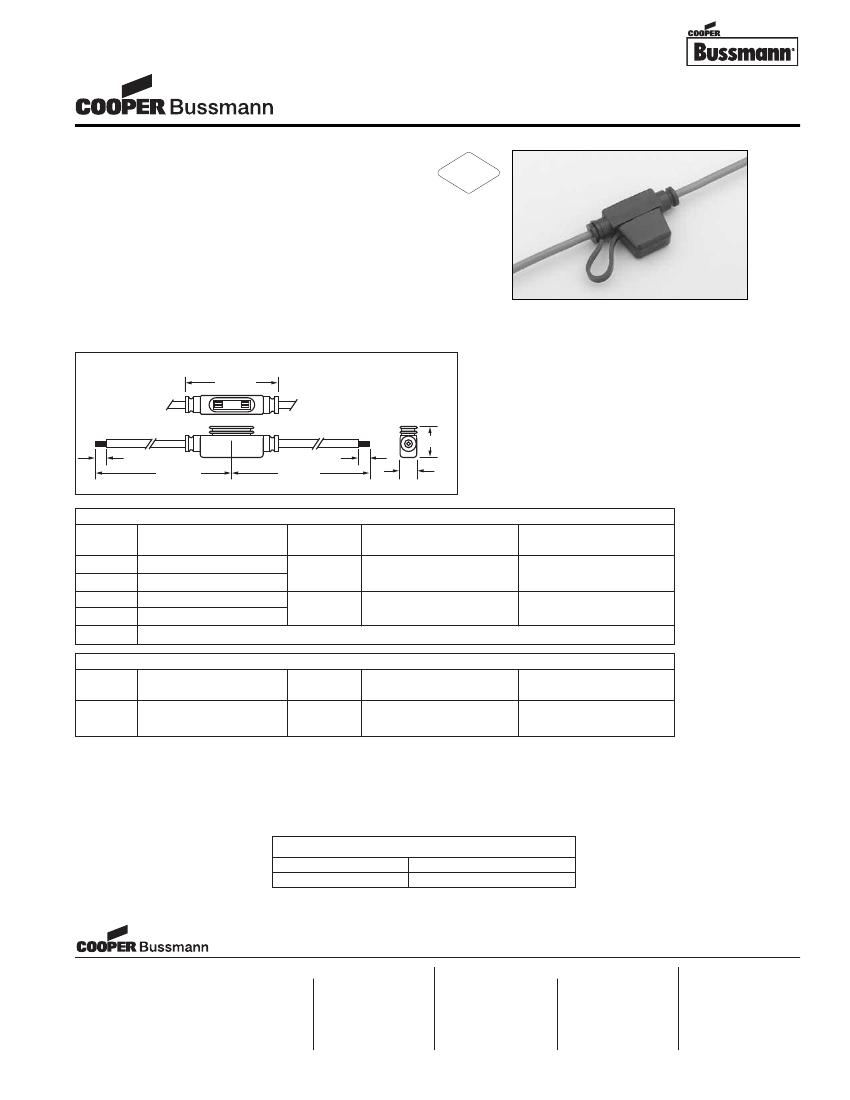

MINI
®
Fuseholders
HHL & HHM
Description
• In-Line Fuseholders for MINI
®
Fuses.
• Voltage Rating: 32Vdc maximum
• Current Rating: See Table
• Body material withstands high temps. Protective cover
has removable straps.
Ordering
• Specify packaging and product code
RoHS
2002/95/EC
1.56"
.59"
.25"
4.75"
4.75"
.25"
.41"
MINI
®
Fuse Blade Type Holder
Catalog
No.
HHL
HHL-B
HHM
HHM-B
HHM-C
Description
Black fuseholder w/cover
Black fuseholder - Body only
Black fuseholder w/cover
Black fuseholder - Body only
Black cover only
Fuse Size
2-20A
2-30A
Electrical
Connection
#16 black lead wire;
4" length stripped to 1/4"
#12 red lead wire;
4" length stripped to 1/4"
Maximum Continuous
Current Rating
16A*
24A*
Bulk Products (Bulk Quantity - 1000 Pieces)
Catalog
No.
BK/HHL-R
Description
Black fuseholder - Body only
Fuse Size
2-20A
Electrical
Connection
#16 red lead wire;
4" length stripped to 1/4"
Maximum Continuous
Current Rating
16A*
* or 80% of fuse rating, whichever is less
A fuse must be properly and fully inserted into the holder to provide a solid connection. Poor or
improper insertion of the fuse can result in failure of the fuse and holder, thus not protecting the
device for which it was intended.
PACKAGING CODE
Packaging Code
BK
Description
1,000 pieces in a box
