Technical Data
2105
Effective
June
2017
Supersedes
June
2004

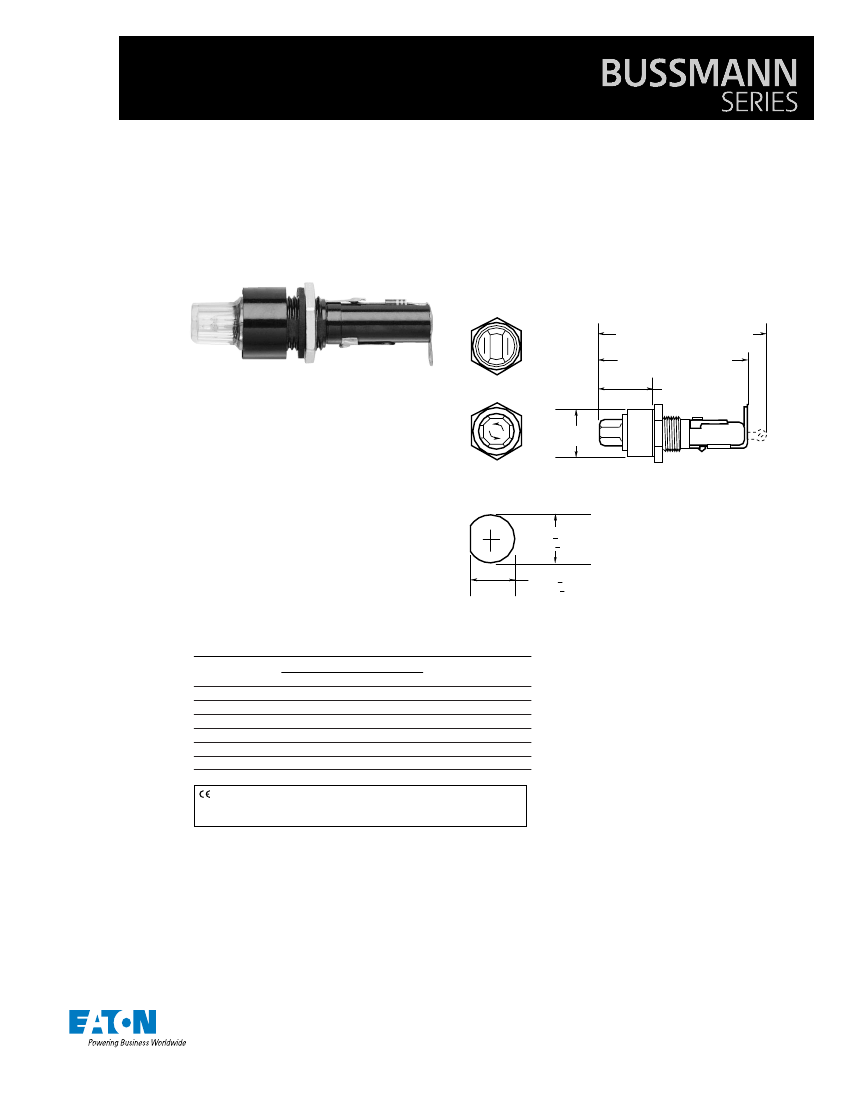

1/4" x 1 1/4" Panel-mount
indicating fuse holder
Dimensions- in (mm)
3.28" Max. (HKR through HKX)
(83.31mm Max.)
HK
2.85" Max. (HKL, HKL-X)
(71.4mm Max.)
Product features
•
•
•
•
•
•
•
•
Flat Sides
1.19"
(30.2mm)
For 1/4" x 1 1/4" fuses
For panels up to 3/16" (4.8 mm) thick
Vibration resistant
Light comes on when fuse opens
Steel nut – 9351
Neoprene washer – 6276
Line connection is the back terminal
Do not put tension on line (rear)
terminal.
0.81"
(20.6mm)
Octagonal Sides
Punched Mounting Hole
Environmental
Data:
Temperature Rating (RTI): +130 °C
Agency information
•
*UL Recognized, Guide IZLT2, File E14853
•
*CSA Certified, Class 6225-01, File 47235
Electrical Ratings
Catalog
Symbol
HKL *
HKL-X *
HKR
HKT
HKU
HKX
Lamp
Amps
15
15
20
20
20
20
Volts AC
90-250
90-250
22-30
13-22
4-6
22-33
Type
Neon
Neon
Incandescent
Incandescent
Incandescent
Incandescent
Knob
Color
Clear
Clear
Amber
Amber
Red
Amber
(16.0mm + .13mm)
.630" + .005"
(14.6mm + .08mm)
.573" + .003"
Knob
Type
Octagon
Flat Sided
Octagon
Octagon
Octagon
Flat Sided
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002
