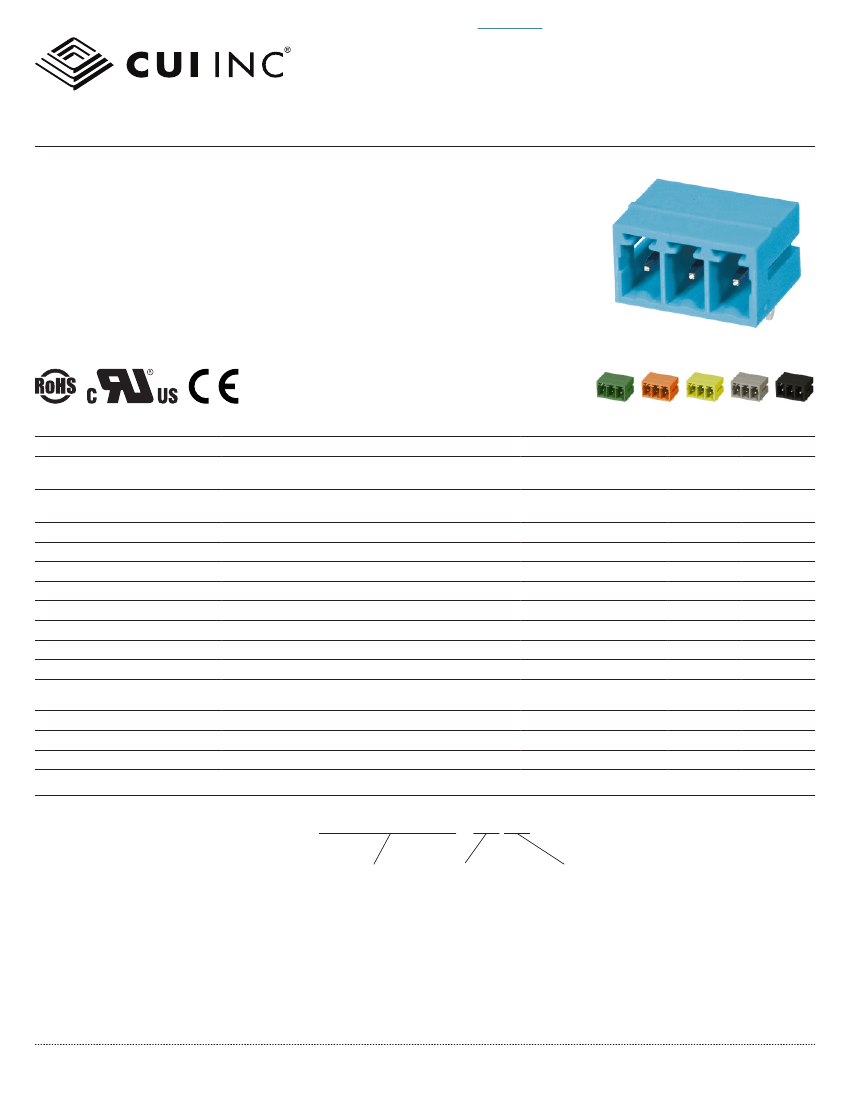

SERIES:
TBP02R1-381
│
DESCRIPTION:
TERMINAL BLOCK
FEATURES
• 2~24 poles
• horizonal orientation
• 2~6 poles notch guide
• 3.81 mm pitch
• UL and CE safety approvals
SPECIFICATIONS
parameter
rated voltage (per contact)
rated current (per contact)
withstanding voltage
surge voltage
contact resistance
insulation resistance
operating temperature
safety approvals
flammability rating
RoHS
UL 1059, EN 60998-1:2004, EN 60998-2-1:2004
UL94V-0
yes
at 500 Vdc
500
-40
105
conditions/description
UL
IEC
UL
IEC
2000
4000
20
min
typ
max
300
250
8
7
units
V
V
A
A
Vac
V
mΩ
MΩ
°C
SOLDERABILITY
parameter
hand soldering
wave soldering
conditions/description
for maximum 10 seconds
for maximum 5 seconds
min
345
255
typ
350
260
max
355
265
units
°C
°C
PART NUMBER KEY
TBP02R1-381 -
XX XX
Base Number
No. of Poles:
02
14
03
15
04
16
05
17
06
18
07
19
08
20
09
21
10
22
11
23
12
24
13
Color:
BE = blue
GR = green
OR = orange
YL = yellow
GY = gray
BK = black
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
TBP02R1-381
│
DESCRIPTION:
TERMINAL BLOCK
date
03/27/2019│
page
2 of 3

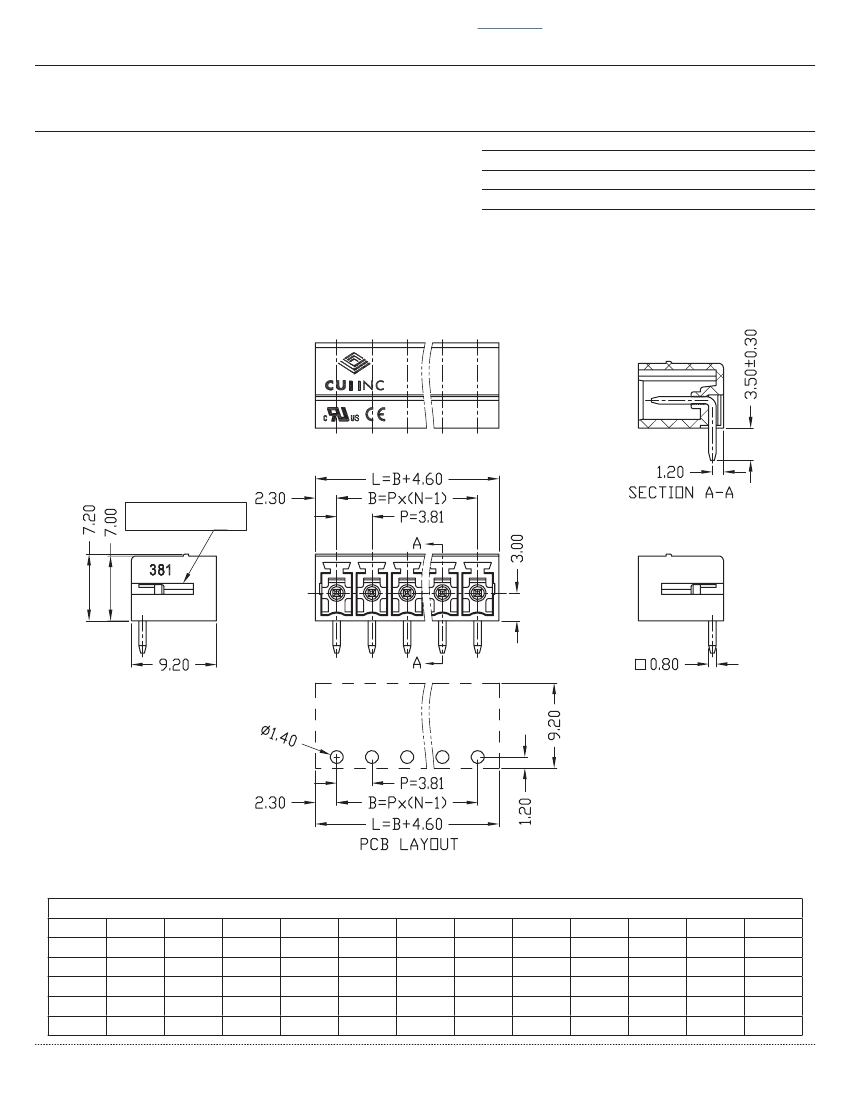

MECHANICAL DRAWING
units: mm
tolerance (per module):
X≤6.00: ±0.25 mm
6.00<X≤30.00: ±0.40 mm
30.00<X≤60.00: ±0.60 mm
60.00<X≤150.00: ±1.00 mm
unless otherwise noted
DESCRIPTION
housing
contacts
MATERIAL
PA66 (UL94V-0)
copper alloy
tin
PLATING/COLOR
Notch Guide Only Present
on 2~6 Pole Modules
This series is constructed of single piece modules where L is the total length, P is the pitch, and N is the number of poles.
N
L
B
N
L
B
02
8.41
3.81
14
54.13
49.53
03
12.22
7.62
15
57.94
53.34
04
16.03
11.43
16
61.75
57.15
05
19.84
15.24
17
65.56
60.96
06
23.65
19.05
18
69.37
64.77
07
27.46
22.86
19
73.18
68.58
cui.com
08
31.27
26.67
20
76.99
72.39
09
35.08
30.48
21
80.80
76.20
10
38.89
34.29
22
84.61
80.01
11
42.70
38.10
23
88.42
83.82
12
46.51
41.91
24
92.23
87.63
13
50.32
45.72
--
--
--
For more information, please visit the
product page.
CUI Inc
│
SERIES:
TBP02R1-381
│
DESCRIPTION:
TERMINAL BLOCK
date
03/27/2019│
page
3 of 3
REVISION HISTORY
rev.
1.0
description
initial release
The revision history provided is for informational purposes only and is believed to be accurate.
date
03/27/2019
Headquarters
20050 SW 112th Ave.
Tualatin, OR 97062
800.275.4899
CUI offers a one (1) year limited warranty. Complete warranty information is listed on our website.
Fax 503.612.2383
cui.com
