ARA502-L603I Overview

Telecom and Datacom Connector, ROHS COMPLIANT

ARA502-L603I Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ALLIED [Allied Electronics]
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (15)
Contact material	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

RoHS

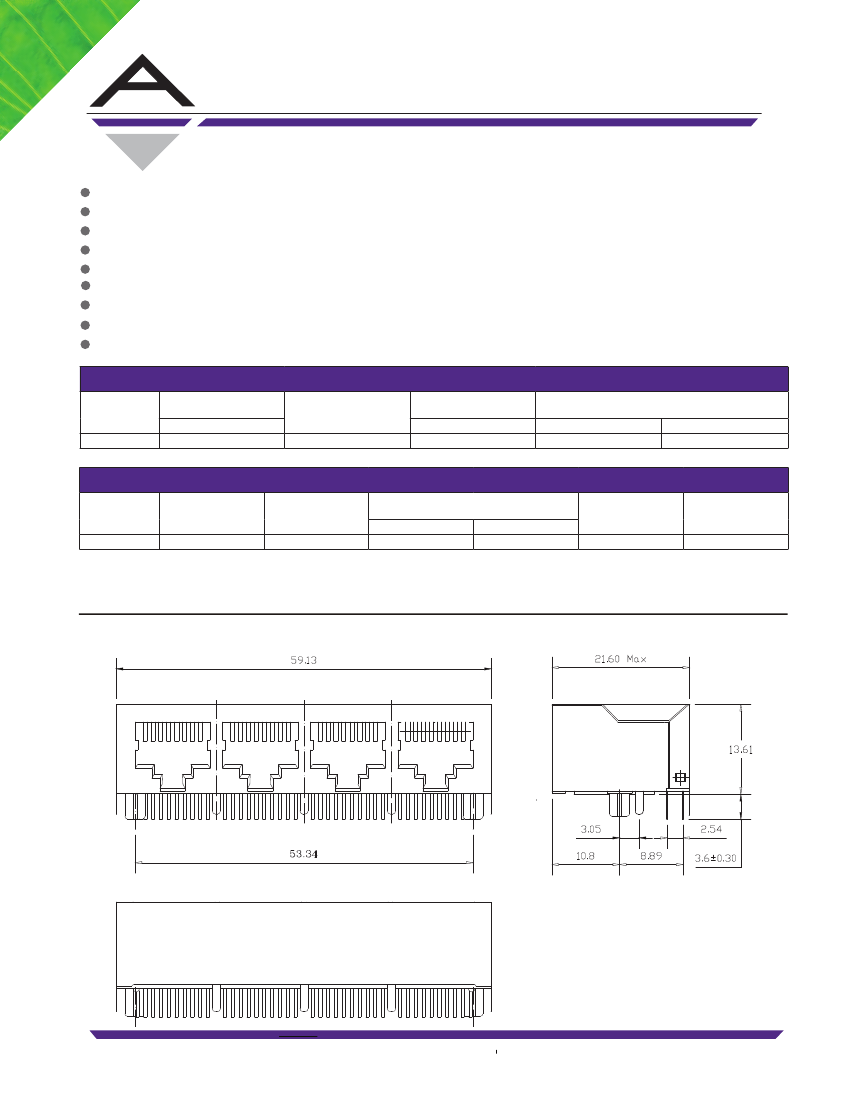

Ganged 1x4 RJ45 CONNECTOR

WITH INTEGRATED MAGNETICS, TAB DOWN

10/100/1000 Base-T Ethernet Application

Meets IEEE 802.3 & ANSI X 3.263 standards

Impedance: 100OHMS

Transmit open circuit inductance (OCL): 350uH (MIN) @100KHz,0.1VRMS with 8mA DC Bias

Always EU RoHS/ELV Compliant, wave solder capable to 265°C

Rise Time: 2.5 nano-seconds from 10 to 90 percent

RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F

Standard operating temp: 0ºC to +70ºC (see footnote)

Industrial operating temp: -40ºC to +85ºC (see footnote)

Electrical Speciﬁcations @ 25°C

Part

Number

ARA502-L603_

OCL(uH Min)

@ 100kHz, 0.1V

With 8mA DC Bias

350

Turns Ratio

chip: cable

(±3%)

1CT:1CT

Insertion Loss

(dB Max)

0.5-100MHz

1.1

Return Loss

(dB Min)

0.5-40MHz

40.1-100MHz

12-20*log(f/80)

Electrical Speciﬁcations @ 25°C

Part

Number

ARA502-L603_

EMI

Fingers

LED

(L/R)

Cross Talk

(dB Min)

0.5-40MHz

40.1-100MHz

33-20*log(f/50)

CMRR

(dB Min)

0.5-100MHz

HI-POT

(VDC)

2250

*Complete part number by inserting “S” for Standard Temp. or “I” for Industrial Temp.

All specifications subject to change without notice.

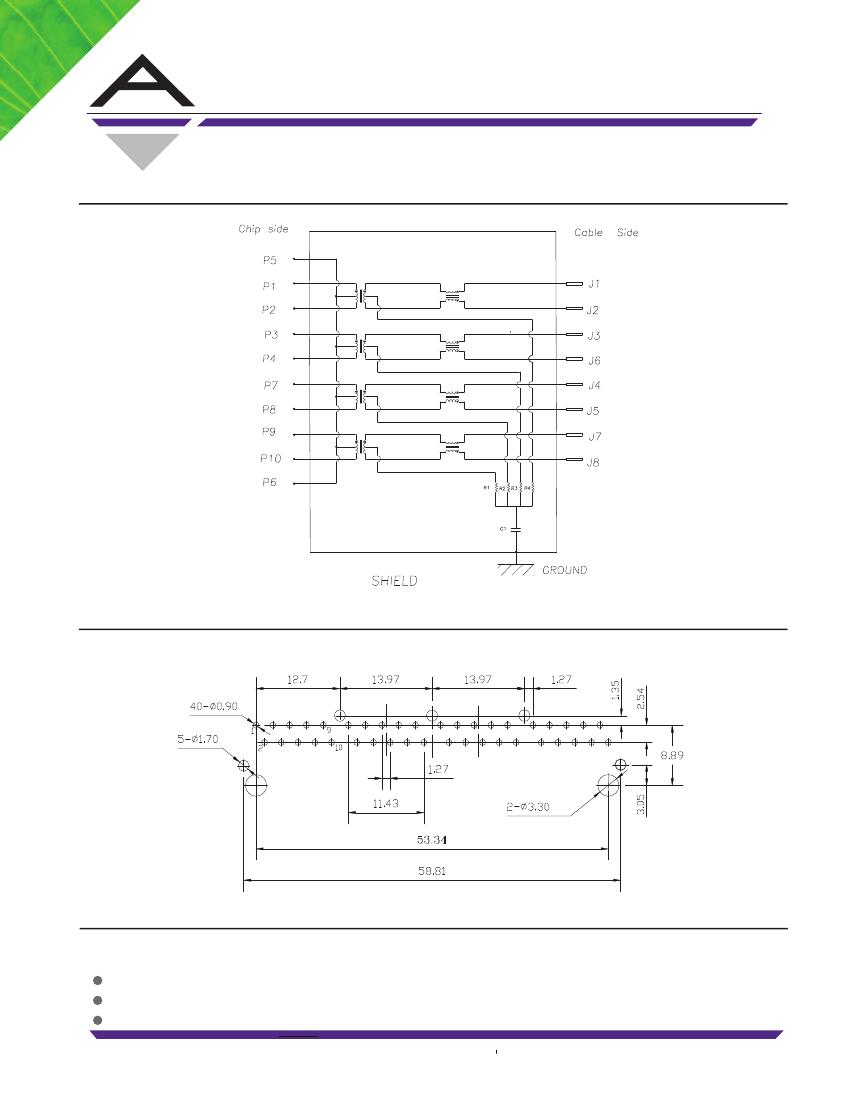

MECHANICAL

Unless otherwise specified all tolerances are:

0.25 in mm

ARA502-L603_

ALLIED

ARA502-L603_

YYWW

714-665-1140

ALLIED COMPONENTS INTERNATIONAL

REVISED 1/06/11

www.alliedcomponents.com

ARA502-L603I Related Products

	ARA502-L603I	ARA502-L603S
Description	Telecom and Datacom Connector, ROHS COMPLIANT	Telecom and Datacom Connector, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to
Maker	ALLIED [Allied Electronics]	ALLIED [Allied Electronics]
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (15)	GOLD (15)
Contact material	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1
