SURFACE MOUNT MICROPROCESSOR CRYSTAL
Page 1 of 3
SERIES RH100
FEATURES
COMPACT DESIGN
HIGH ACCURACY
EXCELLENT FOR HIGH DENSITY SURFACE MOUNTING
SPECIFICATIONS
PARAMETER
VALUE
10.000 MHz TO 115.000 MHz
10.000 MHz TO 55.000 MHz
25.000 MHz TO 115.000 MHz
±100 PPM MAXIMUM
(±10 PPM, ±20 PPM AND ±50 PPM AVAILABLE)
±100 PPM MAXIMUM
(±10 PPM, ±20 PPM AND ±50 PPM AVAILABLE)
-20°C TO +70°C STANDARD
-40°C TO +85°C EXTENDED
-40°C TO +85°C
±3 PPM PER YEAR MAXIMUM
9 pF to 32 pF OR SERIES
SEE TABLE 1
5.0 pF MAXIMUM
500 µW MAX
±5 PPM MAXIMUM 75 cm DROP TEST IN
3 AXES ON TO A HARD SURFACE
260°C ±5°C FOR 10s MAXIMUM
FREQUENCY RANGE
MODE OF OSCILLATION
FUNDAMENTAL
THIRD OVERTONE
FREQUENCY TOLERANCE AT 25°C
FREQUENCY STABILITY OVER TEMPERATURE
OPERATING TEMPERATURE RANGE
STORAGE TEMPERATURE RANGE
AGING
LOAD CAPACITANCE
EQUIVALENT SERIES RESISTANCE
SHUNT CAPACITANCE
DRIVE LEVEL
SHOCK RESISTANCE
REFLOW CONDITIONS
TABLE 1
MODE
FUND
FUND
FUND/OT
3OT
FREQUENCY (MHz)
10.000TO 15.999
16.000 TO 19.999
20.000 TO 54.999
55.000 TO 115.000
MAXIMUM ESR (OHMS)
100
80
60/40
40
PART NUMBERING SYSTEM
TYPE
RH100
-
-
FREQUENCY
IN MHz
-
-
LOAD CAPACITANCE
9 TO 32 pF FOR PARALLEL
S FOR SERIES
EXTENDED
TEMPERATURE
Blank FOR STANDARD
EXT FOR EXTENDED
-
-
-
-
MODE
Blank FOR < 24.576 MHz
F FOR ≥ 24.576 MHz
3OT THIRD OVERTONE
-
-
TOLERANCE/STABLITY
(PPM/PPM)
Blank FOR MAXIMUM
PPMPPM
Example: 1020, 2050
-
-
TAPE & REEL
TR
EXAMPLE: RH100-24.000-18-TR
Surface Mount Microprocessor Crystal, 3.2 x 2.5 mm, 24.000 MHz, Fundamental mode, 18 pF load, ±100 ppm
Tolerance, ±100 ppm Stability, from -20°C to +70°C, Tape and reel packaging
R A L T R O N E L E C T R O N I C S
1 0 4 0 0 N .W . 3 3
r d
S T R E E T
M i a m i , F l o r i d a 3 3 1 7 2
U . S . A .
Telephone: 305-593-6033
Fax: 305-594-3973
e-mail: sales@raltron.com
web site: http://www.raltron.com
SURFACE MOUNT MICROPROCESSOR CRYSTAL
Page 2 of 3
SERIES RH100

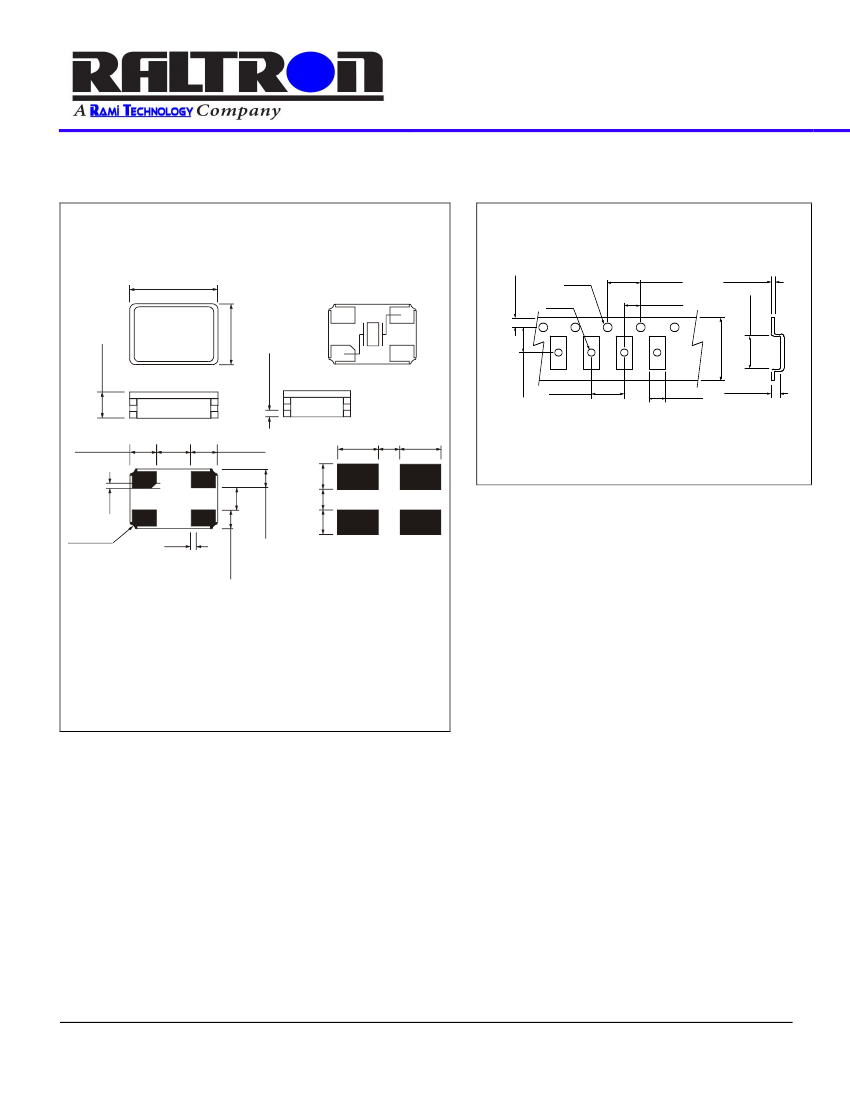

MECHANICAL SPECIFICATION
CARRIER TAPE DIMENSIONS
.0 6 9 ± .0 0 4
1 .7 5 ± 0 .1
GND
2.5 ± 0.2
.098 ± .008
ø 1.15
ø .045
2.0 ± 0.05
.079 ± .002
.3 1 5 ± .0 0 8
8 .0 ± 0 .2
0.25 ± 0.1
.010 ± .004
GND
.1 3 8 ± .0 0 2
MARKING
AREA
0.7 ± 0.1
.028 ± .004
3 .5 ± 0 .0 5
4.0 ± 0.1
.157 ± .004
2.8 ± 0.1
.110 ± .004
1.0 ± 0.1
.039 ± .004
0.90 ± 0.15
.035 ± .006
BOTTOM VIEW
1.20
.047
0.90 ± 0.15
.035 ± .006
1.1 0.8 1.1
.043 .031 .043
1.3
.051
1.0
.039
1.3
.051
1.00
.039
0.65 ± 0.15
.026 ± .006
0.20
.008
NOTE: REFER TO EIA-481 FOR NON-SPECIFIED DIMENSIONS
4x (R0.20)
4x (R.008)
0.20
.008
0.65 ± 0.15
.026 ± .006
LAND PATTERN
PACKAGING
180 mm REEL DIAMETER
8 mm TAPE WIDTH, 4 mm PITCH
QUANTITY: 3000 PIECES PER REEL
IN ACCORDANCE WITH EIA-481
R A L T R O N E L E C T R O N I C S
1 0 4 0 0 N .W . 3 3
r d
S T R E E T
M i a m i , F l o r i d a 3 3 1 7 2
U . S . A .
Telephone: 305-593-6033
Fax: 305-594-3973
e-mail: sales@raltron.com
web site: http://www.raltron.com
3 .5 ± 0 .1
TOP VIEW
.1 3 8 ± .0 0 8
3.20 ± 0.2
.126 ± .008
ø 1.5
ø .059
4.0 ± 0.1
.157 ± .004
0.25 ± 0.05
.010 ± .002
SURFACE MOUNT MICROPROCESSOR CRYSTAL
Page 3 of 3
SERIES RH100

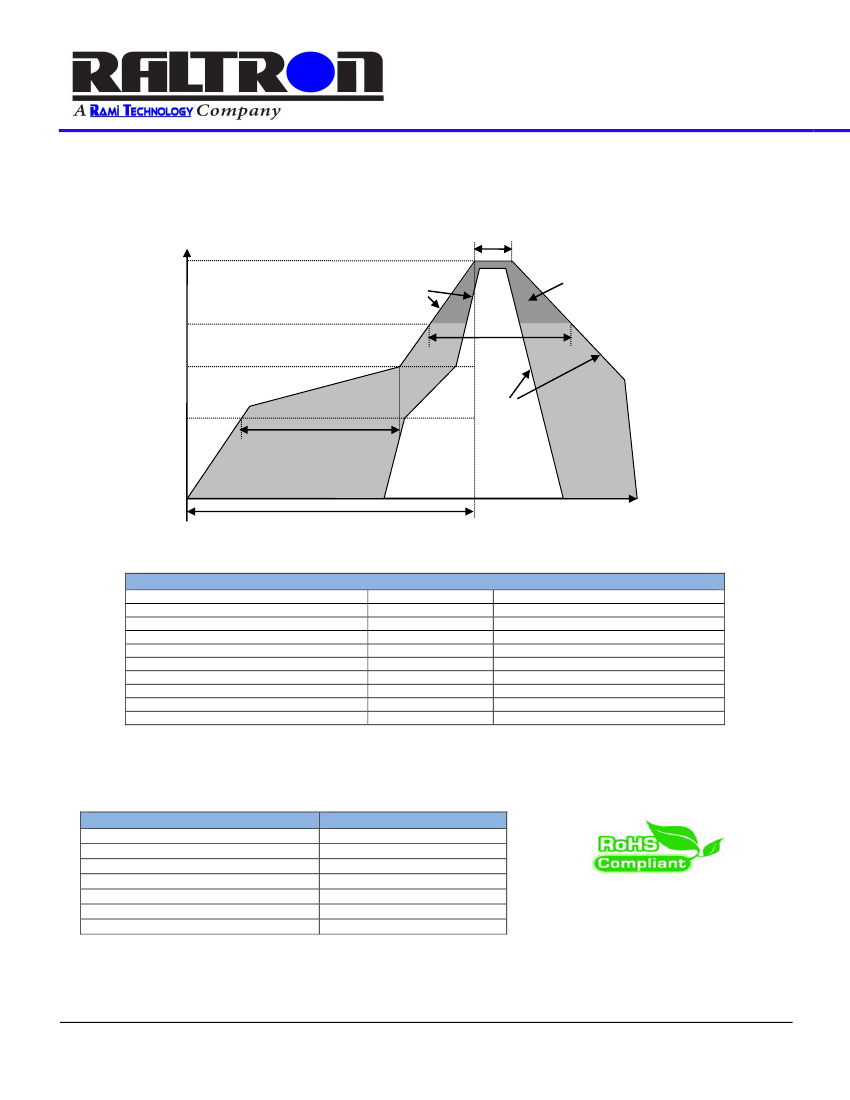

REFLOW PROFILE
t
P
T
P
Ramp-up
Critical Zone
T
L
to T
P
T
L
T
SMAX
Temp.
[°C]
T
SMIN
t
S
Preheat
t
L
Ramp-down
t[25°C] to Peak
Time [sec]
Reflow profile
Temperature Min Preheat
Temperature Max Preheat
Time (T
SMIN
to T
SMAX
)
Temperature
Peak Temperature
Ramp-up rate
Ramp-down rate
Time within 5°C of Peak Temperature
Time t[25°C] to Peak Temperature
Time
T
SMIN
T
SMAX
t
S
T
L
T
P
R
UP
R
DOWN
t
P
t[25°C] to Peak
t
L
150°C
200°C
60-180 sec.
217°C
260°C
3°C/sec max.
6°C/sec max.
10 sec.
480 sec.
60-150 sec.
ENVIRONMENTAL
PARAMETER
MOISTURE SENSITIVITY LEVEL
RoHS 2
REACH SVHC
HALOGEN-FREE
ESD CLASSIFICATION LEVEL
TERMINATION FINISH
UNIT WEIGHT (GRAMS)
VALUE
1
6/6 LEAD FREE
COMPLIANT
COMPLIANT
N/A
Au
0.01945
March 2016
R A L T R O N E L E C T R O N I C S
1 0 4 0 0 N .W . 3 3
r d
S T R E E T
M i a m i , F l o r i d a 3 3 1 7 2
U . S . A .
Telephone: 305-593-6033
Fax: 305-594-3973
e-mail: sales@raltron.com
web site: http://www.raltron.com
