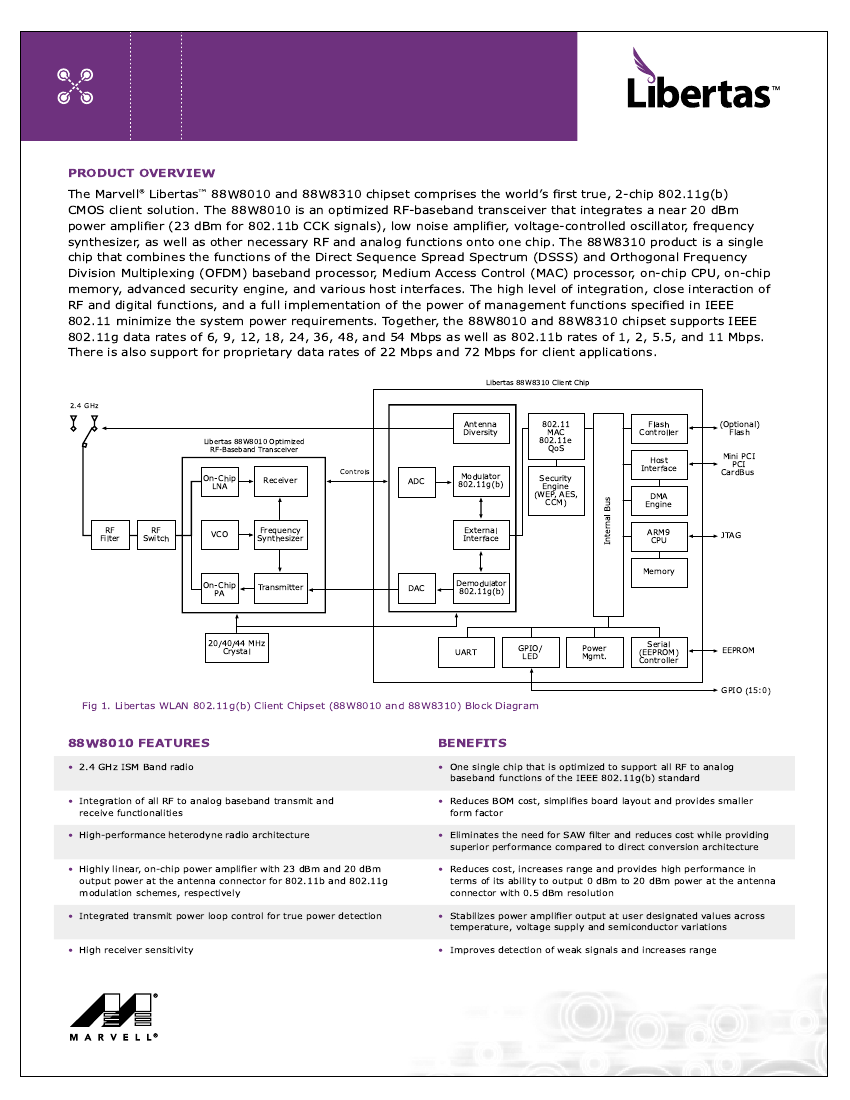

Wireless
Solutions
Libertas
™
Wireless LAN 802.11g(b) Client Chipset
88W8010 and 88W8310
CMOS client solution. The 88W8010 is an optimized RF-baseband transceiver that integrates a near 20 dBm
power ampliÞer (23 dBm for 802.11b CCK signals), low noise ampliÞer, voltage-controlled oscillator, frequency
synthesizer, as well as other necessary RF and analog functions onto one chip. The 88W8310 product is a single
chip that combines the functions of the Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency
Division Multiplexing (OFDM) baseband processor, Medium Access Control (MAC) processor, on-chip CPU, on-chip
memory, advanced security engine, and various host interfaces. The high level of integration, close interaction of
RF and digital functions, and a full implementation of the power of management functions speciÞed in IEEE
802.11 minimize the system power requirements. Together, the 88W8010 and 88W8310 chipset supports IEEE
802.11g data rates of 6, 9, 12, 18, 24, 36, 48, and 54 Mbps as well as 802.11b rates of 1, 2, 5.5, and 11 Mbps.
There is also support for proprietary data rates of 22 Mbps and 72 Mbps for client applications.
Libertas 88W8310 Client Chip
2.4 GHz
PRODUCT OVERVIEW
The Marvell
¨
Libertas
ª
88W8010 and 88W8310 chipset comprises the worldÕs Þrst true, 2-chip 802.11g(b)
Libertas 88W8010 Optimized
RF-Baseband Transceiver
Antenna
Diversity
Controls
802.11
MAC
802.11e
QoS
Security
Engine
(WEP, AES,
CCM)
Flash
Controller
Host
Interface
Internal Bus
DMA
Engine
ARM9
CPU
Memory
(Optional)
Flash
Mini PCI
PCI
CardBus
On-Chip
LNA
RF
Filter
RF
Switch
VCO
On-Chip
PA
Receiver
Frequency
Synthesizer
Transmitter
ADC
Modulator
802.11g(b)
External
Interface
JTAG
DAC
Demodulator
802.11g(b)
GPIO/
LED
Power
Mgmt.
20/40/44 MHz
Crystal
UART
Serial
(EEPROM)
Controller
EEPROM
GPIO (15:0)
Fig 1. Libertas WLAN 802.11g(b) Client Chipset (88W8010 and 88W8310) Block Diagram
88W8010 FEATURES
BENEFITS
¥
2.4 GHz ISM Band radio
¥
Integration of all RF to analog baseband transmit and
receive functionalities
¥
High-performance heterodyne radio architecture
¥
Highly linear, on-chip power ampliÞer with 23 dBm and 20 dBm
output power at the antenna connector for 802.11b and 802.11g
modulation schemes, respectively
¥
Integrated transmit power loop control for true power detection
¥
High receiver sensitivity
¥
One single chip that is optimized to support all RF to analog
baseband functions of the IEEE 802.11g(b) standard
¥
Reduces BOM cost, simpliÞes board layout and provides smaller
form factor
¥
Eliminates the need for SAW Þlter and reduces cost while providing
superior performance compared to direct conversion architecture
¥
Reduces cost, increases range and provides high performance in
terms of its ability to output 0 dBm to 20 dBm power at the antenna
connector with 0.5 dBm resolution
¥
Stabilizes power ampliÞer output at user designated values across
temperature, voltage supply and semiconductor variations
¥
Improves detection of weak signals and increases range
Libertas
™
Wireless LAN 802.11g(b) Client Chipset

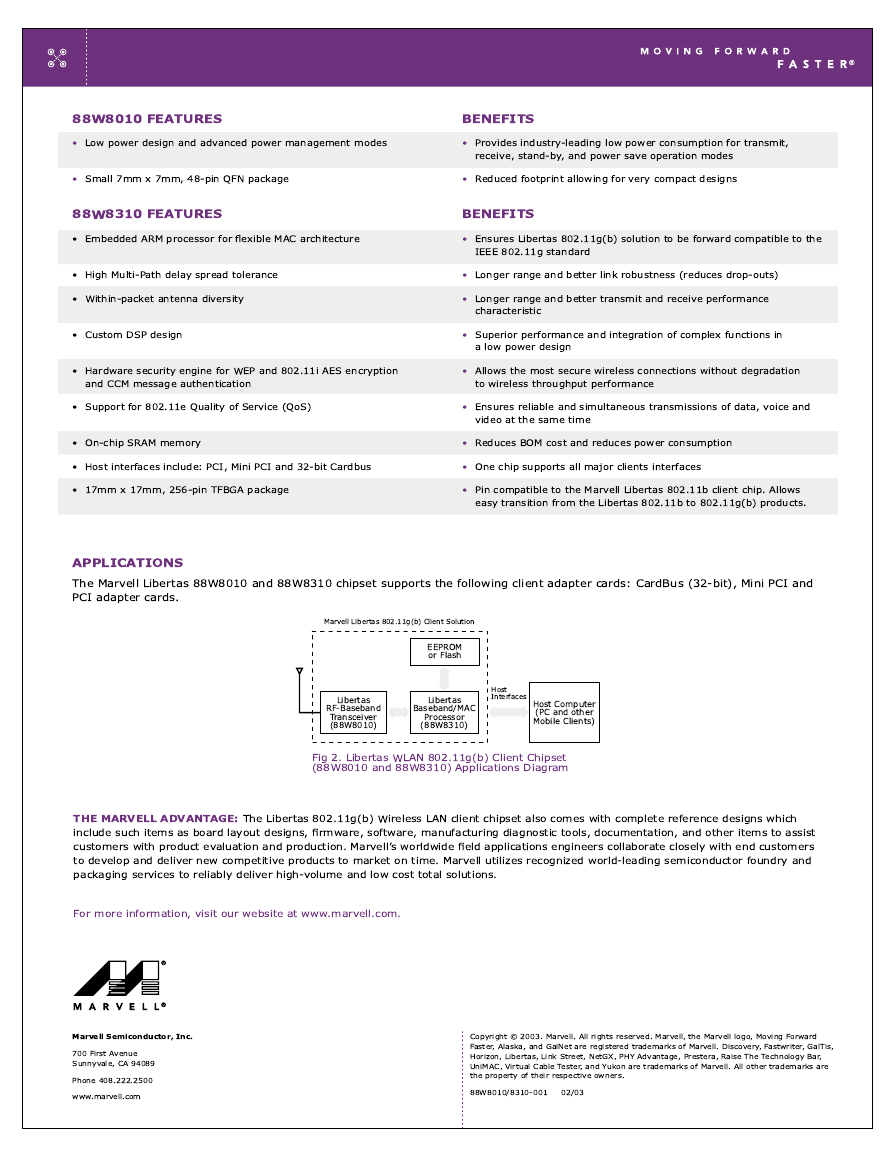

88W8010 FEATURES
¥
Low power design and advanced power management modes
¥
Small 7mm x 7mm, 48-pin QFN package
BENEFITS
¥
Provides industry-leading low power consumption for transmit,
receive, stand-by, and power save operation modes
¥
Reduced footprint allowing for very compact designs
88W8310 FEATURES
¥ Embedded ARM processor for ßexible MAC architecture
¥ High Multi-Path delay spread tolerance
¥ Within-packet antenna diversity
¥ Custom DSP design
¥ Hardware security engine for WEP and 802.11i AES encryption
and CCM message authentication
¥ Support for 802.11e Quality of Service (QoS)
¥ On-chip SRAM memory
¥ Host interfaces include: PCI, Mini PCI and 32-bit Cardbus
¥ 17mm x 17mm, 256-pin TFBGA package
BENEFITS
¥
Ensures Libertas 802.11g(b) solution to be forward compatible to the
IEEE 802.11g standard
¥
Longer range and better link robustness (reduces drop-outs)
¥
Longer range and better transmit and receive performance
characteristic
¥
Superior performance and integration of complex functions in
a low power design
¥
Allows the most secure wireless connections without degradation
to wireless throughput performance
¥
Ensures reliable and simultaneous transmissions of data, voice and
video at the same time
¥
Reduces BOM cost and reduces power consumption
¥
One chip supports all major clients interfaces
¥
Pin compatible to the Marvell Libertas 802.11b client chip. Allows
easy transition from the Libertas 802.11b to 802.11g(b) products.
APPLICATIONS
The Marvell Libertas 88W8010 and 88W8310 chipset supports the following client adapter cards: CardBus (32-bit), Mini PCI and
PCI adapter cards.
Marvell Libertas 802.11g(b) Client Solution
EEPROM
or Flash
Libertas
RF-Baseband
Transceiver
(88W8010)
Host
Interfaces
Libertas
Host Computer
Baseband/MAC
(PC and other
Processor
Mobile Clients)
(88W8310)
Fig 2. Libertas WLAN 802.11g(b) ClientDiagram
(88W8010 and 88W8310) Applications Chipset
THE MARVELL ADVANTAGE:
The Libertas 802.11g(b) Wireless LAN client chipset also comes with complete reference designs which
include such items as board layout designs, Þrmware, software, manufacturing diagnostic tools, documentation, and other items to assist
customers with product evaluation and production. MarvellÕs worldwide Þeld applications engineers collaborate closely with end customers
to develop and deliver new competitive products to market on time. Marvell utilizes recognized world-leading semiconductor foundry and
packaging services to reliably deliver high-volume and low cost total solutions.
For more information, visit our website at www.marvell.com.
Marvell Semiconductor, Inc.
700 First Avenue
Sunnyvale, CA 94089
Phone 408.222.2500
www.marvell.com
Copyright © 2003. Marvell. All rights reserved. Marvell, the Marvell logo, Moving Forward
Faster, Alaska, and GalNet are registered trademarks of Marvell. Discovery, Fastwriter, GalTis,
Horizon, Libertas, Link Street, NetGX, PHY Advantage, Prestera, Raise The Technology Bar,
UniMAC, Virtual Cable Tester, and Yukon are trademarks of Marvell. All other trademarks are
the property of their respective owners.
88W8010/8310-001 02/03
