54ACT821FMQB datasheet, PDF - EEWORLD Datasheet

54ACT821FMQB: DescriptionBus Driver, ACT Series, 1-Func, 10-Bit, True Output, CMOS, CDFP24, CERAMIC, FP-24; Categorylogic logic; File Size123KB，5 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

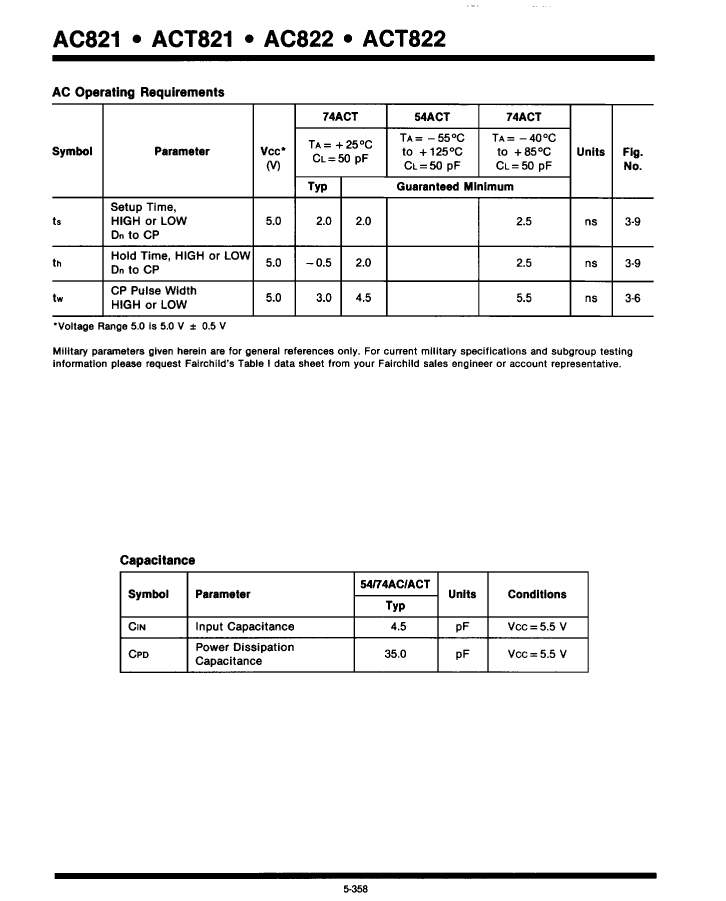

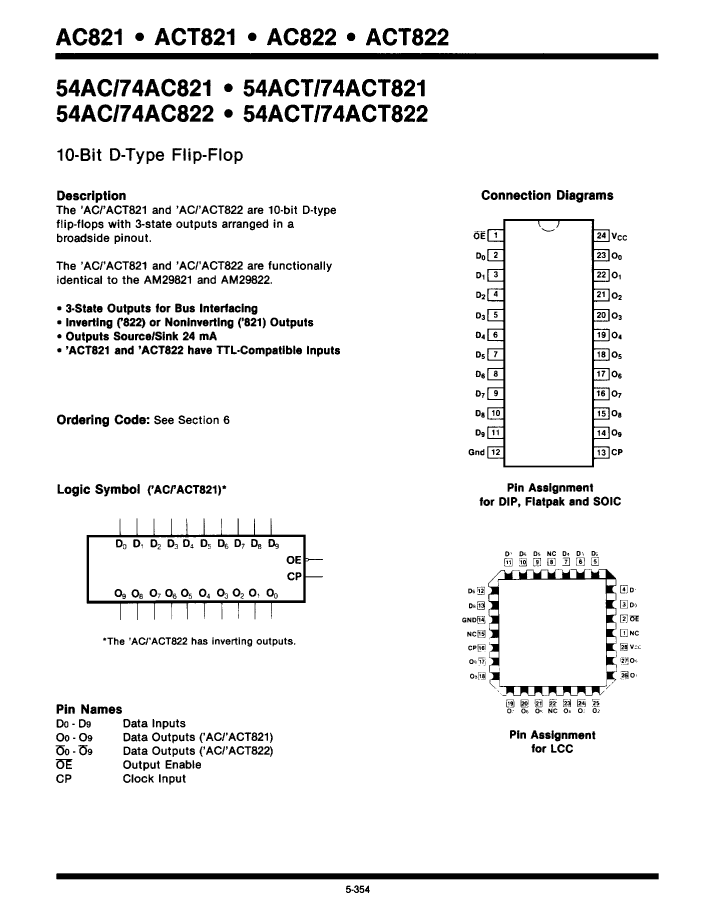

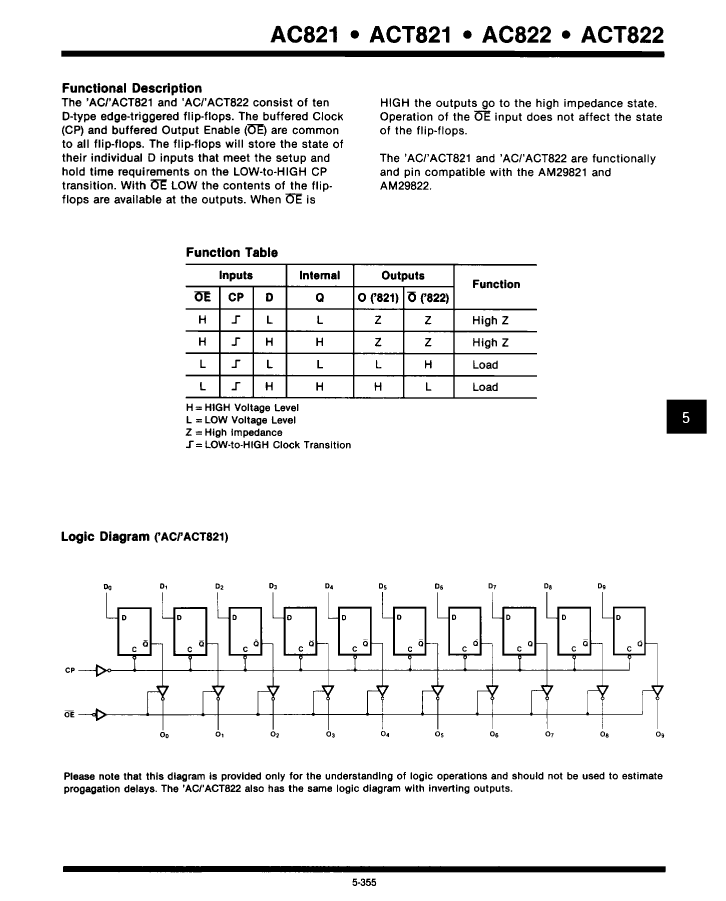

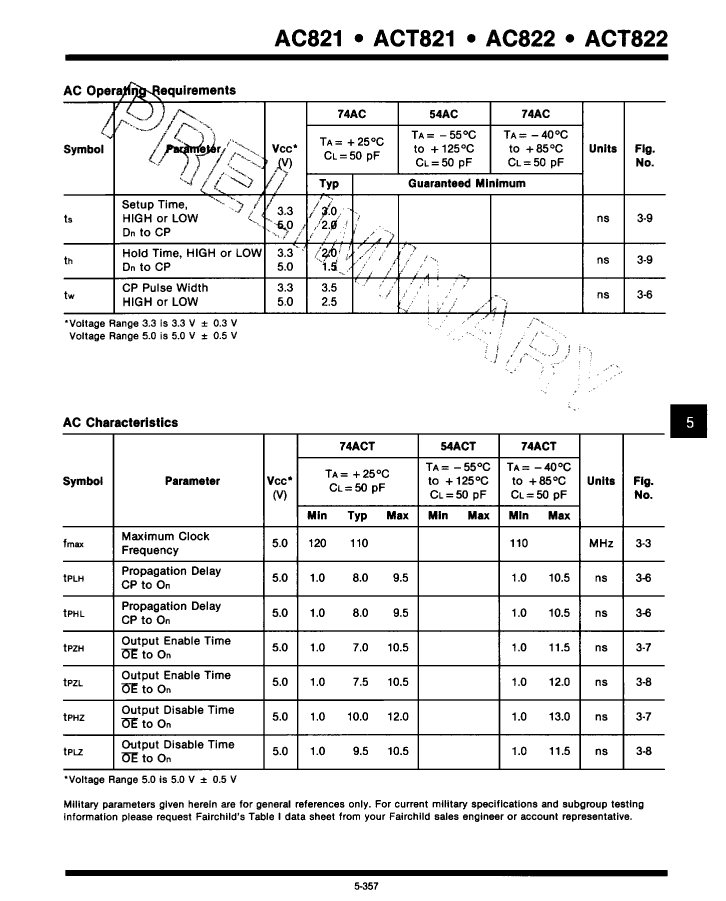

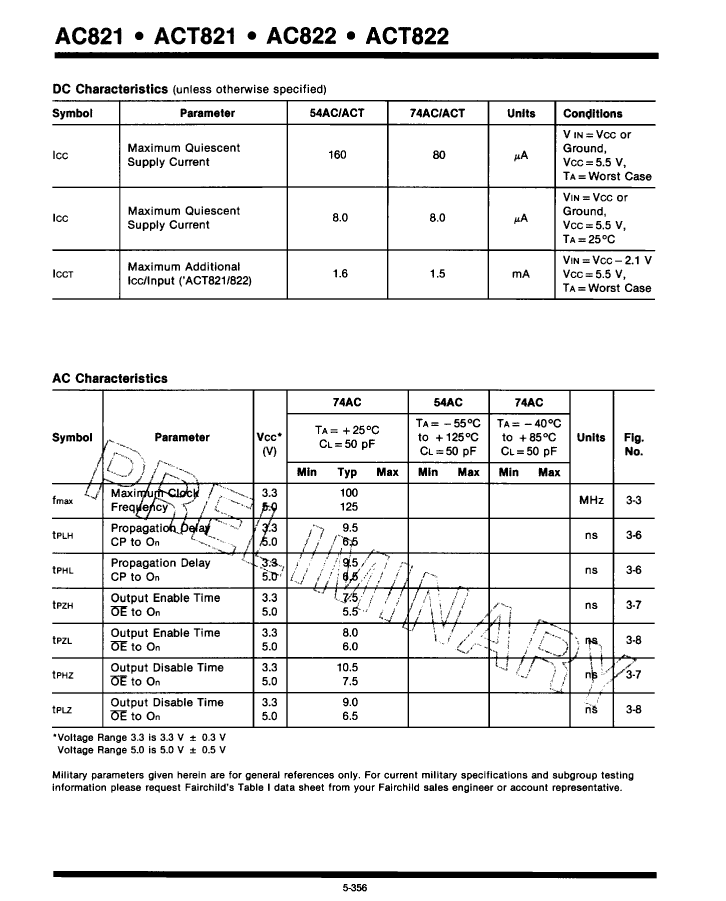

54ACT821FMQB Overview

Bus Driver, ACT Series, 1-Func, 10-Bit, True Output, CMOS, CDFP24, CERAMIC, FP-24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DFP
package instruction	DFP, FL24,.4
Contacts	24
Reach Compliance Code	unknow
series	ACT
JESD-30 code	R-CDFP-F24
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Maximum Frequency@Nom-Su	85000000 Hz
MaximumI(ol)	0.024 A
Number of digits	10
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL24,.4
Package shape	RECTANGULAR
Package form	FLATPACK
method of packing	TUBE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.286 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	9.906 mm
Base Number Matches	1
