83-765

Description
RF adapters - In series hood 83-1R TO rg58 UG-177/U
CategoryThe connector
File Size68KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric View All

83-765 Online Shopping

Suppliers Part Number Price MOQ In stock
83-765 - - View Buy Now

83-765 Overview

RF adapters - In series hood 83-1R TO rg58 UG-177/U

83-765 Parametric

Parameter NameAttribute value
ManufactureAmphenol
Product CategoryRF Adapters - In Series
RoHSYes
RF SeriesUHF
Side 1 GendeJack (Female)
Side 1 PolarityNormal
Side 2 GendeJack (Female)
Side 2 PolarityNormal
ImpedanceNon-Cons
Body StyleFlange

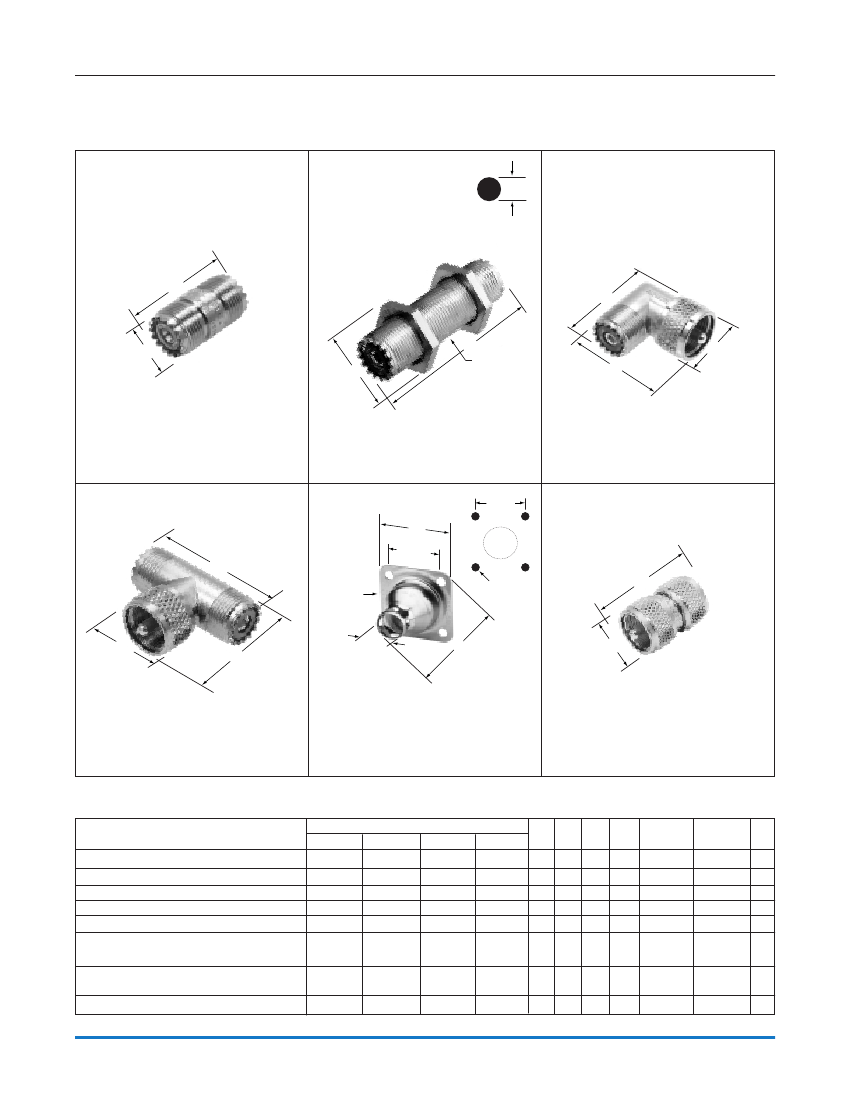

UHF
Adapters, Hoods
Fig. 1
Fig. 2
.640
(16.3)
F
Amphenol
®
Fig. 3
a
a
b
b
across
flats
a
e
max
panel
.890(22.6)
b
d
UHF Adapter, Jack-Jack
11850
83-1J
Fig. 4
Fig. 5
UHF Bulkhead Adapter
Jack-Jack
83-1F
.718
(18.2)
b
.718
(18.2)
.125 (3.2)
dia. 4 holes
UHF Angle Adapter
Jack-Plug
83-1AP
Fig. 6
a
.020(0.5)
thick flange
c
G
d
a
b
a
b
UHF Tee Adapter
Jack-Plug-Jack
83-1T
UHF Hoods
83-1H
83-765
Straight Adapter
Plug-Plug
83-877
UHF IN-SERIES ADAPTERS, HOODS
Description
Straight Adapter/Jack-Jack
Straight Adapter/Jack-Jack
Bulkhead Adapter/Jack-Jack
Angle Adapter/Jack-Plug
Tee Adapter/Jack-Plug-Jack
Hood/4-hole flange mount/Adapts Panel Receptacle
83-1R to RG-8,10,11,12,63,79,115,149,213,215
Hood/4-hole flange mount/Adapts Panel Receptacle
83-1R to RG-58,141 cables
Straight Adapter/Plug-Plug
• accommodates cable diameter
Dimensions, inches (millimeters)
a
b
c
G
d
1.12(28.6)
1.12(28.6)
2.00(50.8)
1.28(32.5)
1.63(41.3)
.750(19.1)
.750(19.1)
1.31(33.3)
L
distributor stocked
.625(15.9)
.625(15.9)
.625(15.9)
.750(19.1)
.750(19.1)
1.00(25.4)
1.00(25.4)
.781(19.8)
.345(8.8)
.155(3.9)
1.19(30.2)
1.20(30.6)
CAI
C7
C7
Plt.
P1
P1
P1
P1
P1
P3
P3
P1
Ins.
D1
D5
D5
D5
D5
D5
MTG
Hole
F
Military
Number
PL-258
PL-258
Amphenol
Number Fig.
11850
83-1J
1
1
2
3
4
5
5
6
L
L
L
L
L
L
UG-363/U
83-1F
UG-646/U
83-1AP
M-358
83-1T
UG-106/U
83-1H
UG-177/U
83-765
PL-258
83-877
Amphenol Corporation Tel: 800-627-7100
www.amphenolrf.com
