0.4mm Pitch, Stacking Type
Board-to-Board (FPC) Connector
CONNECTOR
MB-0228-1
September 2011
WP7 Series
Plug
Plug
Receptacle
Receptacle

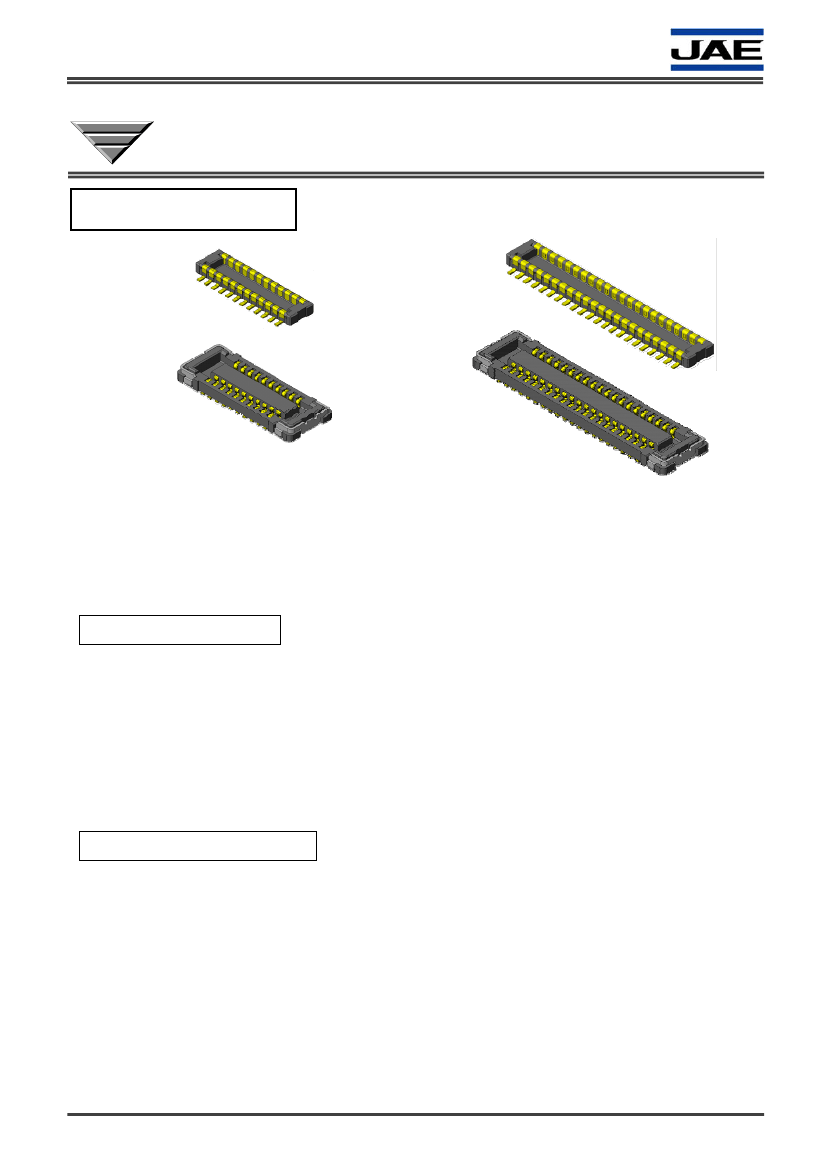

The WP7 Series is a low-profile board-to-board(FPC) connector with 0.4mm pitch
spacing that is ideal for high-density mounting in slim information communication
devices like mobile phones, LCDs, notebook PCs, and PDAs.
To satisfy different product function requirements, a low pin count type and a high pin
count type (WP7A/WP7B) are available with the same mounting pattern.
Features
•
0.4mm pitch, 2 rows, 0.7mm stacking height.
•
Contact structure ensures high wear-resistance and high contact reliability.
•
Secure hold-downs prevent insulator breakage and peeling from FPC.
•
2-point contact design to resist twisting stress.
•
Pb-free. Ni barrier on contact prevents solder wicking.
•
High removal force WP7A for (low pin count: 10-30 pos.)
•
Low insertion force WP7B for (high pin count 40-70 pos.)
* Mounting pattern for WP7A and WP7B is the same.
General Specifications
(WP7A) No. of Contacts:
10, (16), (20), 26, 30 pos.
(WP7B) No. of Contacts:
40, 50, 60, 70 pos.
Note: () are planned to be developed
Pitch: 0.4mm, 2 rows
Operating Temperature:
-40 Deg. C to +85 Deg. C
Contact Resistance: 70mΩ max. (initial)
Life Time: 50 mating cycles
Rated Current: AC, DC 0.2A each per terminal
Rated Voltage: AC, DC 50V
Insulation Resistance: 100MΩ min. (initial)
Dielectric Withstanding Voltage:
AC250Vr.m.s per minute
(WP7A) total insertion force:
1.50N x n max. (n: No. of pos.)
(WP7A) total removal force:
0.15N x n min. (n: No. of pos.)
(WP7B) total insertion force:
1.00N x n max. (n: No. of pos.)
(WP7B) total removal force:
0.10N x n min. (n: No. of pos.)
1/7
JAE PMK Div. Proprietary. Copyright © 2011, Japan Aviation Electronics Industry, Ltd.
MB-0228-1
Materials and Finishes
Component
Contact
Insulator
Hold-Down
Material / Finish
Cu alloy / Au plating (0.1 µm min.)
Heat-resistant plastic
Plug: Cu alloy / Au plating (0.1µm min.)
Receptacle: Cu alloy / Sn plating

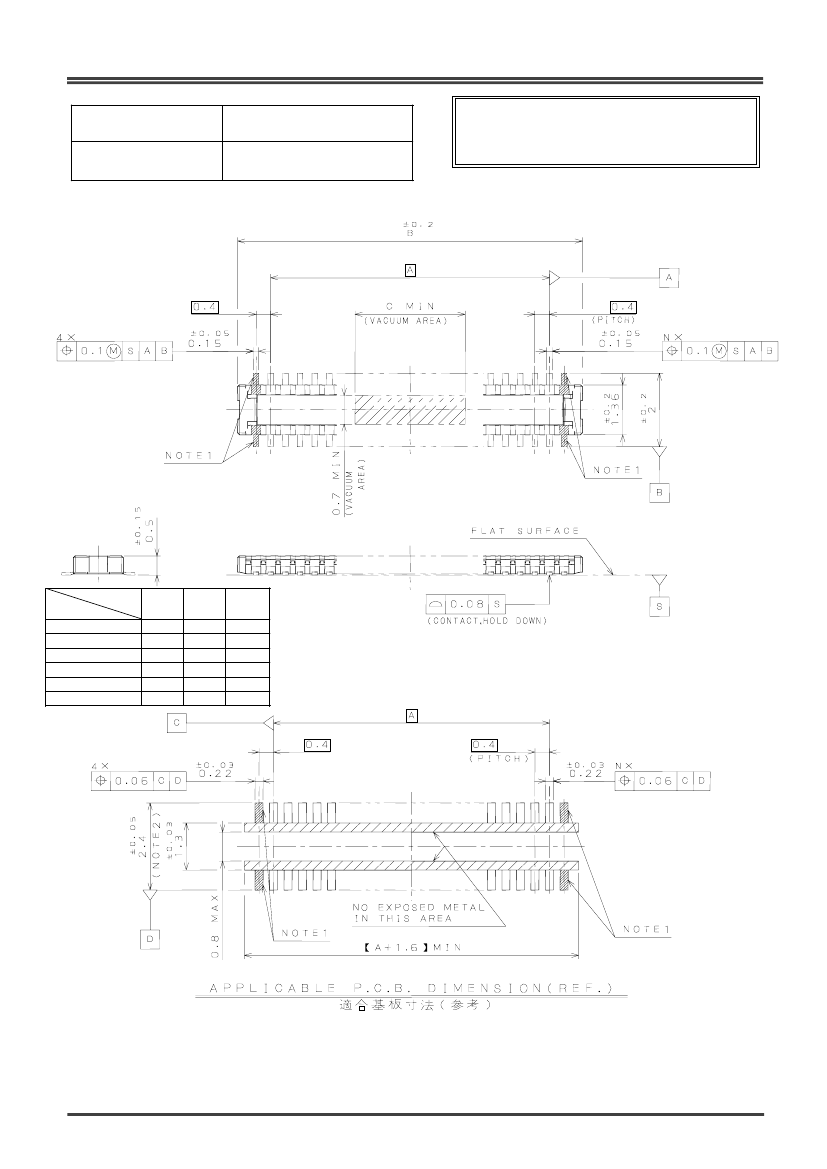

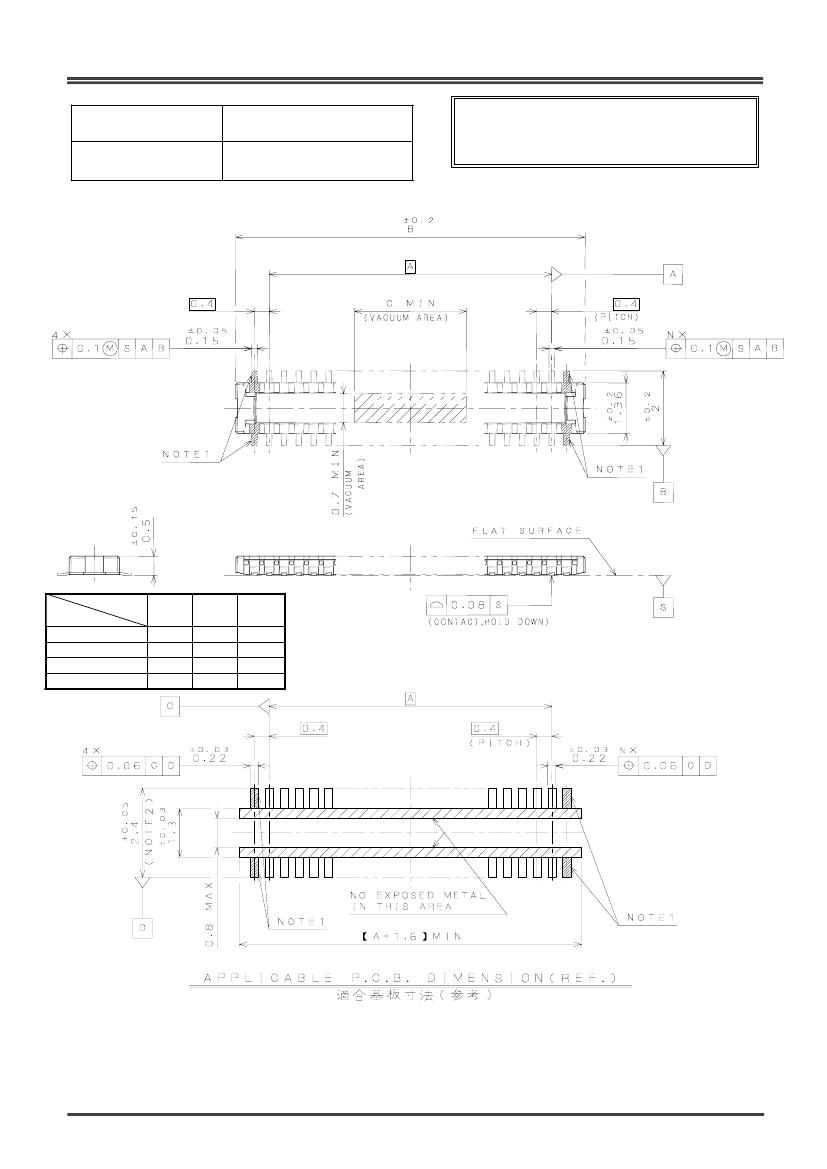

Ordering Information (Plug)
WP7 * - P *** V A * - R****
Series
Modification Code
Contact Shape P: Plug
No. of Contacts
Connection Type V: Stacking
Reel Part Number (Note 1)
(R6000: For Standard Product)
(R300: For Inspection Jig Product)
Modification Code
1: Standard Product
E: Inspection Jig Product
Finish A: Au plating

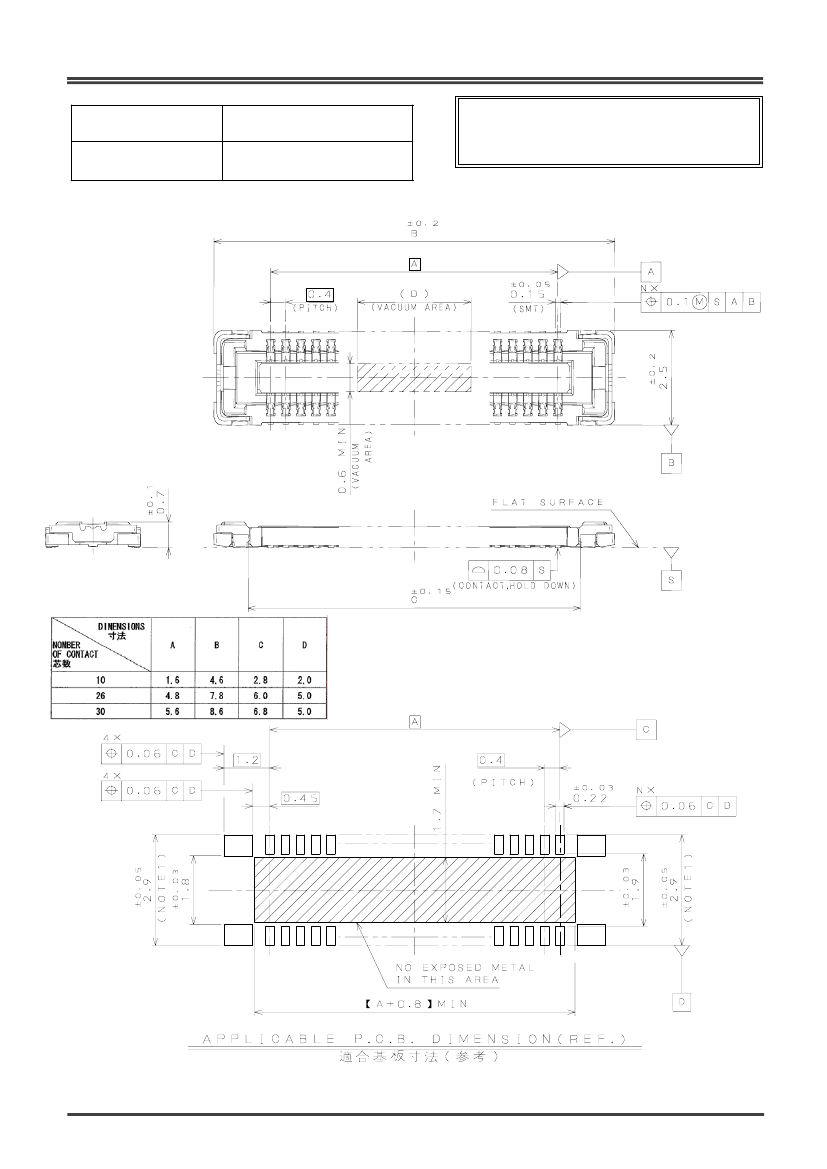

Ordering Information (Receptacle)
WP7 * - S *** V A * - R****
Series
Modification Code
Contact Shape S: Receptacle
No. of Contacts
Connection Type V: Stacking
Reel Part Number (Note 1)
(R6000: For Standard Product)
(R300: For Inspection Jig Product)
Modification Code
1: Standard Product
E: Inspection Jig Product
Finish A: Au plating
Note 1) An embossed tape reel contains 6,000 pieces of standard product,
or 300 pieces of inspection jig product.
Please contact us for details on embossed tape specifications.
JAE PMK Div. Proprietary. Copyright © 2011, Japan Aviation Electronics Industry, Ltd.
2/7
