AM7201-65PC datasheet, PDF - EEWORLD Datasheet

AM7201-65PC: DescriptionFIFO, 512X9, 65ns, Asynchronous, CMOS, PDIP28, PLASTIC, DIP-28; Categorystorage storage; File Size254KB，10 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

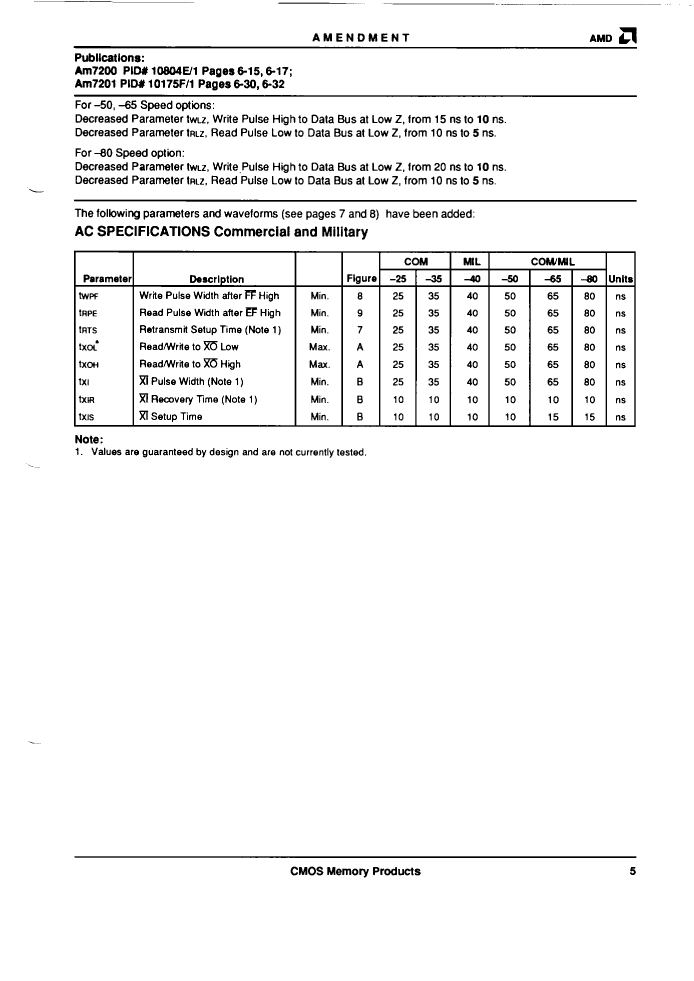

AM7201-65PC Overview

FIFO, 512X9, 65ns, Asynchronous, CMOS, PDIP28, PLASTIC, DIP-28

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	DIP, DIP28,.6
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	65 ns
Other features	RETRANSMIT
Maximum clock frequency (fCLK)	12.5 MHz
period time	80 ns
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
length	37.084 mm
memory density	4608 bit
Memory IC Type	OTHER FIFO
memory width	9
Number of functions	1
Number of terminals	28
word count	512 words
character code	512
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512X9
Output characteristics	3-STATE
Exportable	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.715 mm
Maximum standby current	0.005 A
Maximum slew rate	0.06 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
Base Number Matches	1
