AGC-6: DescriptionElectric Fuse, Fast Blow, 6A, 125VAC, 200A (IR), Inline/holder,; CategoryCircuit protection Circuit protection; File Size45KB，1 Pages; ManufacturerCooper Industries

Download Datasheet Parametric View All

AGC-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AGC-6	-	-	View	Buy Now

AGC-6 Overview

Electric Fuse, Fast Blow, 6A, 125VAC, 200A (IR), Inline/holder,

AGC-6 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
Fusing characteristics	FAST
body height	32 mm
Body length or diameter	6.3 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal
Installation features	INLINE/HOLDER
physical size	6.3mm x 32mm
Pre-discharge rating	0.071 A2/s
Rated breaking capacity	200 A
Rated current	6 A
Rated voltage	250 V
Rated voltage (AC)	125 V
Guideline	CSA; UL
resistance	0.02 Ω
surface mount	NO
Terminal surface	Nickel (Ni)
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

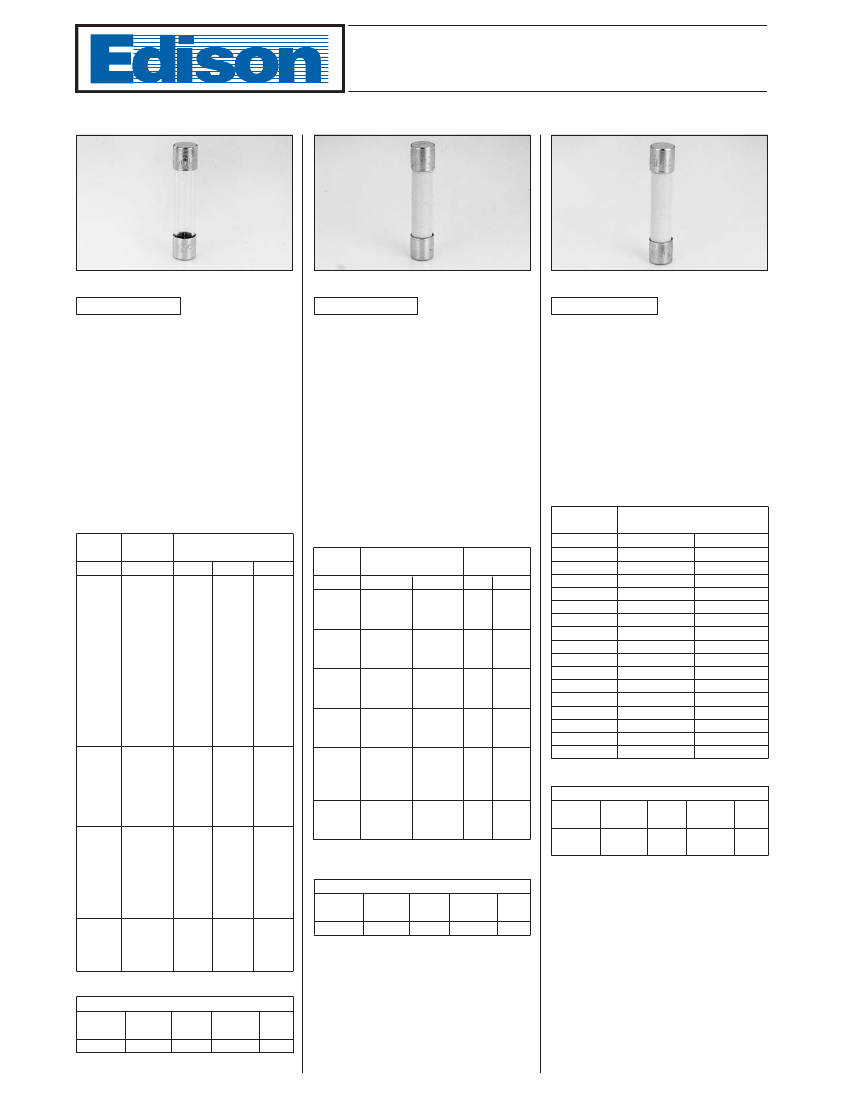

SMALL DIMENSION (ELECTRONIC) FUSES

1/4” x 1-1/4” Fast-Acting Fuses

AGC

Fast-Acting

1/4” x 1-1/4”

(6.3mm x 32mm)

Construction:

Glass Tube, Nickel-

plated brass endcaps.

Voltage Rating:

See Below

Interrupting Rating:

See Below

Agency Approvals:

UL Listed product meets standard 248-14

UL Listed Card: AGC 1/500-10

UL Recognition Card: AGC 11-30

CSA Component Acceptance Card

(Class No. 1422 30)

CSA Certification Card (Class No.

1422 01)

Electrical Characteristics

Current Rated

AC Interrupting

Rating Voltage

Rating

1

AC (Max.) 250V

125V

32V

1/20

250V

35V 10000A 1000A

1/16

250V

35V 10000A 1000A

1/10

250V

35V 10000A 1000A

1/8

250V

35V 10000A 1000A

3/16

250V

35V 10000A 1000A

2/10

250V

35V 10000A 1000A

1/4

250V

35V 10000A 1000A

3/10

250V

35V 10000A 1000A

3/8

250V

35V 10000A 1000A

45/100 250V

35V 10000A 1000A

1/2

250V

35V 10000A 1000A

3/4

250V

35V 10000A 1000A

1

250V

35V 10000A 1000A

1-1/4

250V

100A 10000A 1000A

1-1/2

250V

100A 10000A 1000A

2

250V

100A 10000A 1000A

2-1/4

125V

100A 10000A 1000A

2-1/2

125V

100A 10000A 1000A

3

125V

100A 10000A 1000A

4

125V

200A 10000A 1000A

5

125V

200A 10000A 1000A

6

125V

200A 10000A 1000A

7

125V

200A 10000A 1000A

8

125V

200A 10000A 1000A

9

125V

200A 10000A 1000A

10

125V

200A 10000A 1000A

15

32V

–

1000A

20

32V

–

1000A

25

32V

–

1000A

30

32V

–

1000A

1

Interrupting ratings were measured at 70% - 80% power factor on

AC, and at a time constant described in UL 198L.

ABC

Fast-Acting

Physical Size:

1/4” x 1-1/4”

(6.3mm x 32mm)

Construction:

Ceramic Tube

Voltage Rating:

See Below

Interrupting Rating:

See Below

Agency Approvals:

UL Listed product meets standard 248-14

UL Listed Guide & File numbers (ABC

1/4-15A): JDYX & E19180.

UL Recognition Guide & File numbers

(ABC 20-30A): JDYX2 & E19180.

CSA Certification Record No: 053787

C 000 & Class No: 1422 01 & 1422

30.

Electrical Characteristics

Current

Rated

Rating

Voltage

AC (Max.) DC (Max.)

1/4

250V

125V

1/2

250V

125V

3/4

250V

125V

1

250V

125V

1-1/2

250V

125V

2

250V

125V

2-1/2

250V

125V

3

250V

125V

4

250V

125V

5

250V

125V

6

250V

125V

7

250V

125V

8

250V

125V

10

250V

125V

12

250V

125V

15

250V

125V

20

250V

125V

25

125V

30

125V

AC Interrupting

Rating

1

250V 125V

35A 10000A

100A 10000A

200A 10000A

750A 10000A

400A 1000A

–

1000A

–

1000A

GBB

Very Fast-Acting

1/4” x 1-1/4”

(6.3mm x 32mm)

Construction:

Ceramic Tube

Voltage Rating:

See Below

Agency Approvals:

UL recognized product meets standard 248-

14

UL Recognized Card: GBB 1-30A (JFHR2,

E56412)

CSA Component Certified Card (Class

1422-01 File 53787)

Product Code & Voltage Rating

Product

Voltage

Code

Rating

AC

GBB-1

250V

GBB-1-1/4

250V

GBB-2

250V

GBB-3

250V

GBB-4

250V

GBB-5

250V

GBB-6

250V

GBB-7

250V

GBB-8

250V

GBB-9

250V

GBB-10

250V

GBB-12

250V

GBB-15

250V

GBB-20

250V

GBB-25

125V

GBB-30

125V

Physical Size:

DC

125V

NEW

EDISON

GBB

CROSS REFERENCE

OLD

EDISON BUSS

GOULD

—

GBB

None

LF

322

1

Interrupting ratings were measured at 70% - 80% power factor on

AC, and at a time constant described in UL 198L.

NEW

EDISON

ABC

CROSS REFERENCE

OLD

EDISON BUSS

GOULD

BBC

ABC

GAB

LF

314

NEW

EDISON

AGC

CROSS REFERENCE

OLD

EDISON BUSS

GOULD

BGC

AGC

GGC

LF

312
