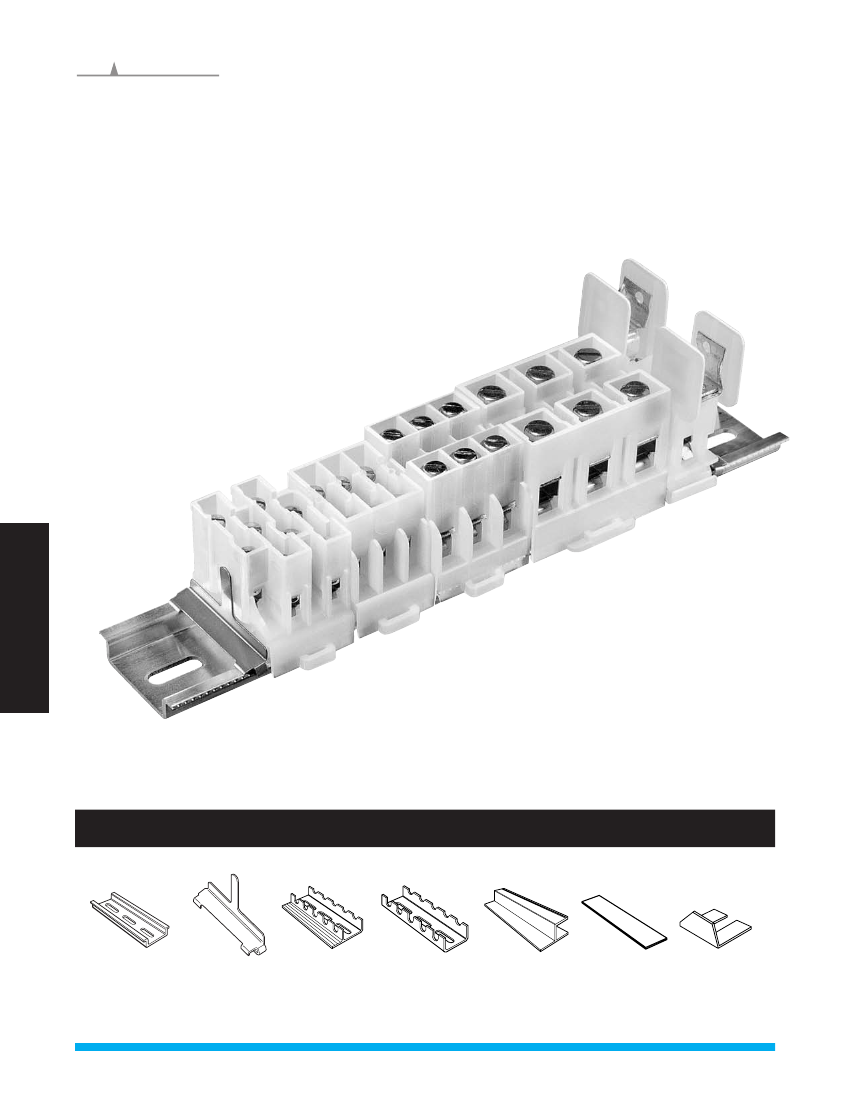

MAGNUM
®
Series NDN Rail Mount Terminal Blocks
35mm DIN Rail Compatible
Single & Double Row
Filtered Connectors
Euro-MAG Series
PCB – Spring Clamp
SPECIFICATIONS
High Density Design:
Up to 48 circuits per foot
Clamping Collar:
Secures wires
Large, Captive, Wire-Ready Screws:
Speeds assembly
Snap-on Installation to DIN Rail:
Fast, easy assembly
Fully Shielded Construction:
600V spacings
Unique One-Piece Construction:
Increases reliability
Thermoplastic Moldings:
Strong and impact resistant
Material:
UL Recognized 94V2 thermoplastic
Collars:
Heat treated stainless steel
Terminals:
Tin plated copper alloy
Screws:
Zinc plated steel
Agency Information:
UL/CSA; CE Certified
NDNF1
Single pole
fuseholder accepts
13/32" x 1-1/2"
fuses
Base & Rail Mount
Connectors
NDN1/NDN111
Heavy-duty
90 Amp block
NDN63
Accepts wires larger
than standard
control circuits
NDN3
Space saving
3-pole unit
NDNV4
High Density
48 circuits per foot
Power Distribution Blocks
NDNA200
Universal aluminum
35mm DIN mounting rail
Series NDN Terminal Block Accessories
Inches (Millimeters)
WIRE MANAGEMENT PRODUCTS
NDNA
35mm DIN Rail
Aluminum
NDNA 100
1 meter
NDNA 200
2 meters
NDNAS
35mm DIN Rail
End Stop
NFTA
C-Rail
Aluminum
Lengths to 72"
NRA
C-Rail
Low Profile
No Flange
Aluminum
Lengths to 37-1/2"
SOA72
72" Long
Stand-Off Channel
For C-Rail
MASKING
TAPE
See Series
Specifications
JUMPERS
See Series
Specifications
120

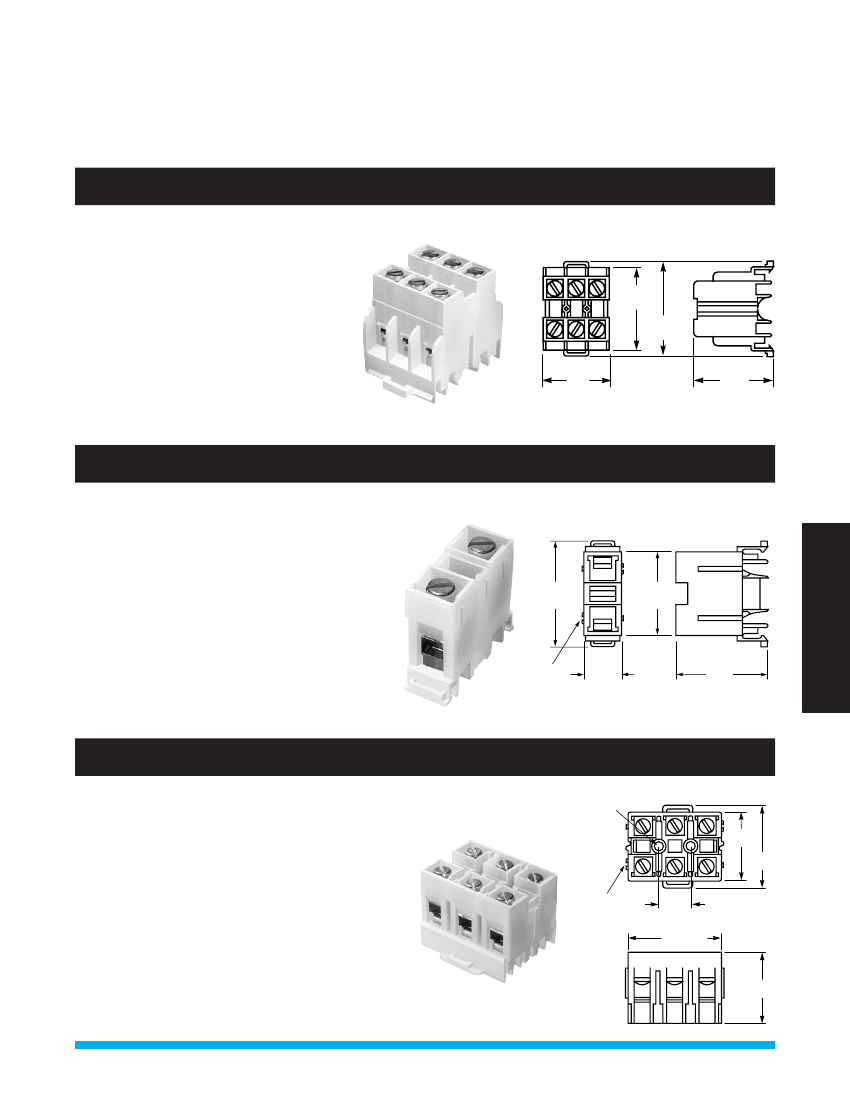

Rail Mount Terminal Blocks
NDN63
SPECIFICATIONS:
Rating:
65A, 600V; UL/CSA
Center Spacing:
.375" (9.52 mm)
Number Of Poles:
3
Circuits Per Foot:
30
Circuit Jumper:
JN3, 2 circuits
Wire Range:
AWG #6-18 CU
Screw Size:
#10-32
Mounting Options:
35mm DIN rail, C-rail
Marking Tape:
MT12-1/2
Torque Rating:
35 in-lb
Operating Temperature:
105°C
Single & Double Row
Filtered Connectors
1.50
(38.10)
1.67
(42.41)
1.17
(29.71)
1.45
(36.83)
Euro-MAG Series
PCB – Spring Clamp
NDN1
SPECIFICATIONS:
Rating:
90A, 600V
Center Spacing:
.635" (16.13 mm)
Number Of Poles:
1
Circuits Per Foot:
18
Wire Range:
AWG #2-18 CU
Screw Size:
#1/4-28
Mounting Options:
35mm DIN rail, C-rail
* Dove-tail option is available for mounting side-by-side.
Order part no. NDN1-A
Marking Tape:
MT12-1/2
Torque Rating:
32 in-lb
Operating Temperature:
105°C
Base & Rail Mount
Connectors
1.71
(43.48)
1.32
(33.68)
Dovetail
Option
.59
(14.99)
1.43
(36.31)
NDN111
SPECIFICATIONS:
Rating:
90A, 600V; UL/CSA
Center Spacing:
.635" (16.13 mm)
Number Of Poles:
3
Circuits Per Foot:
18
Circuit Jumper:
JN1, 2 circuits
Wire Range:
AWG #2-18 CU
Screw Size:
#1/4-28
Mounting Options:
35mm DIN rail, C-rail, Base Mount
* Dove-tail option is available for mounting side-by-side.
Order part no. NDN111-A
Marking Tape:
MT12-1/2
Torque Rating:
32 in-lb
Operating Temperature:
105°C
Mtg. holes
.18 (4.57) dia.
.28 (7.11) c'bores
1.46
(37.13)
1.71
(43.48)
Power Distribution Blocks
Dovetail
Option
.62
(15.75)
1.87
(47.50)
WIRE MANAGEMENT PRODUCTS
1.44
(36.57)
121

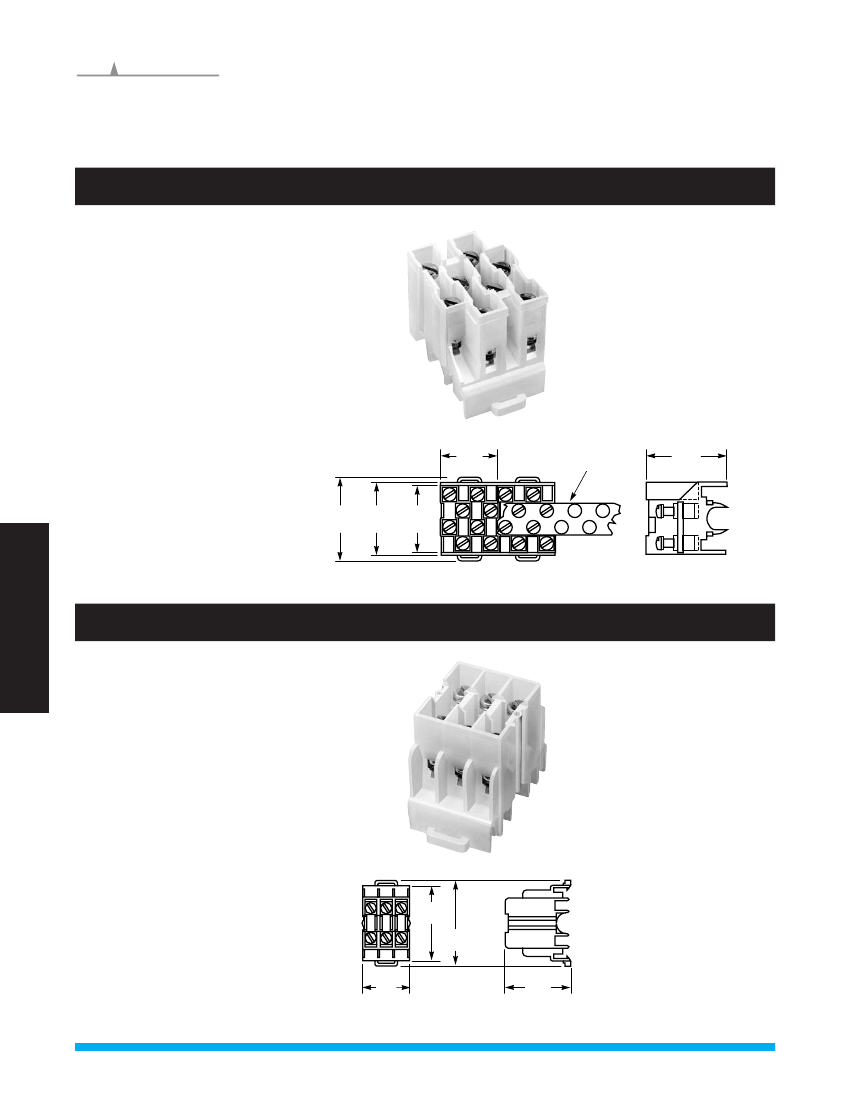

MAGNUM
®
Rail Mount Terminal Blocks
Single & Double Row
Filtered Connectors
NDNV4
SPECIFICATIONS:
Rating:
NDNV4 30A, 600V; UL/CSA
Center Spacing:
.250" (6.35mm)
Number Of Poles:
4
Circuits Per Foot:
48
Circuit Jumper:
JN4, 4 circuits
Wire Range:
AWG #10-22 CU
Screw Size:
#6-32
Mounting Options:
35mm DIN rail, C-rail
Marking Tape:
MTC6
Torque Rating:
18 in-lb
Operating Temperature:
105°C
Euro-MAG Series
PCB – Spring Clamp
1.00
(25.40)
Marking
Tape
1.34
(34.04)
1.67
1.47
1.23
(42.41) (37.33) (31.24)
Base & Rail Mount
Connectors
NDN3
SPECIFICATIONS:
Rating:
30A - field wiring: 40A - factory wiring
600V; UL/CSA
Center Spacing:
.300" (7.62 mm)
Number Of Poles:
3
Circuits Per Foot:
38
Circuit Jumper:
JNDN3, 2 circuits
Wire Range:
AWG #10-22 CU
Screw Size:
#6-32
Mounting Options:
35mm DIN rail, C-rail
Marking Tape:
MT12-1/2
Torque Rating:
18 in-lb
Operating Temperature:
105°C
Power Distribution Blocks
1.47
(37.33)
WIRE MANAGEMENT PRODUCTS
1.67
(42.41)
.94
(23.87)
1.31
(33.27)
122

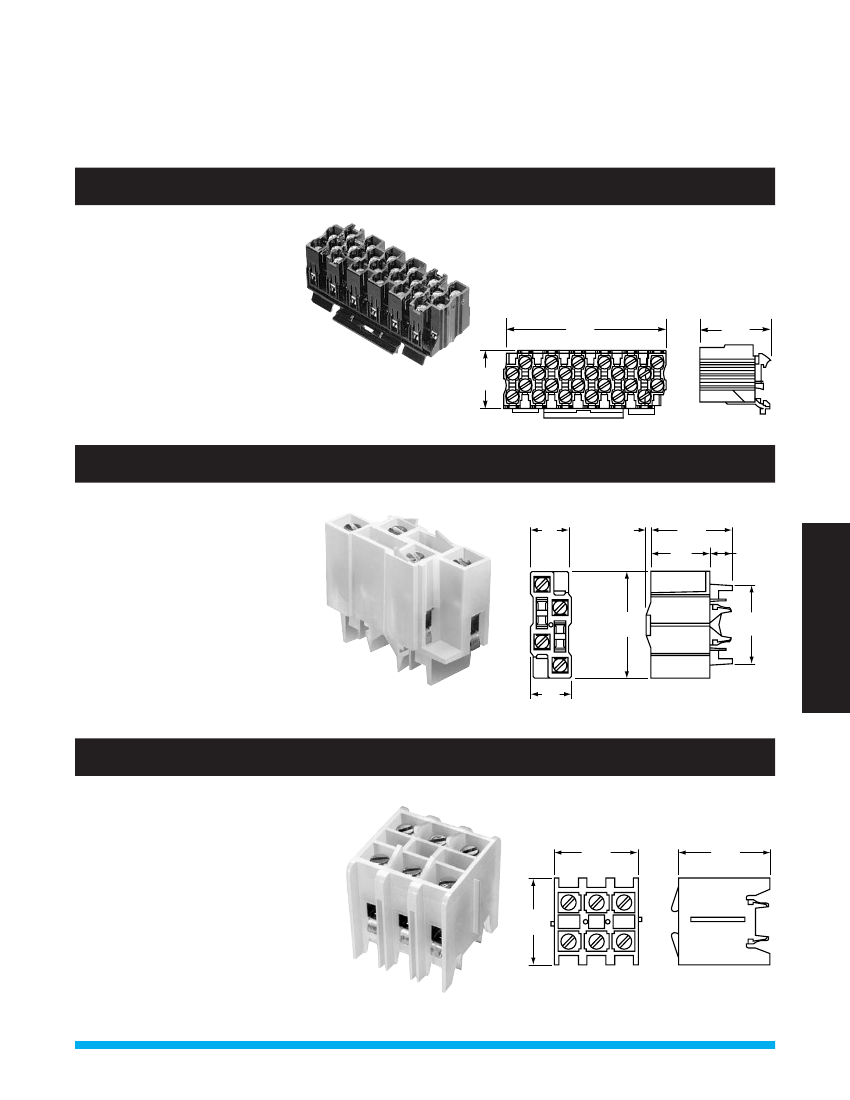

Rail Mount Terminal Blocks
N512
SPECIFICATIONS:
Rating:
5A, 600V; UL/CSA
20A, 300V; UL/CSA
Center Spacing:
.197" (5.00 mm)
Number Of Poles:
12
Circuits Per Foot:
60
Circuit Jumper:
JN512, 12 circuits
Wire Range:
AWG #12-22 CU
Screw Size:
#4-48
Mounting Options:
C-rail, 15mm DIN rail
Marking Tape:
AT512
Torque Rating:
12 in-lb
Operating Temperature:
105°C
Single & Double Row
Filtered Connectors
2.40
(60.96)
1.09
(27.68)
.88
(22.35)
Euro-MAG Series
PCB – Spring Clamp
NFT2
SPECIFICATIONS:
Rating:
40A, 600V; UL/CSA;
55A Factory Wired
Center Spacing:
.281" (7.13 mm)
Number Of Poles:
2
Circuits Per Foot:
38
Circuit Jumper:
JN2, 2 circuits
Wire Range:
AWG #8-22 CU
Screw Size:
#8-32
Mounting Options:
C-rail
Marking Tape:
MT12-1/2
Torque Rating:
18 in-lb
Operating Temperature:
105°C
.60
(15.44)
.07
(1.78)
1.29
(32.94)
.93
(23.80)
.36
(9.14)
Base & Rail Mount
Connectors
1.68
(42.82)
1.23
(31.34)
.65
(16.51)
NFT3
SPECIFICATIONS:
Rating:
40A, 600V; UL/CSA
55A Factory Wired
Center Spacing:
.390" (9.91 mm)
Number Of Poles:
3
Circuits Per Foot:
28
Circuit Jumper:
JN3, 2 circuits
Wire Range:
AWG #8-22 CU
Screw Size:
#8-32
Mounting Options:
C-rail
Marking Tape:
MT12-1/2
Torque Rating:
18 in-lb
Operating Temperature:
105°C
Power Distribution Blocks
1.18
(29.97)
1.29
(32.94)
1.23
(31.37)
WIRE MANAGEMENT PRODUCTS
123

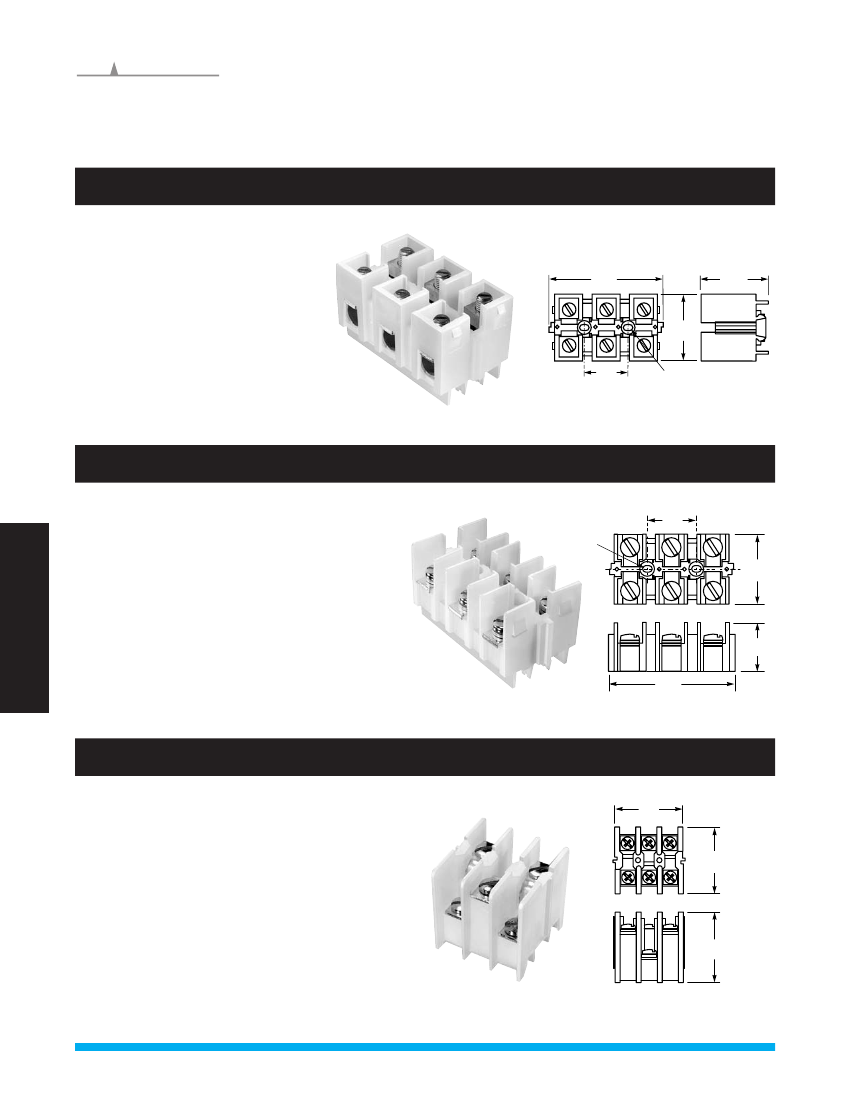

MAGNUM
®
Rail & Base Mount Terminal Blocks
Single & Double Row
Filtered Connectors
NC3
SPECIFICATIONS:
Rating:
175A, 600V; UL/CSA
Center Spacing:
1.06" (26.92 mm)
Number Of Poles:
3
Circuits Per Foot:
11
Wire Range:
2/0-#14 CU/AL
Screw Size:
5/16-24
Mounting Options:
C-rail, Base Mountl
Marking Tape:
MT12-1/2
Torque Rating:
45 in-lb
Operating Temperature:
105°C
3.12
(79.38)
1.75
(44.45)
1.75
(44.45)
Euro-MAG Series
PCB – Spring Clamp
1.25
(31.75)
.250 x .190"
mtg. slots
NSE3
SPECIFICATIONS:
Rating:
115A, 600V; UL/CSA
Center Spacing:
1.06" (26.92 mm)
Number Of Poles:
3
Circuits Per Foot:
11
Circuit Jumper:
JNSE3, 2 circuits
Wire Range:
For use with wire crimped to ring terminal
Screw Size:
#1/4-28
Mounting Options:
C-rail, Base Mount
Marking Tape:
MT12-1/2
Torque Rating:
32 in-lb
Operating Temperature:
105°C
1.25
(31.75)
.250 x .190
mtg. slots
1.75
(44.45)
Base & Rail Mount
Connectors
1.53
(38.86)
3.12
(79.24)
Power Distribution Blocks
NSS3
SPECIFICATIONS:
Rating:
30A, 600V; UL/CSA
Center Spacing:
.385" (9.77 mm)
Number Of Poles:
3
Circuits Per Foot:
28
Circuit Jumper:
JNSS3, 2 circuits
Wire Range:
For use with wire crimped to ring terminal
Screw Size:
#6-32
Mounting Options:
C-rail
Marking Tape:
MT12-1/2
Torque Rating:
12 in-lb
Operating Temperature:
105°C
1.24
(31.50)
1.25
(31.75)
WIRE MANAGEMENT PRODUCTS
1.32
(33.73)
124
