NOTES:
1. ELECTRICAL:
A:
B:
C.
D.
IMPEDENCE: 50
, NOMINAL
FREQUENCY RANGE: 0-6GHz (VSWR 1.3 MAX.)
OPERATING VOLTAGE: 100 VAC
CONTACT RESISTANCE: CENTER CONTACT= 20 m
MAX.
OUTER CONTACT= 10m
MAX.
E. DIELECTRIC WITHSTANDING VOLTAGE: 300VAC FOR 1 MINUTE,
CURRENT LEAKAGE 2mA MAX.
F. INSULATION RESISTANCE: 500 MEGOHMS MIN.
2. PHYSICAL:
A. TEMPERATURE RANGE: -40 C TO +90 C
$
$
B. AMC INTERFACE IS FULLY COMPATIBLE WITH "U.FL" SERIES PRODUCT.
C. SUITABLE FOR SOLDER REFLOW PROCESS.
3. MATERIALS AND FINISHES:
HOUSING: LCP (UL94V-0)
CENTER CONTACT: PHOSPHOR BRONZE, GOLD PLATE
GROUND CONTACT: PHOSPHOR BRONZE, SILVER PLATE
4. PACKAGING:
TAPE AND REEL PACKAGING.
QTY : 2500 PCS.
0,6 #
0,1
[.023 #
.003 ]
A-1JB
REVISIONS
REV
DRAWING NO.
THIRD ANGLE PROJ.
F
3,1
REF.
[.122]
G
SIGNAL PAD
H
A
ADD INFORMATION BLOCK ABOVE COD SYMBOL
CENTER CONTACT WAS BRASS, FLATNESS REQUIREMENT,
REMOVED MFG LOCATION STAMP,
OPERATING VOLTAGE WAS 500 VRMS
REMOVED DRAWING RELICS
RELEASE TO MFG.
DESCRIPTION
6/28/10
3/3/14
23-May-14
5/7/04
DATE
44924
48122
49763
49937
ECO
APPR
CPM
EW
EW
HP
3 #
0,15
[.118 #
.005 ]
2,6 #
0,15
[.102 #
.005 ]
2 #
0,1
[.079 #
.003 ]
SIGNAL PAD
4 #
0,1
[.157 #
.003 ]
SCALE
8.000
1.8
[.071]
2,6 #
0,15
[.102 #
.005 ]
1,75 #
0,1
[.069 #
.003 ]
0.35
[.014]
2,2 #
0,05
[.087 #
.001 ]
GROUND
2 #
0.1
[.078 #
.004]
SIGNAL PAD
0,35
[.014]
5,5 #
0,1
[.216 #
.003 ]
12 #
0,3
[.472 #
.011 ]
1 #
0,05
TYP.
[.039 #
.001 ]
1,9 #
0,05
[.075 #
.001 ]
4 #
0,05
[.157 #
.001 ]
1.25
[.049]
8 #
0,1
[.315 #
.003 ]
1.50
[.059]
SCALE
2.500
THIS GROUND PAD
IS OPTIONAL
1,05 #
0,05 TYP.
[.041 #
.001 ]
1 #
0,05
TYP
[.039 #
.001 ]
4,1
REF
[.161]
0.08
EMBOSSED CARRIER TAPE DIMENSIONS
SIGNAL PAD
UNREELING DIRECTION
2.2 REF.
[.087]

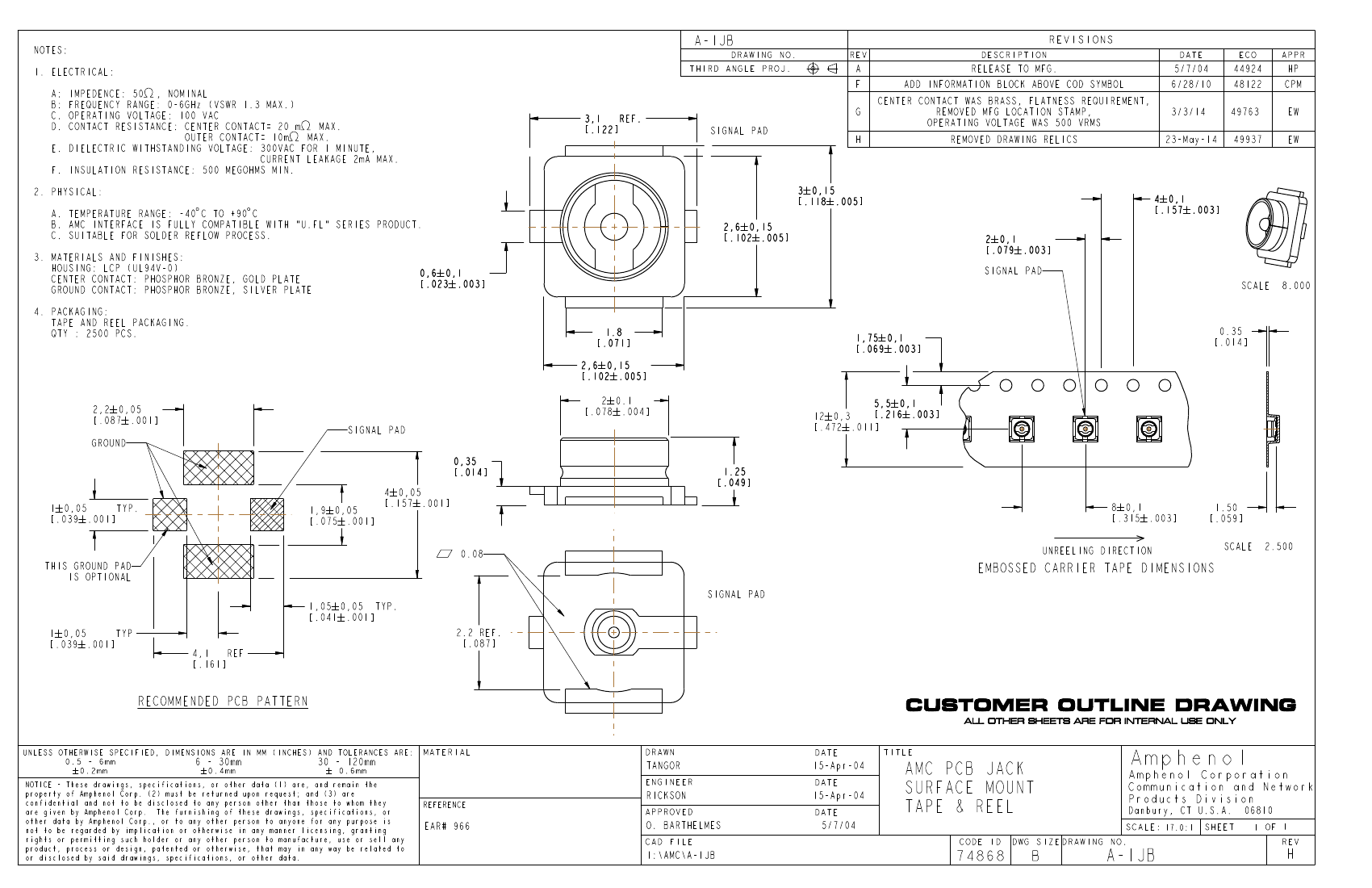

RECOMMENDED PCB PATTERN
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN MM (INCHES) AND TOLERANCES ARE:
0.5 - 6mm
6 - 30mm
30 - 120mm
#
0.2mm
#
0.4mm
# 0.6mm
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
MATERIAL
DRAWN
TANGOR
RICKSON
15-Apr-04
15-Apr-04
DATE
DATE
DATE
TITLE
ENGINEER
REFERENCE
APPROVED
CAD FILE
EAR# 966
O. BARTHELMES
I:\AMC\A-1JB
5/7/04
AMC PCB JACK
SURFACE MOUNT
TAPE & REEL
74868
CODE ID
Amphenol Corporation
Communication and Network
Products Division
Danbury, CT U.S.A.
SCALE: 17.0:1
Amphenol
SHEET
06810
1 OF 1
REV
DWG SIZE DRAWING NO.
B
A-1JB
H
