Quick Reference Guide
Compressive Board-to-Board Connectors
Compressive Board-to-Board (BTB) connectors are the low cost, high reliability and high design flexibility con-
nectors, which are used to provide either power or signal connections between two printed circuit boards
(PCBs) or one PCB and the other electrical modules. This product series is used to save cost and space in con-
sumer electronic devices which continue to get smaller, thinner and less expensive.TE Connectivity’s ( TE )
one-piece compressive BTB connector enables connections to a (locally) gold-plated secondary board by com-
pression of the contacts. It is also scalable in a number of positions, height and pitch.
Key Features
Provides both power and signal connections with
a small form factor.
Use as a connection for stacking applications
between PCB and various solutions such as FPC,
electrical modules, speakers and motors.
Provides single row and dual row contact design
for di erent applications.
Various options for di erent working heights, pin
counts and contact pitch.
Up to 2.0 Amp current rating for certain P/N.
Accommodates soldering and pick-and-place
using standard equipment.
Applications
Smart Phone
Tablet PC
Ultraportable computers
Laptop PC
Mobile Media Player
Digital Camera
Video Camera
Navigation Systems
Game Console
te.com/products/compressiveBTB
Compressive Board-to-board Connectors
Key Features

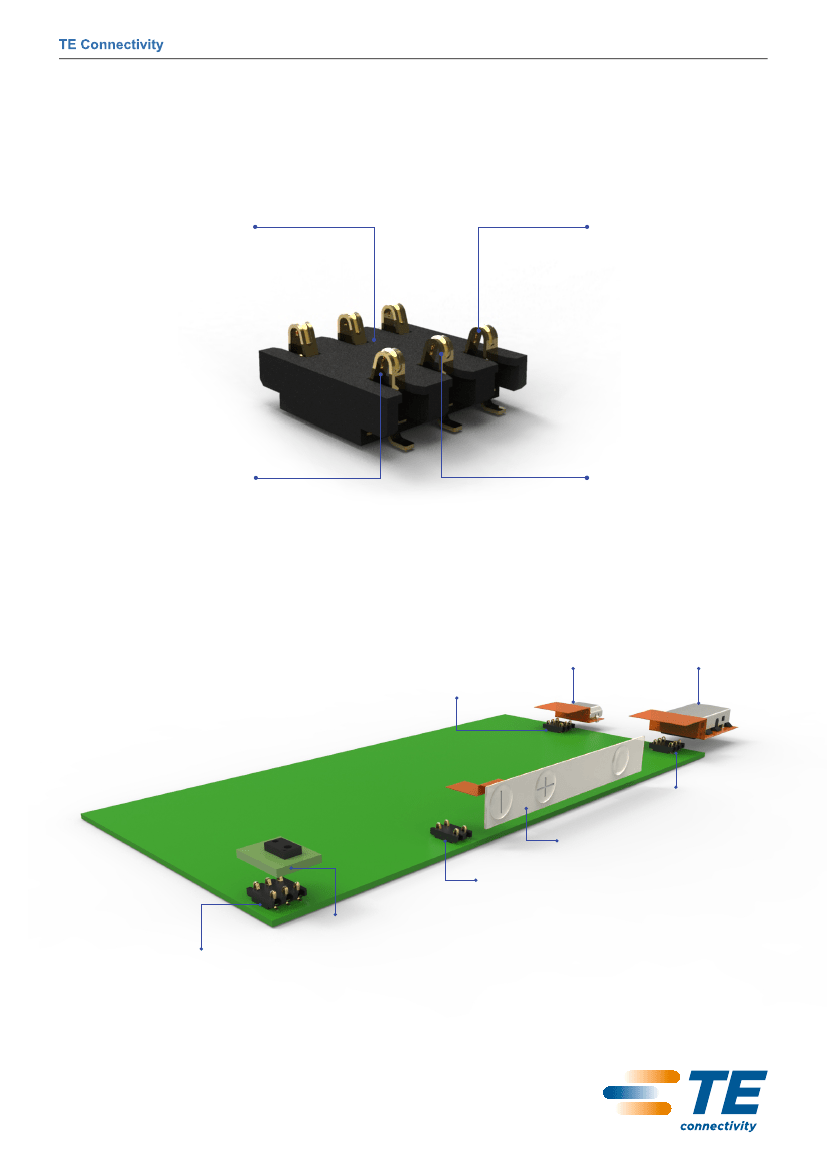

Flat area on housing
provides a flat surface for
customer SMT assembly line
nozzle pick-and-place.
Preloaded contact
provides a reliable and
stable electrical contact
through the compression
stroke.
Radius
on the contact tips
prevents hooking onto
customer operator's glove.
Dimple on the contact
ensures better electrical
contact under all condi-
tions.
Application
Micro USB 2.0
6P Compressive BTB
3.5 AV Jack
6P Compressive BTB
Volume Control
4P Compressive BTB
Sensor
6P Compressive BTB
te.com/products/compressiveBTB

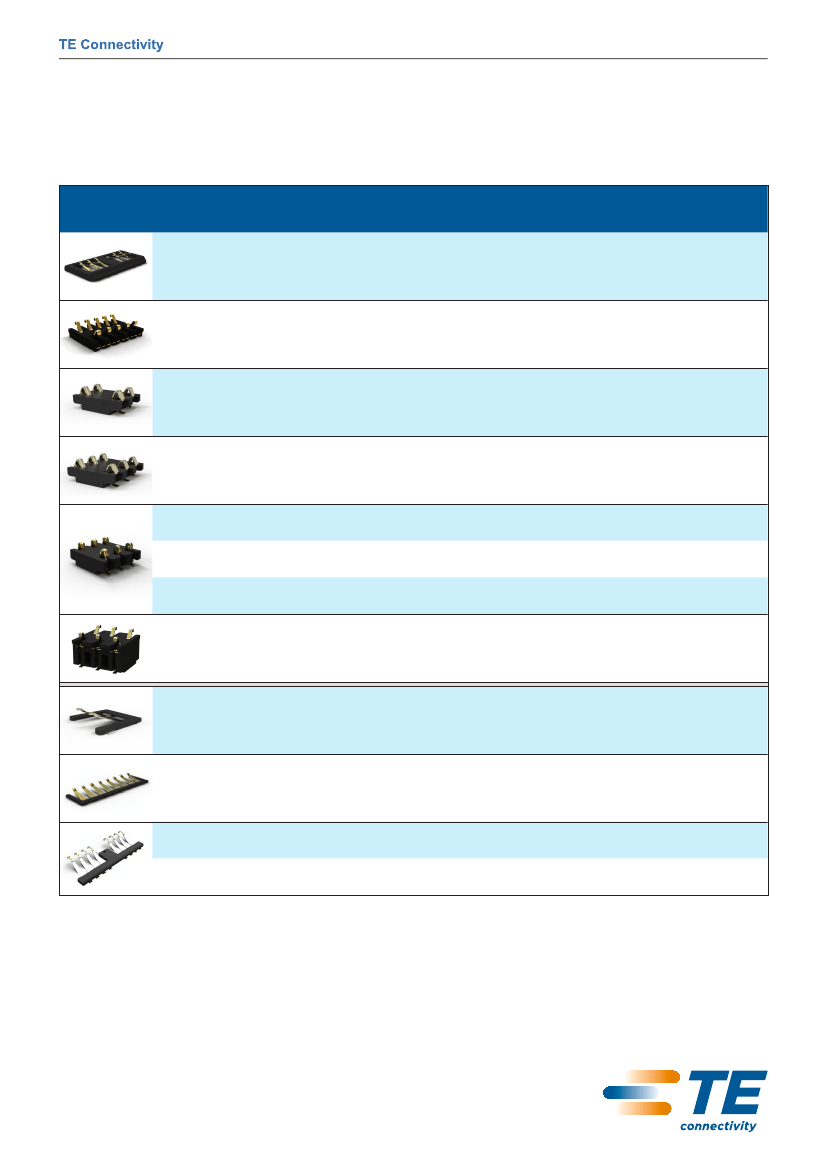

Frequently asked questions
1. What is the working height of TE’s compressive BTB products?
TE o ers 0.7mm to 3.15mm working heights.
2. What is the centerline spacing requirement?
TE o ers the centerline space between 0.7mm to 2.0mm.
3. What are the pin counts of TE’s compressive BTB products?
TE o ers products ranging from 4 to 22 positions.
4. What is the major application of TE compressive BTB connectors?
This product series can be used in smartphones, tablets, ultraportable devices and laptops.
PC MP3 & MP4 players, navigation systems and game consoles.
5. Does my application require a specific current rating?
In general the compressive BTB connectors are rated 1.5 amps maximum current rating;
however, there are some exceptions. Please refer to the TE product specification for each
part number to confirm.
6. Does my application need a minimum or maximum normal force?
Please refer to the notes in TE’s customer drawing, as there are detailed descriptions regard-
ing the contact normal force.
