5962R9573401V9A datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R9573401V9A

5962R9573401V9A: DescriptionHCT SERIES, TRIPLE 3-INPUT NOR GATE, UUC14; Categorylogic logic; File Size220KB，8 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962R9573401V9A Overview

HCT SERIES, TRIPLE 3-INPUT NOR GATE, UUC14

5962R9573401V9A Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DIE
package instruction	DIE,
Contacts	14
Reach Compliance Code	unknown
series	HCT
JESD-30 code	R-XUUC-N14
JESD-609 code	e0
Logic integrated circuit type	NOR GATE
Number of functions	3
Number of entries	3
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
propagation delay (tpd)	20 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	UPPER
total dose	100k Rad(Si) V
Base Number Matches	1

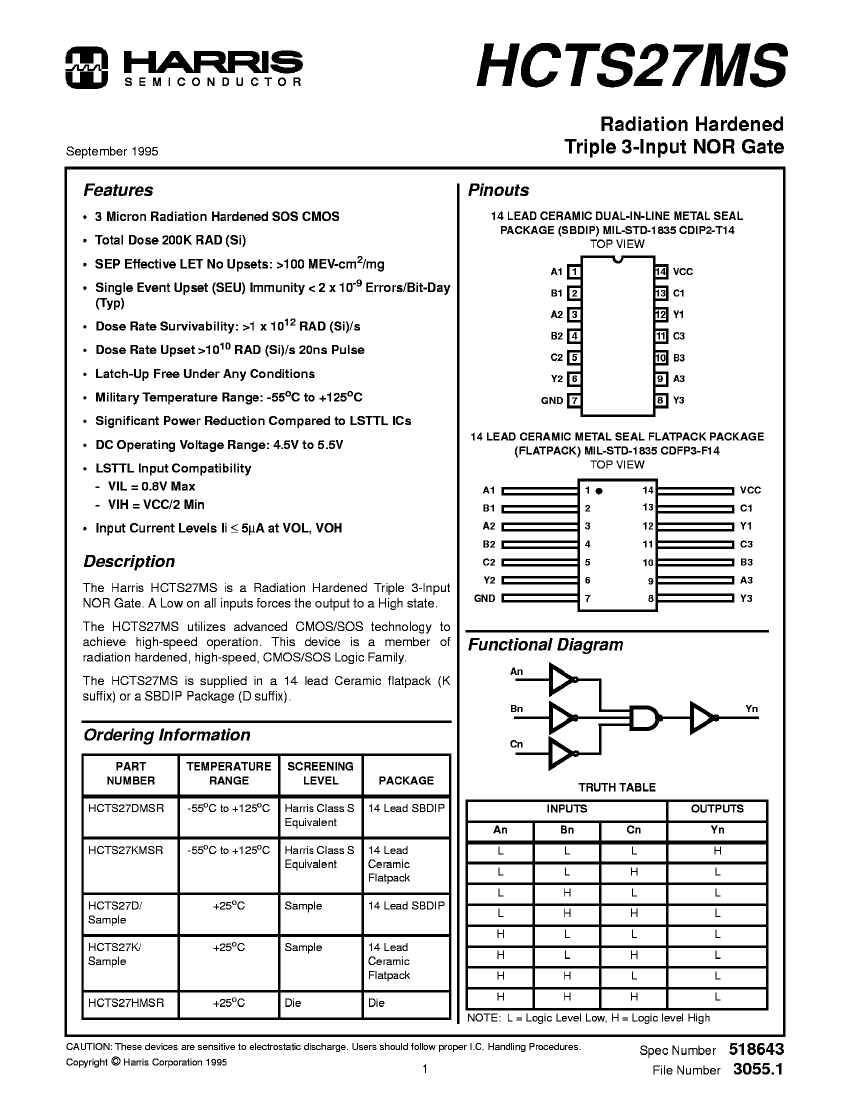

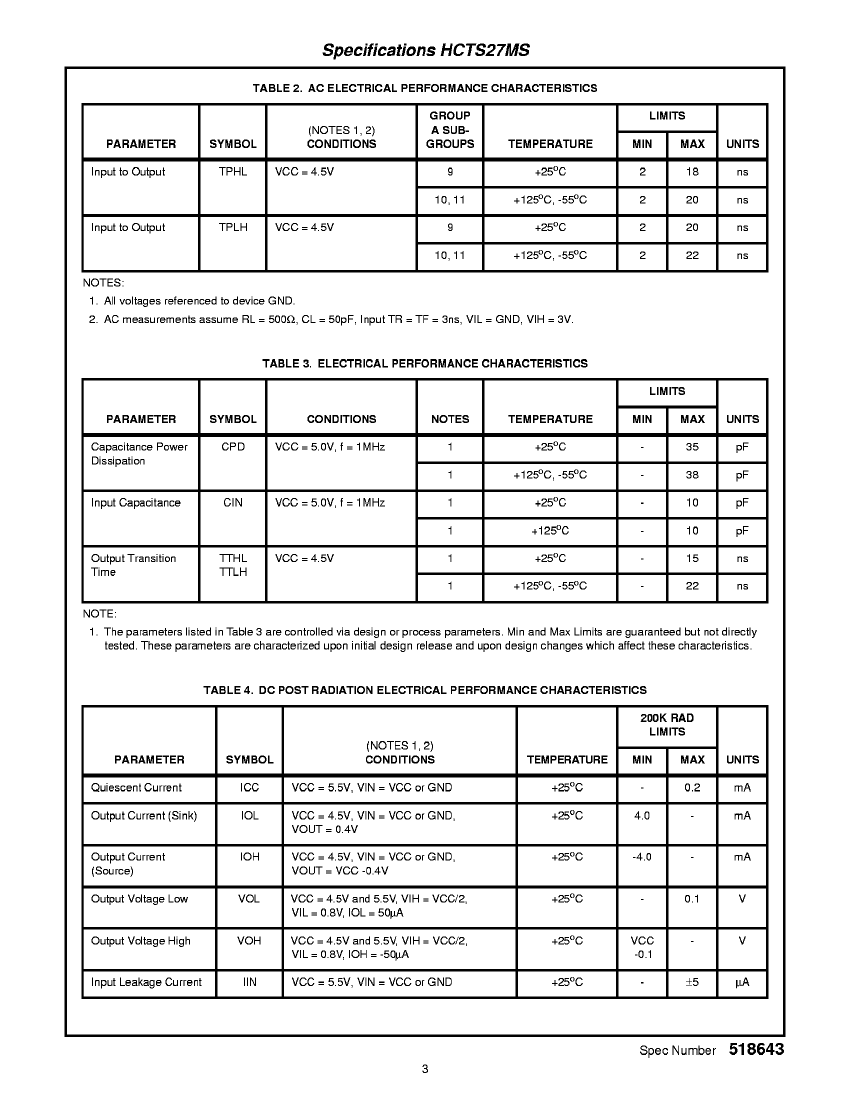

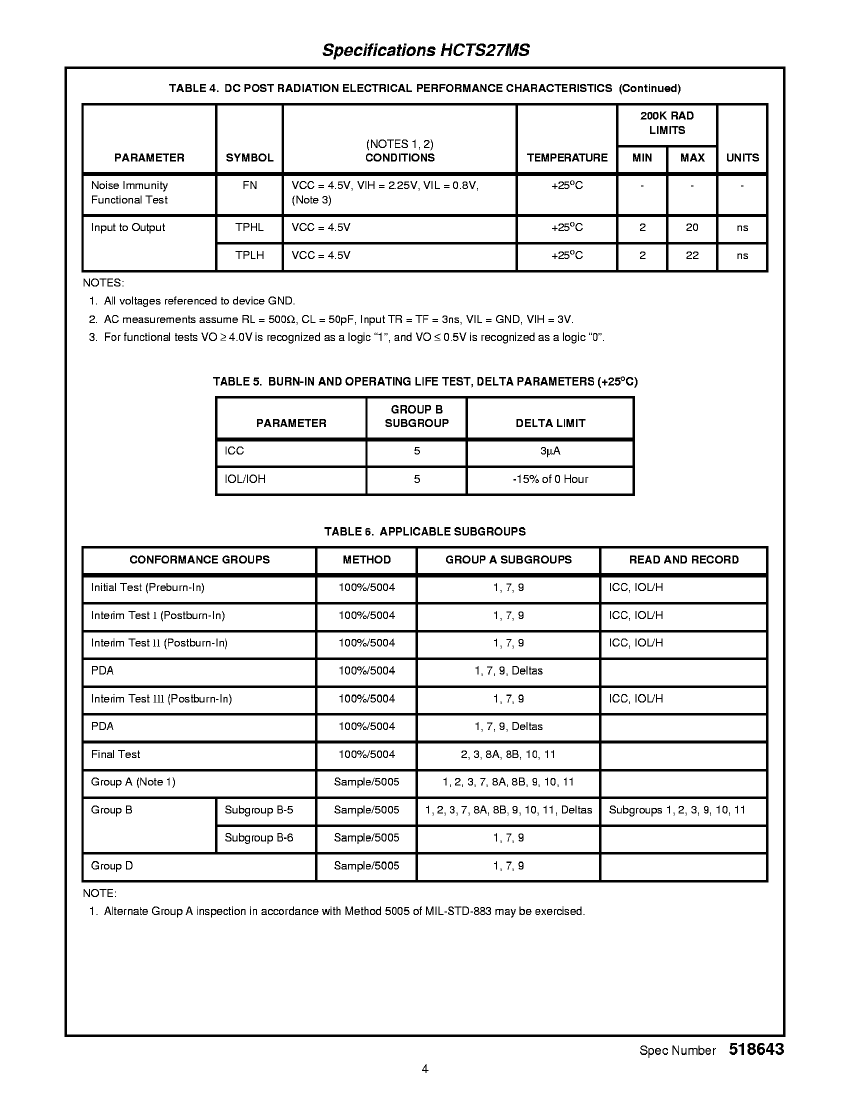

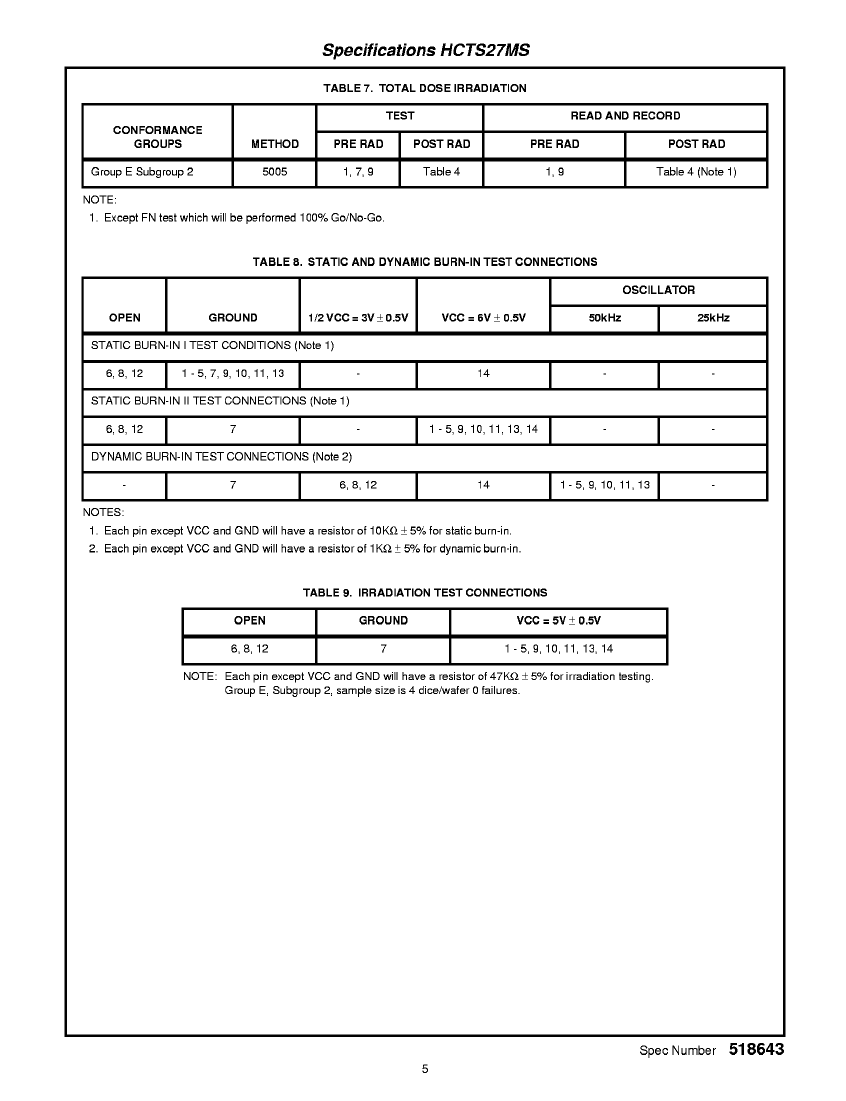

Preview

Download Datasheet

View All

5962R9573401V9A Related Products

	5962R9573401V9A	5962R9573401VCC	5962R9573401VXC
Description	HCT SERIES, TRIPLE 3-INPUT NOR GATE, UUC14	HCT SERIES, TRIPLE 3-INPUT NOR GATE, CDIP14	HCT SERIES, TRIPLE 3-INPUT NOR GATE, CDFP14
Parts packaging code	DIE	DIP	DFP
package instruction	DIE,	DIP, DIP14,.3	DFP, FL14,.3
Contacts	14	14	14
Reach Compliance Code	unknown	unknown	unknown
series	HCT	HCT	HCT
JESD-30 code	R-XUUC-N14	R-CDIP-T14	R-CDFP-F14
JESD-609 code	e0	e4	e4
Logic integrated circuit type	NOR GATE	NOR GATE	NOR GATE
Number of functions	3	3	3
Number of entries	3	3	3
Number of terminals	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIE	DIP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	IN-LINE	FLATPACK
propagation delay (tpd)	20 ns	20 ns	20 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	GOLD	GOLD
Terminal form	NO LEAD	THROUGH-HOLE	FLAT
Terminal location	UPPER	DUAL	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V
Base Number Matches	1	1	1
length	-	19.43 mm	9.525 mm
Load capacitance (CL)	-	50 pF	50 pF
MaximumI(ol)	-	0.004 A	0.004 A
Encapsulate equivalent code	-	DIP14,.3	FL14,.3
power supply	-	5 V	5 V
Prop。Delay @ Nom-Sup	-	22 ns	22 ns
Schmitt trigger	-	NO	NO
Filter level	-	38535V;38534K;883S	38535V;38534K;883S
Maximum seat height	-	5.08 mm	2.92 mm
Terminal pitch	-	2.54 mm	1.27 mm
width	-	7.62 mm	6.285 mm
