M SERIES INPUT MODULES
• Plug into mounting boards for M Series modules
• AC Inputs (Yellow Case) for 24 V, 120 V, 240 V
• DC Inputs (White Case) for 3.3 to 32 V, 10 to 48 V
• 4kV Optical isolation
• Open-collector Output
• Industry standard packaging
SPECIFICATIONS (1)
Input
Part Number
Voltage Range
Maximum Current [mA](4)
Resistance [Ohms](2)(3)
Drop-out Current [mA](5)
Voltage for No Output [VAC/VDC](6)
Allowable Current [mA]
M-IAC5
90-140 VAC/DC
6
28 k
2
50
2.5
M- IAC5A
180-280 VAC/DC
5
75 k
1.5
50
2
M- IAC24
90-140 VAC/DC
6
28 k
2
50
2.5
M- IAC24A
180-280 VAC/DC
5
75 k
1.5
50
2
M-IDC5
3.3-32 VDC/AC
34
500
1.0
2.0
1.5
Output
Maximum Voltage[VDC](9)
Maximum Voltage Drop [VDC](12)
Nominal Logic Supply Voltage [VDC]
Logic Supply Voltage Range [VDC]
Maximum Current [mA](10)
Maximum Logic Supply Current [mA](7)
Maximum Logic Supply Leakage Current [µA](8)
Maximum Leakage Current [µA](11)
Maximum Turn-On Time [msec] (13)
Maximum Turn-Off Time [msec] (13)
30
0.2
5.0
3.0-6.0
50
16.0
10.0
10.0
20
20
30
0.2
5.0
3.0-6.0
50
16.0
10.0
10.0
20
20
30
0.2
24
20-30
50
16.0
10.0
10.0
20
20
30
0.2
24
20-30
50
16.0
10.0
10.0
20
20
30
0.2
5.0
3.0-6.0
50
16.0
10.0
10.0
1.0
1.0
SPECIFICATIONS (1)
Input
Part Number
Voltage Range
Maximum Current [mA](4)
Resistance [Ohms](2)(3)
Drop-out Current [mA](5)
Voltage for No Output [VAC/VDC](6)
Allowable Current [mA]
M-IDC24
3.3-32 VDC/AC
34
1k
1
2
1.5
M-IDC5F
4-32 V
68
500
1
2
1.5
M-IDC5N
10-48 VDC/AC
34
1k
1
4
1.5
Output
Maximum Voltage[VDC](9)
Maximum Voltage Drop [VDC](12)
Nominal Logic Supply Voltage [VDC]
Logic Supply Voltage Range [VDC]
Maximum Current [mA](10)
Maximum Logic Supply Current [mA](7)
Maximum Logic Supply Leakage Current [µA](8)
Maximum Leakage Current [µA](11)
Maximum Turn-On Time [msec] (13)
Maximum Turn-Off Time [msec] (13)
30
0.2
24
20-30
50
16.0
10.0
10.0
1.0
1.0
30
0.2
5.0
3.0-6.0
50
16.0
10.0
10.0
0.05
0.10
30
0.2
5.0
3.0-6.0
50
16.0
10.0
10.0
8.0
7.0
GENERAL SPECIFICATIONS
Description
Input/Output Isolation Voltage (14)
Input/Output Capacitance
Operating Temperature Range
Storage Temperature Range
Line Frequency Range
Weight
4000
8
-30 to 80°C
-40 to 80°C
47 to 63
1.1 oz. (31.2g)
GENERAL NOTES:
(1)
(2)
(3)
(4)
(5)
Specifications apply to an ambient temperature of -30 to 80 °C unless otherwise noted.
Resistance values for IAC modules are effective impedance values at 25 °C.
Resistance values are +/-10% at 25 °C.
Measured at maximum specified input voltage, 25°C.
Defined as the maximum current allowed through the module's input to guarantee that
the output will switch from "on" to "off". Higher currents may result in the output remaining
in the "on" state.
Defined as the maximum current allowed through the module's input that will not switch
the module's output state from "off: to "on".
With external LED status indicator at maximum specified logic supply voltage and 25°C.
18mA without external LED.
At maximum specified logic voltage and 25°C.
Applied across open collector output transistor.
Sinking current through the open collector output transistor.
At maximum output voltage and 25°C.
At maximum output current and 25°C.
At nominal logic supply voltage, 25mA output sinking current, nominal input voltage
and 25°C
At 25°C for 1 second maximum duration.
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)

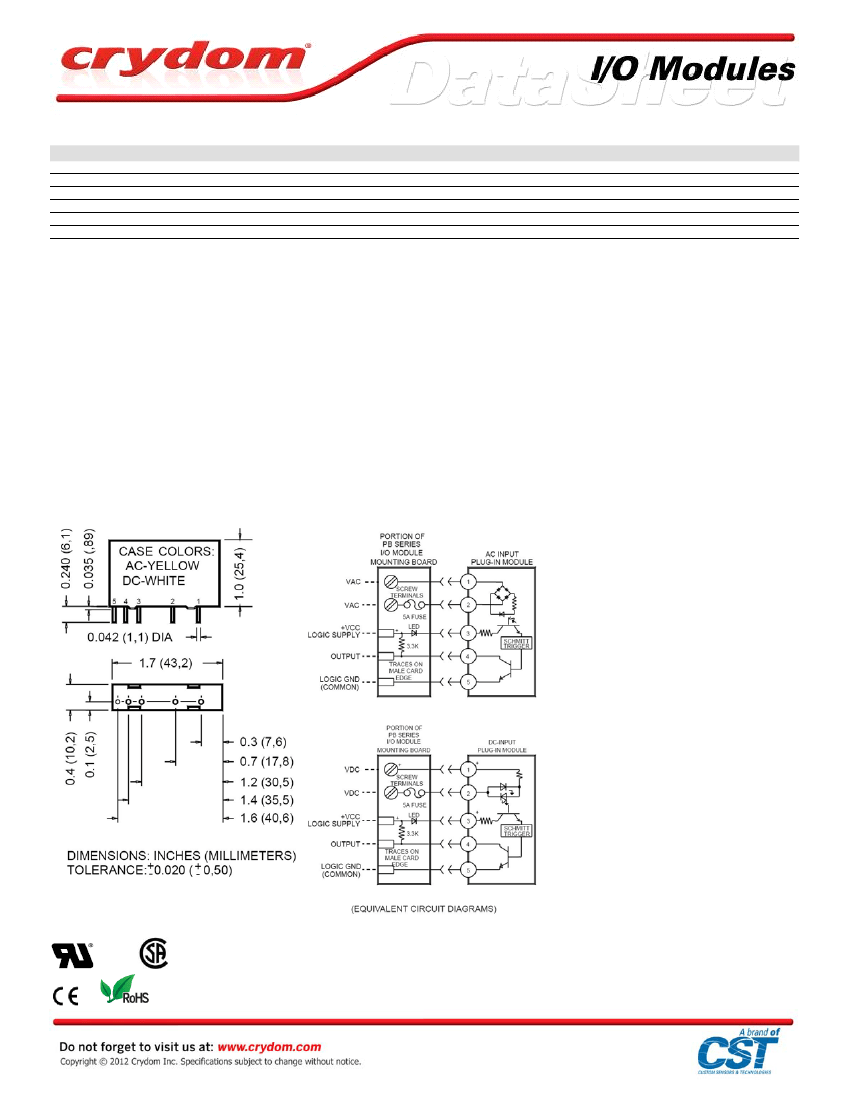

MECHANICAL SPECIFICATIONS
AGENCY APPROVALS
E46203
38595
Rev. 121311
ANNEX - ENVIROMENTAL INFORMATION
