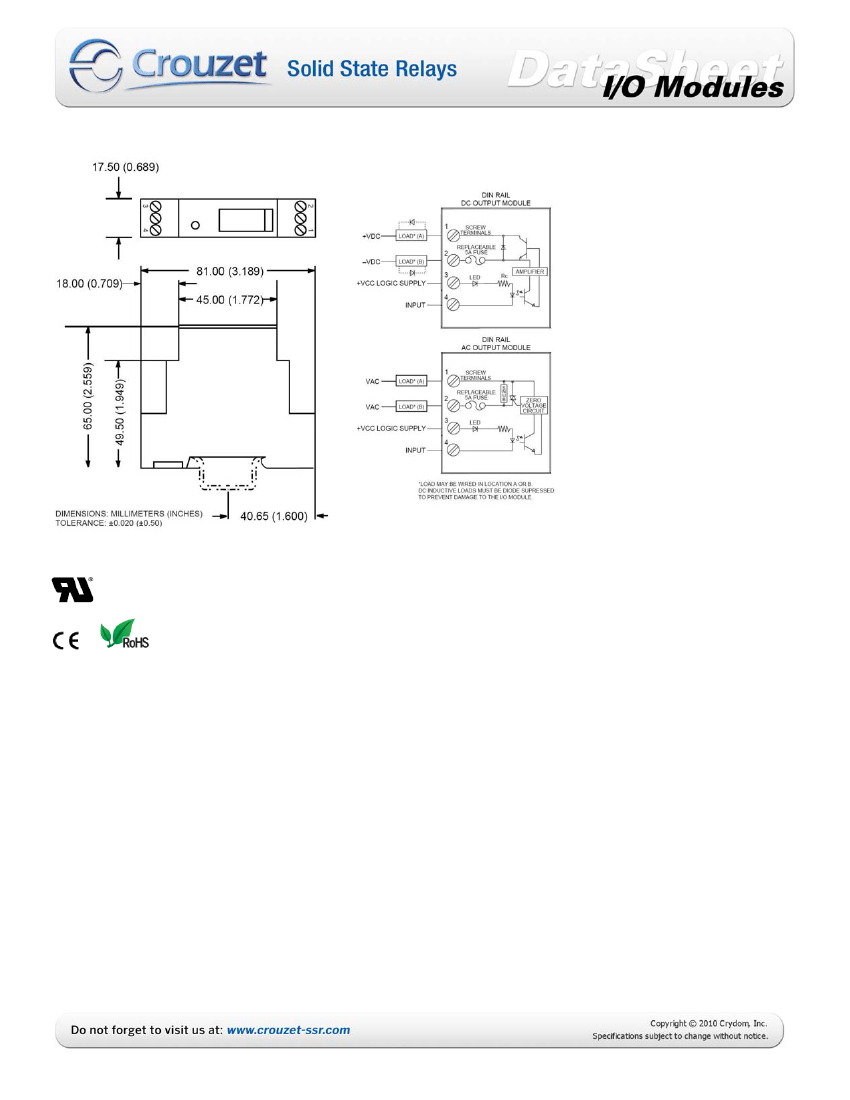

17.5mm OUTPUT MODULES
• DIN-Rail Mountable Single Point Output Modules (35mm DIN)
• UL and cUL Recognized, CE Compliant
• Zero Voltage or Random Turn-On for AC Modules
• 4kV Optical isolation with LED Indicator
• AC Ratings 12-280 VAC, 5A. DC Output 5-60 VDC, 3A
• Industry standard Color Coding Black (AC Output) Red (DC Output)
• Barrier Strips Accept 14 to 28 AWG Wire.
SPECIFICATIONS (1)
Input
Part Number
Nominal Voltage VDC
Minimum Voltage VDC
Maximum Voltage VDC
Drop-out Voltage
Maximum Current (2)
Resistance
84130105
4-32
4
32
1.0
22
Current Regulated
84130108
4-32
4
32
1.0
22
Current Regulated
84130104
4-32
4
32
1.0
22
Current Regulated
Output
84130105
Nominal Line Voltage
Minimum Line Voltage
Maximum Line Voltage
Max Off-State Voltage (3)
Max Off-State Leakage (4)
Static Off-State dv/dt (5)
Maximum Rated On-State Current (6)
Minimum On-State Current
Max Surge Current (7)
On-State Voltage Drop or Resistance (8)
Maximum Turn-On Time [msec] (9)
Maximum Turn-Off Time [msec] (9)
Input/Output Isolation Voltage (10)
Input/Output Capacitance
Operating Temperature Range
Storage Temperature Range
Line Frequency Range
Weight
240 VAC
12 VAC
280 VAC
600 Vpeak
0.1mArms
50 V/usec
5.0 Arms
50 mArms
350 Apeak
1.85 V
8.33
8.33
4000
6
-30 to 80°C
-40 to 100°C
47 to 63
1.1 oz. (31.2g)
84130108
240 VAC
12 VAC
280 VAC
600 Vpeak
0.1mArms
50 V/usec
5.0 Arms
50 mArms
350 Apeak
1.85 V
0.1
8.33
4000
6
-30 to 80°C
-40 to 100°C
47 to 63
1.1 oz. (31.2g)
84130104
5-60 VDC
5 VDC
60 VDC
60 VDC
10 uA
N/A
3.0 A
10 mA
5.0 A
1.6 V
0.05
0.05
4000
4
-30 to 80°C
-40 to 100°C
DC
1.1 oz. (31.2g)
GENERAL NOTES
(1)
(2)
(3)
Specifications apply to an ambient temperature of -30 to 80 °C unless otherwise noted.
Modules are current limited +/- 10% at 25°C.
Maximum 1 minute duration for AC modules when applied as a DC voltage rather than
Peak AC voltage.
(4) At maximum line voltage, 25°C for AC modules and 80°C for DC module.
(5) Minimum dv/dt per EIA/NARM RS443, method RS397. dv/dt ratings do not apply to DC module.
(6) At 25°C, derate AC modules by 50 mA/°C to 80°C; derate DC module by 21.5mA/°C to 80°C.
(7) At 25°C, maximum duration: 1 AC cycle for AC modules, 1 second for DC module.
(8) At maximum rated on-state current and 25°C.
(9) At maximum line voltage, maximum rated output current, nominal input voltage, 25°C.
(10) At 25°C for 1 second maximum duration.
