2-1416100-0

Description
relay socket din screw DC
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size111KB,2 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

2-1416100-0 Online Shopping

Suppliers Part Number Price MOQ In stock
2-1416100-0 - - View Buy Now

2-1416100-0 Overview

relay socket din screw DC

2-1416100-0 Parametric

Parameter NameAttribute value
Datasheets
SNR Relay Accessories
Product Photos
2-1416100-0
Standard Package10
CategoryRelays
FamilyRelay Sockets
TypeSocke
Number of Positions5
Mounting TypeDIN Rail
Termination StyleScrew Terminal
For Use With/Related ProductsSNR Series
FeaturesFor 12, 24 and 48VDC
Dynamic CatalogTE Connectivity Sockets
For Use With9-1415067-1-ND - RELAY GENERAL PURPOSE SPST 6A 5V8-1415067-1-ND - RELAY GENERAL PURPOSE SPST 6A 5V7-1393236-2-ND - RELAY GEN PURPOSE SPDT 6A 24V7-1393236-1-ND - RELAY GEN PURPOSE SPDT 6A 12V7-1393236-0-ND - RELAY GEN PURPOSE SPST 6A 12V6-1393236-9-ND - RELAY GEN PURPOSE SPDT 6A 12V6-1393236-8-ND - RELAY GENERAL PURPOSE SPDT 6A 5VV23092A1905A301-ND - RELAY GENERAL PURPOSE SPDT 6A 5VV23092A1048A302-ND - RELAY GEN PURPOSE SPST 6A 48VV23092A1048A201-ND - RELAY GEN PURPOSE SPDT 6A 48V3-1393236-0-ND - RELAY GEN PURPOSE SPDT 6A 24VV23092A1024A202-ND - RELAY GEN PURPOSE SPST 6A 24V1-1393236-3-ND - RELAY GEN PURPOSE SPDT 6A 12V1393236-9-ND - RELAY GEN PURPOSE SPST 6A 12VV23092A1012A302-ND - RELAY GEN PURPOSE SPST 6A 12VV23092A1012A202-ND - RELAY GEN PURPOSE SPST 6A 12VPB1759-ND - RELAY GEN PURPOSE SPDT 6A 24VPB1757-ND - RELAY GENERAL PURPOSE SPDT 6A 5VV23092A1012A201-ND - RELAY GEN PURPOSE SPDT 6A 12VPB1798-ND - RELAY GEN PURPOSE SPDT 6A 24VV23092A1005A201-ND - RELAY GENERAL PURPOSE SPDT 6A 5VPB1020-ND - RELAY GEN PURPOSE SPST 6A 24VPB1019-ND - RELAY GEN PURPOSE SPDT 6A 12VV23092A1024A301-ND - RELAY GEN PURPOSE SPDT 6A 24V
Other Names2-1416100-0-ND214161000PB1591ST3FLC4ST3FLC4-ND
General Purpose Relays
SCHRACK

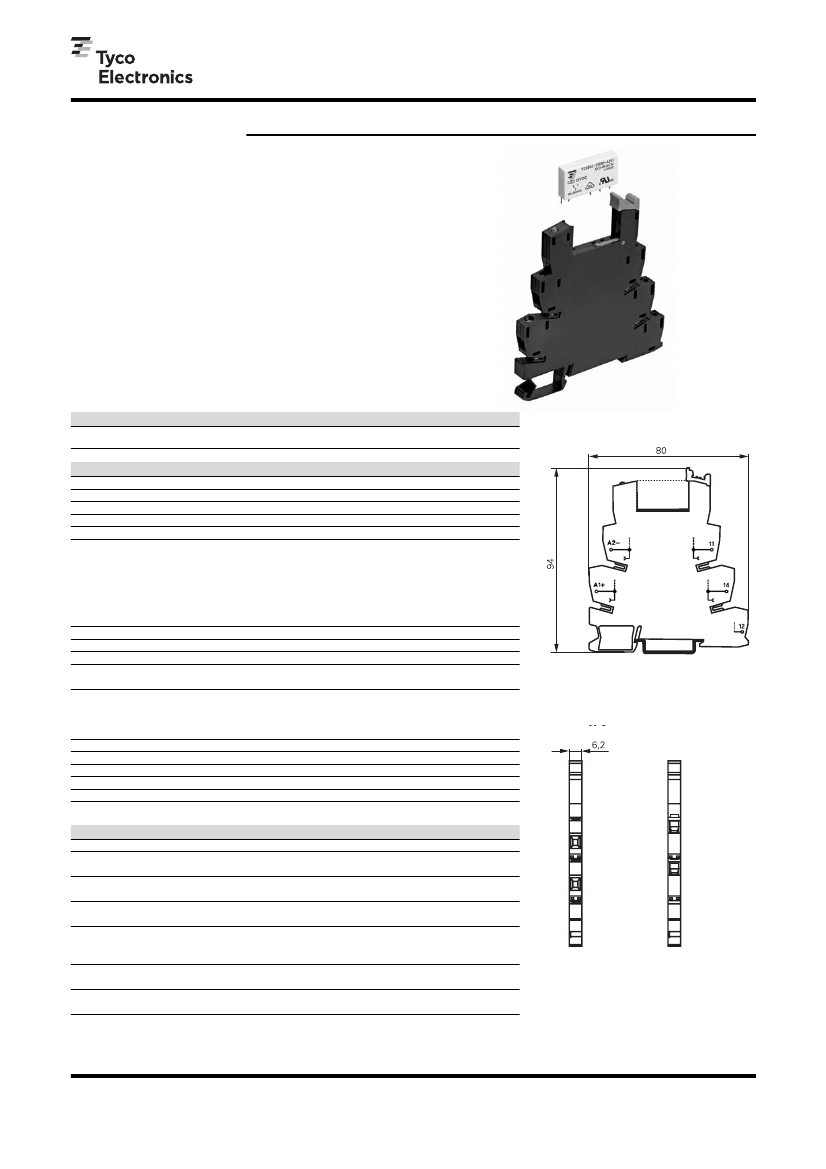

Accessories Slim Interface Relay SNR
n
n
n
n
n
n
n
n
Module width 6.2 mm
Reduced system width for increased packing density on the
DIN rail
DC and AC version
Electrical indicator as standard (LED)
Protection circuit
Screw- or cage clamp terminals
Jumper bars
RoHS compliant (Directive 2002/95/EC)
F0260-B
Approvals
V
REG.-Nr. 6666,
Z
E224918
Technical data
Rated voltage / max. switching voltage AC
Rated current
Dielectric strength coil-contact circuit
Clearance / creepage coil-contact circuit
Material group of insulation parts
Insulation to IEC 60664-1
Type of insulation coil-contact circuit
open contact circuit
Rated insulation voltage
Pollution degree
Rated voltage system
Overvoltage category
RoHS - Directive 2002/95/EC
Ambient temperature range
Terminals
Terminal screw torque acc. IEC 61984
max.
Wire cross section
single wire
fine wire
with bootlace crimp (DIN 46228/1)
Insertion cycles
Max. Insertion Force total
Mounting distance
Weight
Packaging unit
ST3F / ST4F
240 / 400 VAC
6A
4000 V
rms
W
6/8 mm
IIIa
reinforced
functional
250 V
2
230 / 400 V
III
compliant
-20...+55 °C
screw / cage clamp
0.5 Nm
0.6 Nm
0.14...2.5 mm
2
0.14...2.5 mm
2
0.14...2.5 mm
2
A (10)
100 N
W
0 mm, dense packing
26 g
10 pcs
S0487-AA
Sockets
Product code
ST 3F LC4
ST 3F SM5
ST 3F TP0
ST 4F LC4
ST 4F SM5
ST 4F TP0
Din-rail socket 24VDC, for relays 12 / 24 / 48 VDC,
with LED, protection and polarity diode, screw terminals
Din-rail socket 115 VAC / VDC with LED and
protection circuit, screw terminals
Din-rail socket 230 VAC / VDC with LED and
protection circuit, screw terminals
Din-rail socket 24VDC, for relays 12 / 24 / 48 VDC,
with LED, protection and polarity diode,
cage clamp terminals
Din-rail socket 115 VAC / VDC with LED and
protection circuit, cage clamp terminals
Din-rail socket 230 VAC / VDC with LED and
protection circuit, cage clamp terminals
Part Number
2-1416100-0
2-1416100-1
2-1416100-2
2-1416100-3
2-1416100-4
2-1416100-5
Version with
screw terminals
Version with
cage clamp terminals
S0487-AA
1
Datasheet Rev. IJ1
Issued 2009/10
www.tycoelectronics.com
www.schrackrelays.com
Dimensions are in mm unless
otherwise specified and are
shown for reference purposes
only.
Product specification
according to IEC 61810-1.
Product data, technical para-
meters, test conditions and
processing information only
to be used together with the
'Definitions' section in the cat-
alogue or at schrackrelays.com
in the ‘Schrack’ section.
Specifications subject to
change.
