REVISION L
DO NOT
SCALE FROM
THIS PRINT
C-281-XXXX-X
C-246-XX-X
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
SEE NOTE 12

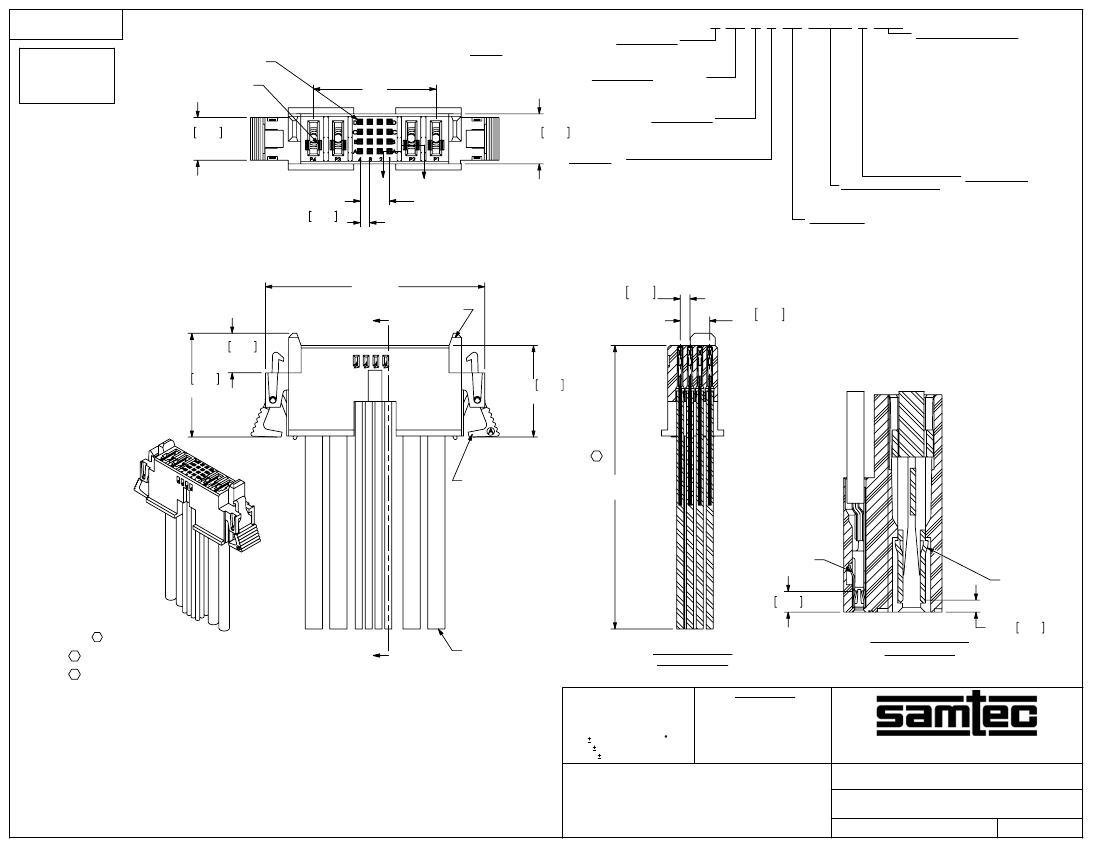

MPCC-2-16-2-X-XX-XX.XX-S SHOWN
"B"
FIG 1
8.70 .343
REF
"B"
2.00 .079
REF (TYP)
"B"
"C" REF
10.16 .400
REF
POWER PINS
(PER END)
-2
SIGNAL PINS
(SEE TABLE 2, SHT 2 FOR
AVAILABLE COMBINATIONS)
-16 (4x4)
-24 (4x6)
POWER PINS
(PER END)
-2
MPCC-X-XX-X-X-XX-XX.XX-X-XXX
PLATING
-L:
POWER PINS:
10µ" SELECTIVE GOLD
IN CONTACT AREA, MATTE TIN ON TAIL
SIGNAL PINS:
10µ" SELECTIVE GOLD
IN CONTACT AREA, BRIGHT ACID TIN
ON TAIL
-T:
POWER PINS:
MATTE TIN OVER ENTIRE PIN
SIGNAL PINS:
10µ" SELECTIVE GOLD
IN CONTACT AREA, BRIGHT ACID TIN
NXX OPTION (END 2)
(ONLY AVAILABLE WITH -D,
LEAVE BLANK FOR -S OPTION)
(APPLIES TO SIGNALS ONLY,
POWER STRAIGHT THRU)
-NUS: NOTCH UP, STRAIGHT
(PIN A1 TO PIN AX)
*NDS: NOTCH DOWN, STRAIGHT
(PIN A1 TO PIN A4)
*NUX: NOTCH UP, CROSSED
(PIN A1 TO PIN DX)
*NDX: NOTCH DOWN, CROSSED
(PIN A1 TO PIN A1)
"A" REF
"A"
8.05 .317
REF
21.10 .831
FREF
18.60 .732
REF
MPC-XX-XX-XX
2.00 .079
REF (TYP)
6.00 .236
REF
END OPTION
ASSEMBLED LENGTH
-S: SINGLE ENDED
(INCHES)
-D: DOUBLE ENDED
04.00 INCH MINIMUM
(MUST CHOOSE
LEAD STYLE
FROM -NXX OPTIONS)
-44 (14 AWG PWR, 24 AWG SIG)
-46 (14 AWG PWR, 26 AWG SIG)
-48 (14 AWG PWR, 28 AWG SIG)
-40 (14 AWG PWR, 30 AWG SIG)
-64 (16 AWG PWR, 24 AWG SIG)
-66 (16 AWG PWR, 26 AWG SIG)
-68 (16 AWG PWR, 28 AWG SIG)
-60 (16 AWG PWR, 30 AWG SIG)
* = NOT RELEASED
C
LTC-22
ASSEMBLED LENGTH
(SEE NOTE 6)
SEE NOTE 3
SEE NOTE 3
1.75 .069 REF
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PULLOUT FORCE: 11.1N [2.5LBS].
"A"
C 3. CONTACTS MUST BE INSERTED UNTIL RETENTION
FEATURES LOCK INTO PLACE.
C 4. ALL FINISHED GOODS ARE TO BE ELECTRICALLY
TESTED INCLUDING HI-POT TEST AT 1000 VOLTS DC.
AFTER FINAL ELECTRICAL TEST, LABEL EACH ASSEMBLY WITH
(1) ET STAMP ON THE BODY.
5. TINNED COPPER WIRE IS RoHS COMPLIANT.
6. FOR LENGTHS OF 12.00 INCHES AND LESS, TOLERANCE TO BE ± 3.18[.125],
FOR LENGTHS GREATER THAN 12.00 INCHES, TOLERANCE TO BE ± 2%
7. REFER TO CRIMP SPECIFICATIONS PRINT FOR CRIMP AND STRIP DIMENSIONS,
TOLERANCES, TOOLING, AND ITS REQUIRENTS.
8. MINIMUM WIRE CRIMP STRENGTH: 24-28 AWG: 20.0N[4.5LB]
30 AWG: 13.3N[3.0 LB]
9. MINIMUM LATCH RETENTION: 4.4 N [1 LB].
10. MINIMUM DWC RETENTION: 22.2 N [5.0 LB]
11. PARTS TO BE LAYER PACKAGED. COVER EACH CABLE END WITH BAG ASBBLT X.X x X.X.
FOR VERY SHORT CABLES THAT WILL FIT 100% WITHIN ONE BAG, USE ONLY ONE BAG AND SEAL.
12. ALL DIMS SHOWN IN METRIC EXCEPT FOR ASSEMBLY LENGTH ON PART CALL OUT.
13. NOT FOR SALE AS COMPONENTS; SOLD AS A CABLE ASSEMBLY ONLY.
14. CUT LENGTH IS ASSEMBLY LENGTH MINUS OVERALL LENGTH SUBTRACTOR.
DWC-XX-10-XXX
SECTION "A"-"A"
SCALE 1.25 : 1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
*
PROPRIETARY NOTE
*
SECTION "B"-"B"
SCALE 3 : 1
1.02 .040 REF
X.X: 0.3 [.01]
2
X.XX: 0.13 [.005]
X.XXX: 0.051 [.0020]
ANGLES
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
INSULATOR: LCP UL 94V-0, COLOR: BLACK
CONTACT: BeCU
LATCH: NYLON
WIRE: BLACK PVC COATED TINNED COPPER
MATERIAL:
MINI POWER COMBO CABLE ASSEMBLY
DWG. NO.
DESCRIPTION:
MPCC-X-XX-X-X-XX-XX.XX-X-XXX
F:\DWG\MISC\MKTG\MPCC-X-XX-X-X-XX-XX.XX-X-XXX-MKT.SLDDRW
BY:
D.SCHMELZ 05/26/2010
SHEET
1
OF
3
REVISION L
P1
P2
D1
A1
"A"
REF
D6
A6
P3
P4
ASSEMBLED LENGTH
C
(SEE NOTE 6)
"B"
REF
"C"
REF
A1
A6
P4
P3
D6
D1
P2
P1

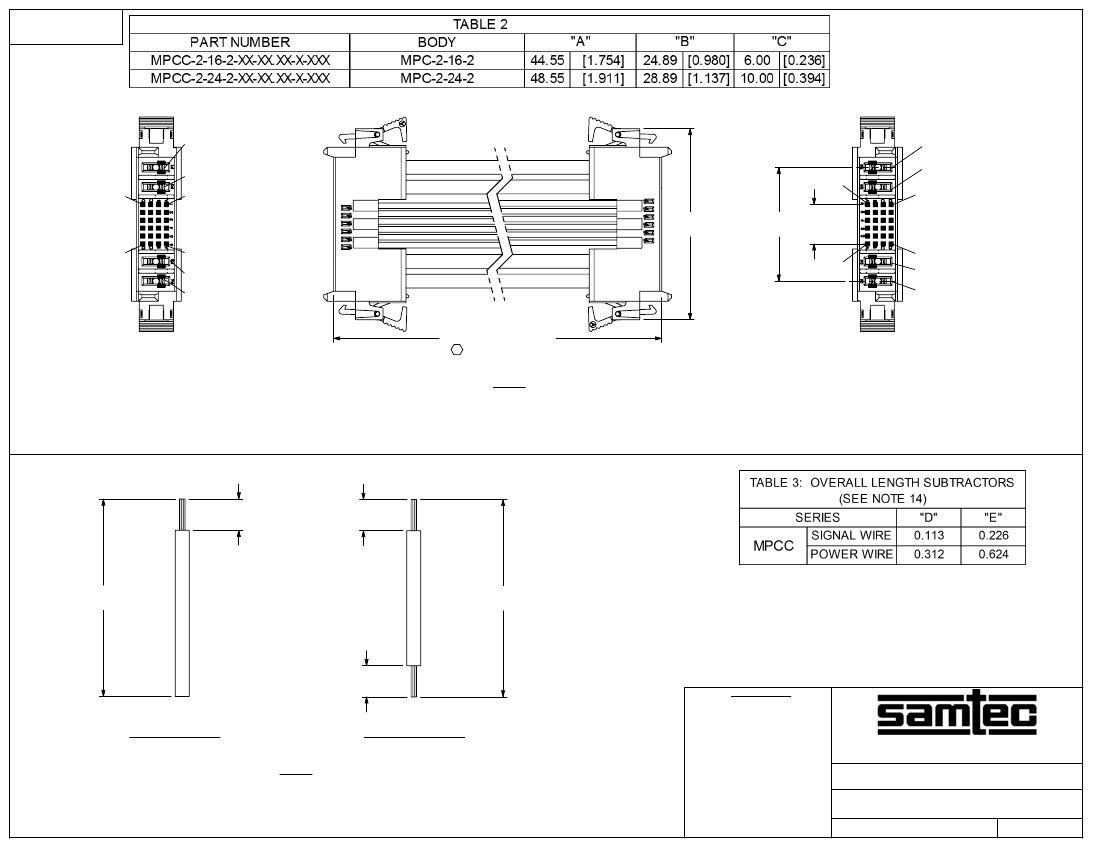

MPCC-2-24-2-X-XX-XX.XX-D-NUS SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1 & 2)
FIG 3
(SEE NOTE 7)
(SEE NOTE 7)
OVERALL LENGTH "D"
(SEE TABLE 3)
OVERALL LENGTH "E"
(SEE TABLE 3)
(SEE NOTE 7)
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
-S: SINGLE END
CABLE CUT IN-PROCESS
-D: DOUBLE END

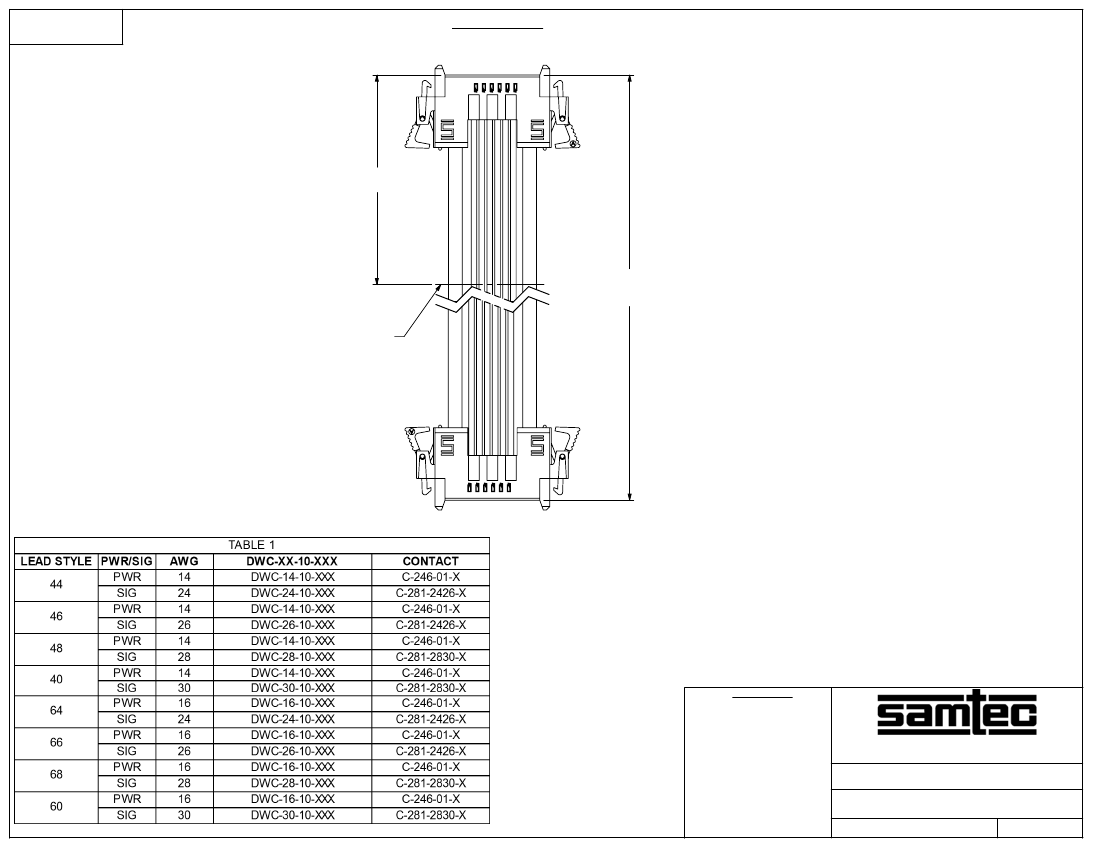

FIG 2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
MINI POWER COMBO CABLE ASSEMBLY
DWG. NO.
DESCRIPTION:
MPCC-X-XX-X-X-XX-XX.XX-X-XXX
F:\DWG\MISC\MKTG\MPCC-X-XX-X-X-XX-XX.XX-X-XXX-MKT.SLDDRW
BY:
D.SCHMELZ 05/26/2010
SHEET
2
OF
3
REVISION L
(APPLIES TO -S END OPTION ONLY)
(TO BE BUILT DOUBLE-ENDED INITIALLY FOR E-TEST,
THEN CUT IN HALF AND TRIMMED TO LENGTH)
IN-PROCESS 1
ASSEMBLED LENGTH
(SEE NOTE 6)
(ASSEMBLED LENGTH X 2)
+ 25.4[1.00]
(SEE NOTE 6)
CUT LINE
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
MINI POWER COMBO CABLE ASSEMBLY
DWG. NO.
DESCRIPTION:
MPCC-X-XX-X-X-XX-XX.XX-X-XXX
F:\DWG\MISC\MKTG\MPCC-X-XX-X-X-XX-XX.XX-X-XXX-MKT.SLDDRW
BY:
D.SCHMELZ 05/26/2010
SHEET
3
OF
3
