SWS15012/CO2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> SWS15012/CO2

SWS15012/CO2: DescriptionAC/DC converter 12v 12.5A 150w; Categorysemiconductor Power management; File Size105KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SWS15012/CO2 Overview

AC/DC converter 12v 12.5A 150w

SWS15012/CO2 Parametric

Parameter Name	Attribute value
Datasheets
SWS Series Datashee
Standard Package	1
Category	Power Supplies - External/Internal (Off-Board)
Family	AC DC Converters
Type	Enclosed
Number of Outputs	1
Voltage - Inpu	85 ~ 265 VAC
Voltage - Output 1	12V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	12.5A
Power (Watts)	150W
Applications	ITE (Commercial)
Voltage - Isolati	3kV (3000V)
Efficiency	79%
Operating Temperature	-10°C ~ 70°C
Features	Adjustable Output, PFC, Universal Inpu
Mounting Type	Rack Mou
Size / Dimensi	7.80" L x 3.90" W x 2.00" H (198.1mm x 99.1mm x 50.8mm)
Minimum Load Required	-
Approvals	CE, cURus, TUV
Power (Watts) - Max	150W

Preview

Download Datasheet

View All

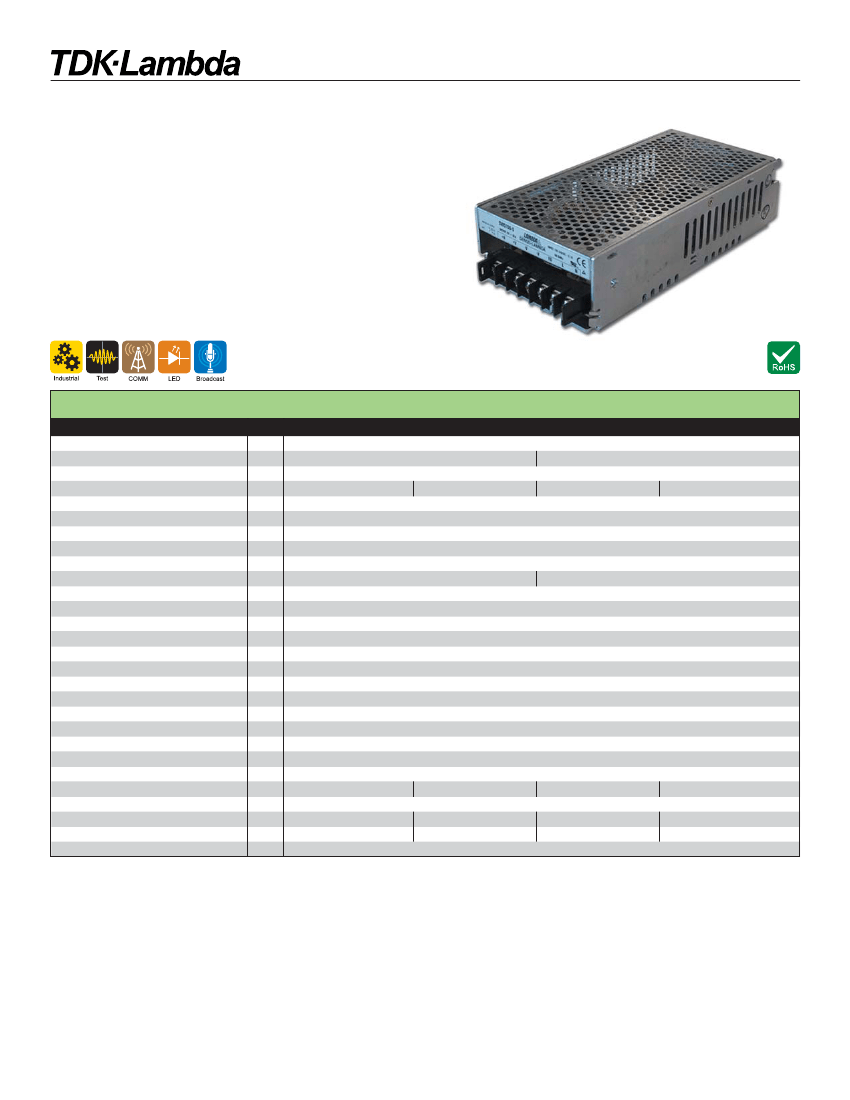

SWS Series

Single Output General Purpose Power Supplies

Features



Low Cost



Power Factor Correction to EN61000-3-2



Universal Input (85 - 265VAC)



Input Transient Protected IEC61000-4



Enclosed



Global safety Approvals



Level B EMI

Key Market Segments & Applications

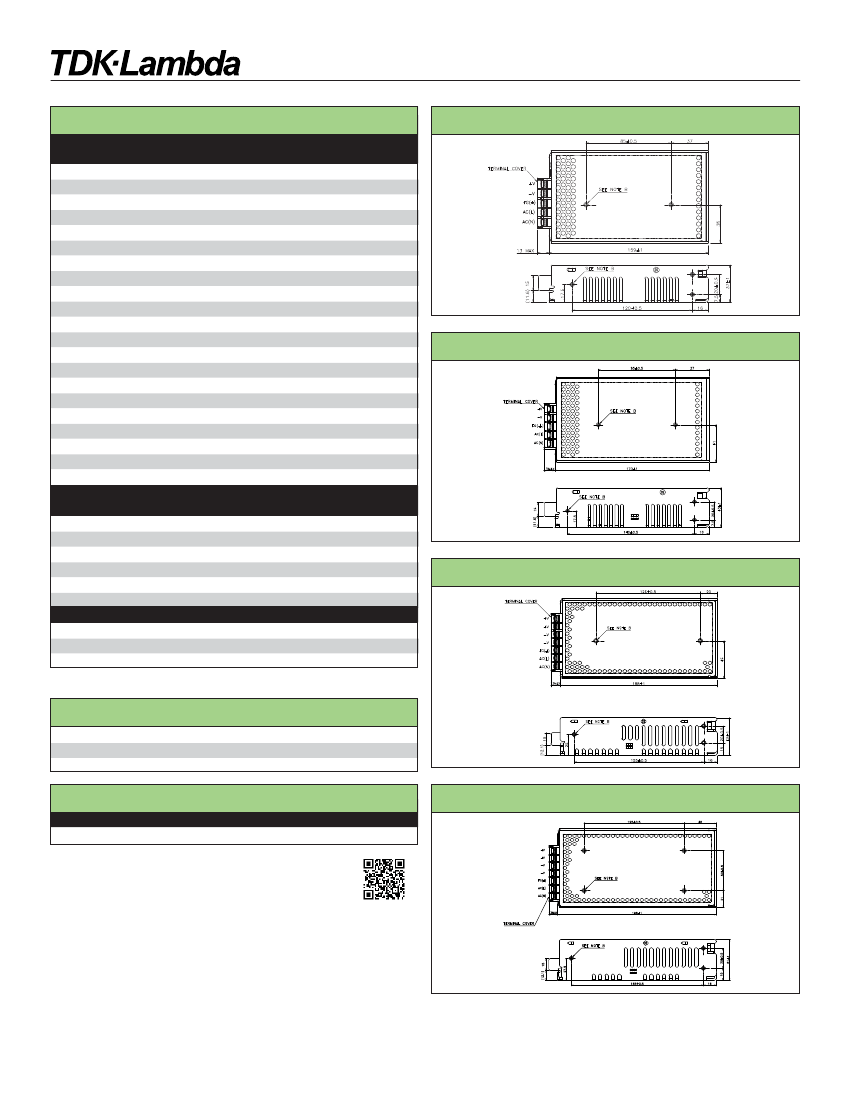

Speciﬁcations

Model

Input Voltage range

(1)

Inrush Current (115/230VAC)

Power Factor

Input Current (115/230VAC)

Temperature Coefﬁcient

Total Regulation

Overcurrent Protection

Overvoltage Protection

Hold Up Time (Typ)

Leakage Current Max.

Remote Sense

LED Indicator

Operating Temperature

Storage Temperature

Operating Humidity

(2)

Storage Humidity

(2)

Cooling

Withstand Voltage

Isolation Resistance

Vibration (non operating)

Shock

Safety Agency Approvals

Conducted & Radiated EMI

Recommended EMI Filter

Immunity

Weight (Typ)

Size (WxHxD)

Warranty

°C

yrs

SWS75

SWS100

SWS150

85 - 265VAC (47 - 63Hz) or 120 - 370VDC*

20/40

16/32

Meets EN61000-3-2

1.2/0.6

1.6/0.8

1.2/0.6

1.8/0.9

<0.02%/°C

<5%

>105%, Constant Current Style

115 -135%, Cycle AC line to reset

20ms at 115VAC

1mA (0.6mA typ@230VAC)

0.75mA (0.5mA typ@230VAC)

Not Available

Green LED = On

-10 to +70°C (See table for derating - model speciﬁc)

-30 to +85°C

30 - 90% RH

10 - 95% RH

Convection

Input to Ground 2kVAC, Input to Output 3kVAC, Output to Ground 500VAC for 1 min.

>100M at 25°C & 70%RH, Output to Ground 500VDC

19.6m/s

(10 - 55Hz (constant sweep 1 min) X, Y, Z for 1 hour)

< 196.1 m/s

(20G)

UL60950-1, CSA60950-1, EN60950-1, CE Mark, EN50178

EN55011 / EN55022-B, FCC Class B, VCCI-B

RSEL-2002W

RSEL-2003W

RSEL-2002W

RSEL-2003W

EN61000-4-2,-3,-4,-5,-6,-8,-11

400

480

600

750

3.62 x 1.46 x 6.26

3.7 x 1.69 x 6.69

3.78 x 1.77 x 7.4

3.9 x 2 x 7.8

Two Years

(2) non condensing

*Safety certiﬁed for AC input only

SWS50

(1) Derate to 85% load below 100VAC input

N ot Rec o m en de d For N e w D es i gns

1-800-526-2324 • www.us.tdk-lambda.com/lp/

Disclaimer: us.tdk-lambda.com/lp/legal.htm

SWS15012/CO2 Related Products

	SWS15012/CO2	SWS150-18	SWS15024/CO2	SWS1503/CO2	SWS1505/CO2	SWS505NONROHS	SWS100-3
Description	AC/DC converter 12v 12.5A 150w	AC/DC converter 18v 8.4A 150w	AC/DC converter 24v 6.3A 150w	AC/DC converter 3.3V 30a 150w	AC/DC converter 5V 30a 150w	pwr sup sng output 50w	AC/DC converter 3.3V 20a 100w
Standard Package	1	1	1	1	1	-	-
Category	Power Supplies - External/Internal (Off-Board)	Power Supplies - External/Internal (Off-Board)	Power Supplies - External/Internal (Off-Board)	Power Supplies - External/Internal (Off-Board)	Power Supplies - External/Internal (Off-Board)	-	-
Family	AC DC Converters	AC DC Converters	AC DC Converters	AC DC Converters	AC DC Converters	-	-
Type	Enclosed	Enclosed	Enclosed	Enclosed	Enclosed	-	-
Number of Outputs	1	1	1	1	1	-	-
Voltage - Inpu	85 ~ 265 VAC	85 ~ 265 VAC	85 ~ 265 VAC	85 ~ 265 VAC	85 ~ 265 VAC	-	-
Voltage - Output 1	12V	18V	24V	3.3V	5V	-	-
Current - Output (Max)	12.5A	8.4A	6A	30A	30A	-	-
Power (Watts)	150W	150W	150W	150W	150W	-	-
Applications	ITE (Commercial)	ITE (Commercial)	ITE (Commercial)	ITE (Commercial)	ITE (Commercial)	-	-
Voltage - Isolati	3kV (3000V)	3kV (3000V)	3kV (3000V)	3kV (3000V)	3kV (3000V)	-	-
Efficiency	79%	84%	82%	70%	76%	-	-
Operating Temperature	-10°C ~ 70°C	-10°C ~ 70°C	-10°C ~ 70°C	-10°C ~ 70°C	-10°C ~ 70°C	-	-
Features	Adjustable Output, PFC, Universal Inpu	Adjustable Output, PFC, Universal Inpu	Adjustable Output, PFC, Universal Inpu	Adjustable Output, PFC, Universal Inpu	Adjustable Output, PFC, Universal Inpu	-	-
Mounting Type	Rack Mou	Rack Mou	Rack Mou	Rack Mou	Rack Mou	-	-
Size / Dimensi	7.80" L x 3.90" W x 2.00" H (198.1mm x 99.1mm x 50.8mm)	7.80" L x 3.90" W x 2.00" H (198.1mm x 99.1mm x 50.8mm)	7.80" L x 3.90" W x 2.00" H (198.1mm x 99.1mm x 50.8mm)	7.80" L x 3.90" W x 2.00" H (198.1mm x 99.1mm x 50.8mm)	7.80" L x 3.90" W x 2.00" H (198.1mm x 99.1mm x 50.8mm)	-	-
Approvals	CE, cURus, TUV	CE, cURus, TUV	CE, cURus, TUV	CE, cURus, TUV	CE, cURus, TUV	-	-
Power (Watts) - Max	150W	151W	150W	150W	150W	-	-
