D38999/26SD-18SN: Description18 CONTACT(S), ALUMINUM ALLOY, FEMALE, MIL SERIES CONNECTOR, CRIMP, PLUG; CategoryThe connector The connector; File Size802KB，9 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

D38999/26SD-18SN Overview

18 CONTACT(S), ALUMINUM ALLOY, FEMALE, MIL SERIES CONNECTOR, CRIMP, PLUG

D38999/26SD-18SN Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	STANDARD: MIL-DTL-38999, EMI SHIELDED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CIRCULAR CONNECTOR
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Number of contacts	18
Contact size	20
Coupling type	THREADED
empty shell	NO
Environmental characteristics	CORROSION/ENVIRONMENT/FLUID RESISTANT
Filter function	NO
JESD-609 code	e4
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Maximum plug diameter	1.13 inch
polarization	N
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	D
Termination type	CRIMP
Total number of contacts	18
Unique insertion number	D18
Base Number Matches	1

Preview

Download Datasheet

View All

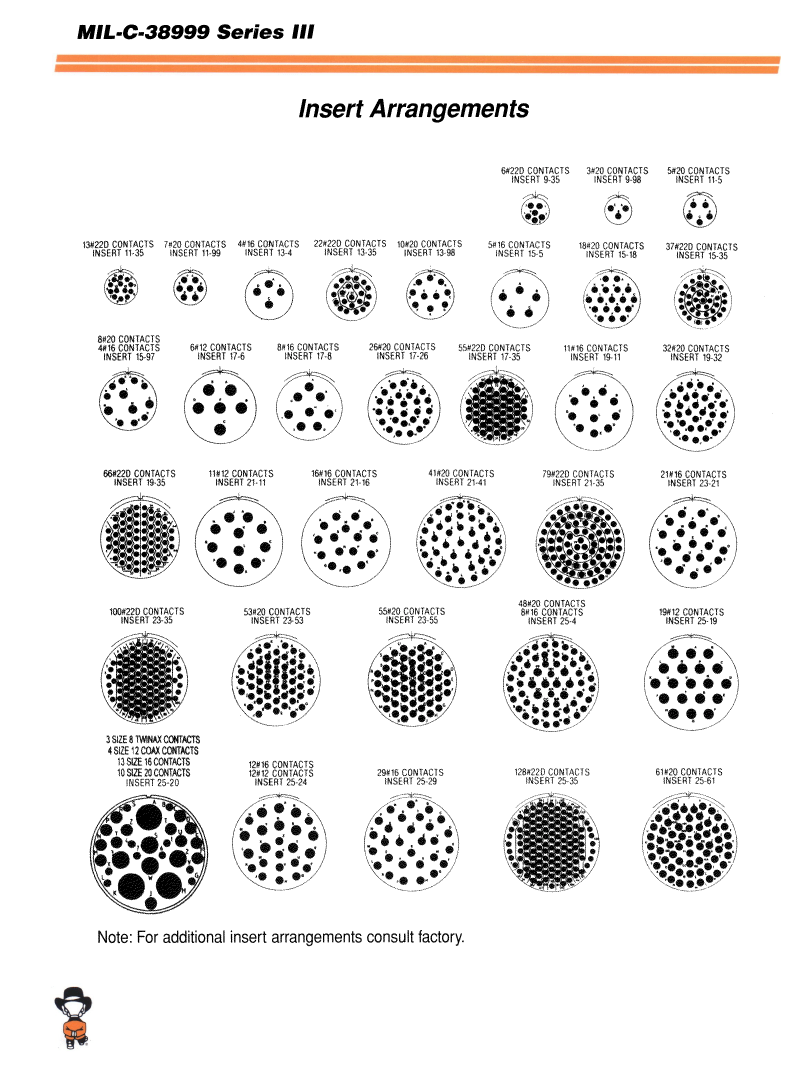

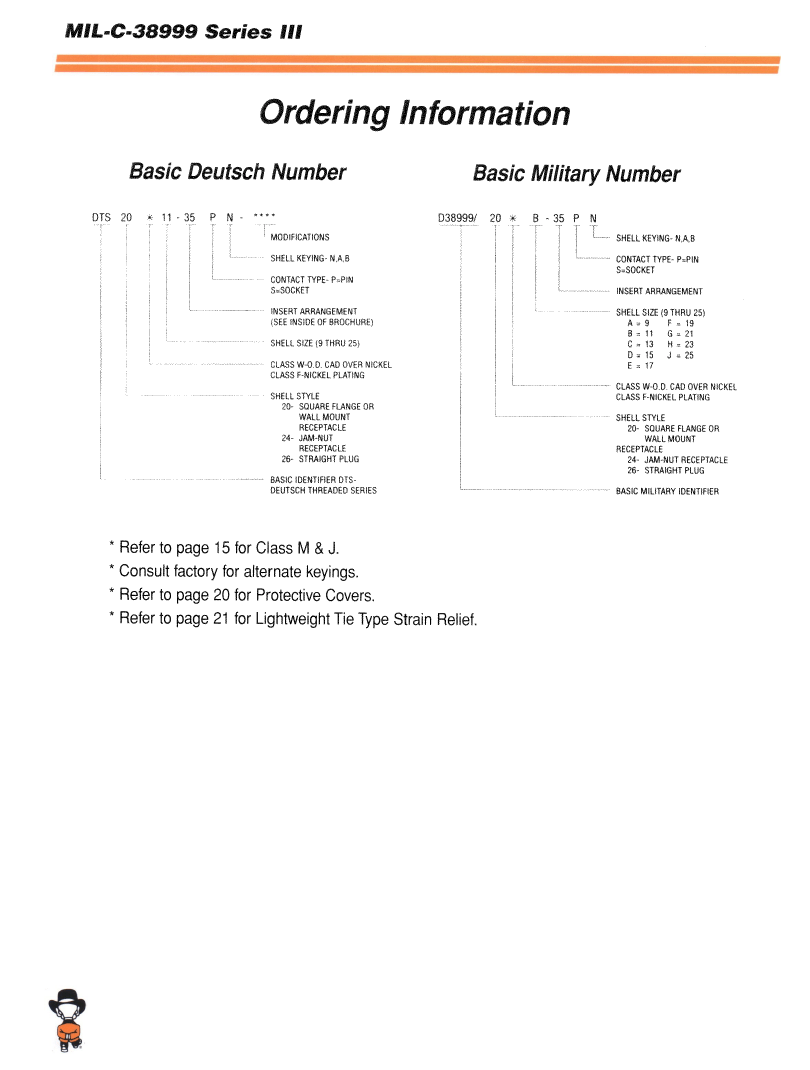

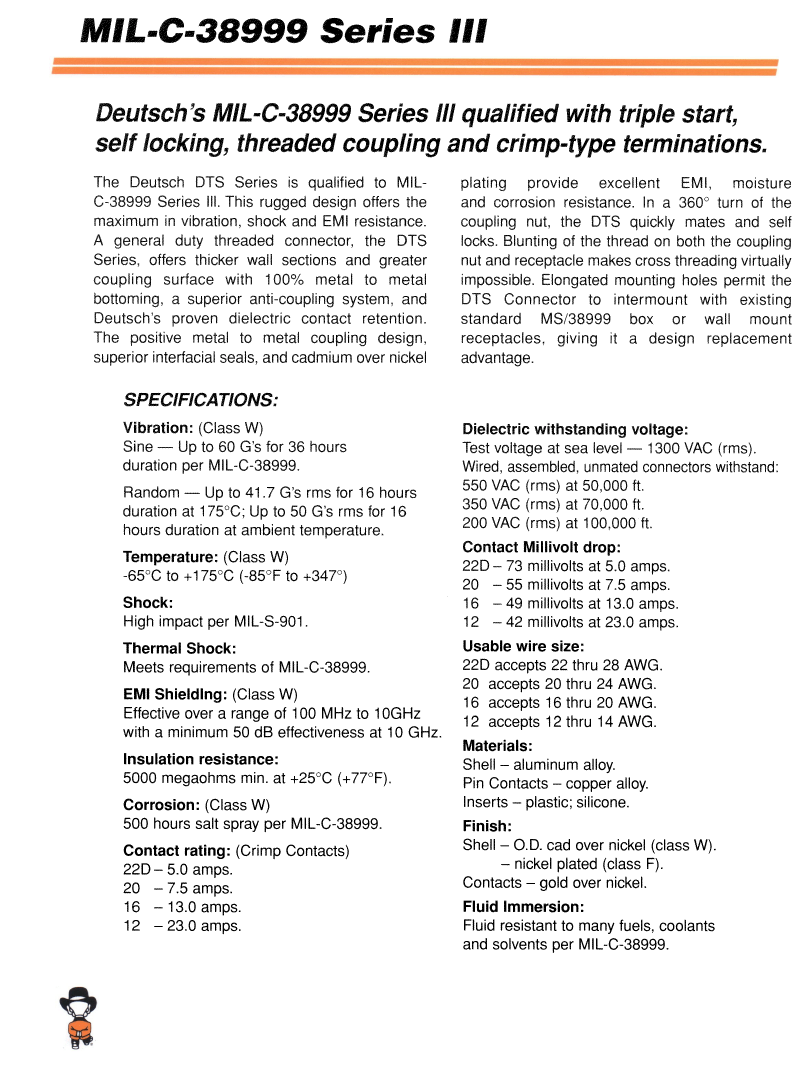

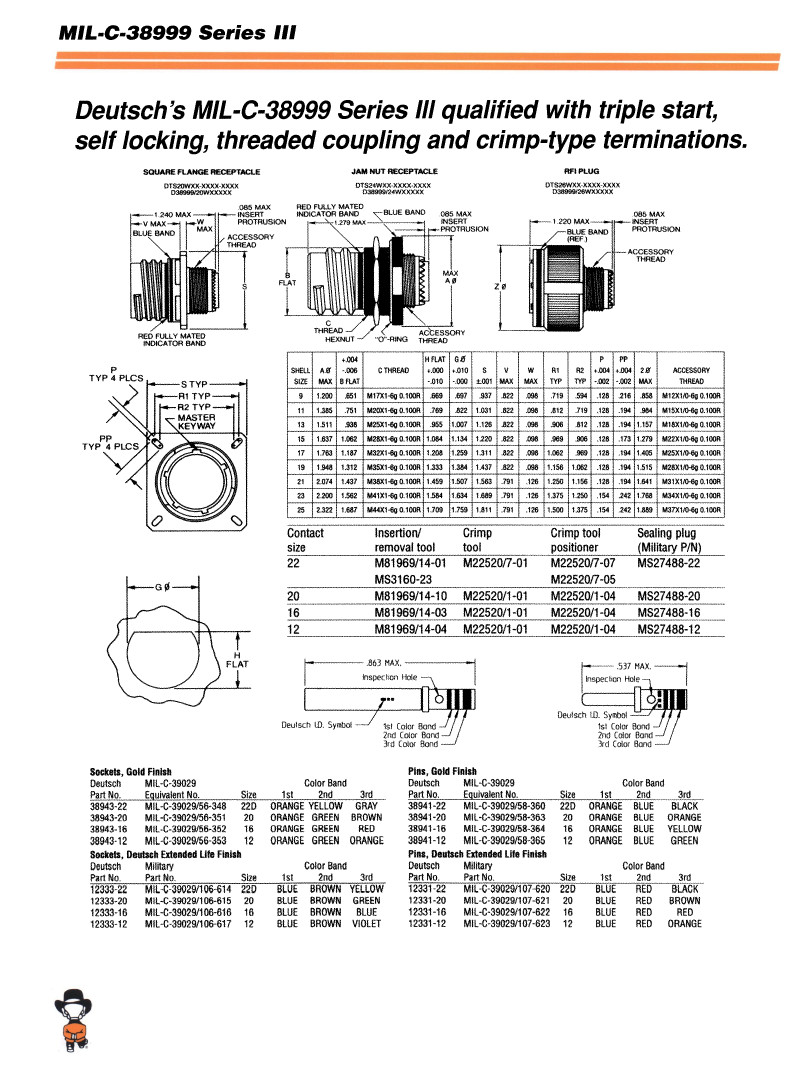

MIL-C-38999 Series III Metal
