8.06.05 10-PIN NEEDLE ADAPTER datasheet, PDF

8.06.05 10-PIN NEEDLE ADAPTER: Description10-pin needle adapter; CategoryModule/solution; File Size906KB，3 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

8.06.05 10-PIN NEEDLE ADAPTER Overview

10-pin needle adapter

Parameter Name	Attribute value
Datasheets
J-Link Needle Adapte
Standard Package	1
Category	Programmers, Development Systems
Family	Accessories
Accessory Type	Adapter Cable
For Use With/Related Products	J-Link

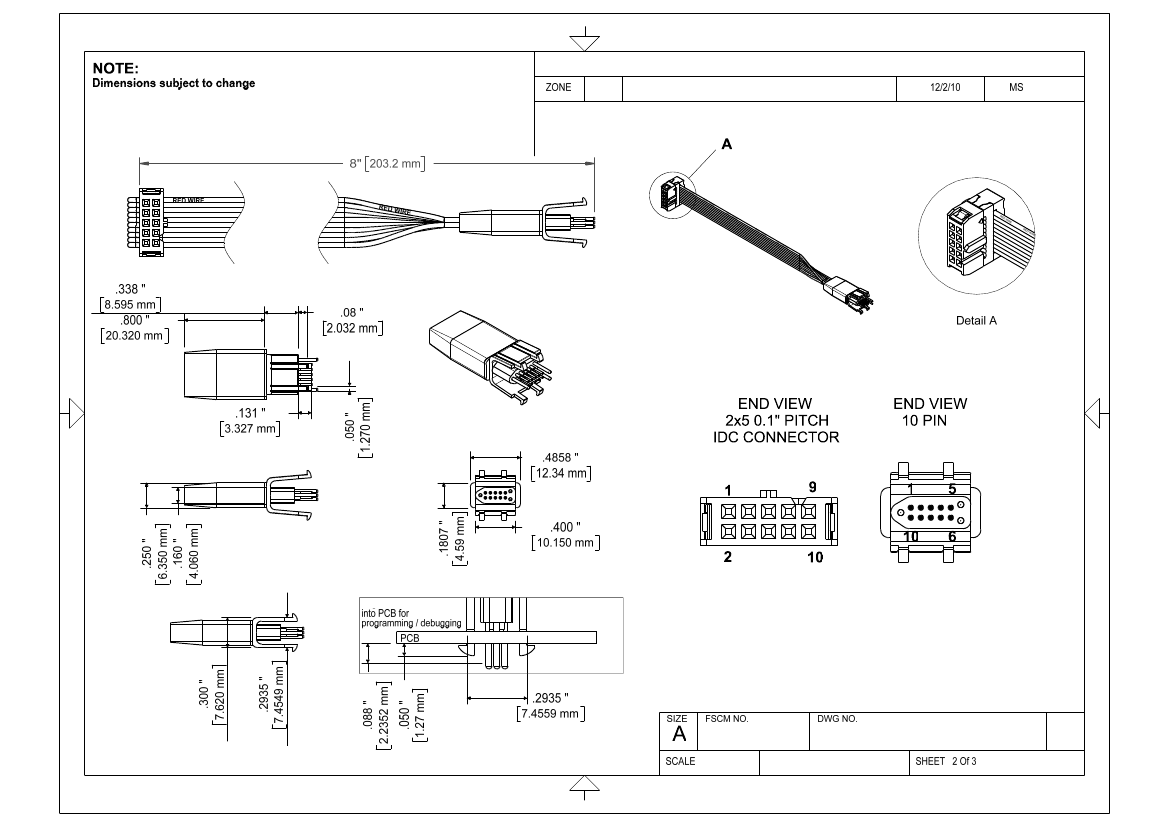

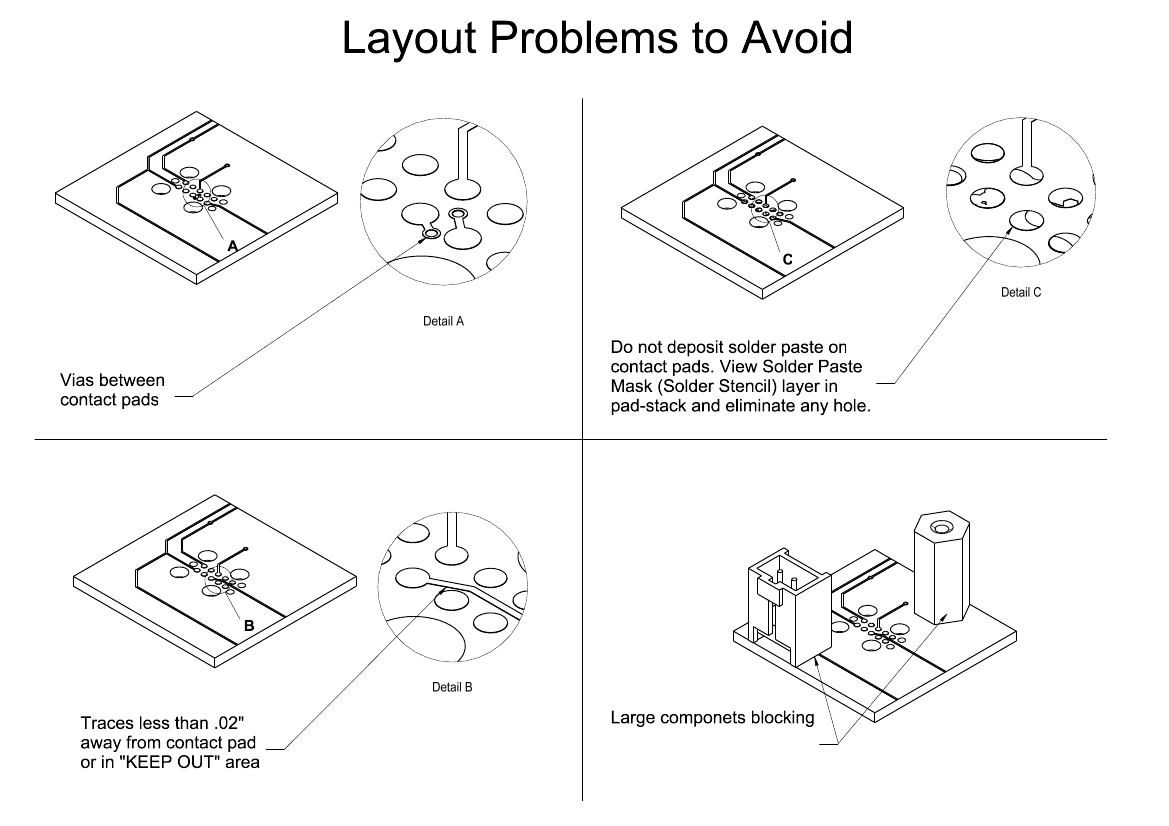

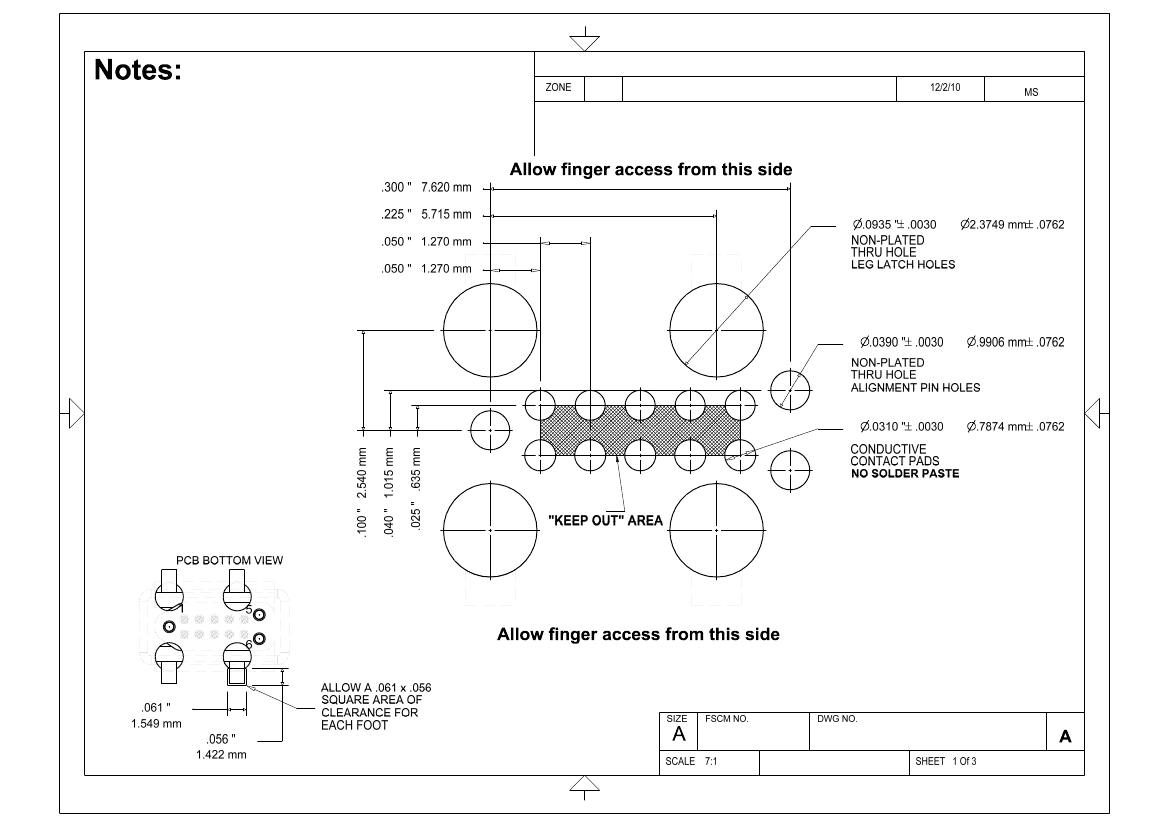

PCB Footprint for J-LINK Needle Adapter

1. Allow clearance for finger squeeze access

from the two sides shown.

2. No tracks or vias in the shaded "KEEP OUT" AREA.

3. No other track or signal within

.02" of any contact pad.

4. Do not allow solder paste on the

contact pads.It is essential to

eliminate any hole in the solder

paste-mask (solder stencil) layer.

If this is not possible make the

contact pads thru-hole with a

finished hole size of .008" or less.

5. Leg and alignment holes may be

plated and used as vias but ensure

minimum finshed hole size meets

specified tolerances.

6. To prevent purchasing confusion,

please specify DNL in your BOM.

REV

Protected by U.S. Patent Nos. 7,878,834, 8,057,248, International Patent Pending.

	8.06.05 10-PIN NEEDLE ADAPTER	8.06.04 J-LINK NEEDLE ADAPTER
Description	10-pin needle adapter	J-link TO pcb needle adapter
Standard Package	1	1
Category	Programmers, Development Systems	Programmers, Development Systems
Family	Accessories	Accessories
Accessory Type	Adapter Cable	Adapter Board
For Use With/Related Products	J-Link	J-Link
