366326 Overview

D Subminiature Connector, 9 Contact(s), Female and Male, Screw Terminal,

366326 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE AND MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	366326
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Housing size	1/E
Termination type	SCREW
Total number of contacts	9
Base Number Matches	1

Preview

Download Datasheet

View All

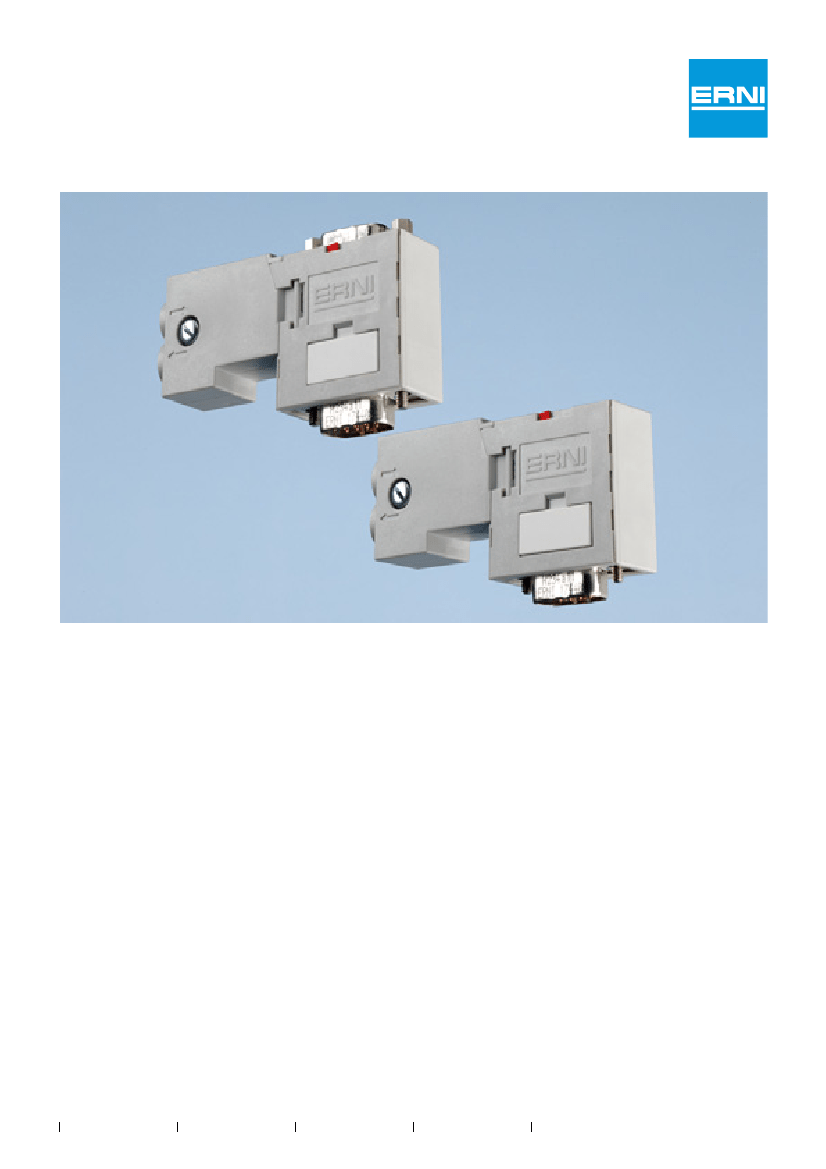

ERbic Profibus

ERNI has continuously expanded its established line of Profibus, CAN bus

and SafetyBus field bus connectors. The Profibus switch versions, with or

without a programming interface, have now been redesigned.

With the new ERbic versions for Profibus, the external dimension has

been reduced and the connector now fits into even smaller housing cut

outs. The enclosed parts from the earlier version have now been fixed

mounted. Furthermore, optimal cable clamp are available for different

cable diameters (from 6 to 9 mm). Beyond that, the new ERNI D-Sub

connectors are also being used.

Well-established cable connection techniques are available to meet the

specific requirements, such as: IDC terminal (“fast connection”, which

replaces the dismantling of the bus wires), cageclamp terminal and screw

terminal block. In addition, the bus connector can be imprinted using the

standard ID plate.

The variable connection techniques and cable strain relief provide custo-

mers with greatest possible flexibility when connecting the connector in

the field. Profibus version in particular are designed for data rates up to

12 Mbit/s in applications which require moderate industry environments

(IP20).

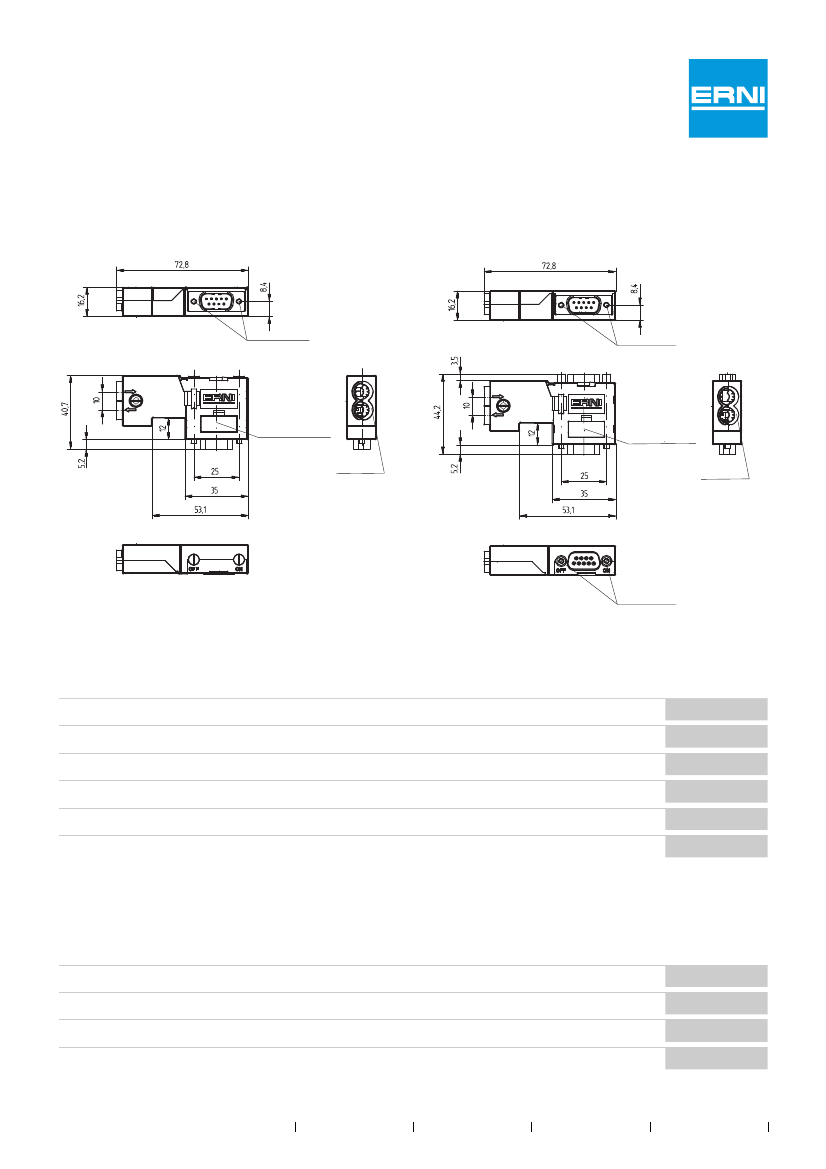

Features

• New ERNI D-Sub connectors are used

• The ERbic connector without PU corresponds to the

requirements of the S7-300 PLC

• Available with programming interface

• All versions with switches (switch-in matching resistor)

• Profibus versions are delivered with ID plate and cable

clamp suitable for an overall cable diameter of 8 mm

Recommended Cables

Siemens:

Profibus FC Standard cable

Profibus FC Robust cable

Profibus FC Food cable

LAPP Cable:

UNITRONIC FC 7-wire UL/CSA

UNITRONIC L2/FIP UL/CSA

6XV1830 - 0EV20

6XV1830 - 0JH10

6XV1830 - 0GH10

2170826

2170219

Pin Configuration

Terminal

B (1)

A (2)

B (3)

A (4)

D-Sub Pin

Signal

RxD/TxD-P

RxD/TxD-N

RxD/TxD-P

RxD/TxD-N

GND

VP (+5 V)

Catalog E XXXXXX

11/08

Edition 2

www.erni.com
