1-1623819-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 1-1623819-3

1-1623819-3: Descriptionres 0.051 ohm 4W 1% axial; CategoryPassive components; File Size435KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

1-1623819-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1623819-3	-	-	View	Buy Now

1-1623819-3 Overview

res 0.051 ohm 4W 1% axial

1-1623819-3 Parametric

Parameter Name	Attribute value
Datasheets
SBL Series
RoHS Informati
1-1623819-3 Statement of Compliance
RoHS 2 Stateme
Standard Package	1,000
Category	Resistors
Family	Through Hole Resistors
Packaging	Bulk
Resistance (Ohms)	0.051
Tolerance	±1%
Power (Watts)	4W
Compositi	Metal Foil
Features	Current Sense, Non-Inductive
Temperature Coefficie	±230ppm/°C
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimensi	0.252" Square x 0.709" L (6.40mm x 18.00mm)
Heigh	-
Number of Terminations	2
Other Names	SBL4R051F

Preview

Download Datasheet

View All

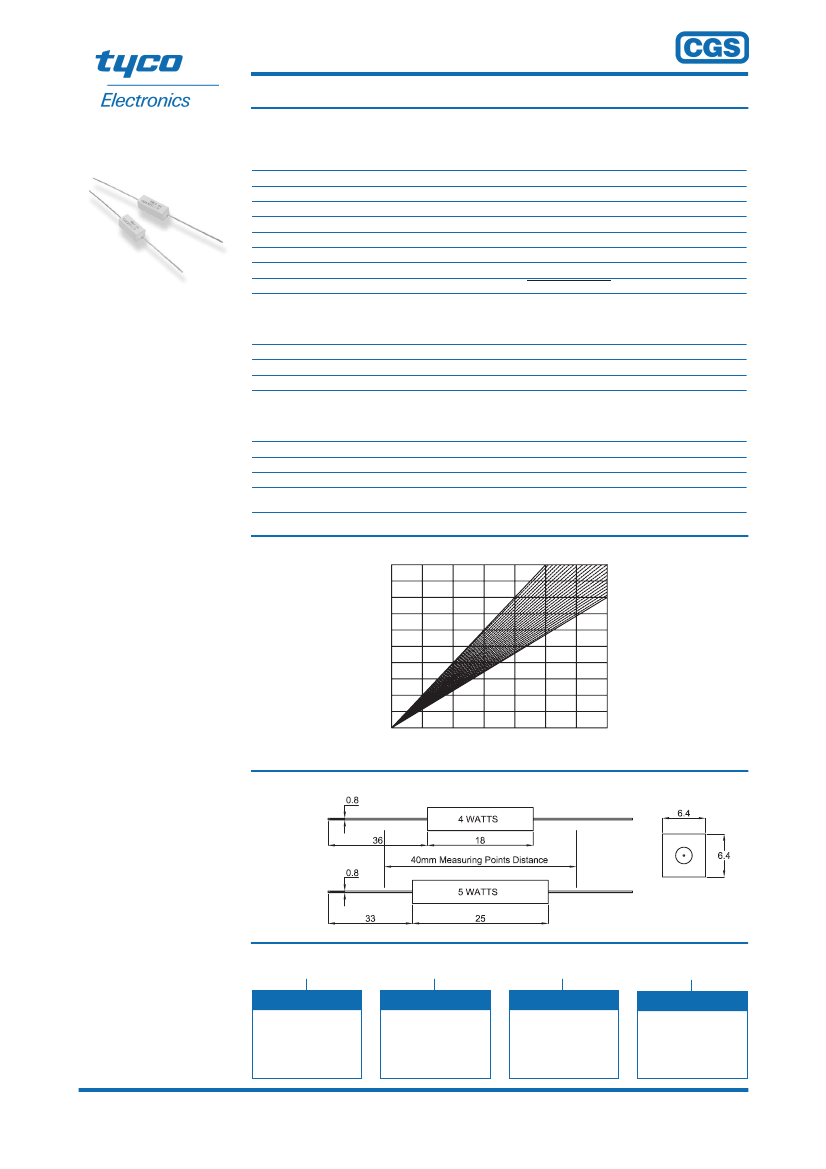

Low Ohmic - Current Sense Resistors

Type SBL Series

Characteristics -

Electrical

Resistance Values (4 Watt):

Resistance Values (5 Watt):

Resistance Tolerance:

Rated Dissipation (4 Watt):

Rated Dissipation (5 Watt):

Dielectric Strength:

Insulation Resistance:

Maximum Continuous Working Voltage:

The SBL Series is a low ohmic

non-inductive resistor with a low

temperature coefficient in a fully

insulated ceramic housing. It is

ideal for applications in power supply

regulation,

motor

control

current

monitoring, feedback control loops,

overload sensors and radio frequency

applications. The solid metal element

has welded copper terminals and is

encapsulated in a ceramic housing,

filled with compressed silica sand.

R005, R01, R015, R018, R022, R033, R047, R051

R01, R015, R018, R022, R033, R047, R051

± 5%

4 Watts at 70°C

5 Watts at 70°C

2000 Volts

< 10000 Mohms

√Power

x Resistance AC RMS

Characteristics -

Mechanical

Climatic Category:

Temperature Range:

Derating:

-55 / 250 / 56

-55°C to +250°C

Linear from 70°C to 250°C

Characteristics -

Environmental

Resistance to Solder Heat:

Terminal Strength:

Solderability:

Marking:

260°C (

∆R

± 0.2% typical)

3lb pull test

Meets MIL Std 202

Black ink on ceramic body - Manufacturer,

Resistance Value and Tolerance

Key Features

4 Watts & 5 Watts Versions

Solid Metal Element

Non-Inductive

Low Temperature Coefficient

High Reliability

Custom Design

(Subject to Volume)

4 Watt Device Available

in Distribution

Temperature Rise

150

Temperature Rise

(K)

200

100

120

(%)

Power Rating

Dimensions

How to Order

SBL

Common Part

Power Dissipation

4 - 4 Watts

SBL - Standard

5 - 5 Watts

R051

Resistance Value

R005, R01, R015, R018,

R022, R033, R047, R051

(5 Watt Version only

R01 - R051)

Tolerance

J ±5%

F ±1%

Literature No. 1773279

Issued: 04-05

Dimensions are shown for

reference purposes only.

Dimensions are in millimetres

unless otherwise specified.

Specifications subject to

change.

www.tycoelectronics.com

passives.tycoelectronics.com
