MXDEJJK30M0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> MXDEJJK30M0

MXDEJJK30M0: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size471KB，2 Pages; ManufacturerMeritek Electronics; Websitehttp://www.meritekusa.com; Environmental Compliance

Download Datasheet Parametric View All

MXDEJJK30M0 Overview

Parallel - Fundamental Quartz Crystal,

MXDEJJK30M0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7178276350
package instruction	SMD, 2 PIN
Reach Compliance Code	compliant
YTEOL	7.05
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.005%
frequency tolerance	50 ppm
load capacitance	32 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	30 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
physical size	L7.0XB5.0XH1.4 (mm)/L0.276XB0.197XH0.055 (inch)
Series resistance	40 Ω
surface mount	YES

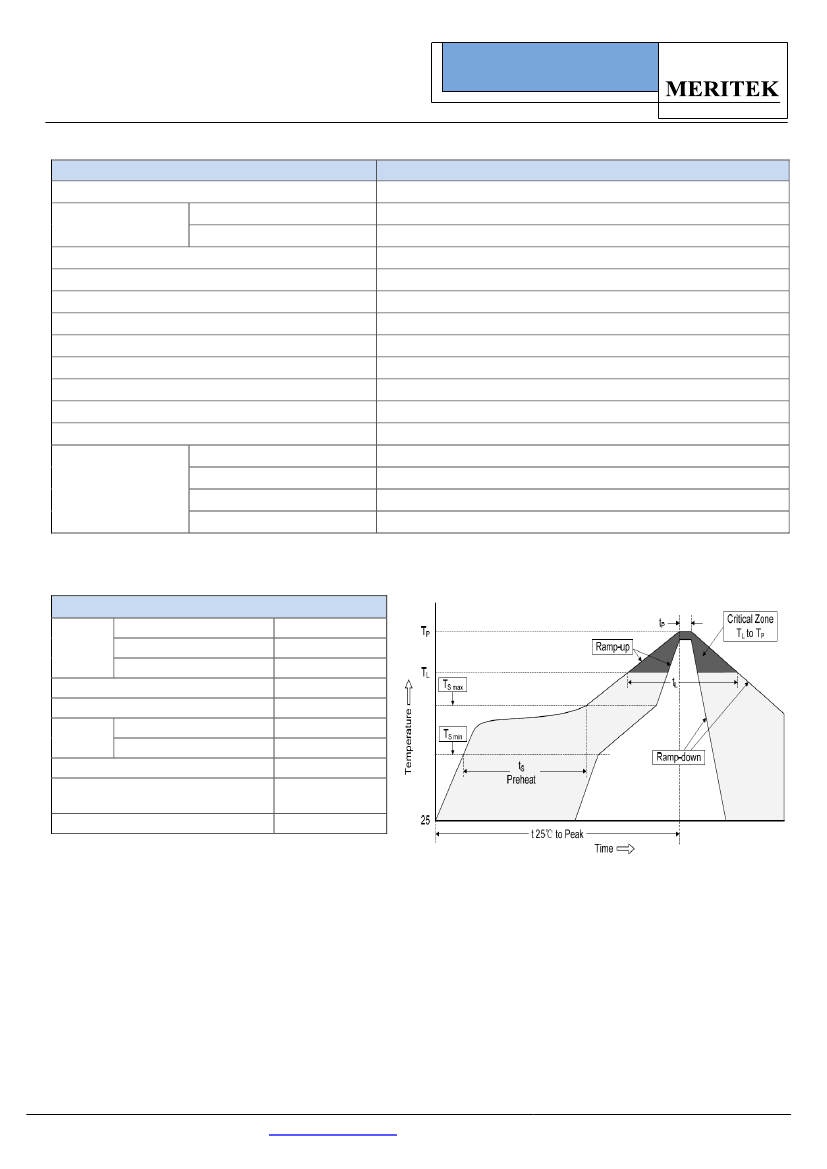

Preview

Download Datasheet

View All

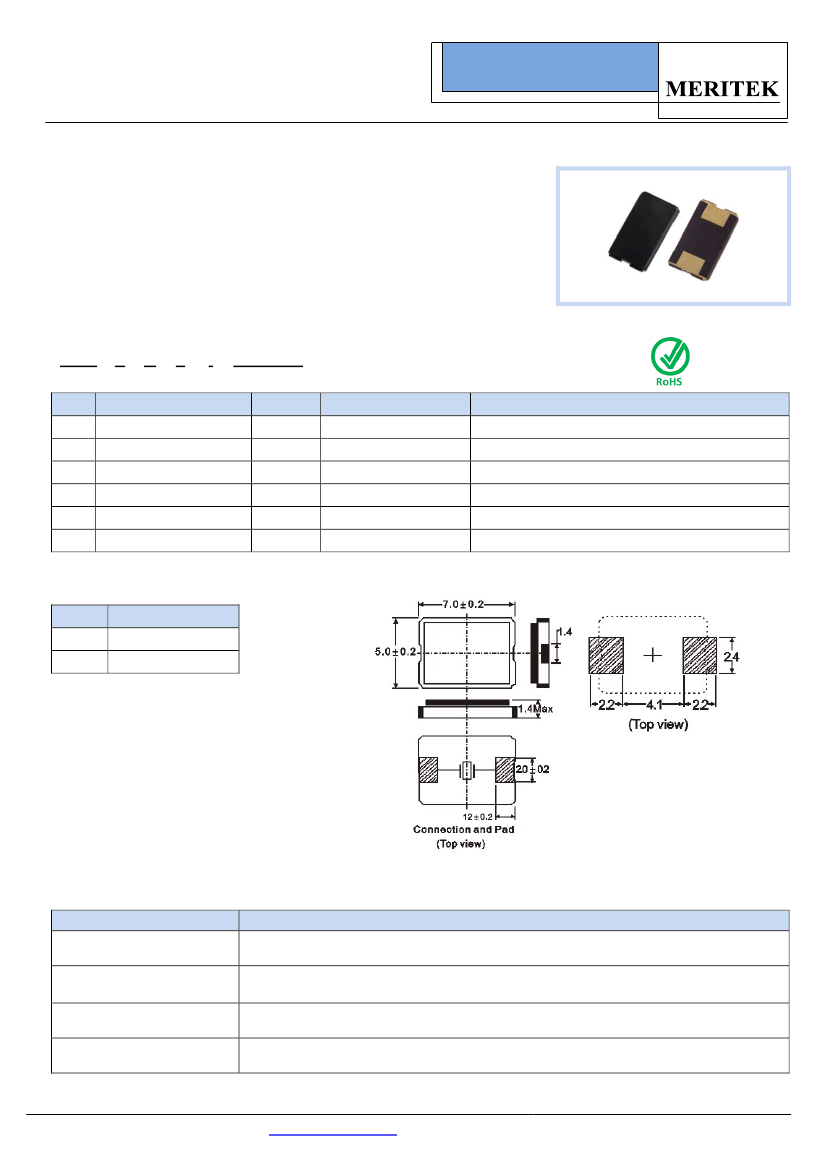

Ceramic SMD Crystal Unit

SMD 7.0 x 5.0mm Type

EATURE



Surface Mount Low Profile

Glass Sealed Ceramic

Excellent Heat Resistance

High precision and high frequency stability

MXD series

Applications: Wired Network, Mobile Communication, WiMAX, WLAN,

Test Equipment

ART

UMBERING

YSTEM

MXD

(1)

(2)

(3)

(4)

(5)

(6)

(2)

(3)

(4)

Item

(5)

14M7456

(6)

Code

MXD

14M7456

Description

Crystal Unit

F: 20pF

H: ±30ppm

J: ±50ppm

I: -40~+85ºC

14M7456: 14.7456MHz

Series Reference

Ceramic SMD Crystal 7.0x5.0mm 2 Pads

E: 18pF, R: Series Resonance (see options)

F: ±20ppm, G: ±25ppm (see options)

G: ±25ppm, H: ±30ppm (see options)

C: -20~+70ºC, I: -40~+85ºC (see options)

6M0 ~ 80M0 (M denotes decimal point)

Meritek Series

Load Capacitance

Frequency Tolerance

Stability vs Oper Temp.

Operating Temp.

Frequency

IMENSIONS AND

ECOMMENDED

ATTERN

PIN Layout

Input / Output

Output / Input

(Unit:mm)

VAILABLE

PTIONS

Parameters

Load Capacitance

Frequency Tolerance

Stability vs Oper Temp.

Operating Temperature

Part Number Options

R: Series Resonance, 3: 3pF ~ 8: 8pF,

A: 10pF, B: 12pF, C: 15pF, D: 16pF, E: 18pF, F: 20pF, K: 22pF, G: 25pF, H: 30pF, L: 32pF

A: ±10ppm, C: ±15ppm, F: ±20ppm, G: ±25ppm, H: ±30ppm, J: ±50ppm

A: ±10ppm, C: ±15ppm, F: ±20ppm, G: ±25ppm, H: ±30ppm, J: ±50ppm, K: ±100ppm

B: 0~+70C, A: -10~+60C, C: -20~+70C, K: -30~+85C, I: -40~+85C, R: -40~+105C

Note: Custom options available. Contact Meritek for more information.

Meritek Electronics Corporation

www.meritekusa.com

Rev.7a 12/21/2017
