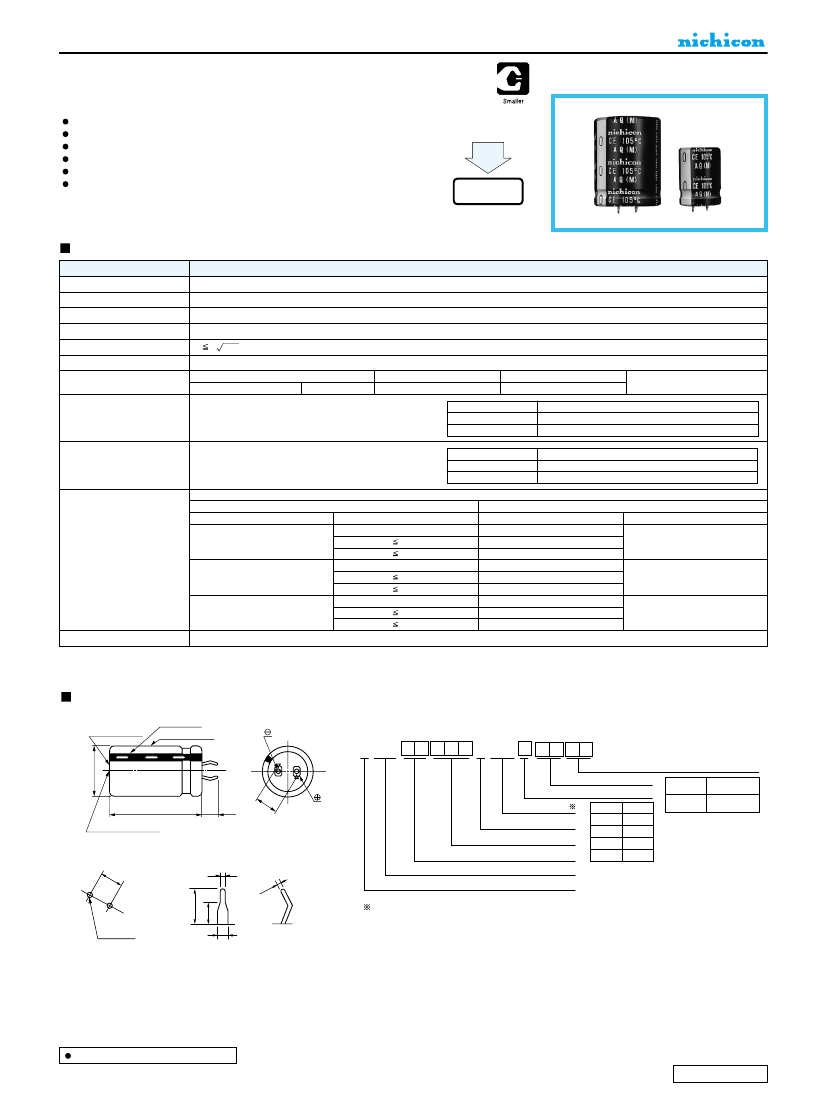

ALUMINUM ELECTROLYTIC CAPACITORS
AQ
Snap-in Terminal Type, 105°C Permissible Abnormal Voltage,
Smaller-sized
(692 type) series
Withstanding 2000 hours application of rated ripple current of 105
°C
.
Extended voltage range at 200V, 220V and 400V.
Smaller case sizes and higher ripple current than AK series.
Improved safety features for abnormally excessive voltage.
Ideally suited for the equipment used at voltage fluctuating area.
Compliant to the RoHS directive (2002/95/EC).
AK
Smaller
AQ
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Tangent of loss angle (tan
δ)
Stability at Low Temperature
–
25 to +105°C
Performance Characteristics
200
•
220
•
400V
33 to 1500µF
± 20% at 120Hz, 20°C
I
3 CV ( µA) (After 5 minutes' application of rated voltage) [C : Rated Capacitance (µF) V : Voltage (V)]
Rated voltage(V)
Impedance ratio (MAX)
Z
–
25°C/Z+20°C
200
•
220
8
Capacitance change
tan
δ
Leakage current
0.20MAX. 120Hz, 20°C
400
8
Measurement frequency : 120Hz
Endurance
The specifications listed at right shall be met when the
capacitors are restored to 20°C after D.C. bias plus rated
ripple current is applied for 2000 hours at 105°C, the
peak voltage shall not exceed the rated voltage.
After storing the capacitors under no load at 105°C for 1000
hours and then performing voltage treatment based
on JIS C 5101-4 clause 4.1 at 20°C,
they shall meet the requirements listed at right.
Within ±20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Within ±15% of the initial capacitance value
150% or less than the initial specified value
Less than or equal to the initial specified value
Capacitance change
tan
δ
Leakage current
Shelf Life
Safety Performance
The pressure relief vent will operate in normal conditions, with no dangerous conditions such as flames, ignitions or dispersion of pieces of the capacitor and / or case.
Test conditions
Rating
Limited DC current
Test voltage
Voltage (V)
Rated Capacitance (µF)
4A
330
C < 330
300VDC and 375VDC
200
5A
330
C < 470
7A
470
C
< 470
4A
330
C < 330
320VDC and 405VDC
220
5A
330
C < 470
7A
470
C
< 470
2A
330
C < 100
500VDC and 600VDC
400
4A
100
C < 220
7A
220
C
< 470
Printed with white color letter on black sleeve
Marking
Drawing
Bottom plate
(code ZB only)
Polarity bar
Sleeve (P.E.T.)
Type numbering system (Example : 200V 680
µ
F)
1
2
3
4
5
6
7
8
9
10 11 12
13 14
15 16
L AQ 2 D 6 8 1 M E L A 4 0
φD
+1MAX.
Bottom Plate
Case length code
L
±
2
ZB
code less
10
Case dia. code
Configuration
Capacitance tolerance (±20%)
Rated capacitance (680µF)
Rated voltage (200V)
φD
22
25
30
35
Code
Z
A
B
C
With Bottom
Plate
Without
Bottom Plate
Pressure relief vent
4.0±0.5
10±
0
.
0.8
+0.2
-0.1
1
0.8
4.0
±
0.5
.2
+0 .1
-0
Series name
Type
2- 2
φ ±
0.1
1.5
(PC board hole dimensions)
+0.2
-0.1
2.5
Please contact to us if other configurations are required.
(Terminal dimensions)
Minimum order quantity : 50pcs.
Dimension table in next page.
CAT.8100Z
