F9/FY Series Quartz Crystal
Legacy NES5/NKS5 Series
5.0 x 3.2mm
Quartz Crystal Ceramic SMD
F9 FY
F9
5.0 x 3.2mm Ceramic SMD
FY
Frequency Range:
Product Features
• Rugged AT-cut crystal construction
• Miniature 5.0 x 3.2mm ceramic package
• Available on tape & reel; 12mm tape,
1000 units per reel
• FY: Pb-free and RoHS/Green compliant
• F9: RoHS compliant*
(* per #5, Annex of Directive 2002/05/EC)
• 8.0000 MHz to 50.0000 MHz (Fundamental)
• 40.000 MHz to 125.0000 MHz (3rd Overtone)
Characteristics at 25°C ±2°C:
• Frequency Calibration Tolerance: ±10ppm, ±20ppm, or ±30ppm
• Load Capacitance: 8 to 32pF or Series Resonance
• Effective Series Resistance (ESR):
Fundamental: 40 to 100Ω max depending on frequency
Overtone: 60 to 80Ω max depending on frequency
• Drive Level: 10μW typ. (100μW max)
• Shunt Capacitance: 5pF Max
Product Description
The 2-pad F9 Series glass seal and the 4-pad
FY Series seam seal devices incorporate
a sub-miniature AT-cut crystal resonator
housed in a standard 5.0 x 3.2mm ceramic
package. These compact crystals are ideal for
surface mounting in densely populated PCB
applications.
Temperature Range:
• Operating: –20 to +70°C or –40 to +85°C
• Storage: –55 to +125°C
Temperature Stability:
Applications
• PCMCIA Cards
• Portable / hand-held PCs
• Notebook PC
• Wireless LAN
• Portable Multimedia Devices
• GPS
• HDD
• Bluetooth
• USB Dongle
• ±10ppm, ±20ppm, ±30ppm, or ±50ppm (–20 to +70°C )
• ±30ppm, or ±50ppm (–40 to +85°C)
Aging at 25°C, First Year:
• ±3ppm Max
Reflow Temperature:
• 260°C Max, 10 seconds Max
SaRonix-eCera™ is a Pericom® Semiconductor company
•
US: +1-408-435-0800 TW: +886-3-4518888
•
www.saronix-ecera.com
All specifications are subject to change without notice.
F9/FY REV2008_OCT14_01.5
1
Quartz Crystal Ceramic SMD
F9 FY
F9/FY Series Quartz Crystal
Legacy NES5/NKS5 Series | 5.0 x 3.2mm
Part Ordering Information:
F9/FY XXX YYYY
A: Product Family
B: XXX = Frequency Code
C: YYYY = Specification Code
Following the above format, Saronix-eCera part numbers will be assigned upon
confirmation of exact customer requirements.
Legacy Ordering Information - For Reference Only:
NXS
SaRonix Series Designator
NKS = 4 pad seam seal
NES = 2 pad glass seal
Package Type
5 (5.0 x 3.2 mm typ)
5
NAD 1 – 25.0000 –20 (T)
Packing Method
(T) = Tape & Reel, full reel
increments only, 3000pcs
Blank = Bulk
Load Capacitance
–XX = Load Capacitance
Calibration / Stability / Temp Range
HAA = ±10 ppm / ±10 ppm / -20°C to +70°C
JAB = ±20 ppm / ±20 ppm / -20°C to +70°C
NAD = ±30 ppm / ±30 ppm / -20°C to +70°C
NAK = ±30 ppm / ±50 ppm / -20°C to +70°C
NED = ±30 ppm / ±30 ppm / -40°C to +85°C
NEK = ±30 ppm / ±50 ppm / -40°C to +85°C
Mode
1 = Fundamental
Frequency
Frequencies (in MHz) = xx.xxxx
Part Number Example:
Spec: Freq 18.1234MHz, ±30ppm calib, ±30ppm stab, -20 to +70°C, 16pF, T&R = NKS5NAD1-18.1234-16(T)
Mechanical
•Shock: JESD22-B104 Condition B
•Solderability: J-STD-002
•Terminal Strength: MIL-STD-883 Method 2004
•Vibration: JESD22-B103
•Solvent Resistance: JESD22-B107
•Resistance to Soldering Heat: J-STD-020C Table 5-2 Pb-free devices (3 cycles max)
Environmental
•Gross Test Leak: JESD22-A109, Condition C
•Fine Test Leak: JESD22-A109, Condition A1
•Moisture Resistance: JESD22-A113
•Insulation Resistance: 500 MΩ min (100 VDC)
SaRonix-eCera™ is a Pericom® Semiconductor company
•
US: +1-408-435-0800 TW: +886-3-4518888
•
www.saronix-ecera.com
All specifications are subject to change without notice.
F9/FY REV2008_OCT14_01.5
2
Quartz Crystal Ceramic SMD
F9 FY
F9/FY Series Quartz Crystal
Legacy NES5/NKS5 Series | 5.0 x 3.2mm

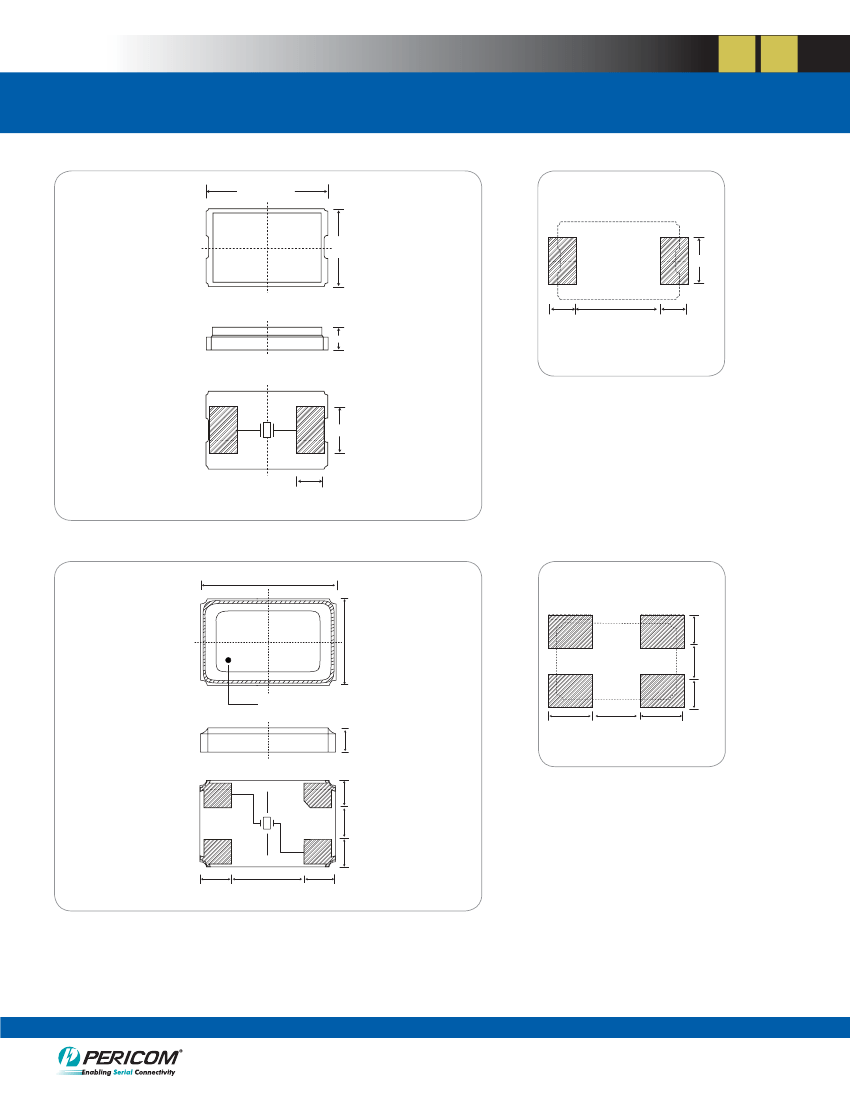

Mechanical Drawings: F9 Series
5.0±0.15
Recommended Land Pattern:
3.2±0.15
+
1.8
2.0
1.6
2.4
1.2±0.15
UNIT: mm
2.0±0.1
UNIT: mm
1.3±0.1
Mechanical Drawings: FY Series
5.0±0.15
Recommended Land Pattern:
1.4
3.2±0.15
+
PIN 1
1.6
0.9±0.15
2.6
1.6
1.0
1.4
UNIT: mm
0.9
1
2
1.2
4
3
0.9
UNIT: mm
1.1
2.8
(Bottom View)
1.1
SaRonix-eCera™ is a Pericom® Semiconductor company
•
US: +1-408-435-0800 TW: +886-3-4518888
•
www.saronix-ecera.com
All specifications are subject to change without notice.
F9/FY REV2008_OCT14_01.5
3
