SURFACE MOUNT MICROPROCESSOR CRYSTAL
Page 1 of 3
SERIES RH100
•

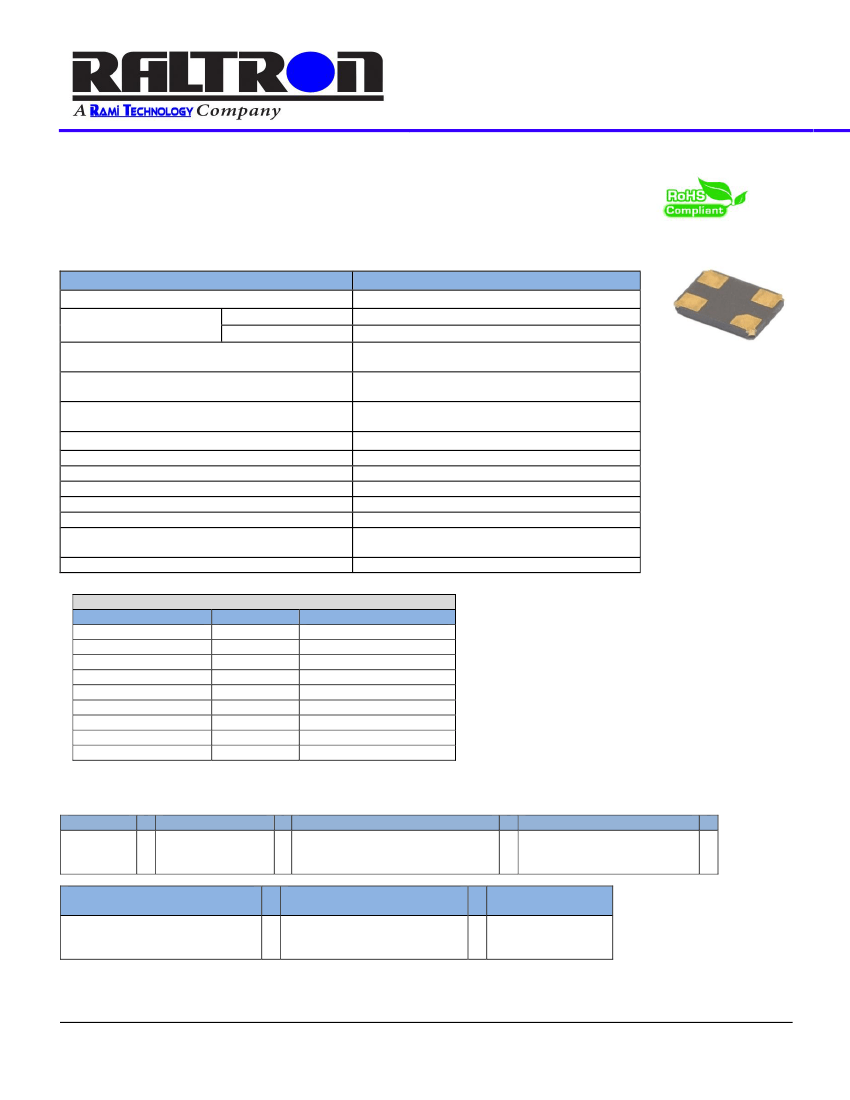

FEATURES
•
•
•
COMPACT DESIGN
HIGH ACCURACY
EXCELLENT FOR HIGH DENSITY SURFACE MOUNTING
•
SPECIFICATIONS
PARAMETER
VALUE
8.000 MHz to 156.250 MHz
8.000 MHz to 80.000 MHz
60.000 MHz to 156.250 MHz
±100 ppm max
(±10 ppm, ±20 ppm and ±50 ppm available)
±100 ppm max
(±10 ppm, ±20 ppm and ±50 ppm available)
-20°C to +70°C Standard
-40°C to +85°C Extended
-40°C to +85°C
±2 ppm 1st year max
7 pF to 32 pF or Series
See Table 1
3.5 pF max
200 µW max
±5 ppm max 75 cm drop test in
3 axes onto a hard wood surface
260°C ±5°C for 10s max
FREQUENCY RANGE
MODE OF OSCILLATION
FUNDAMENTAL
THIRD OVERTONE
FREQUENCY TOLERANCE AT 25°C
FREQUENCY STABILITY OVER TEMPERATURE
OPERATING TEMPERATURE RANGE
STORAGE TEMPERATURE RANGE
AGING
LOAD CAPACITANCE
EQUIVALENT SERIES RESISTANCE
SHUNT CAPACITANCE
DRIVE LEVEL
SHOCK RESISTANCE
REFLOW CONDITIONS
TABLE 1
MODE
FUND
FUND
FUND
FUND
FUND
FUND
FUND
FUND
3OT
FREQUENCY (MHz)
8.000 to 9.999
10.000 to 10.999
11.000 to 11.999
12.000 to 12.999
13.000 to 15.999
16.000 to 20.999
21.000 to 29.999
30.000 to 80.000
60.000 to 156.250
MAXIMUM ESR (Ω)
800
250
120
100
80
70
60
50
100
◼
PART NUMBERING SYSTEM
TYPE
RH100
-
-
FREQUENCY
IN MHz
-
-
LOAD CAPACITANCE
7 TO 32 pF FOR PARALLEL
S FOR SERIES
OPERATING
TEMPERATURE
Blank FOR STANDARD
EXT FOR EXTENDED
-
-
-
-
MODE
Blank FOR < 24.576 MHz
F FOR ≥ 24.576 MHz
3OT THIRD OVERTONE
-
-
TOLERANCE/STABLITY
(PPM/PPM)
Blank FOR MAXIMUM
PPMPPM
Example: 1020, 2050
-
-
TAPE & REEL
TR
EXAMPLE: RH100-24.000-18-TR
Surface Mount Microprocessor Crystal, 3.2 x 2.5 mm, 24.000 MHz, Fundamental mode, 18 pF load, ±100 ppm
Tolerance, ±100 ppm Stability, from -20°C to +70°C, Tape and reel packaging
RALTRON ELECTRONICS
▪
10400 N.W. 33
rd
STREET
▪
Miami, Florida 33172
▪
U.S.A.
Telephone: +1-305-593-6033
▪
Fax: +1-305-594-3973
▪
e-mail: sales@raltron.com
▪
web site: http://www.raltron.com
SURFACE MOUNT MICROPROCESSOR CRYSTAL
Page 2 of 3
SERIES RH100
•

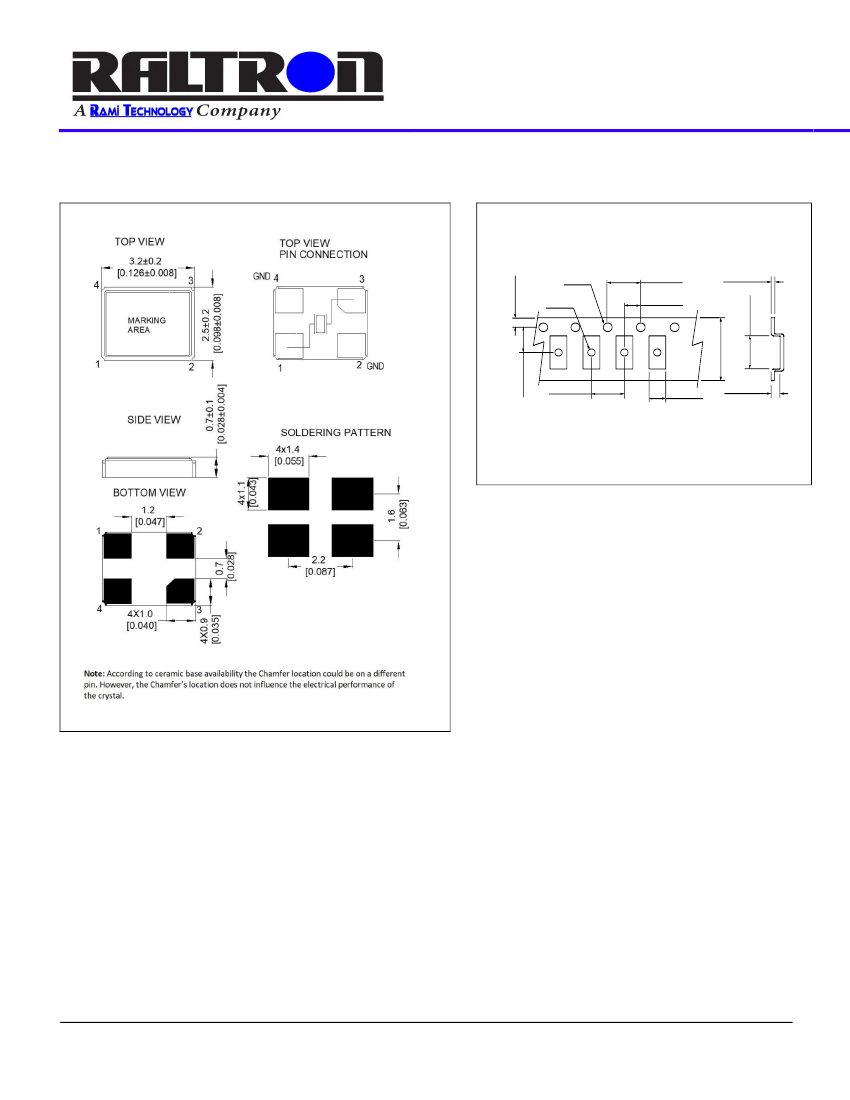

MECHANICAL SPECIFICATION
•
CARRIER TAPE DIMENSIONS
.069 ± .004
1.75 ± 0.1
ø 1.5
ø .059
ø 1.15
ø .045
4.0 ± 0.1
.157 ± .004
2.0 ± 0.05
.079 ± .002
0.25 ± 0.05
.010 ± .002
.138 ± .008
3.5 ± 0.1
.138 ± .002
3.5 ± 0.05
4.0 ± 0.1
.157 ± .004
2.8 ± 0.1
.110 ± .004
1.0 ± 0.1
.039 ± .004
NOTE: REFER TO EIA-481 FOR NON-SPECIFIED DIMENSIONS
•
PACKAGING
180 mm REEL DIAMETER
8 mm TAPE WIDTH, 4 mm PITCH
QUANTITY: 3000 PIECES PER REEL
RALTRON ELECTRONICS
▪
10400 N.W. 33
rd
STREET
▪
Miami, Florida 33172
▪
U.S.A.
Telephone: +1-305-593-6033
▪
Fax: +1-305-594-3973
▪
e-mail: sales@raltron.com
▪
web site: http://www.raltron.com
.315 ± .008
8.0 ± 0.2
SURFACE MOUNT MICROPROCESSOR CRYSTAL
Page 3 of 3
SERIES RH100
•

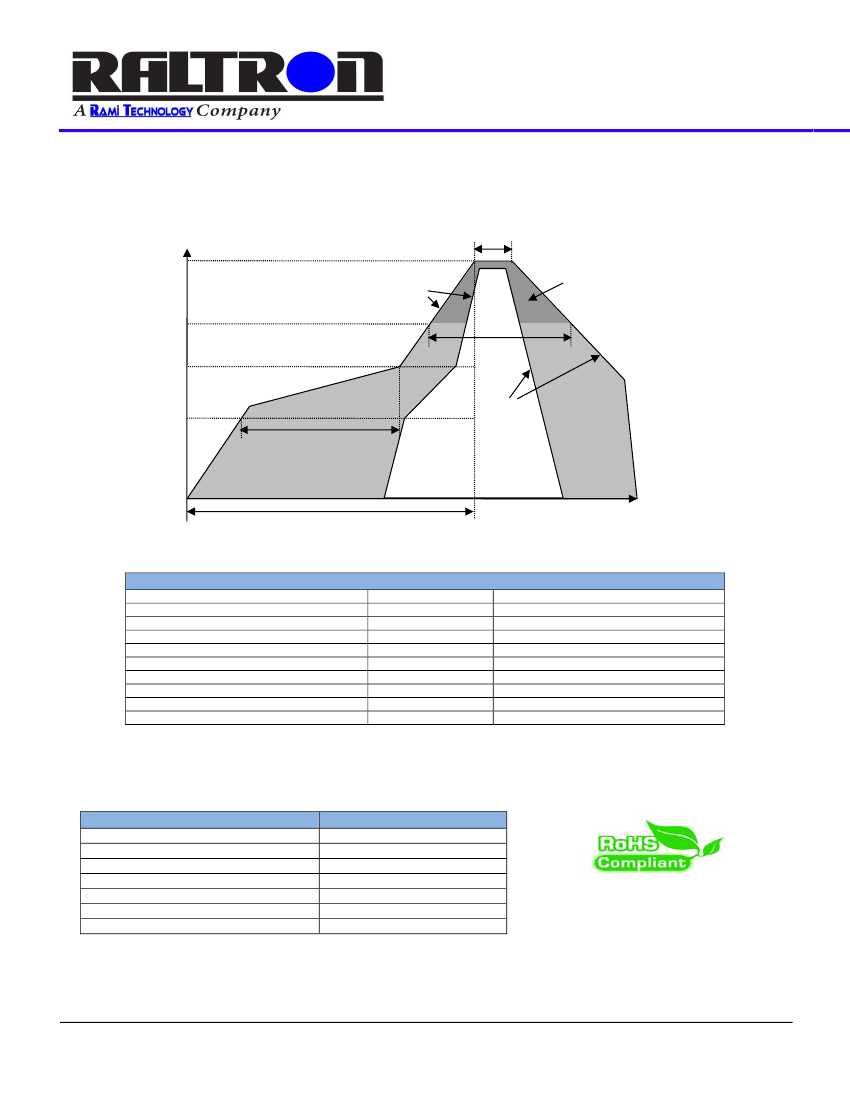

REFLOW PROFILE
t
P
T
P
Ramp-up
Critical Zone
T
L
to T
P
T
L
T
SMAX
Temp.
[°C]
T
SMIN
t
S
Preheat
t
L
Ramp-down
t[25°C] to Peak
Time [sec]
Reflow profile
Temperature Min Preheat
Temperature Max Preheat
Time (T
SMIN
to T
SMAX
)
Temperature
Peak Temperature
Ramp-up rate
Ramp-down rate
Time within 5°C of Peak Temperature
Time t[25°C] to Peak Temperature
Time
T
SMIN
T
SMAX
t
S
T
L
T
P
R
UP
R
DOWN
t
P
t[25°C] to Peak
t
L
150°C
200°C
60-180 sec.
217°C
260°C
3°C/sec max.
6°C/sec max.
10 sec.
480 sec.
60-150 sec.
•
ENVIRONMENTAL
PARAMETER
MOISTURE SENSITIVITY LEVEL
RoHS
REACH SVHC
HALOGEN-FREE
ESD CLASSIFICATION LEVEL
TERMINATION FINISH
UNIT WEIGHT (GRAMS)
VALUE
1
COMPLIANT
COMPLIANT
COMPLIANT
N/A
Au
0.01945
July 2020
RALTRON ELECTRONICS
▪
10400 N.W. 33
rd
STREET
▪
Miami, Florida 33172
▪
U.S.A.
Telephone: +1-305-593-6033
▪
Fax: +1-305-594-3973
▪
e-mail: sales@raltron.com
▪
web site: http://www.raltron.com
