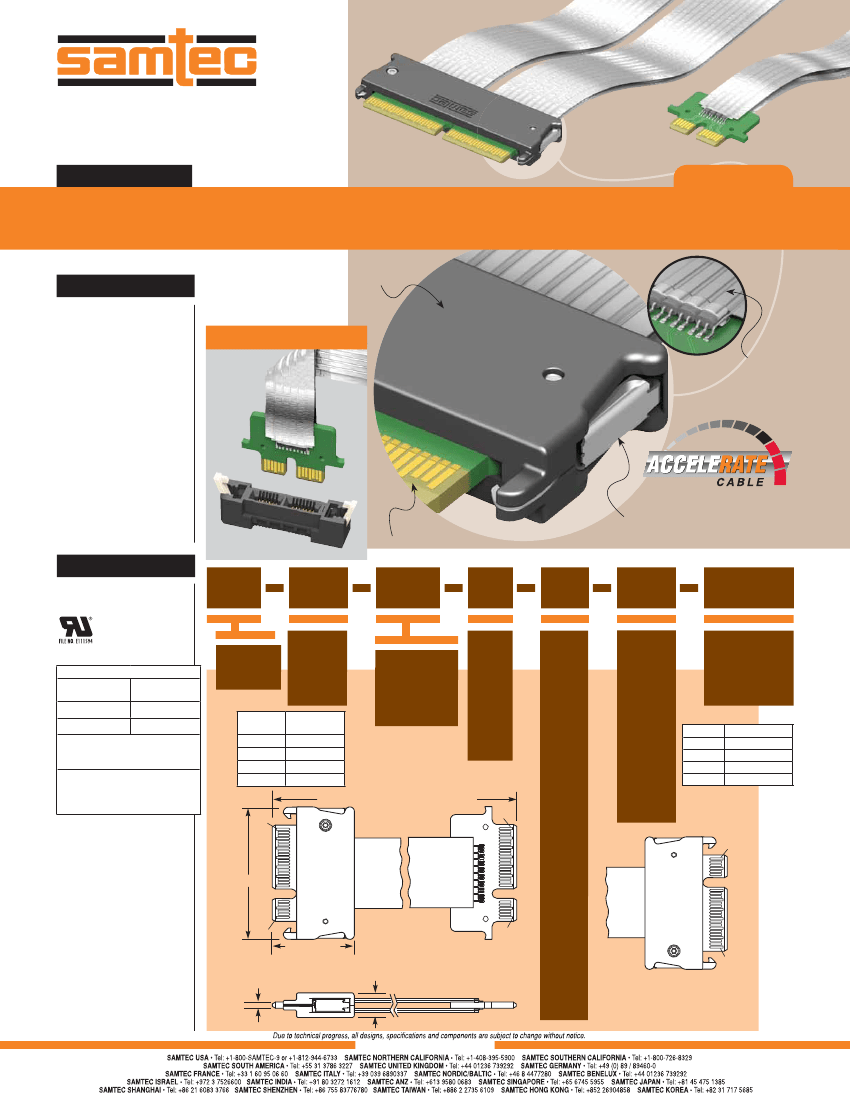

F-214 (Rev 03JUL14)
ECDP–08–03.75–B1–B2–3–1
(0,80 mm) .0315"
ECDP–32–03.75–L1–L2–1–1
ECDP SERIES
TWINAX EDGE CARD CABLE ASSEMBLY
SPECIFICATIONS
i
For complete specifications
or www.samtec.com?ECDP
Cable:
30 AWG twinax
AcceleRate™ cable
Plating:
Edge Card = ENIG,
3-10 microinches
Operating Temp Range:
-55°C to +85°C
Current Rating:
2.3 A per pin
(2 adjacent pins powered)
Impedance:
-1 = 100Ω Differential
-2 = 85Ω Differential
Bend Radius:
1 mm one time bend, or
(12,7 mm) .50" bend radius
with moderate flexing cycles
Pinout Map:
See web address above
RoHS Compliant:
Yes
Mates with:
HSEC8 (–L2 option),
HSEC8 (–BL option)
Low Profile vs.
Mini-SAS
APPLICATION
30 AWG, 100Ω
AcceleRate
™
twinax cable
TM
Mates with vertical or right angle
connectors on board
Metal
squeeze latch
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
TYPE
NO. OF
PAIRS
WIRE
LENGTH
END
1
END
2
WIRING
OPTION
IMPEDANCE
ECDP
ECDP
Cable
Length
12" (0,305 m)
36" (0,914 m)
Rated @ 7dB
Insertion Loss
23 Gbps
18.5 Gbps
= Edge Card
Cable
–04,
–08,
–16,
–32
A
(20,85) .821
(24,05) .947
(33,66) 1.325
(52,86) 2.081
–L1
–“XX.XX”
= Wire Length
in Inches
(95,3 mm) 03.75"
minimum
= Double
Vertical
with
latches
–L1
= Double
Vertical
with
latches
(Wiring
option –3
& –4 only)
–1
= Pin 1 to
Pin 1
–1
= 100Ω
–2
= Pin 1 to
Pin 2
–2
= 85Ω
CABLE CONNECTOR
ECDP–04
ECDP–08
ECDP–16
ECDP–32
HSEC8–109–XX
HSEC8–113–XX
HSEC8–125–XX
HSEC8–149–XX
Longer cables and better
performance available.
See ECDP-E Series
Performance and complete
test data available at
www.samtec.com?ECDP
or contact sig@samtec.com
NO. OF
PAIRS
–04
–08
–16
–32
–B1
= Board
lock, No
housing
–L2
= Double
Vertical
with
latches
(Wiring
option –1
& –2 only)
–3
= Pin 1 to
Pin N-1
–4
= Pin 1 to
Pin N
OAL = Wire Length + (16,89) .665
N-1
N
Notes:
Cable shield construction
leaves minor exposed edges.
Users should consider whether
this will affect the application in
which the cable is to be used.
Insulation may be required as
needed.
Cable lengths longer than
40.00" (1 meter) are not
supported with S.I. test data.
Design your High Speed Cable
with Samtec’s High Speed
Cable Solutionator
®
at
www.samtec.com/hdr
Some lengths, styles and
options are non-standard,
non-returnable.
–B1
A
= Board
lock, No
housing
(Wiring
option –3
& –4 only)
02
01
02
(21,00) .827
–L1 (END 1)
–B2 (END 2)
–B2
= Board
lock, No
housing
(Wiring
option –1
& –2 only)
N
(1,53)
.060
(6,27)
.247
–L1 (END 2)
*
*
Same pinout for
–B1 end 2 as –L1 end 2.
WWW.SAMTEC.COM

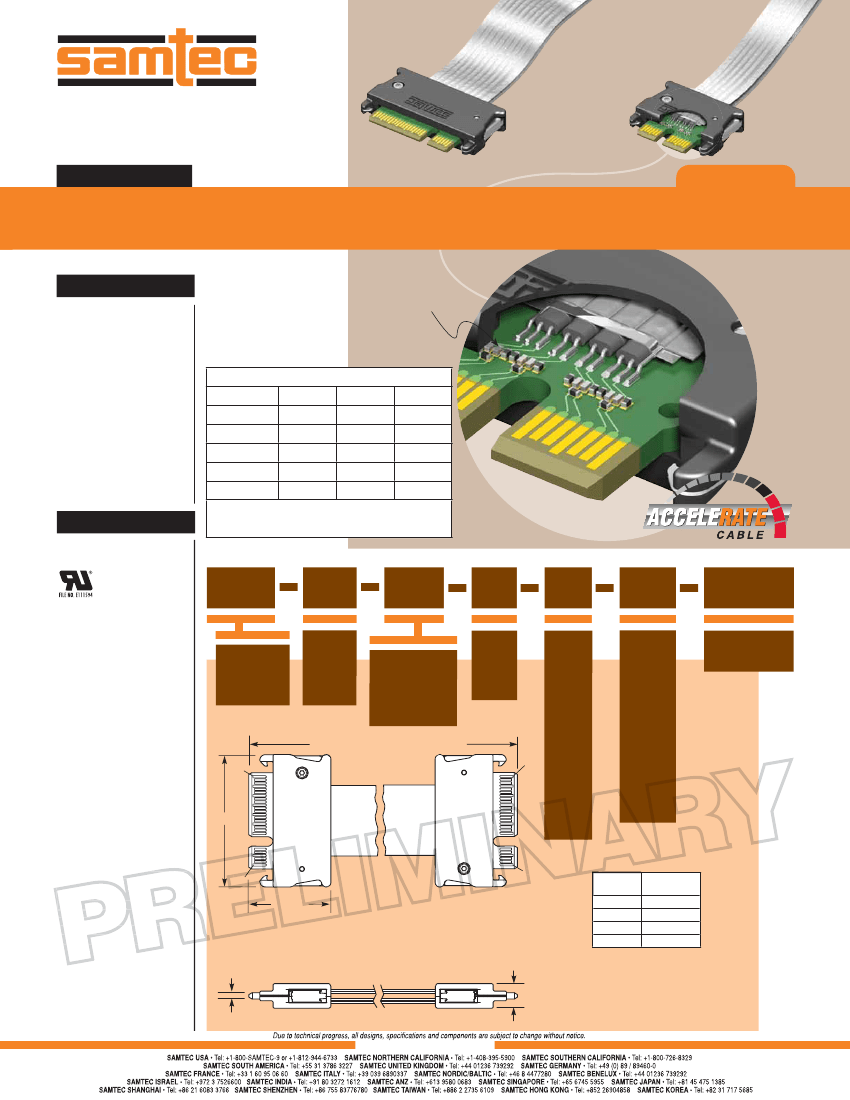

F-214 (Rev 03JUL14)
ECDP–E–08–03.75–L1–L1–1–1
ECDP–E–16–03.75–L1–L1–1–1
(0,80 mm) .0315"
ECDP SERIES
EQUALIZED TWINAX EDGE CARD CABLE
SPECIFICATIONS
i
For complete specifications
www.samtec.com?ECDP
Cable:
30 AWG twinax
AcceleRate™ cable
Plating:
Edge Card = ENIG,
3-10 microinches
Operating Temp Range:
-55°C to +85°C
Impedance:
-1 = 100Ω Differential
Bend Radius:
1 mm one time bend, or
(12,7 mm) .50" bend radius
with moderate flexing cycles
Pinout Map:
See web address above
RoHS Compliant:
Yes
Mates with:
HSEC8 (–L2 option)
Passive Equalization
for improved
performance
Performance Comparisons
Data Rate
14 Gbps
28 Gbps
Cable Length
12" (305 mm)
36" (914 mm)
ECDP
62" (1.6 m)
N/A
ECDP
23 Gbps
18.5 Gbps
ECDP-E
86" (2.2 m)
25" (0.64 m)
ECDP-E
30 Gbps
24.5 Gbps
Δ
+39%
N/A
Δ
+30%
+32%
TM
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
Rated at 7dB insertion loss
Performance and complete test data available at
www.samtec.com?ECDP-E or contact sig@samtec.com
TYPE
NO. OF
PAIRS
WIRE
LENGTH
END
1
END
2
WIRING
OPTION
IMPEDANCE
ECDP-E
= Equalized
Edge Card
Cable
–04,
–08,
–16,
–32
–L1
–“XX.XX”
= Wire Length
in Inches
(95,3 mm) 03.75"
minimum
= Double
Vertical
with
latches
–L1
= Double
Vertical
with
latches
(Wiring
option –3
& –4 only)
–1
= Pin 1 to
Pin 1
–1
= 100Ω
–2
= Pin 1 to
Pin 2
OAL = Wire Length + (16,89) .665
N
N-1
–L2
= Double
Vertical
with
latches
(Wir
(Wiring
on
option –1
& –2 only)
–3
= Pin 1 to
Pin N-1
–4
= Pin 1 to
n
Pin N
A
Notes:
Cable shield construction
leaves minor exposed edges.
Users should consider whether
onsider
this will affect the application in
ication
which the cable is to be used
e used.
Insulation m be required a
ation may
ired as
n
needed.
ed.
Cable lengths longer than
tha
40.00" (1 meter) are not
0.00"
supported with S.I. test data.
upported
da
Design your High Speed Cable
esign yo
with Samtec’s High Speed
Cable Solutionator
®
at
www.samtec.com/hdr
Some lengths, styles and
options are non-standard,
non-returnable.
02
0
01
(21,00)
.
.827
–L1 (END 1)
(E
–L2 (END 2)
L2
NO. OF
PAIRS
–04
–08
–16
–32
A
(20,85) .821
(24,05) .947
(33,66) 1.325
(52,86) 2.081
(1,53)
.060
(6,27)
.247
WWW.SAMTEC.COM
