2552-3-13-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2552-3-13-1

2552-3-13-1: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size80KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2552-3-13-1 Overview

Board Connector, 13 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking

2552-3-13-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
body width	0.134 inch
subject depth	0.319 inch
body length	1.32 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	50 Cycles
maximum insertion force	3.9198 N
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	2552
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.874 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	13
Evacuation force-minimum value	.3058 N
Base Number Matches	1

Preview

Download Datasheet

View All

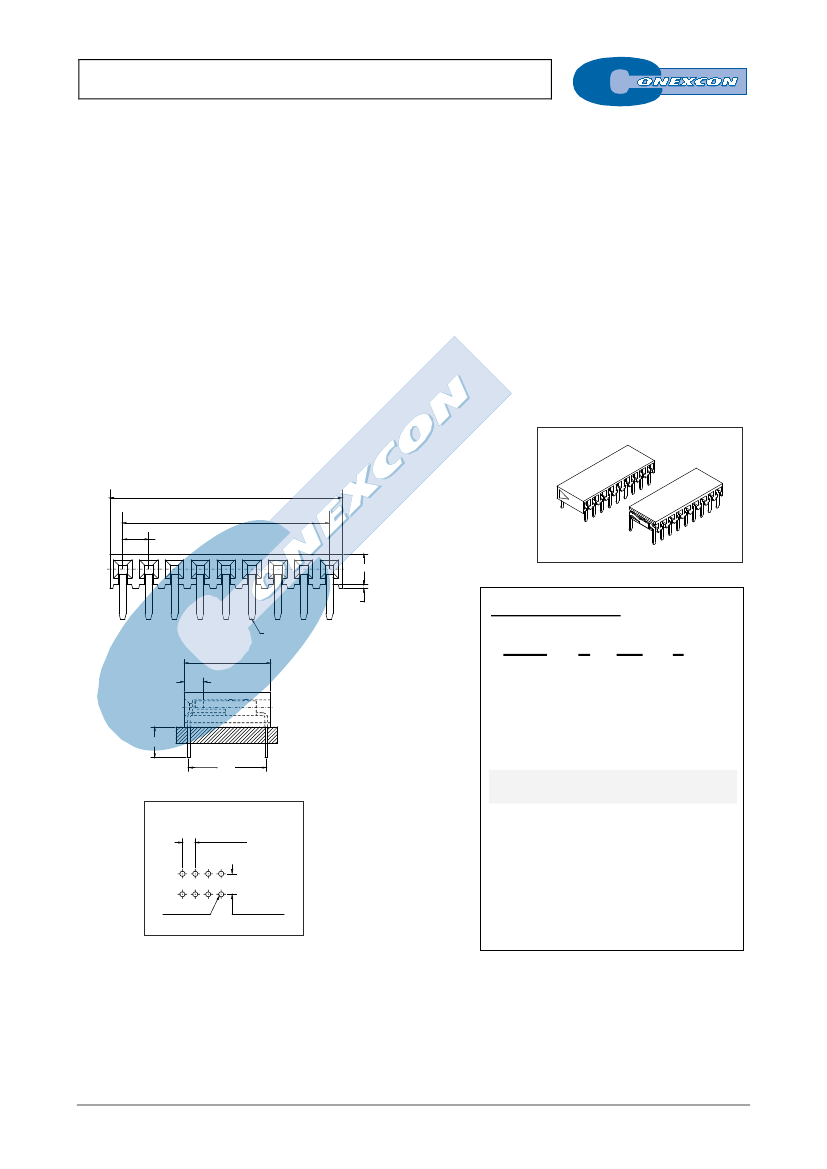

SINGLE ROW RIGHT ANGLE SOCKET

2552 SERIES.

2.54 mm. (0.100”) pitch.

General Features

Electrical Features



Available in 2 through 40 circuits



Mates with pin header 2.54 mm pitch 2556, 2549, 2548,

•

2590, 2567, 2542, 2589 and 2578 series



Accept 0.64 square pin



U contact with different plating

Materials



Voltage rating: < 250V



Current rating: < 3 A



Contact resistance: < 20 mΩ



Dielectric withstanding voltage: 600 V AC/minute



Insulation resistance: >1000 MΩ



Capacitance: < 2 pF at 1 KHz

Mechanical Features



Insulator: Hight temperature thermoplastic UL 94 V-0

Contact: Phosphor bronze

Operating temperature: -40ºC to +105ºC

RoHS compliant



Insertion force receptacle/plug: < 0,40 Kgf/pin

Unmating force receptacle/plug: > 0,03 Kgf/pin

Contact retention force to housing: > 0,50 Kgf/pin

Durability: 50 cycles

Dimension Information

2.54

3.00

0.40

PIN 0.7X0.25

8.10

1.90

Ordering Information:

2552-

T-

XX-

1. Connector Series

3.00

7.87

2. (T) Contact Plating



T =

Tin plated



T =

Gold flash over nickel

Recommended Finish

RECOMMENDED HOLE PATTERN

2.54±0.05

.100±.002



T =

15µ” gold over nickel

T =

30µ” gold over nickel

T =

13.

Sel. gold flash over nickel overall

T =

15.

15µ" sel. gold over nickel overall

T =

16.

30µ" sel. gold over nickel overall

1.02±0.05

.040±.002

7.87±0.05

.310±.002

3. (XX) Number of circuits



Available in 2 through 40 circuits

Dimensions:

(In mm.)

= 2.54 x (XX*-1)

= 2.54 x (XX)+0.50

* XX

(Number of circuits)

E-XX

FULL LINE CATALOGUE
