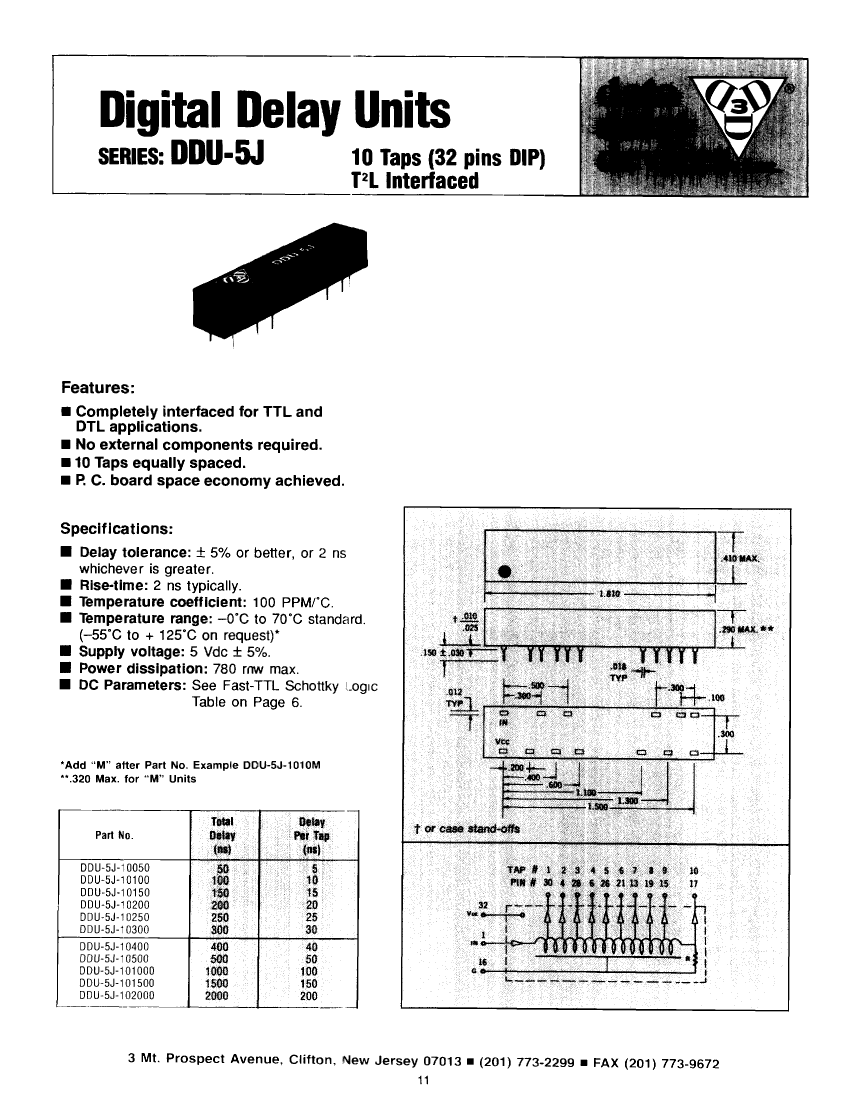

DDU-5J-10400ME8 datasheet, PDF

DDU-5J-10400ME8: DescriptionActive Delay Line, 1-Func, 10-Tap, True Output, TTL, DIP-32/13; Categorylogic logic; File Size243KB，1 Pages; ManufacturerData Delay Devices; Environmental Compliance

Download Datasheet Parametric View All

DDU-5J-10400ME8 Overview

Active Delay Line, 1-Func, 10-Tap, True Output, TTL, DIP-32/13

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Data Delay Devices
Parts packaging code	DIP
package instruction	DIP,
Contacts	32/13
Reach Compliance Code	compliant
Other features	IN-HOUSE BURN-IN AND THERMAL SHOCK; TEMP. COEFF. SPECIFIED OVER 0 TO 70 DEG. CEL.
series	F
JESD-30 code	R-XDIP-T13
length	45.974 mm
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	10
Number of terminals	13
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	8.763 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	400 ns
width	7.62 mm
Base Number Matches	1
