2N3700
2N3701
SILICON
NPN TRANSISTORS
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR 2N3700 and 2N3701
are silicon NPN transistors designed for high current
general purpose applications.
MARKING: FULL PART NUMBER
TO-18 CASE
MAXIMUM RATINGS:
(TA=25°C unless otherwise noted)
SYMBOL
Collector-Base Voltage
VCBO
Collector-Emitter Voltage
VCEO
Emitter-Base Voltage
Continuous Collector Current
Power Dissipation (TC=25°C)
Power Dissipation
Operating and Storage Junction Temperature
Thermal Resistance
Thermal Resistance
VEBO
IC
PD
PD
TJ, Tstg
Θ
JA
Θ
JC
140
80
7.0
1.0
1.8
500
-65 to +200
350
97.2
UNITS
V
V
V
A
W
mW
°C
°C/W
°C/W
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
2N3700
SYMBOL
TEST CONDITIONS
MIN
MAX
ICBO
VCB=90V
-
10
ICBO
IEBO
BVCBO
BVCEO
BVEBO
VCE(SAT)
VCE(SAT)
VBE(SAT)
hFE
hFE
hFE
hFE
hFE
hFE
VCB=90V, TA=150°C
VEB=5.0V
IC=100μA
IC=30mA
IE=100μA
IC=150mA, IB=15mA
IC=500mA, IB=50mA
IC=150mA, IB=15mA
VCE=10V, IC=0.1mA
VCE=10V, IC=10mA
VCE=10V, IC=150mA
VCE=10V, IC=150mA, TA=-55°C
VCE=10V, IC=500mA
VCE=10V, IC=1.0A
-
-
140
80
7.0
-
-
-
50
90
100
40
50
15
10
10
-
-
-
0.2
0.5
1.1
-
-
300
-
-
-
2N3701
MIN
MAX
-
10
-
-
140
80
7.0
-
-
-
30
40
40
-
30
15
10
10
-
-
-
0.2
0.5
1.1
100
120
120
-
100
-
UNITS
nA
μA
nA
V
V
V
V
V
V
R1 (4-March 2014)
2N3700
2N3701
SILICON
NPN TRANSISTORS
ELECTRICAL CHARACTERISTICS - Continued:
(TA=25°C unless otherwise noted)
2N3700
2N3701
SYMBOL TEST CONDITIONS
MIN
MAX
MIN
MAX
fT
VCE=10V, IC=50mA, f=20MHz
100
400
80
400
Cob
VCB=10V, IE=0, f=1.0MHz
-
12
-
12
Cib
hfe
rb’Cc
NF
VEB=0.5V, IC=0, f=1.0MHz
VCE=5.0V, IC=1.0mA, f=1.0kHz
VCB=10V, IE=10mA, f=4.0MHz
VCE=10V, IC=100μA, f=1.0kHz, RS=1.0kΩ
-
80
25
-
60
400
400
4.0
-
30
25
-
60
200
400
4.0
UNITS
MHz
pF
pF
pS
dB

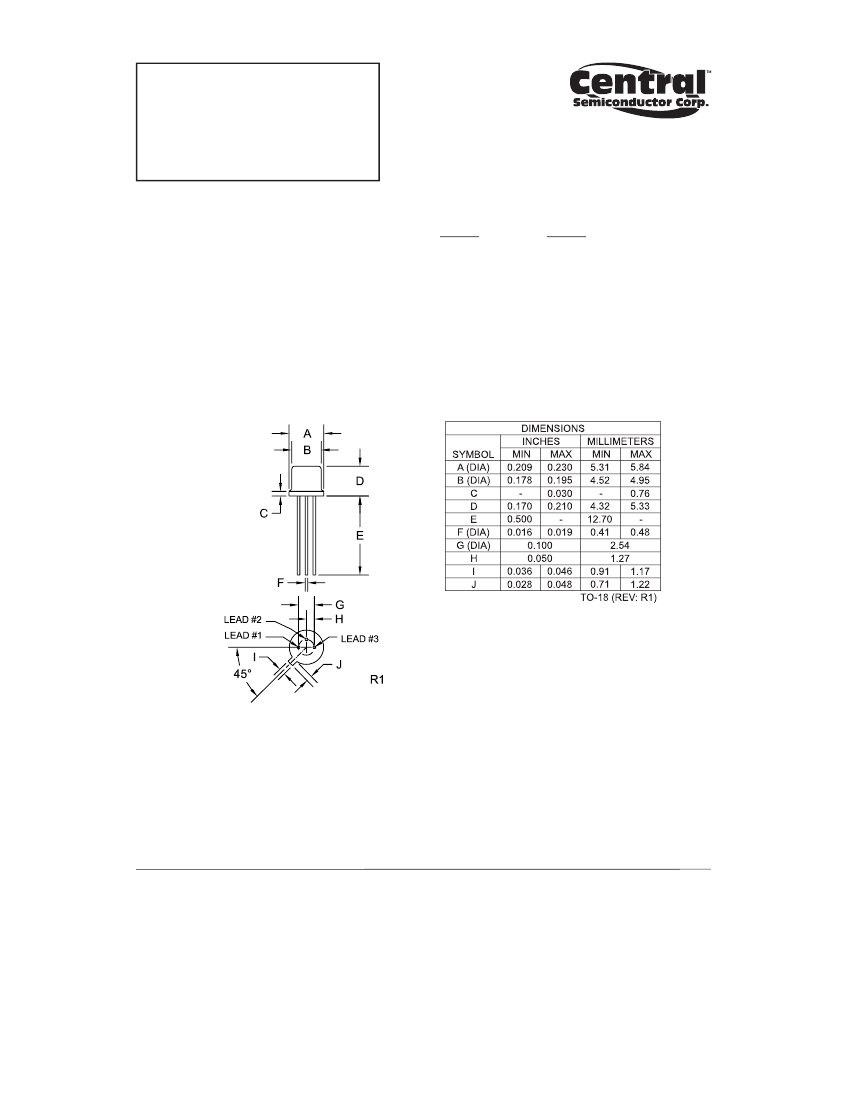

TO-18 CASE - MECHANICAL OUTLINE
LEAD CODE:
1) Emitter
2) Base
3) Collector
MARKING:
FULL PART NUMBER
R1 (4-March 2014)
w w w. c e n t r a l s e m i . c o m
