MVIH Series VCXO
Hermetically Sealed Ceramic SMD Package
+2.5VDC, +3.3VDC, or +5.0VDC Supply
Voltage
Tape and Reel Available
RoHS Compliant
Supply Voltage (Vdd)
Frequency Range
Frequency Stability at +25°C
Frequency Stability (Inclusive of Temp.,
Load, Voltage and Aging)
Operating Temp.Range
Storage Temp. Range
Supply Current
Load
Output
Logic “0”
Logic “1”
Symmetry (50% of waveform)
Rise / Fall Time (10% to 90%)
Start Time
Control Voltage
Linearity
Pullability
Tristate
+2.5VDC ±10%
+3.3DC ±10%
+5.0VDC ±10%
1.544MHZ TO
50.000MHZ
1.544MHZ TO 180.000MHZ
±10 ppm
(See Part Number Guide for Options)
(See Part Number Guide for Options)
-40°C to +85°C
60mA max
60mA max
85mA max
15pF
30pF
30pF
HCMOS
10% Vdd max
90% Vdd min
40%/60%
10nSec max
10mSec max
1.25 VDC ±1.00 VDC
1.65 VDC ±1.50 VDC
2.50 VDC ±2.00 VDC
(See Part Number Guide for Options)
(See Part Number Guide for Options)
Logic “0” or Ground Osc Disabled High Impedance on Pin 4
Logic “1” (or no connect) Output Enabled
Environmental & Mechanical Detail
Shock
Solderability
Vibration
Reflow Solderability
Gross Leak Test
Fine Leak Test
MIL-STD-883, Meth 2002, Cond B
MIL-STD-883, Meth 2003
MIL-STD-883, Meth 2007, Cond A
260°C for 10 seconds
MIL-STD-883, Meth 1014, Cond C
MIL-STD-883, Meth 1014, Cond A
Marking Detail
Line 1 = MXXXXX
M
XXXXX
Line 2 = SYYWWL
S
YYWW
L
Line 3 = XXXXX
Internal use only
May vary with lots
Black dot to denote Pin 1
=
=
=
Internal Code
4 Numerical Digit Date Code
(Year / Week) Jan 27 2011=1105
=
=
MMD
Frequency in MHZ
Denotes RoHS Compliant
MMD MONITOR/QUARTZEK – An ILSI Company,
5458 Louie Lane, Reno, NV 89511
Phone: (775) 851-8880,
www.mmdcomp.com
Revision:
Revisions only with customer approval
07/31/13 P
Pg 1 of 2

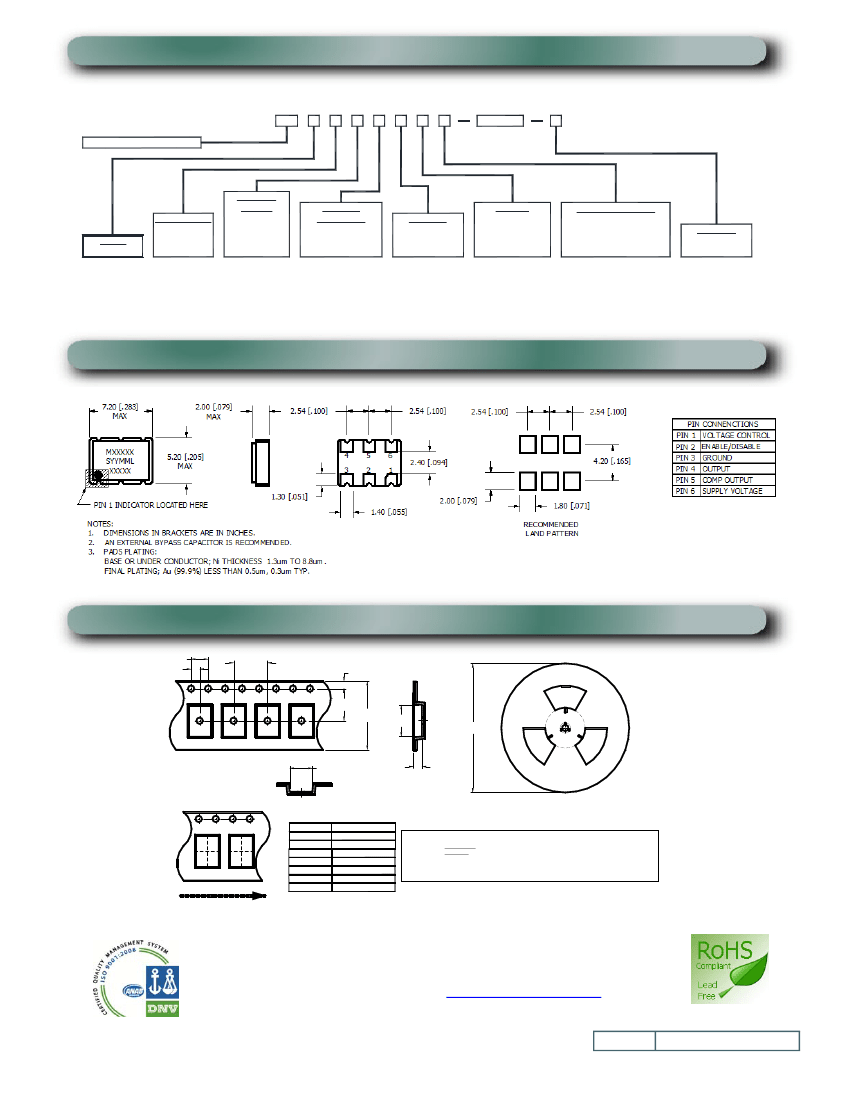

Part Number Guide
