3907-0-67-01-30-02-10-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size119KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

3907-0-67-01-30-02-10-0 Overview

PCB Terminal

3907-0-67-01-30-02-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compli
ECCN code	EAR99
Manufacturer's serial number	3907
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

PR

E

CI

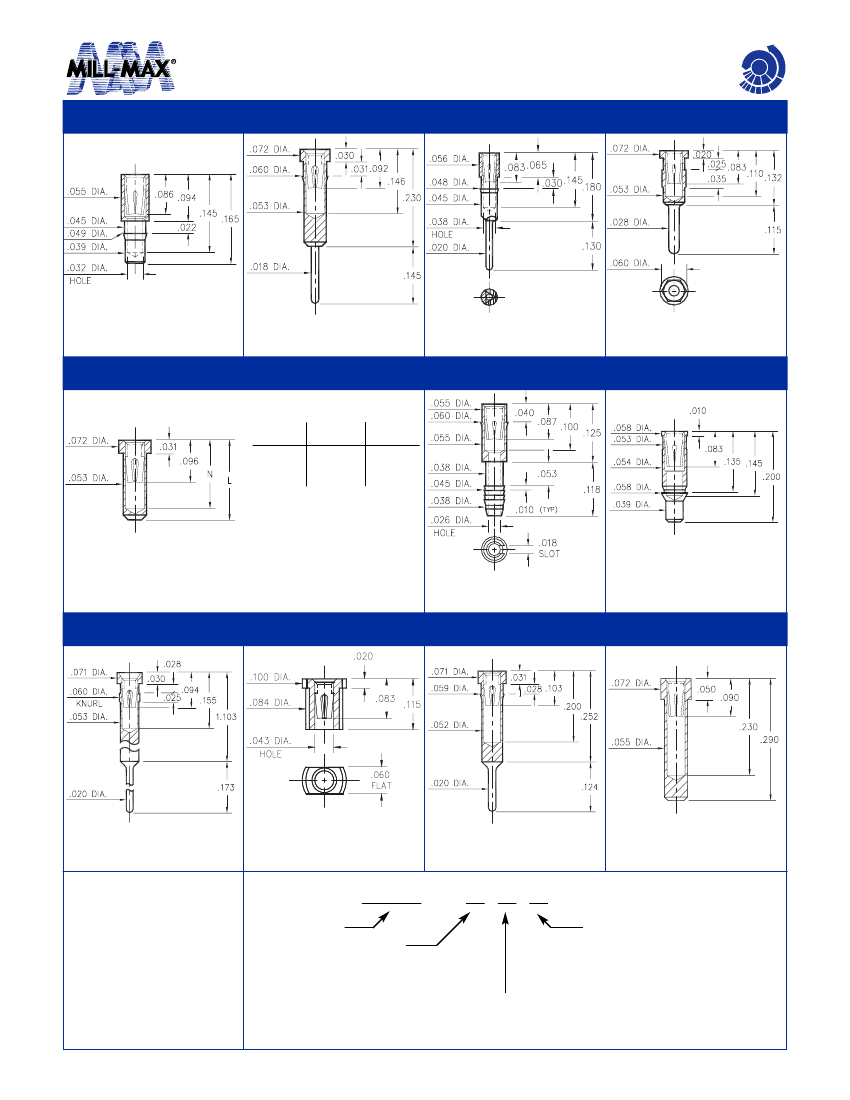

PIN RECEPTACLES

for .015” - .025” diameter pins

M

ON

S

I

CHI

A

PINS

NE

D

0385

4001

1782

5960

0385-0-15-XX-43-XX-10-0

Press-fit in .046 mounting hole

4001-0-15-XX-43-XX-04-0

Press-fit in .057 mounting hole

1782-0-15-XX-43-XX-04-0

Press-fit in .045 mounting hole

5960-0-15-XX-43-XX-04-0

Hex press-fit in .057 plated

thru hole

1401/3185

Basic Part

Number

Depth

N

Length

L

4310

1385

1401-0

3185-0

.145

.109

.165

.130

XXXX-0-15-XX-30-XX-10-0

Solder mount in .055 min.

mounting hole

4310-0-31-XX-43-XX-04-0

Compliant press-fit in .040±.003 plated

hole. For .090→.130 thick board.

1385-0-15-XX-43-XX-10-0

Surface mount

3018

3907

8852

8363

3907-0-18-XX-30-XX-10-0

3018-0-15-XX-30-XX-04-0

Press-fit in .057 mounting hole

Surface mount

Also available on 12mm wide carrier

tape: 4,000 parts per 13” reel.

Order as: 3907-0-67-XX-30-XX-10-0

8852-0-15-XX-30-XX-04-0

Press-fit in .056 mounting hole

8363-0-15-XX-35-XX-10-0

Solder mount in .057 min.

mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - XX - XX - XX - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

200µ"

TIN/LEAD OVER

NICKEL

15

10µ"

GOLD OVER

NICKEL

SELECT CONTACT

#30, #35 or #43

CONTACT (DATA ON PAGES 208 & 209)

SPECIFY CONTACT FINISH:

02

200µ"

TIN/LEAD OVER

NICKEL

14

10µ"

GOLD OVER

NICKEL

27

30µ"

GOLD OVER

NICKEL

w w w. m i l l - m a x . c o m

139

516-922-6000
