TKC-HVC2010-3M90-G datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> TKC-HVC2010-3M90-G

TKC-HVC2010-3M90-G: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.5W, 3900000ohm, 2000V, 2% +/-Tol, 100ppm/Cel, Surface Mount, 2010, CHIP; CategoryPassive components The resistor; File Size198KB，2 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

TKC-HVC2010-3M90-G Overview

Fixed Resistor, Metal Glaze/thick Film, 0.5W, 3900000ohm, 2000V, 2% +/-Tol, 100ppm/Cel, Surface Mount, 2010, CHIP

TKC-HVC2010-3M90-G Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1250479289
package instruction	SMT, 2010
Reach Compliance Code	compliant
Country Of Origin	UK
ECCN code	EAR99
YTEOL	5.85
structure	Chip
JESD-609 code	e0
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.7 mm
Package length	5.3 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	2.5 mm
Rated power dissipation(P)	0.5 W
Rated temperature	70 °C
resistance	3900000 Ω
Resistor type	FIXED RESISTOR
size code	2010
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	2%
Operating Voltage	2000 V

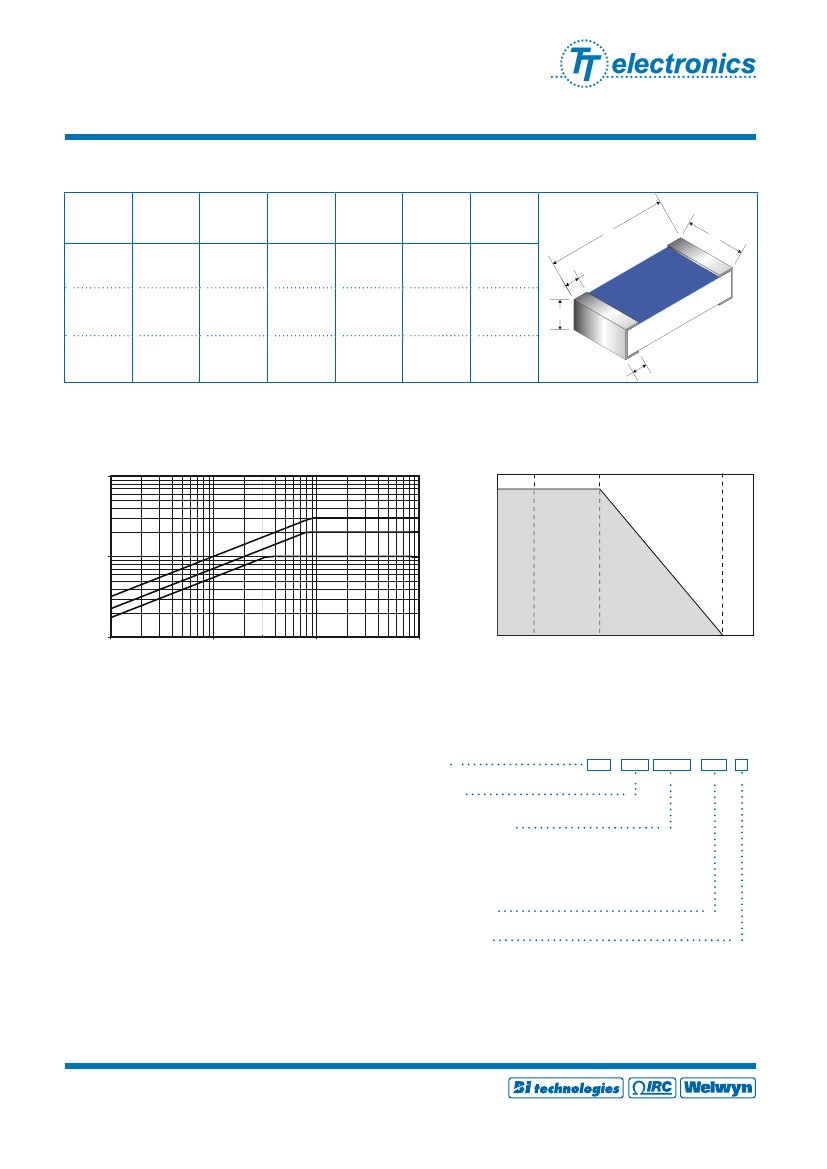

Preview

Download Datasheet

View All

High Voltage

Chip Resistors

High Voltage

HVC Series

Continuous voltages up to

Chip Resistors

3KV

Resistance Values from 100KW to 100MW

Tolerances of ±0.5% to ±10%

Sn/Pb or Matte Sn wrap-around terminations

HVC Series

Continuous voltages

sizes

3KV

Standard chip

available from 1206 to 2512

up to

Resistance

thick film

100K to 100M

Robust

Values from

construction

Tolerances of ±0.5% to ±10%

Sn/Pb or Matte Sn wrap-around terminations

Standard chip sizes available from 1206 to 2512

Robust thick ﬁlm construction

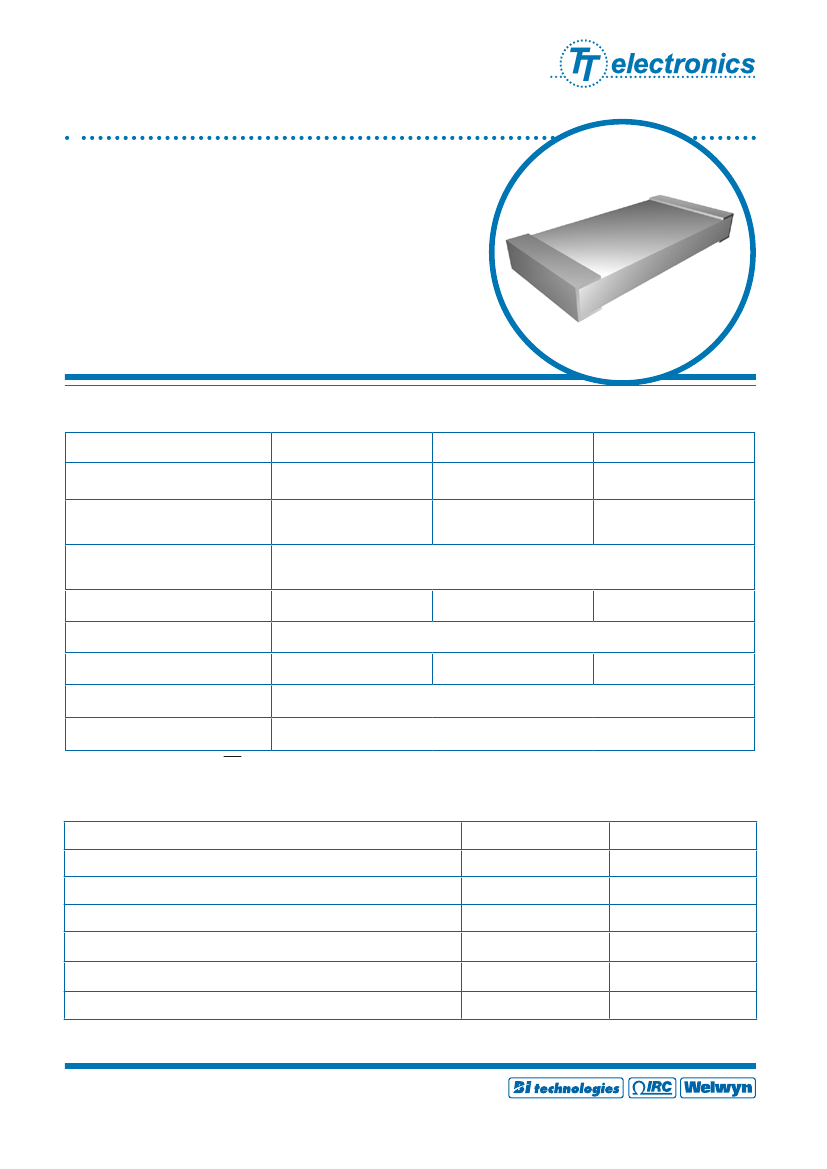

Electrical Data

Characteristic

Maximum Rated Voltage

Voltage Coefﬁcient of Resistance

1206

1000V

-25 ppm/V Max.

-15 ppm/V Typ.

2010

2000V

-15 ppm/V Max.

-5 ppm/V Typ.

10M to 100M (±5%, ±10%)

300mW

500mW

-55°C to +155°C

200°C/W

80°C/W

±100ppm/°C

Wrap-around Sn/Pb or matte Sn with leach resistant Ni barrier

70°C/W

1000mW

2512

3000V

-5 ppm/V Max.

-1.5 ppm/V Typ.

Resistance Range (Tolerance)

Power @ 70°C

Operating Temperature

Thermal Impedance

TCR

Termination

Notes: 1. Voltage Limited to √PxR

2. ±0.5% in 2512 package only

100K to 10M (±0.5%

,±1%, ±2% ,±5%, ±10%)

Environmental Data

Test

Load life at rated power (1000 hours @ 70°C)

Overload (6.25 X rated power for 2 seconds)

High temperature storage (1000 hours @ 155°C)

Moisture resistance

Thermal shock

Resistance to soldering heat

Maximum

R

0.50%

0.25%

Typical

R

0.25%

0.10%

0.20%

0.25%

0.05%

General Note

IRC reserves the right to make changes in product specification without notice or liability.

TT electronics reserves the right to make changes in product specification without notice

All information is subject to IRC’s own data and is considered accurate at time of going to print.

or liability.

All information is subject to TT electronics’ own data and is considered accurate at time of going to print.

Advanced Film Division

• 4222 South Staples Street • Corpus Christi Texas 78411 USA

Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com

TTelectronics plc

www.bitechnologies.com www.irctt.com www.welwyn-tt.com

PWC Series Issue July 2008

A subsidiary of

10. 11
