298W225X0016KKT datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 298W225X0016KKT

298W225X0016KKT: DescriptionTantalum Capacitor, Tantalum (dry/solid),; CategoryPassive components capacitor; File Size377KB，16 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

298W225X0016KKT Overview

Tantalum Capacitor, Tantalum (dry/solid),

298W225X0016KKT Parametric

Parameter Name	Attribute value
Objectid	7096421610
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
Manufacturer's serial number	298W
Number of terminals	2

Preview

Download Datasheet

View All

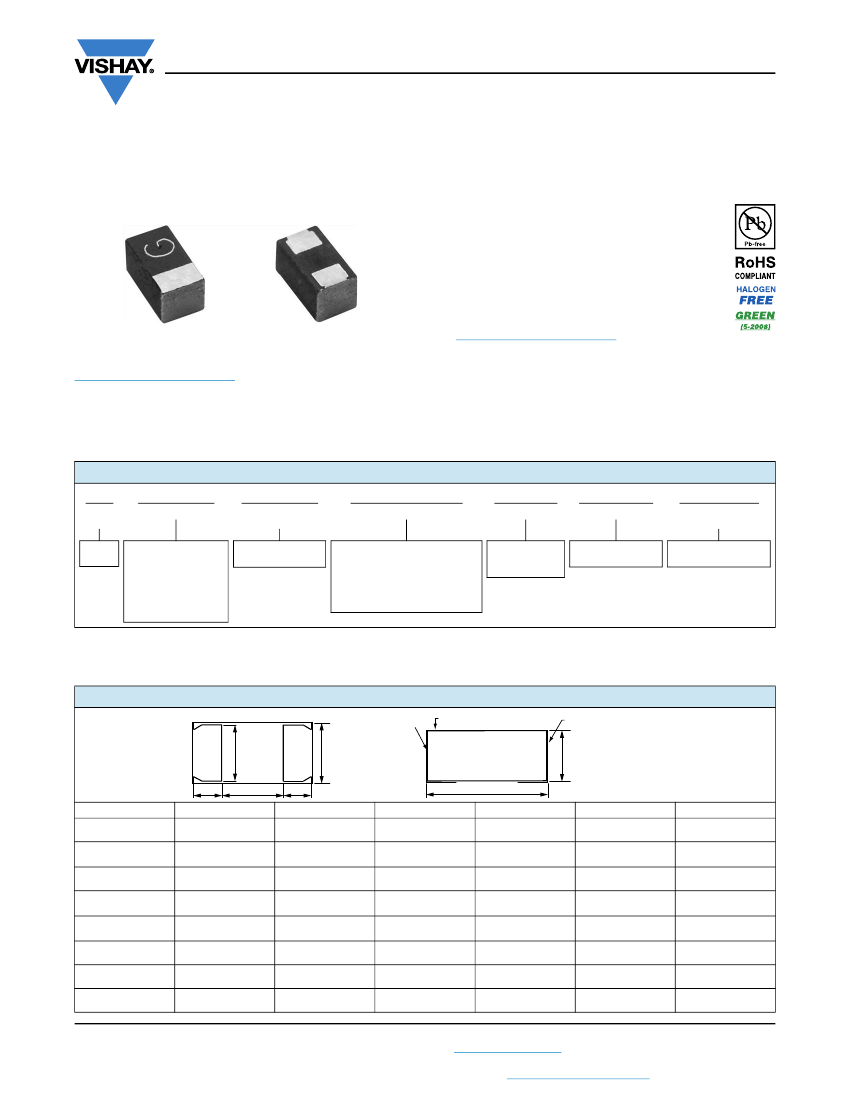

298D, 298W

www.vishay.com

Vishay Sprague

Solid Tantalum Chip Capacitors

298D M

ICROTAN®

, 298W Extended Range M

ICROTAN®

Leadframeless Molded

FEATURES

• Small sizes include 0603 and 0402 footprint

• Lead (Pb)-free L-shaped face-down terminations

• 8 mm tape and reel packaging available per

EIA-481 and reeling per IEC 60286-3

7" [178 mm] standard

• Mounting: surface mount

• Material categorization:

for definitions of compliance please see

www.vishay.com/doc?99912

PERFORMANCE CHARACTERISTICS

www.vishay.com/doc?40169

Operating Temperature:

298D: -55 °C to +125 °C

(above 85 °C, voltage derating is required)

298W: -55 °C to +125 °C

(above 40 °C, voltage derating is required)

Capacitance Range:

298D: 0.33 μF to 330 μF

298W: 2.2 μF to 220 μF

Capacitance Tolerance:

± 20 % standard, ± 10 % available

Voltage Range:

2.5 V

to 50 V

ORDERING INFORMATION

298D

TYPE

298D

298W

335

CAPACITANCE

This is expressed

in picofarads. The

first two digits are

the significant

figures. The third

is the number of

zeros to follow.

CAPACITANCE

TOLERANCE

X0 = ± 20 %

X9 = ± 10 %

010

DC VOLTAGE RATING

This is expressed in volts.

To complete the

three-digit block, zeros

precede the voltage rating.

A decimal point is indicated

by an “R” (6R3 = 6.3 V).

CASE CODE

See Ratings

and Case

Codes table

TERMINATION

2 = 100 % tin

4 = gold plated

REEL SIZE AND

PACKAGING

T = tape and reel

7" [178 mm] reel

Note

• Preferred tolerance and reel sizes are in bold.

We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.

Voltage substitutions will be marked with the higher voltage rating.

DIMENSIONS

in inches [millimeters]

Anode Termination

Anode Polarity Bar

Cathode Termination

CASE CODE

Revision: 18-May-16

0.039 + 0.008

[1.0 + 0.2]

0.063 ± 0.008

[1.60 ± 0.2]

0.079 ± 0.008

[2.00 ± 0.20]

0.081 ± 0.006

[2.06 ± 0.15]

0.094 ± 0.004

[2.4 ± 0.1]

0.126 ± 0.008

[3.2 ± 0.2]

0.126 ± 0.008

[3.2 ± 0.2]

0.138 ± 0.008

[3.5 ± 0.2]

0.020 + 0.008

[0.5 + 0.2]

0.033 ± 0.008

[0.85 ± 0.2]

0.050 ± 0.008

[1.25 ± 0.20]

0.053 ± 0.006

[1.35 ± 0.15]

0.057 ± 0.004

[1.45 ± 0.1]

0.063 ± 0.008

[1.6 ± 0.2]

0.063 ± 0.008

[1.6 ± 0.2]

0.112 ± 0.008

[2.8 ± 0.2]

H (MAX.)

0.024

[0.6]

0.035

[0.9]

0.035

[0.9]

0.062

[1.57]

0.047

[1.2]

0.039

[1.0]

0.071

[1.8]

0.08

[2.0]

0.01 ± 0.004

[0.25 ± 0.1]

0.020 ± 0.004

[0.50 ± 0.1]

0.020 ± 0.004

[0.50 ± 0.10]

0.020 ± 0.004

[0.51 ± 0.1]

0.020 ± 0.004

[0.50 ± 0.1]

0.031 ± 0.004

[0.80 ± 0.1]

0.031 ± 0.004

[0.80 ± 0.1]

0.031 ± 0.008

[0.80 ± 0.2]

P2 (REF.)

0.02

[0.5]

0.024

[0.60]

0.040

[1.00]

0.043

[1.1]

0.057

[1.40]

0.063

[1.60]

0.063

[1.60]

0.077

[1.95]

0.015 ± 0.004

[0.38 ± 0.1]

0.024 ± 0.004

[0.60 ± 0.1]

0.035 ± 0.004]

[0.90 ± 0.10]

0.035 ± 0.004

[0.90 ± 0.1]

0.035 ± 0.004

[0.90 ± 0.1]

0.047 ± 0.004

[1.20 ± 0.1]

0.047 ± 0.004

[1.20 ± 0.1]

0.094 ± 0.004

[2.4 ± 0.1]

Document Number: 40065

For technical questions, contact:

tantalum@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
