FSLM2520-2R2J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> FSLM2520-2R2J

FSLM2520-2R2J: DescriptionGeneral Purpose Inductor, 2.2uH, 5%, 1 Element, Ferrite-Core, SMD, CHIP; CategoryPassive components inductor; File Size372KB，2 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/; Environmental Compliance

Download Datasheet Parametric View All

FSLM2520-2R2J Overview

General Purpose Inductor, 2.2uH, 5%, 1 Element, Ferrite-Core, SMD, CHIP

FSLM2520-2R2J Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Base Number Matches	1

Preview

Download Datasheet

View All

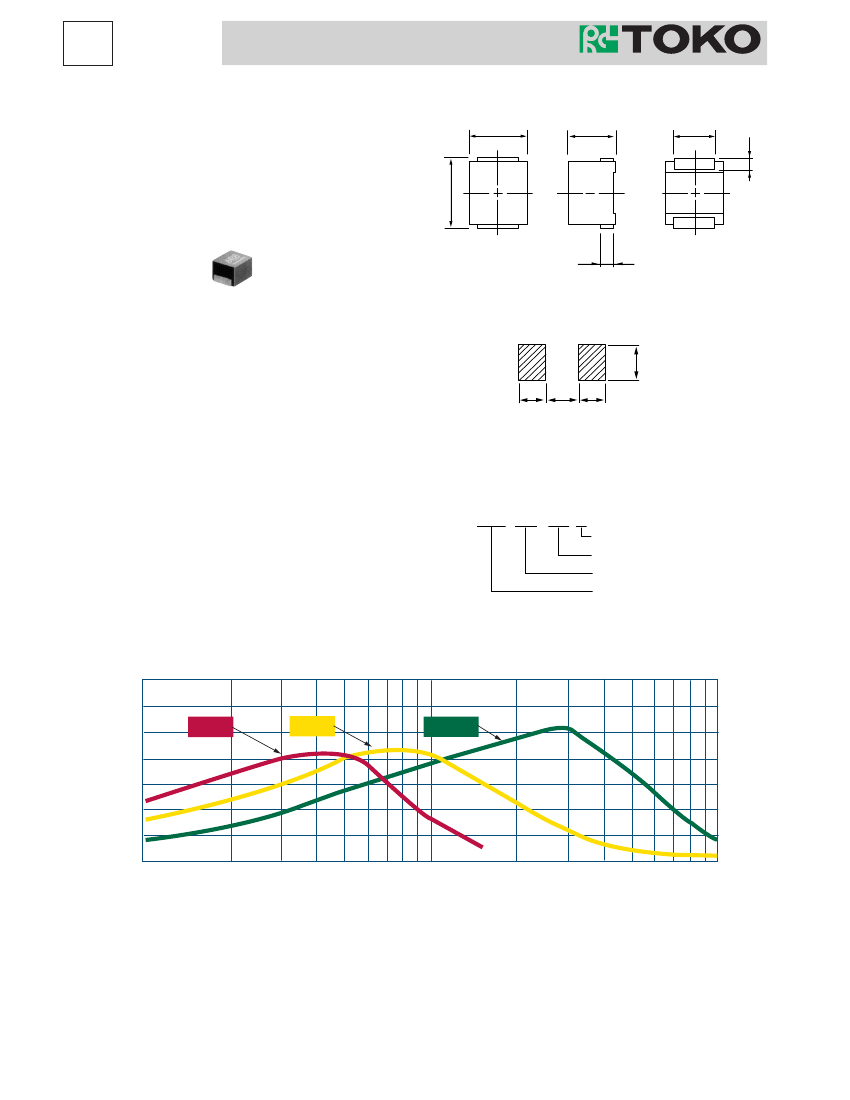

TYPE

LLM2520

Wirewound Chip Inductors

Meeting Your Needs

The LLM2520 Series is a ferrite core wirewound surface mount

chip inductor which conforms to the EIA standard 1008 foot-

print. Its proprietary welded termination architecture offers su-

perior reliability and high heat-resistance for flow and reflow

soldering capability. It is an economical choice for general signal

conditioning, RF or IF filtering applications, or as matching elements.

2.0

1.6

±0.1

1.4

2.5

0.5

Tolerance:

±0.2

Unit: mm

Features

• Inductance range: 0.1-220µH

• EIA standard 1008 footprint (2.5mm x 2.0mm)

• Temperature coefficient: 750ppm/°C

• Temperature range: –40°C to +85°C

• Typical max Q: 40 ~ 50

• Proprietary wirewound structure with welded

terminations offers high reliability

• Superior solderability and high heat-resistance for flow

and reflow soldering

• Low profile: 1.7mm max (1.6mm typ.)

• S-parameter data available upon request

• Packaged on tape and reel in 2,000 piece quantity

Recommended patterns:

1.5

1.2 1.5 1.2

Unit: mm

Part Numbering

FSLM 2520 - R10 K

Tolerance

(J=±5%, K=±10%)

Inductance

Footprint

(l x w in mm)

Type Name

Q-FREQUENCY CHARACTERISTICS

Frequency (MHz)

100

47µH

4.7µH

0.47µH

1.800.PIK.TOKO

www.tokoam.com

1.847.297.0070

R-LOG0703A

0.4
