Preliminary Specifications
Low Cost Three-Way GMIC SMT Power Divider
1850 - 1990 MHz
DS53-0004
V1.02
Features
q
q
q
q
q
q
q
SO-8
PIN 8
Orientation
mark
PIN 1
.1890-.1968
(4.80-5.00)
-A-
.004 (0.10)
.0532-.0688
(1.35-1.75)
0°-8°
-C-
.0040-.0098
(0.10-0.25)
.013-.020 TYP.
(0.33-0.51)
.0099-0.0196
x 45° Chamfer
(0.25-0.50)
.016-.050
(0.40-1.27)
.0075-0.0098
(0.19-0.25)
.1497-.1574
(3.80-4.00)
-B-
.2284-.2440
(5.80-6.20)
.010(0.25) M B M
Small Size and Low Profile
Industry Standard SOIC-8 SMT Plastic Package
Excellent Amplitude and Phase Balance
Superior Repeatability
Typical Insertion Loss 0.8 dB
Typical Isolation 24 dB
1 Watt Power Handling
Description
M/A-COM’s DS53-0004 is an IC based monolithic power
divider using M/A-COM’s GMIC technology in a low cost
SOIC-8 plastic package. This 3-way power divider is
ideally suited for applications where small size, low
insertion loss, superior phase/amplitude tracking and
low cost are required. Typical applications include
personal communication systems and other
communication applications where size and PCB real
estate are at a premium. Available in tape and reel.
The DS53-0004 is fabricated using a passive-integrated
circuit process. The process features full chip passivation
for increased performance and reliability.
.050(1.27) BSC.
.010(0.25) M C A M B S
8- Lead SOP outline dimensions
Narrow body .150
(All dimensions per JEDEC No. MS-012-AA, Issue C)
Dimensions in ( ) are in mm.
Unless Otherwise Noted: .xxx = ± 0.010 (.xx = ± 0.25)
.xx = ± 0.02 (.x = ±0.5)
Ordering Information
Part Number
DS53-0004
DS53-0004TR
DS53-0004RTR
Package
SOIC 8-Lead Plastic Package
Forward Tape and Reel
*
Reverse Tape and Reel
*
* If specific reel size is required, consult factory for part number
assignment.
Typical Electrical Specifications
1
,
T
A
= +25°C
Parameter
Insertion Loss
Isolation
VSWR
Amplitude Balance
Phase Balance
1. All specifications apply with a 50-ohm source and load impedance.
Units
Above 4.8 dB
dB
dB
—
dB
°
Min.
—
17
—
—
—
Typ.
1.0
21
1.8:1
0.3
7
Max.
1.4
—
2.0:1
0.6
14
The Preliminary Specifications Data Sheet Contains Typical Electrical Specifications Which May Change Prior to Final Introduction.
M/A-COM, Inc.
North America:
Tel. (800) 366-2266
Fax (800) 618-8883
s
1
Asia/Pacific: Tel. +85 2 2111 8088
Fax +85 2 2111 8087
s
Europe: Tel. +44 (1344) 869 595
Fax +44 (1344) 300 020
Low Cost Three-Way GMIC SMT Power Divider
Absolute Maximum Ratings
1
Parameter
Input Power
2
DS53-0004
V1.02
Functional Diagram
1
RF1 OUT
8
RF2 OUT
Absolute Maximum
1 W CW
-40°C to +85°C
-65°C to +150°C
GND
Operating Temperature
Storage Temperature
GND
1. Exceeding these limits may cause permanent damage.
2. With internal load dissipation of 0.125 W maximum.
GND
GND
Recommended PCB Configuration
(Dimensions in Inches)
Circuit Material: FR-4, .016 Thick
.035 TYP.
RF IN
4
5
RF3 OUT
.081 TYP.
RF1
RF2
.018 DIA. PLATED
THRU (12X)
.244
.030 TYP.
RF Input
RF3
.050 DIA. PLATED
THRU (2X)
.072TYP.
.244

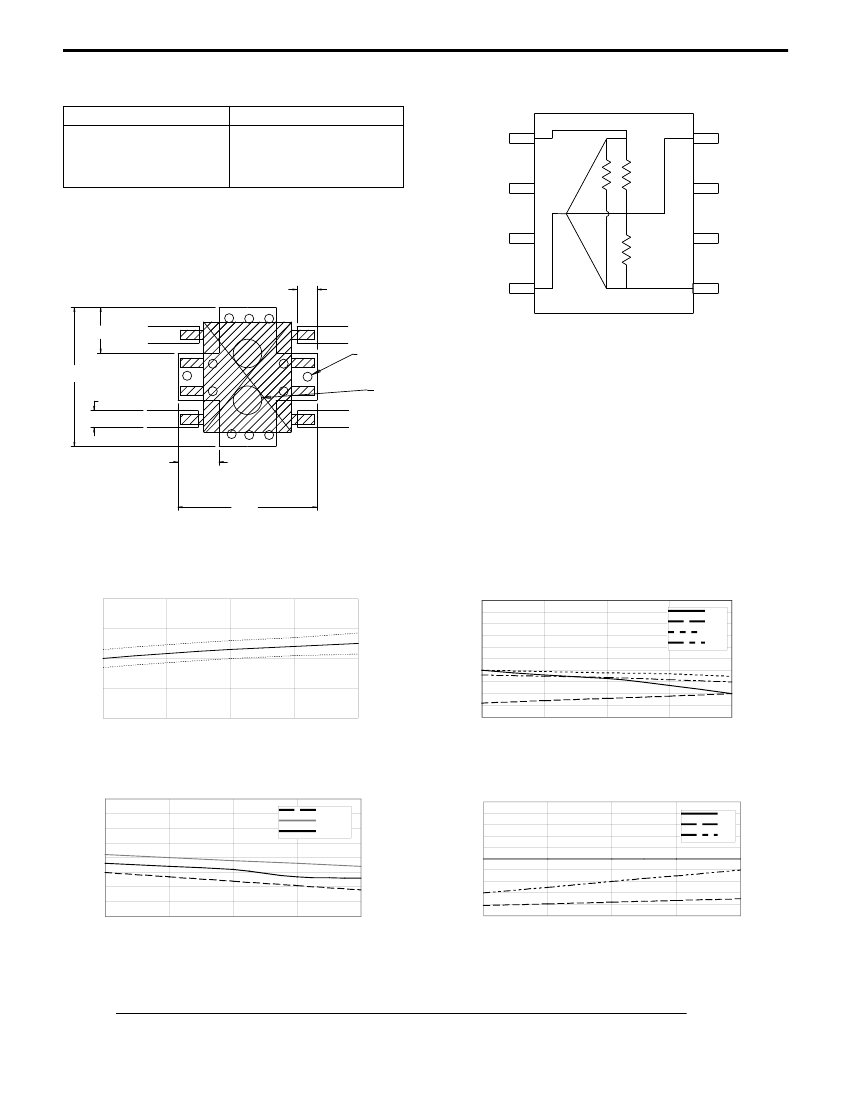

Typical Performance
