Hybrid, Right Angle
Board Mount Condensed
www.cristek.com
1.2
HCR

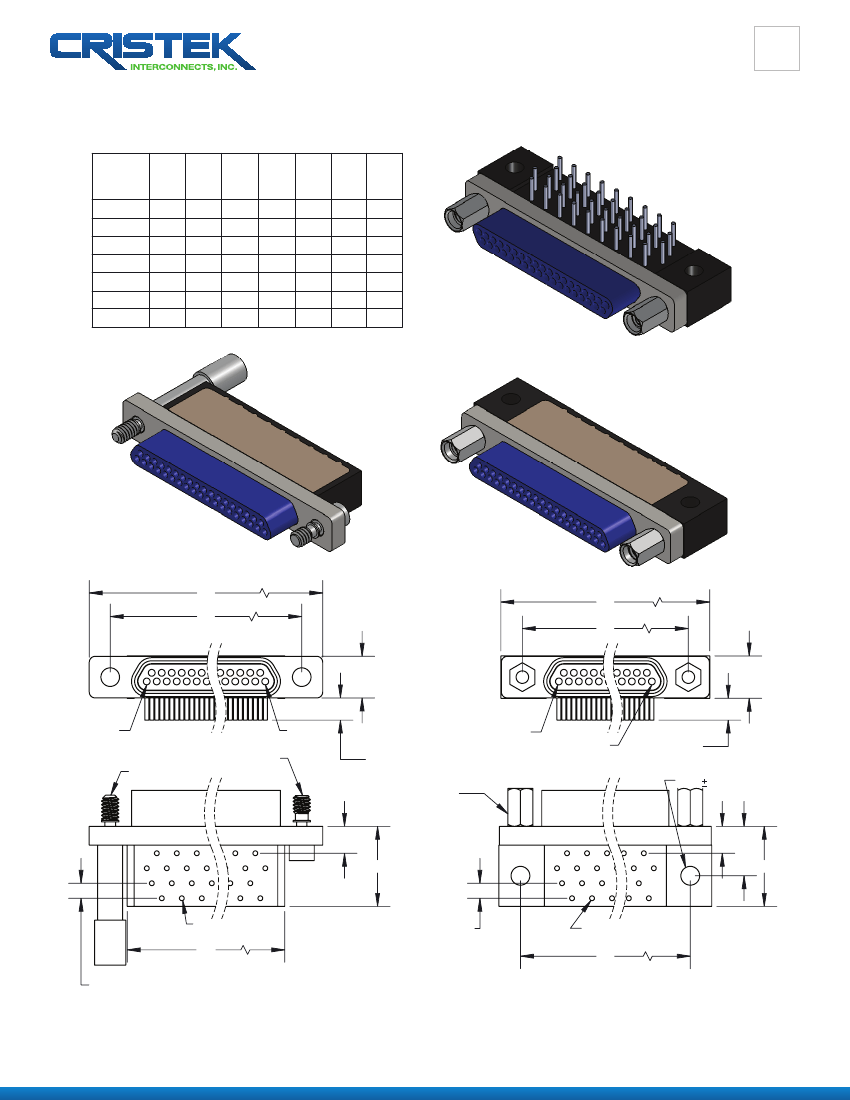

HYBRID MINI-D RIGHT ANGLE
BOARD MOUNT CONDENSED
GENDER
1 = RECEPTACLE, SOCKET CONTACTS
2 = PLUG, PIN CONTACTS
NUMBER OF CONTACTS
009
025 051
015
031
021
037
X XXX
X X X
SHELL HARDWARE/BODY STYLE
1 = JACKPOST/BODY STYLE #2
2 = LOW PROFILE JACKSCREW/BODY STYLE #1
3 = JACKPOST/BODY STYLE #1
4 = NO HARDWARE/BODY STYLE #2
5 = NO HARDWARE/BODY STYLE #1
6 = HIGH PROFILE JACKSCREW/BODY STYLE #1
SHELL FINISH
A = CADMIUM
B = NICKEL
TERMINATIONS
1 = .109 ±.015
2 = .140 ±.015
3 = .172 ±.015
4 = .190 ±.015
5 = .250 ±.015
6 = .125 ±.015
ALL 24 AWG (.020 DIA)
HOT SOLDER DIPPED
MATERIALS AND FINISHES ARE IAW MIL-DTL-83513
FOR DETAILS SEE MIL SPEC OR WWW.CRISTEK.COM
1. MATERIALS:
SHELL - ALUMINUM ALLOY
INSULATOR/BACKSHELL - GLASS FILLED THERMOPLASTIC
PIN/SOCKET CONTACT - COPPER ALLOY
3. SPECIFICATIONS:
4. ADDITIONAL INFORMATION:
2. FINISH:
SHELL - ELECTROLESS NICKEL OR CADMIUM
OVER ELECTROLESS NICKEL
PIN/SOCKET CONTACT - GOLD OVER NICKEL
CURRENT RATING ------------------ 3 AMPS MAX
DESIGN AND PERFORMANCE IN GENERAL
ACCORDANCE WITH M83513 WHERE APPLICABLE.
TEMPERATURE RATING ---------- -55° C TO +125° C
INSULATION RESISTANCE ------- 5000 MEGOHMS MIN
CONTACT CRISTEK FOR OTHER CONFIGURATIONS.
DWV AT SEA LEVEL ---------------- 600 VAC
DWV AT 70,000 FT ALTITUDE --- 150 VAC
CONTACT RESISTANCE ---------- 24 AWG = 25 MILLIOHMS MAX
CONTACT RETENTION ------------ 5 lb MINIMUM AXIAL LOAD
ENGAGEMENT FORCE ------------ 6 oz MAX
SEPARATION FORCE -------------- 0.5 oz MIN
TOLERANCE: .XXX ±.005
.XX ±.01
CRISTEK.COM
ANGLE ±1°
888.265.9162
HYBRID, RIGHT ANGLE
BOARD MOUNT CONDENSED
TITLE
DWG. NO.
SHT
2
OF
4
HCR
A
REV
Hybrid, Right Angle
Board Mount Condensed
www.cristek.com
.183
.100 TYP*
.050 TYP*
.075 TYP*
.025 TYP*
7
6
1
2
3
4
8
5
1
2
9
9
1.2
.183
10
11
3
4
12
13
5
6
14
15
7
8
.183
13
12
1
2
14
3
4
15
16
5
6
17
18
7
8
19
20
9
10
11
21
(.0375)
(.0375)
(.0375)
9 CONTACTS
15 CONTACTS
21 CONTACTS
.183
15
14
1
2
16
3
4
17
18
5
6
19
20
7
8
21
22
9
10
23
24
11
12
13
25
.183
18
17
1
2
19
3
4
20
21
5
6
22
23
7
8
24
25
9
10
26
27
11
12
28
29
13
14
30
31
15
16
(.0375)
(.0375)
25 CONTACTS
31 CONTACTS
.075 TYP
.0375 TYP
.183
.230
21
20
1
2
22
3
4
23
24
5
6
25
26
7
8
27
28
9
10
29
30
11
12
31
32
13
14
33
34
15
16
35
36
17
18
19
37
36 37 39 40 42 44 45 47 48 50
20 38 23 41 43 28 46 31 49 51
19 21 22 24 26 27 29 30 32 34 35
2
1
3
4
5
6 25 9 11 12 14 33 17
7
8 10 13 15 16 18
(.0375)
37 CONTACTS
51 CONTACTS
* SIZES 9-51:.100 X .075 GRID PATTERN OFFSET BY .050
TOLERANCE: .XXX ±.005
.XX ±.01
CRISTEK.COM
ANGLE ±1°
HCR RECEPTACLE PCB LAYOUTS
888.265.9162
HYBRID, RIGHT ANGLE
BOARD MOUNT CONDENSED
TITLE
DWG. NO.
SHT
4
OF
4
HCR
A
REV
