Not Recommended for New Designs, Use MKT370
MKT1817
www.vishay.com
Vishay Roederstein
Metallized Polyester Film Capacitors
MKT Radial Potted Types
FEATURES
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
Blocking, bypassing, filtering and timing, high
frequency coupling and decoupling for fast
digital and analog ICs, interference suppression
in low voltage applications.
QUICK REFERENCE DATA
Capacitance range
Capacitance tolerance
Climatic testing class according to IEC 60068-1
Reference specifications
Dielectric
Electrodes
Construction
Encapsulation
Leads
Marking
Rated DC voltage
Rated AC voltage
Rated temperature
Maximum application temperature
Performance grade
Note
• For more detailed data and test requirements, contact
dc-film@vishay.com
Flame retardant plastic case and epoxy resin sealed (UL-class 94 V-0)
Tinned wire
Manufacturer’s logo/type/C-value/rated voltage/tolerance/date of manufacture
63 V
DC
, 100 V
DC
, 250 V
DC
, 400 V
DC
40 V
AC
, 63 V
AC
, 160 V
AC
, 200 V
AC
85 °C
100 °C for rated voltage 63 V
105 °C for rated voltage > 63 V
1 (long life)
1 nF to 1.0 μF (E12 series)
± 20 % (M), ± 10 % (K), ± 5 % (J)
55/100/56 for rated voltage 63 V
55/105/56 for rated voltage > 63 V
IEC 60384-2
Polyester film
Metallized
Mono construction
DIMENSIONS
in millimeters
L
max.
W
max.
Marking
0.6
H
max.
± 0.4
6.0
-1
5.0 ± 0.4
Ø 0.5
Revision: 08-Jan-15
Document Number: 26032
1
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not Recommended for New Designs, Use MKT370
MKT1817
www.vishay.com
COMPOSITION OF CATALOG NUMBER
Vishay Roederstein
MULTIPLIER
(nF)
0.1
1
10
100
2
3
4
5
CAPACITANCE
(numerically)
Example:
468 = 680 nF
MKT 1817
TYPE
X
XX
25
X
X
D
G
TOLERANCE
F
W
-
PACKAGING
Ammo, H = 16.5 mm
Ammo, H = 18.5 mm
Reel H = 16.5 mm, diameter 350 mm
Reel H = 18.5 mm, diameter 350 mm
Bulk
Un = 06 = 63 V
Un = 01 = 100 V
Un = 25 = 250 V
Un = 40 = 400 V
4
5
6
±5%
± 10 %
± 20 %
SPECIFIC REFERENCE DATA
DESCRIPTION
Tangent of loss angle:
C
0.1 μF
0.1 μF < C
1.0 μF
PITCH
(mm)
5
63 V
DC
60
at 1 kHz
80 x 10
-4
80 x 10
-4
100 V
DC
110
VALUE
at 10 kHz
150 x 10
-4
150 x 10
-4
250 V
DC
330
> 15 000 M
> 30 000 M
> 5000 s
> 10 000 s
> 30 000 M
1.6 x U
RDC
, 1 min
2.0 x U
RDC
, with minimum of 200 V
DC
; 1 min
100 °C for rated voltage 63 V
105 °C for rated voltage > 63 V
at 100 kHz
250 x 10
-4
-
400 V
DC
630
RATED VOLTAGE PULSE SLOPE (dU/dt)
R
AT
If the maximum pulse voltage is less than the rated voltage higher dV/dt values can be permitted.
R between leads, for C
0.33 μF and U
R
100 V
R between leads, for C
0.33 μF and U
R
> 100 V
RC between leads, for C > 0.33 μF and U
R
100 V
RC between leads, for C > 0.33 μF and U
R
> 100 V
R between interconnecting leads and casing 100 V
(foil method)
Withstanding (DC) voltage (cut off current 10 mA)
(1)
;
rise time
1000 V/s
Withstanding (DC) voltage between leads and case
Maximum application temperature
Note
(1)
See “Voltage Proof Test for Metalized Film Capacitors”:
www.vishay.com/doc?28169
Revision: 08-Jan-15
Document Number: 26032
2
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not Recommended for New Designs, Use MKT370
MKT1817
www.vishay.com
Vishay Roederstein
DIMENSIONS
wxhxl
(mm)
2.5 x 6.5 x 7.2
2.5 x 6.5 x 7.2
3.5 x 8.0 x 7.2
3.5 x 8.0 x 7.2
3.5 x 8.0 x 7.2
4.5 x 9.0 x 7.2
6.0 x 11.0 x 7.2
2.5 x 6.5 x 7.2
2.5 x 6.5 x 7.2
2.5 x 6.5 x 7.2
2.5 x 6.5 x 7.2
2.5 x 6.5 x 7.2
3.5 x 8.0 x 7.2
4.5 x 9.0 x 7.2
4.5 x 9.0 x 7.2
2.5 x 6.5 x 7.2
2.5 x 6.5 x 7.2
2.5 x 6.5 x 7.2
2.5 x 6.5 x 7.2
2.5 x 6.5 x 7.2
3.5 x 8.0 x 7.2
3.5 x 8.0 x 7.2
4.5 x 9.0 x 7.2
6.0 x 11.0 x 7.2
6.0 x 11.0 x 7.2
2.5 x 6.5 x 7.2
2.5 x 6.5 x 7.2
2.5 x 6.5 x 7.2
2.5 x 6.5 x 7.2
2.5 x 6.5 x 7.2
3.5 x 8.0 x 7.2
3.5 x 8.0 x 7.2
4.5 x 9.0 x 7.2
6.0 x 11.0 x 7.2
6.0 x 11.0 x 7.2
2.5 x 6.5 x 7.2
2.5 x 6.5 x 7.2
2.5 x 6.5 x 7.2
2.5 x 6.5 x 7.2
2.5 x 6.5 x 7.2
2.5 x 6.5 x 7.2
3.5 x 8.0 x 7.2
3.5 x 8.0 x 7.2
4.5 x 9.0 x 7.2
ELECTRICAL DATA
U
RDC
(V)
CAP.
(μF)
0.10
0.15
0.22
0.33
0.47
0.68
1.0
0.022
0.033
0.047
0.068
0.10
0.15
0.22
0.33
0.0033
0.0047
0.0068
0.010
0.015
0.022
0.033
0.047
0.068
0.10
0.0033
0.0047
0.0068
0.010
0.015
0.022
0.033
0.047
0.068
0.10
0.0010
0.0015
0.0022
0.0033
0.0047
0.0068
0.010
0.015
0.022
CAPACITANCE
CODE
-410
-415
-422
-433
-447
-468
-510
-322
-333
-347
-368
-410
-415
-422
-433
-233
-247
-268
-310
-315
-322
-333
-347
-368
-410
-233
-247
-268
-310
-315
-322
-333
-347
-368
-410
-210
-215
-222
-233
-247
-268
-310
-315
-322
VOLTAGE CODE
V
AC
63
06
40
100
01
63
250
25
160
250
25
160
400
40
200
RECOMMENDED PACKAGING
PACKAGING
CODE
D
G
F
W
-
TYPE OF
PACKAGING
Ammo
Ammo
Reel
Reel
Bulk
HEIGHT (H)
(mm)
16.5
18.5
16.5
18.5
-
REEL DIAMETER
(mm)
S
(1)
S
(1)
350
350
-
ORDERING CODE
EXAMPLES
MKT1817233255D
MKT1817233255G
MKT1817233255F
MKT1817233255W
MKT1817233255
PITCH
5
x
x
x
x
x
Note
(1)
S = box size 55 mm x 210 mm x 340 mm (w x h x l)
Revision: 08-Jan-15
Document Number: 26032
3
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not Recommended for New Designs, Use MKT370
MKT1817
www.vishay.com
MOUNTING
Normal Use
The capacitors are designed for mounting on printed-circuit boards. The capacitors packed in bandoliers are designed for
mounting in printed-circuit boards by means of automatic insertion machines.
For detailed tape specifications refer to packaging information
www.vishay.com/docs?28139
Specific Method of Mounting to Withstand Vibration and Shock
In order to withstand vibration and shock tests, it must be ensured that the stand-off pips are in good contact with the
printed-circuit board.
• For pitches
15 mm the capacitors shall be mechanically fixed by the leads
• For larger pitches the capacitors shall be mounted in the same way and the body clamped
Space Requirements on Printed-Circuit Board
The maximum space for length (I
max.
), width (w
max.
) and height (h
max.
) of film capacitors to take in account on the printed-circuit
board is shown in the drawings.
• For products with pitch
15 mm,
w
=
l
= 0.3 mm;
h
= 0.1 mm
Eccentricity defined as in drawing. The maximum eccentricity is smaller than or equal to the lead diameter of the product
concerned.
Vishay Roederstein
w
max.
= w +
Δw
Eccentricity
I
max.
= I +
ΔI
CBA116
h
max.
= h +
Δh
Seating plane
SOLDERING CONDITIONS
For general soldering conditions and wave soldering profile, we refer to the document “Characteristics and Definitions Used for
Film Capacitors”:
www.vishay.com/doc?28147
Storage Temperature
T
stg
= -25 °C to +35 °C with RH maximum 75 % without condensation
Ratings and Characteristics Reference Conditions
Unless otherwise specified, all electrical values apply to an ambient free air temperature of 23 °C ± 1 °C, an atmospheric
pressure of 86 kPa to 106 kPa and a relative humidity of 50 % ± 2 %.
For reference testing, a conditioning period shall be applied over 96 h ± 4 h by heating the products in a circulating air oven at
the rated temperature and a relative humidity not exceeding 20 %.
Revision: 08-Jan-15
Document Number: 26032
4
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not Recommended for New Designs, Use MKT370
MKT1817
www.vishay.com
CHARACTERISTICS
6
ΔC/C
(%)
1 kHz
Vishay Roederstein
6
ΔC/C
(%)
4
2
1 kHz
b. 100 V
series
c. 250 V
series
d. 400 V
series
d
max.
4
2
0
a. 63 V
series
max.
c
b
0
typical
typical
-2
a
-2
-4
min.
min.
-4
-6
-60
-20
20
60
T
amb
(°C)
100
-6
- 60
- 20
20
60 T
amb
(°C) 100

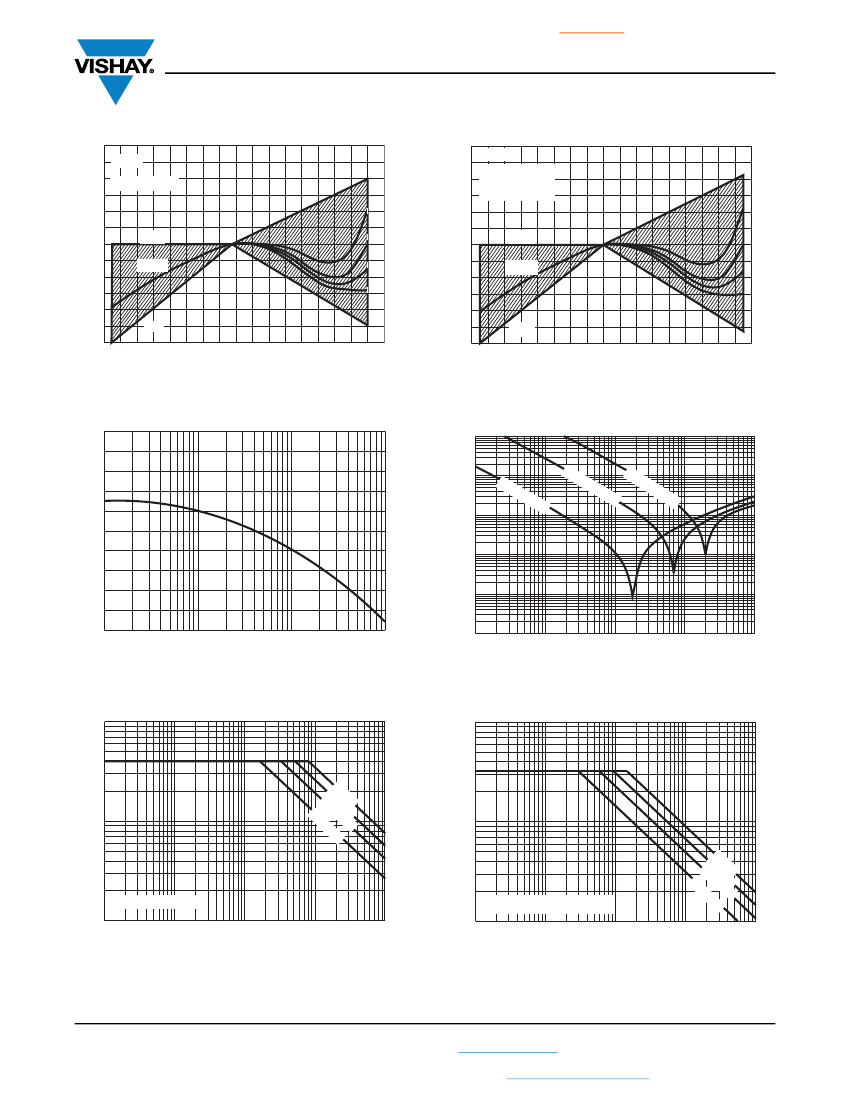

Capacitance as a function of ambient temperature
(typical) for voltage 63 V
Capacitance as a function of ambient temperature
(typical) for voltages > 63 V
1
Impedance
(Ω)
2
ΔC/C
(%)
10
2
10
1
63
V;
1
63
V;
1
µF
25
00
nF
0V
;1
0n
F
0
10
0
-1
10
- 1
-2
10
- 2
-3
10
2
10
3
10
4
f (Hz)
10
5
10
- 3
10
4
10
5
10
6
10
7
f (Hz)
10
8
Capacitance as a function of frequency
(typical curve)
Impedance as a function of frequency
10
2
AC voltage
(V)
10
2
AC Voltage
(V)
10
1
10
22 0 nF
10
0 n
00
F
nF
56
nF
10
1
T
amb
≤ 85 °C, 63 V
DC
85 °C < T
amb
≤ 100 °C, 63 V
DC
10
0
10
22 0 nF
10
0 n
00
F
nF
56
nF
10
0
10
1
10
2
10
3
10
4
f (Hz)
10
5
10
1
10
2
10
3
10
4
f (Hz)
10
5
Max. AC voltage as a function of frequency
Max. AC voltage as a function of frequency
Revision: 08-Jan-15
Document Number: 26032
5
For technical questions, contact:
dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
