DF005M - DF10M
1.0A GLASS PASSIVATED BRIDGE RECTIFIERS
SPICE MODELS: DF005M DF01M DF02M DF04M DF06M DF08M DF10M
Features
·
·
·
·
·
·
·
Glass Passivated Die Construction
Diffused Junction
Low Forward Voltage Drop, High Current
Capability
Surge Overload Rating to 50A Peak
Designed for Printed Circuit Board Applications
Plastic Material - UL Flammability
Classification 94V-0
UL Listed Under Recognized Component
Index, File Number E94661
J
L
K
DF-M
Dim
C
Min
7.40
6.20
0.22
1.27
7.60
3.81
8.13
2.40
5.00
0.46
1.40
2.10
Max
7.90
6.50
0.30
2.03
8.90
4.69
8.51
2.60
5.20
0.58
1.56
2.34
A
B
C
D
E
G
H
B
A
E
H
D
G
Mechanical Data
·
·
·
·
·
·
·
Case: Molded Plastic
Terminals: Solder Plated Leads,
Solderable per MIL-STD-202, Method 208
Also Available in Lead Free Plating (Matte Tin
Finish). Please see Ordering Information,
Note 4, on Page 3
Polarity: As Marked on Case
Approx. Weight: 0.38 grams
Mounting Position: Any
Marking: Type Number
J
K
L
M
N
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Single phase, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
@ T
A
= 40°C
Non-Repetitive Peak Forward Surge Current, 8.3 ms
single half-sine-wave superimposed on rated load
(JEDEC method)
Forward Voltage (per element)
@ I
F
= 1.0 A
Peak Reverse Current
@ T
A
= 25°C
at Rated DC Blocking Voltage (per element) @ T
A
= 125°C
I
2
t Rating for Fusing (t<8.3ms)
Typical Total Capacitance per element (Note 1)
Typical Thermal Resistance, Junction to Ambient (Note 2)
Operating and Storage Temperature Range
Notes:
Symbol
V
RMM
V
RWM
V
R
V
RMS
I
O
I
FSM
V
FM
I
RM
I
2
t
C
T
R
qJA
T
j
, T
STG
DF
005M
50
35
@ T
A
= 25°C unless otherwise specified
DF
01M
100
70
DF
02M
200
140
DF
04M
400
280
1.0
50
1.1
10
500
10.4
25
40
-65 to +150
DF
06M
600
420
DF
08M
800
580
DF
10M
1000
700
Unit
V
V
A
A
V
µA
A
2
s
pF
°C/W
°C
1. Measured at 1.0MHz and Applied Reverse Voltage of 4.0V DC.
2. Thermal Resistance, junction to ambient, measured on PC board with 5.0
2
mm (0.03mm thick) land areas.
DS21201 Rev. 10 - 2
1 of 3
www.diodes.com
DF005M-DF10M
ã
Diodes Incorporated
I
(AV)
, AVERAGE FORWARD CURRENT (A)
60 Hz Resistive or
Inductive load
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
1.0
10
1.0
0.5
0.1
0
40
60
80
100
120
140
0.01
0.4
0.6
0.8
1.0
1.2
1.4
T
A
, AMBIENT TEMPERATURE (°C)

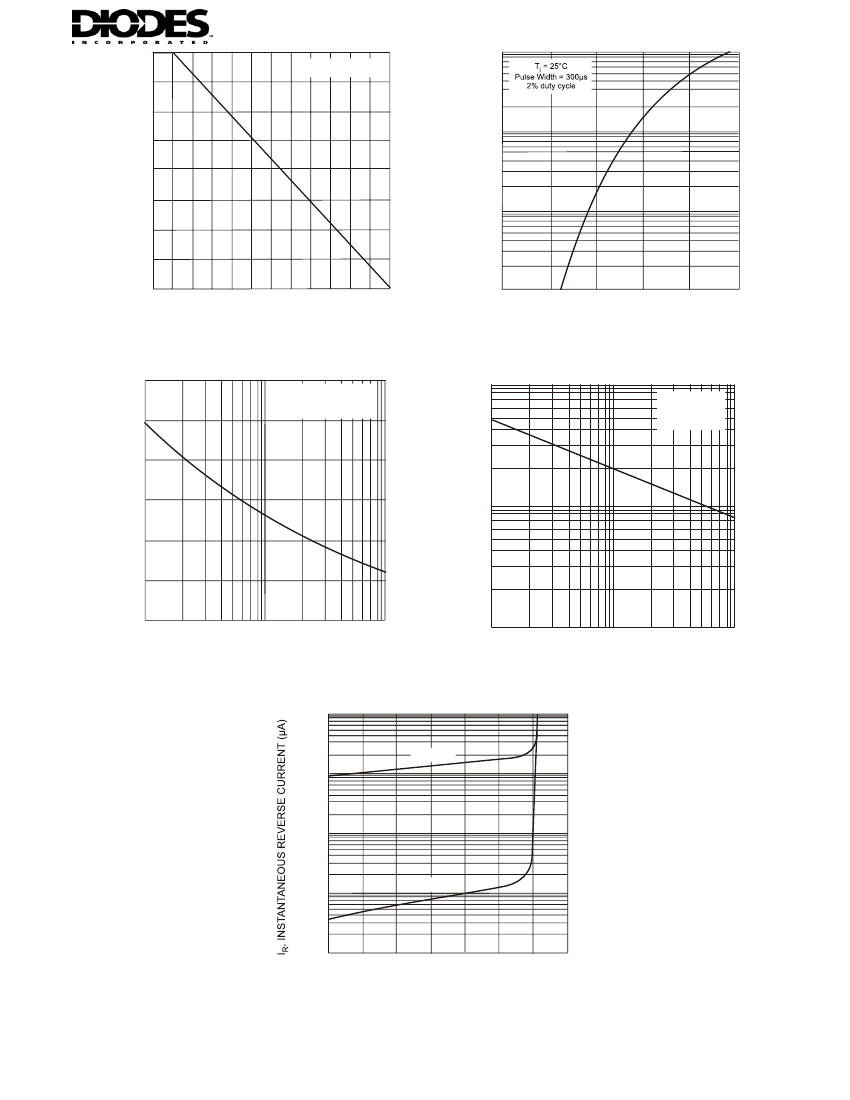

Fig. 1 Output Current Derating Curve
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typ Forward Characteristics (per element)
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
60
Single half-sine-Wave
(JEDEC Method)
100
T
j
= 25°C
f = 1.0 Mhz
Vsig = 50 mV p-p
50
40
30
C
T
, CAPACITANCE (pF)
1
10
100
10
20
10
0
1
1
10
100
NUMBER OF CYCLES AT 60 Hz
Fig. 3 Max Non-Repetitive Peak Forward Surge Current
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typ Junction Capacitance (per element)
100
T
j
= 125°C
10
1.0
0.1
T
j
= 25°C
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 5 Typ Reverse Characteristics (per element)
DS21201 Rev. 10 - 2
2 of 3
www.diodes.com
DF005M-DF10M
Ordering Information
Device*
DFxM
DFxM-T
(Notes 3 & 4)
Packaging
DF-M
DF-M
Shipping
Tube
1500/Tape & Reel, 13-inch
* x = Device type, e.g. DF005S or DF10S, etc.
Notes:
3. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
4. For lead free terminal plating part number, please add "-F" suffix to part number above. Example: DF10M-T-F.
Marking Information
XXXXX
YWW
= Manufacturers’ code marking
XXXXX = Product type marking code, ex: DF10M
YWW = Date code marking
Y = Last digit of year ex: 2 for 2002
WW = Week code 01 to 52
DS21201 Rev. 10 - 2
3 of 3
www.diodes.com
