GCM2165C2A302JA16J datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> GCM2165C2A302JA16J

GCM2165C2A302JA16J: DescriptionCeramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.003uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size41KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

GCM2165C2A302JA16J Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GCM2165C2A302JA16J	-	-	View	Buy Now

GCM2165C2A302JA16J Overview

Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.003uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT

GCM2165C2A302JA16J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	14 weeks
capacitance	0.003 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.6 mm
JESD-609 code	e3
length	2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 13 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	100 V
Guideline	AEC-Q200
size code	0805
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	1.25 mm
Base Number Matches	1

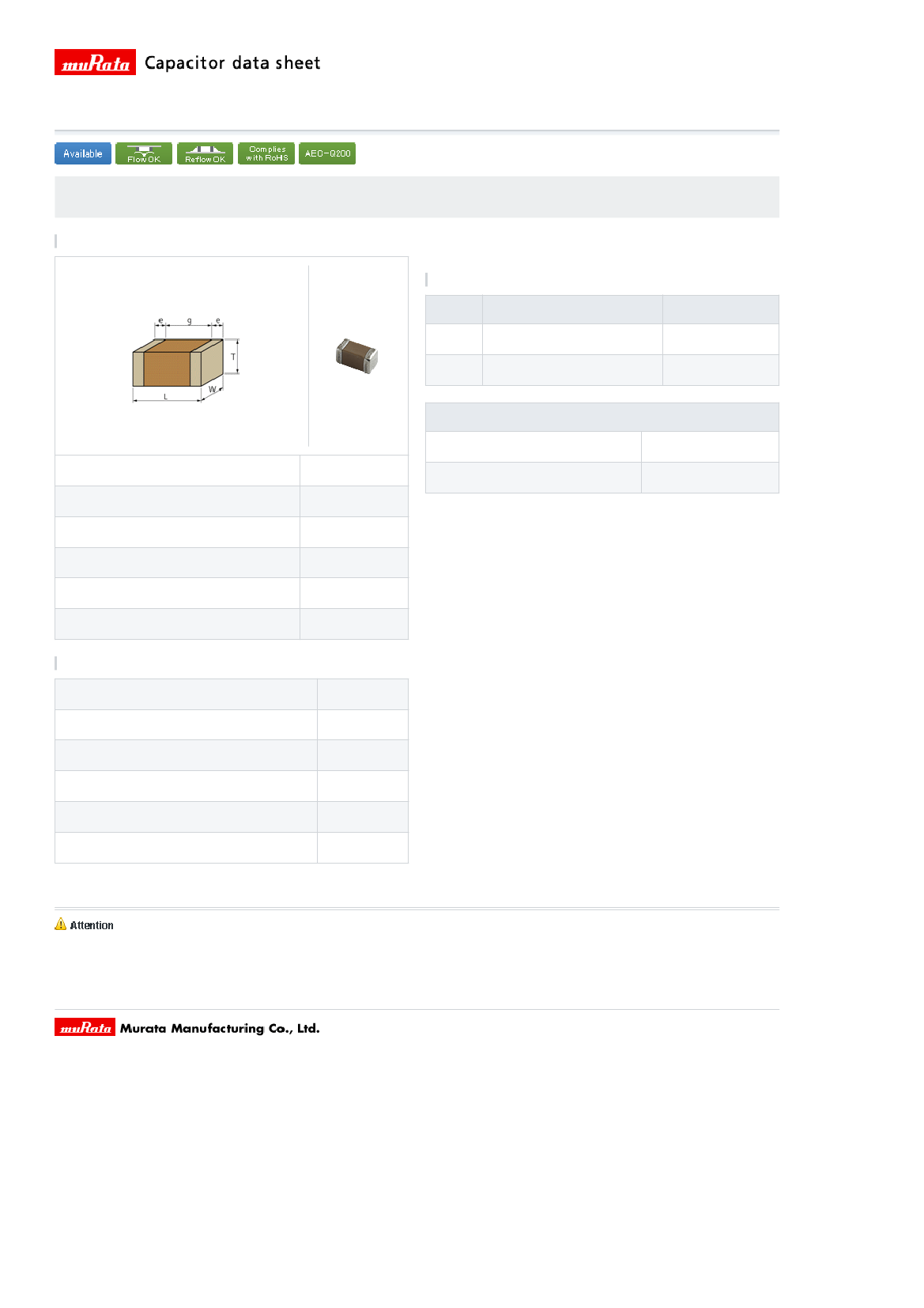

Preview

Download Datasheet

View All

GCM2165C2A302JA16#

# indicates a package specification code.

< List of part numbers with package codes >

GCM2165C2A302JA16D , GCM2165C2A302JA16J

Shape

References

Packaging

Specifications

φ180mm Paper taping

φ330mm Paper taping

Minimum quantity

4000

10000

Mass (typ.)

1 piece

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

2.0 ±0.15mm

1.25 ±0.15mm

0.6 ±0.1mm

0.2 to 0.7mm

0.7mm min.

0805 (2012)

φ180mm Reel

6.4mg

126g

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Temperature coefficient

Temperature range of temperature characteristics

Operating temperature range

3000pF ±5%

100Vdc

C0G(EIA)

0±30ppm/℃

25 to 125℃

-55 to 125℃

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.co.jp/

Last updated: 2013/11/19
