557UHL150T150DJ1E datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 557UHL150T150DJ1E

557UHL150T150DJ1E: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 150V, 50% +Tol, 10% -Tol, 15uF, Through Hole Mount, AXIAL LEADED; CategoryPassive components capacitor; File Size66KB，4 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric View All

557UHL150T150DJ1E Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 150V, 50% +Tol, 10% -Tol, 15uF, Through Hole Mount, AXIAL LEADED

557UHL150T150DJ1E Parametric

Parameter Name	Attribute value
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	15 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	6200 mΩ
JESD-609 code	e0
leakage current	0.005 mA
Manufacturer's serial number	557UHL
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
polarity	POLARIZED
positive tolerance	50%
Rated (DC) voltage (URdc)	150 V
ripple current	180 mA
surface mount	NO
Terminal surface	TIN LEAD
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

Type 557 UHL, 125

°C

Military Grade, Axial Leaded, Aluminum

Ultra-High Temperature Capability

Designed for data and mobile communications and

military applications requiring extra high temperature

and longest life. Type 557 UHL is the

equivalent of MIL-C-39018/01 (CU13) with high

frequency vibration capabilities to 15g at 2,000 Hz.

Highlights

Long life

High Temperature

High Frequency Vibration Capabilities

Specifications

Operating Temperature:

Rated Voltage:

Capacitance:

Capacitance Tolerance:

Leakage Current:

55 °C to +125 °C

5 to 200 Vdc (7 to 250 Vdc @ 85 °C)

5.6 to 1000 F

5 to 60 Vdc 10 + 75%, 75 to 200 Vdc 10 + 50%

Case Size

+ 25 C +85/125 C Case Size

+25 C +85/125 C

3/8 x 15/16

3 A

18 A

3/8 x 2 3/16

7 A

42 A

3/8 x 1-1/8

3 A

18 A

3/8 x 2 11/16 10 A

60 A

3/8 x 1-3/8

4 A

24 A

3/8 x 1-5/8

5 A

32 A

Multiply by 2 for 200 & 250 Vdc

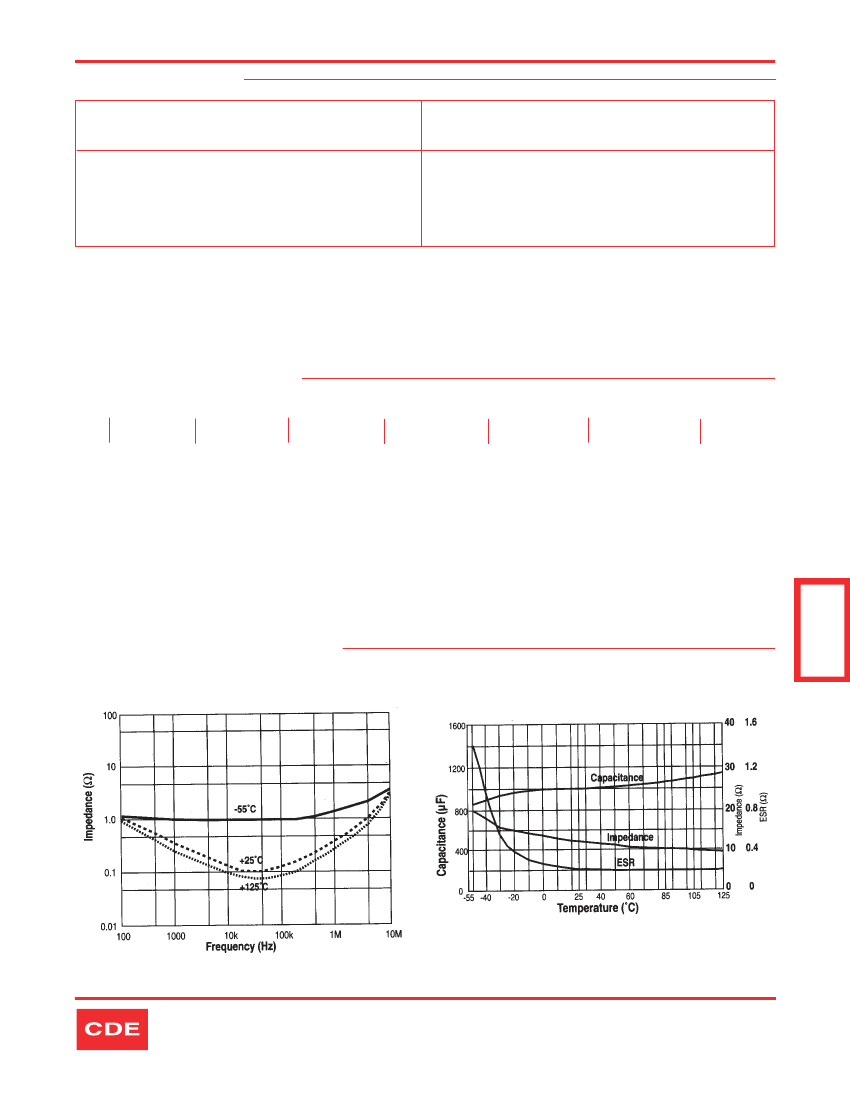

Ambient Temperature

45 °C

1.41

556

p 2.155

Ripple Current Multiplier:

55 °C

1.32

65 °C

1.22

75 °C

1.12

85 °C

1.00

95 °C

0.87

105 °C

0.71

Frequency

Aluminum

Axial Leaded

Capacitors

556

p 2.155

volts

0-60 Vdc

61-200 Vdc

Load Life:

50 Hz

0.85

0.83

60 Hz

1.00

120 Hz

1.10

1.15

360 Hz 1 kHz

1.15

1.20

5 kHz

1.15

1.20

10 kHz+

1.15

1.20

Shelf Life:

Vibration:

2,000 h @ +125 °C, 10,000 h @ +85 °C

Capacitance 15%

ESR 130% of limit

DCL 100% of limit

500 h @ +125 °C,

Capacitance 10%

ESR 115% of limit

DCL 200% of limit

10 to 2000 Hz; 0.06” and 15 g max, 2 h in each plane

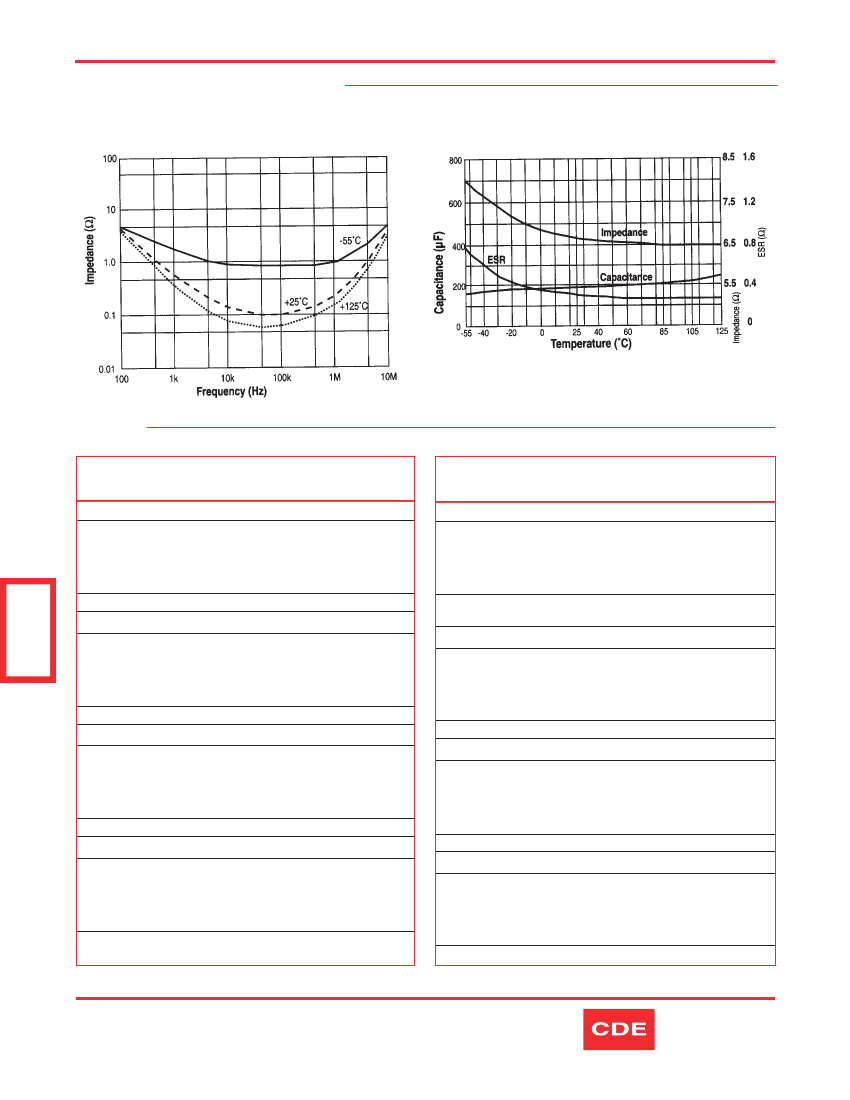

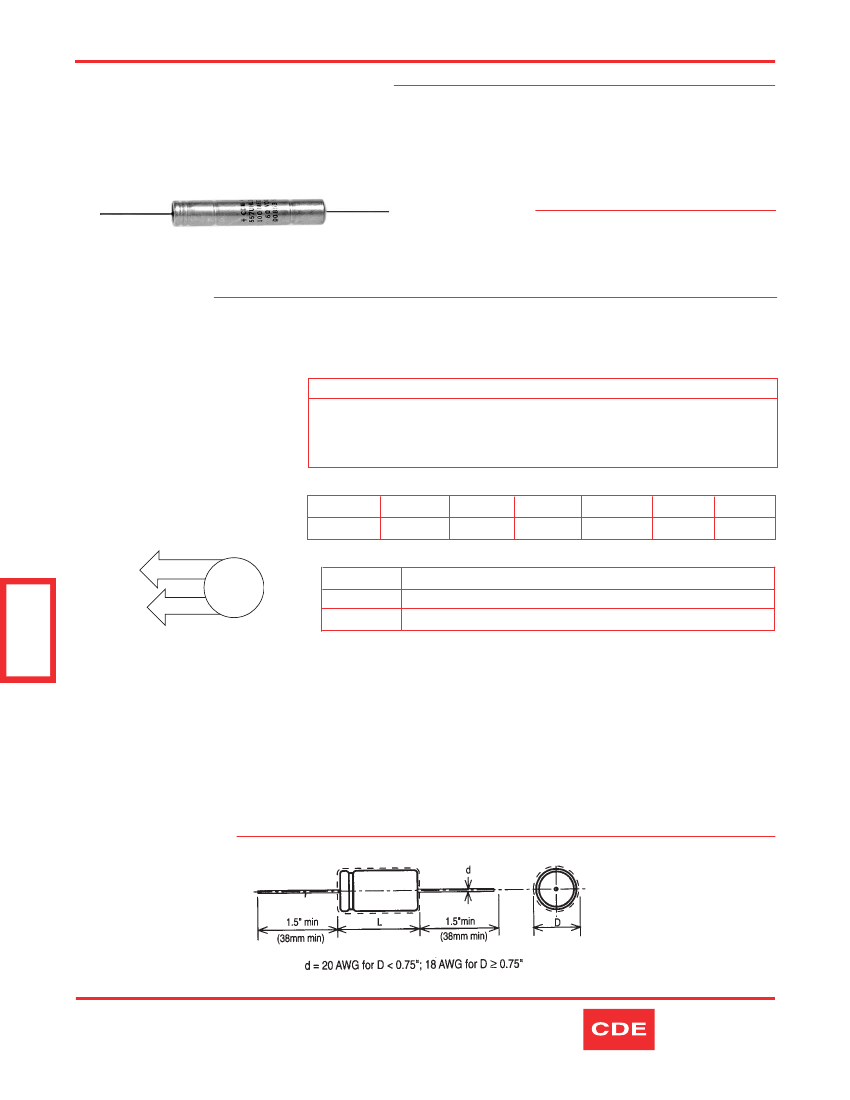

Outline Drawings

2.170

140 Technology Place

Liberty, SC 29657

Phone (864) 843-2277, Fax (864) 843-3800

http://www.cornell-dubilier.com

E-mail: cde@cornell-dubilier.com

CORNELL

DUBILIER

Your Source For Capacitor Solutions
