DS9075-40V datasheet, PDF - EEWORLD Datasheet

DS9075-40V: DescriptionBoard Connector Adapter, 40 Contacts(Side1), 40 Contacts(Side2), Male, Cable Mount; CategoryThe connector The connector; File Size25KB，1 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

DS9075-40V Overview

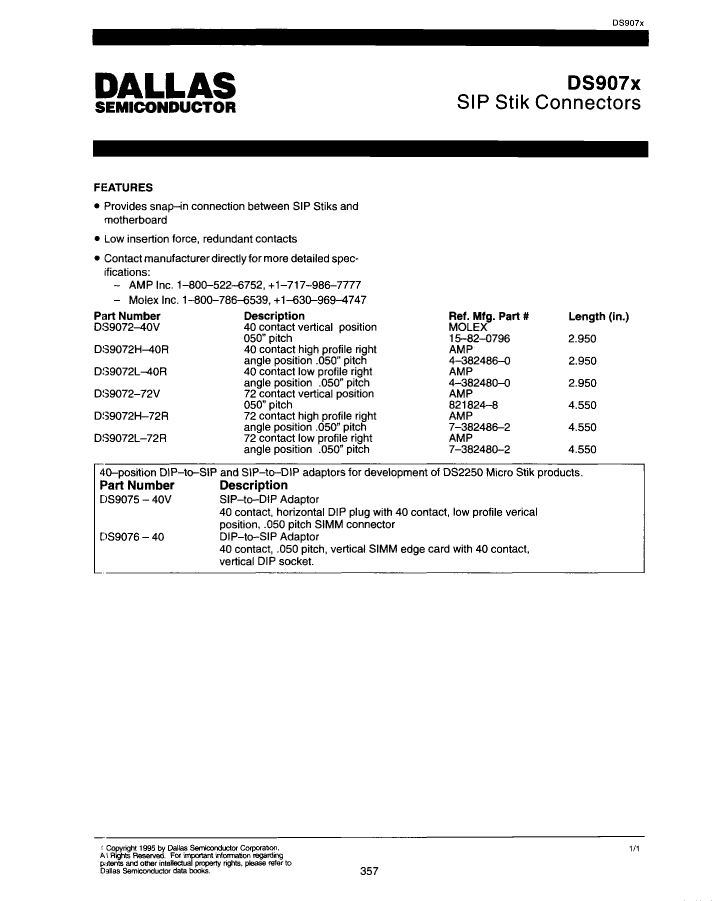

Board Connector Adapter, 40 Contacts(Side1), 40 Contacts(Side2), Male, Cable Mount

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Reach Compliance Code	compliant
Other features	LOW PROFILE
Body/casing type	PLUG
Connector type	BOARD CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN LEAD
Contact point gender	MALE-MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
触点数量:侧 1	40
触点数量:侧 2	40
Number of rows loaded	1
direct connection	YES
Base Number Matches	1

	DS9075-40V	DS9076-40	DS9072L-40R
Description	Board Connector Adapter, 40 Contacts(Side1), 40 Contacts(Side2), Male, Cable Mount	Board Connector Adapter, 40 Contacts(Side1), 40 Contacts(Side2), Female, Cable Mount	Card Edge Connector, 40 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant
Connector type	BOARD CONNECTOR ADAPTER	BOARD CONNECTOR ADAPTER	CARD EDGE CONNECTOR
Contact point gender	MALE-MALE	FEMALE-FEMALE	FEMALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation type	CABLE	CABLE	BOARD
Number of rows loaded	1	1	1
Base Number Matches	1	1	1
Maker	Maxim	Maxim	-
Other features	LOW PROFILE	-	LOW PROFILE
Body/casing type	PLUG	SOCKET	-
触点数量:侧 1	40	40	-
触点数量:侧 2	40	40	-
direct connection	YES	YES	-
