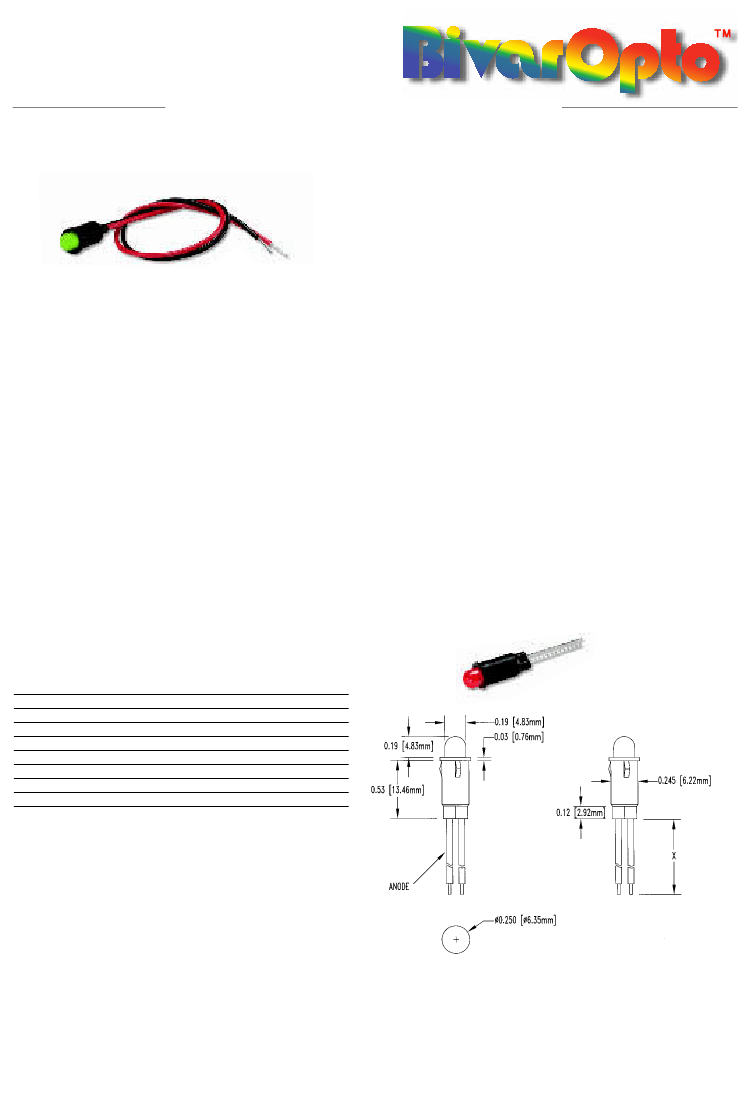

PM5 Series Panel Mount Assemblies
x
Available In A Wide Range Of Voltages
x
Press Fit Mounting Lowers Labor And
Assembly Cost
x
6" 24AWG Wire Leads At No Additional Cost
x
Wide Variety Of Connectors Available
Mounting Information:
Press-fit mounting in 0.250 [7.11mm] hole
Panel Thickness: 0.047 [1.2mm] to 0.093 [2.4mm]
Material Specifications:
Housing: UL Rated 94V-0, Black, 6 Nylon per
ASTM D4066 PA111
Oxygen Index: +28%
Optional Wire Leads: 24AWG U.L. 1007 Cathode-Black,
Anode-Red
Application Notes:
Wire leads from 2.5" to 48" are available subject to special
quotation. Please consult Bivar at 1-800-SPACERS for additional
information.
Many connectors are available as well as customer specified
connectors. Subject to quotation.
Ordering Information:
PM5
G
D
Series
Color
Lens
Color Options and Suffixes:
Suffix
G
H
Y
SR
O
A
BW
BC
Color
Green
High Efficiency Red
Yellow
Super Red
Orange
Amber
Blue
Red/Green Bi-Color
Peak (nm)
565nm
635nm
585nm
660nm
635nm
610nm
430nm
635/565
Typ. Vf
2.0
2.0
2.0
2.0
2.0
2.0
3.5
2.0
Lens Choices:
D
Color Diffused
C
Water Clear
T
Tinted Non-diffused
Special:
L
5V
12V
Leads:
“Blank”
Wx
Options:
– CC
– CC2
2mA Low Current
5 Volt Integrated Resistor
12 Volt integrated resistor
Terminal Leads
24AWG Wire Leads
(Replace the “X” with the length in inches)
Standard 0.100" [2.54mm] pitch
header connector (See Page 52)
Miniature 0.079" [2.00mm] pitch
header connector (See Page 52)
5V
Special
W6
Leads
– CC
Options
Please Note that all BC LEDs
come with white diffused lens.
PM5BCW6-xx
PM5BC
Cage Code (FSCM) 32599 © Copyright 2002 Bivar Inc.
