RMBS2037R40DS09 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RMBS2037R40DS09

RMBS2037R40DS09: DescriptionRESISTOR, WIRE WOUND, 2 W, 0.5 %, 20 ppm, 37.4 ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size111KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

RMBS2037R40DS09 Overview

RESISTOR, WIRE WOUND, 2 W, 0.5 %, 20 ppm, 37.4 ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

RMBS2037R40DS09 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2038500620
package instruction	Axial,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.05
Other features	PRECISION
structure	Axial
JESD-609 code	e3/e1
Lead diameter	0.8 mm
Lead length	25 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	275 °C
Package diameter	6.4 mm
Package length	16.2 mm
Package shape	TUBULAR PACKAGE
Package form	Axial
method of packing	BULK
Rated power dissipation(P)	1.6 W
Rated temperature	70 °C
resistance	37.4 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	WIRE WOUND
Temperature Coefficient	-20,0 ppm/°C
Terminal surface	MATTE TIN/TIN SILVER COPPER
Terminal shape	WIRE
Tolerance	0.5%
Operating Voltage	200 V

Preview

Download Datasheet

View All

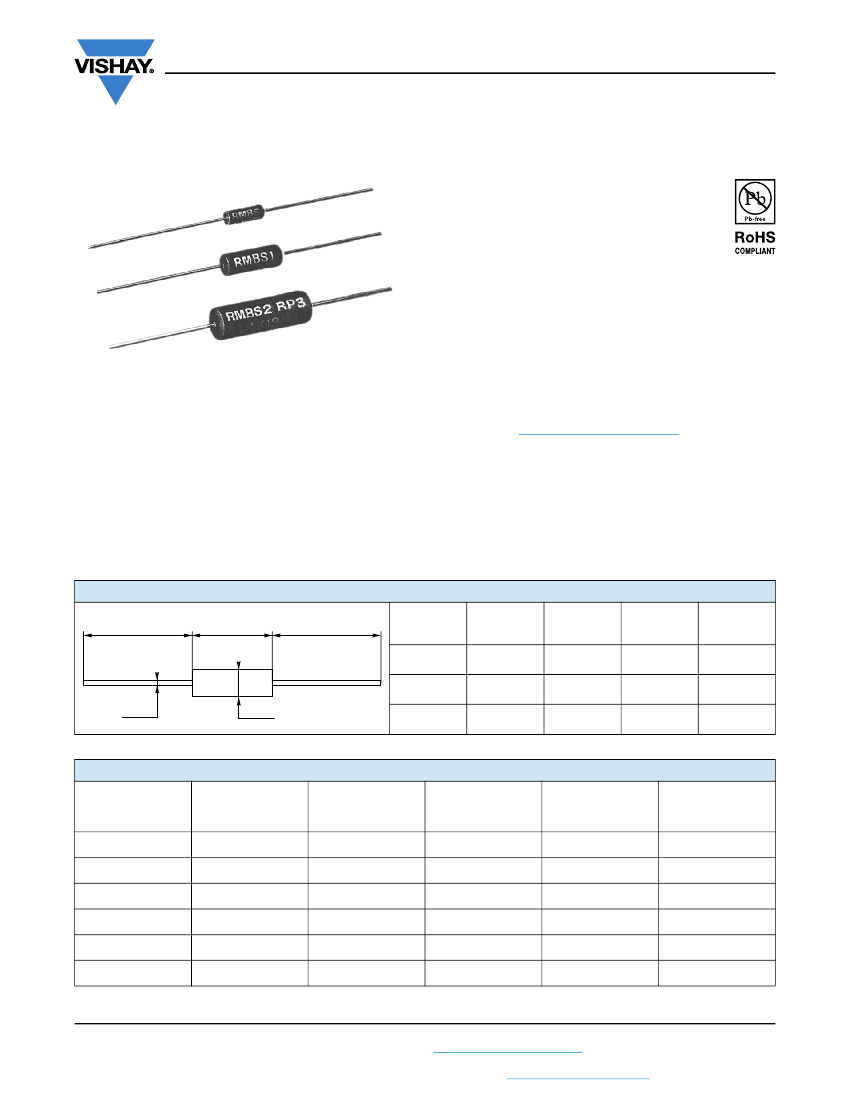

RMB, RMBS

www.vishay.com

Vishay Sfernice

Molded Precision Wirewound Resistors

Axial Leads

FEATURES

• 0.75 W to 3 W at 25 °C

• NF C 83-210

• According to CECC 40201-005

• Low temperature coefficient



± 50 ppm/°C

• Low ohmic values 15 m available

• Excellent behavior against humidity

• Electrical insulation

• Mechanical strength

• Accurate sizes

• Termination = Sn / Ag / Cu or pure matte tin according to

the ohmic value

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

High stability and low temperature coefficient are the main features of the precision wirewound resistors type RMB RMBS

models just as maintenance parts. Their performances can be compared with those of the best film resistors but they have in

addition a greater power rating. RMBS styles meet the more severe requirements of NF C 83-210 and characteristic U of

MIL-R-26 E (approximate size of RW 70 and 79 resistors) specifications. The two models RMB and RMBS have a similar

construction. RMBS are submitted, in addition to a process which further increases the stability. On request, non-inductive

resistors are available under the reference RMB NI.

DIMENSIONS

in millimeters

25 min.

SERIES

AND

STYLE

RMB0.75

RMBS0.5

RMB1.5

RMBS1

max.

10.2

16.2

ØB

max.

2.5

6.4

E ± 0.1

0.6

0.8

WEIGHT

0.3

0.7

1.5

ØE

ØB

RMB3

RMBS2

STANDARD ELECTRICAL SPECIFICATIONS

MODEL

SIZE

RESISTANCE

RANGE



0.1 to 2K

0.1 to 6.81K

0.051 to 13K

0.1 to 2K

0.1 to 6.81K

0.015 to 13K

RATED POWER

25 °C

0.75

1.5

0.5

LIMITING ELEMENT

VOLTAGE

n/a

120

200

n/a

120

200

TOLERANCE

±%

0.1, 0.5, 1, 2, 5

RMB0.75

RMB1.5

RMB3

RMBS0.5

RMBS1

RMBS2

075

105

300

Revision: 22-Mar-2019

Document Number: 50010

For technical questions, contact:

sferfixedresistors@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
