28S147-302N5-RO datasheet, PDF

Datasheet> All Categories > The connector> The connector> 28S147-302N5-RO

28S147-302N5-RO: DescriptionRF QMA Connector, Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size61KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

28S147-302N5-RO Overview

RF QMA Connector, Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT

28S147-302N5-RO Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	APPLICABLE CABLES: RG 316 /U; RG 174 A/U; RG 188 A/U, VSWR AND INSERTION LOSS MAX AT: 6 GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF QMA CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.12 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	28S147-302N5
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.12
Base Number Matches	1

Preview

Download Datasheet

View All

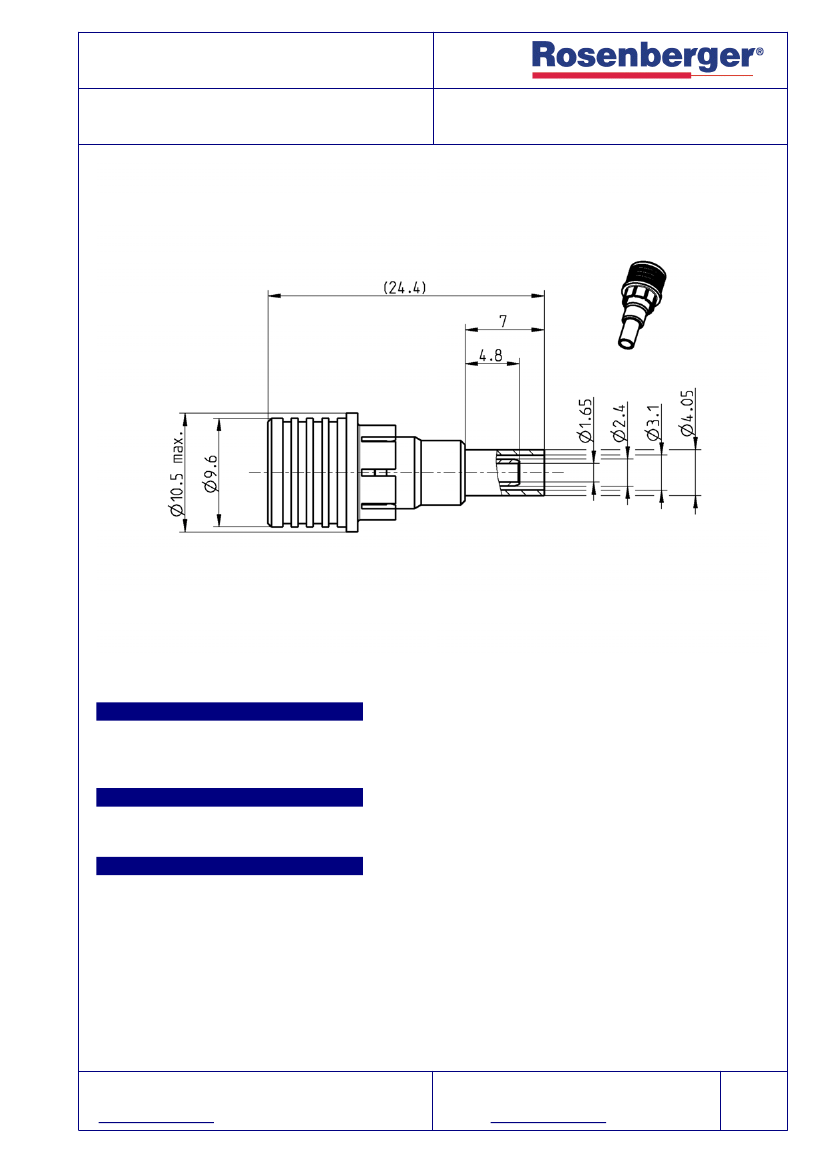

TECHNICAL DATA SHEET

QMA

STRAIGHT PLUG

28S147-302N5-YY *

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

Rosenberger 28S000-000, series QMA

Rosenberger is an authorised QLF® manufacturer

Documents

Assembly instruction

28 D

Material and plating

Connector parts

Center contact

Outer contact

Body

Dielectric

Crimping ferrule

Unlocking sleeve

Material

Brass

Spring bronze

Brass

PTFE

Copper

POM

Plating

AuroDur, gold plated

White bronze(e.g. Optalloy®)

Flash white bronze over silver(e.g. Optargen®)

available in different colours *

* The colour is defined in the part number by the colour code YY: bl=blue, gn=green, ro=red, sw=black

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2

28S147-302N5-RO Related Products

	28S147-302N5-RO	28S147-302N5-BL	28S147-302N5-GN	28S147-302N5-SW
Description	RF QMA Connector, Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT	RF QMA Connector, Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT	RF QMA Connector, Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT	RF QMA Connector, Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compli	compliant	compliant	compliant
Other features	APPLICABLE CABLES: RG 316 /U; RG 174 A/U; RG 188 A/U, VSWR AND INSERTION LOSS MAX AT: 6 GHZ	APPLICABLE CABLES: RG 316 /U; RG 174 A/U; RG 188 A/U, VSWR AND INSERTION LOSS MAX AT: 6 GHZ	APPLICABLE CABLES: RG 316 /U; RG 174 A/U; RG 188 A/U, VSWR AND INSERTION LOSS MAX AT: 6 GHZ	APPLICABLE CABLES: RG 316 /U; RG 174 A/U; RG 188 A/U, VSWR AND INSERTION LOSS MAX AT: 6 GHZ
Body/casing type	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF QMA CONNECTOR	RF QMA CONNECTOR	RF QMA CONNECTOR	RF QMA CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insertion loss	0.12 dB	0.12 dB	0.12 dB	0.12 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	28S147-302N5	28S147-302N5	28S147-302N5	28S147-302N5
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	18 GHz	18 GHz	18 GHz	18 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
voltage standing wave ratio	1.12	1.12	1.12	1.12
Base Number Matches	1	1	1	1
